DeviceFlow Validation

URS-078 · Recertification required for a new certification version

Title: Recertification required for a new certification version Date: 2026-09-29T02:30:59.671Z Duration: 69.7s Overall Status: ✅ PASS

User Requirement

Section titled “User Requirement”

The system shall require recertification when a newer certification version supersedes the version a representative completed, re-engaging the per-manufacturer action block until the current version is completed, preserving the prior completion record unchanged while linking the new completion to it, and re-engaging the block per manufacturer when a new mandatory certification requirement is introduced.

Source: User_Requirement_Specifications_Vantis_DeviceFlow.xlsx — the run below proves the system meets this requirement.

Environment

Section titled “Environment”

Setup

Section titled “Setup”

Status: ✅ PASS

Test Steps

Section titled “Test Steps”

Each step below corresponds to one Playwright test that ran sequentially. Screenshots and video recordings provide visual evidence of the UI behaviour.

1. Step 1a: Gate re-engaged for superseded version — ✅ PASS

Section titled “1. Step 1a: Gate re-engaged for superseded version — ✅ PASS”

What this step proves:

A representative who completed version 1 of the manufacturer’s required certification opens bill-only and order-request creation after version 2 was published. The manufacturer is absent from both manufacturer pickers with a ‘Certification required’ notice, and the certification checklist offers the updated training form again — not an already-certified state — despite the completed version-1 record.

Screenshots:

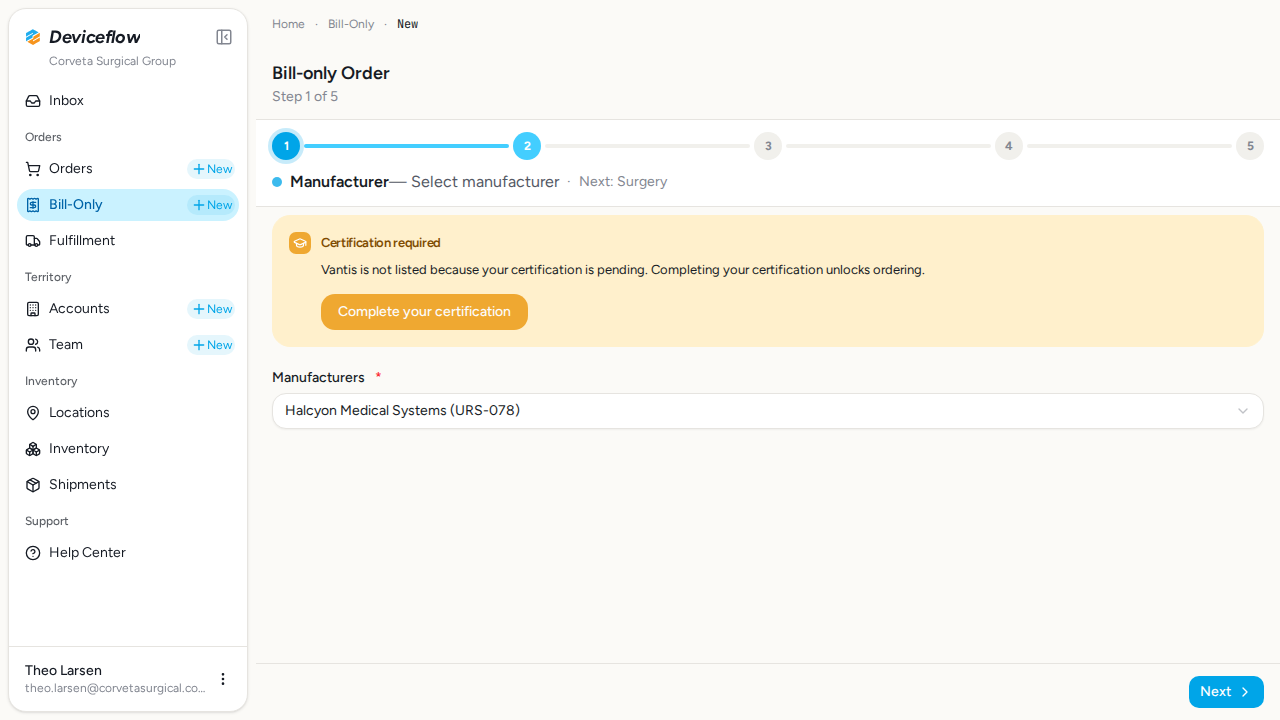

step 01 billing blocked

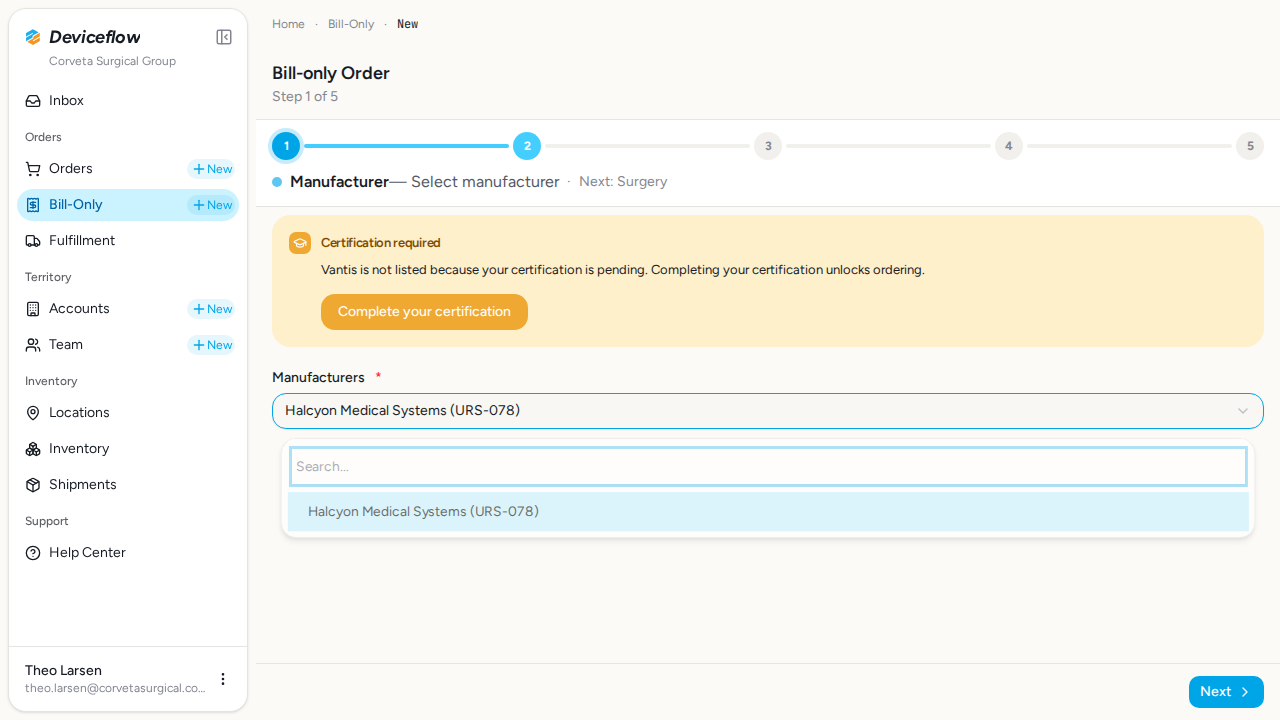

step 01 billing picker

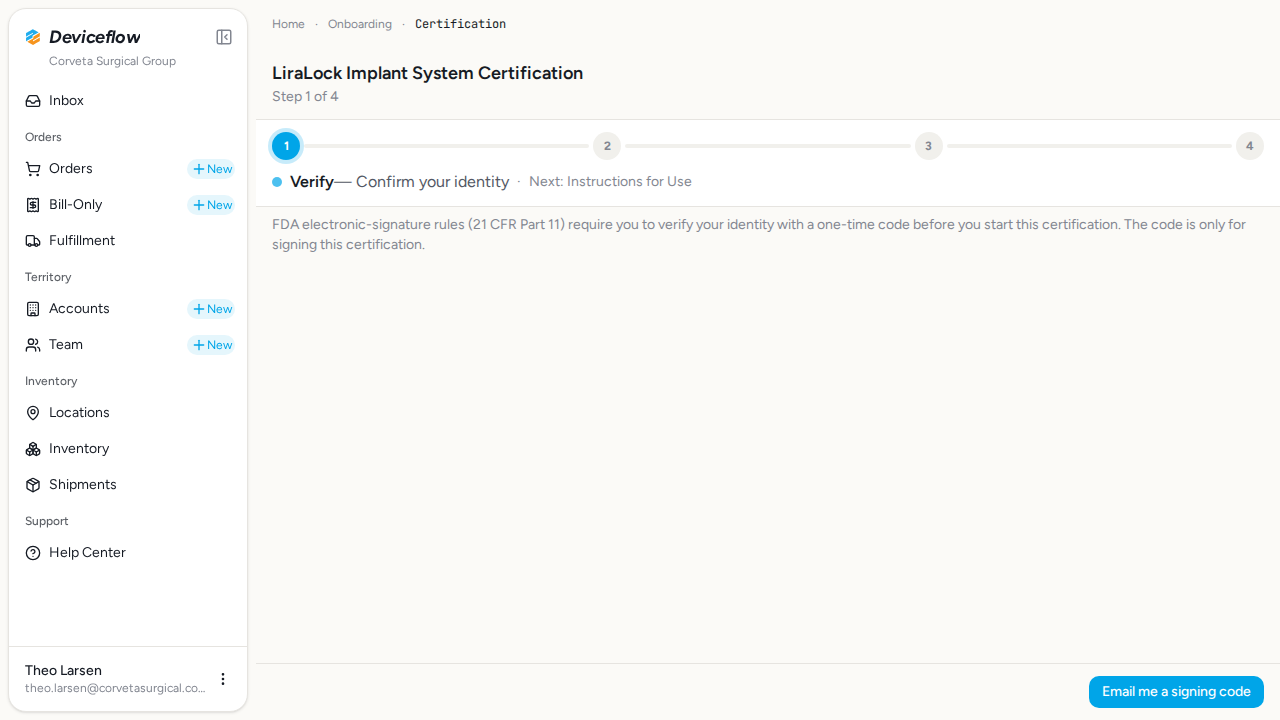

step 01 training offered again

Video recording:

2. Step 1b: Trunk order requests allowed while pending — ✅ PASS

Section titled “2. Step 1b: Trunk order requests allowed while pending — ✅ PASS”

Screenshots:

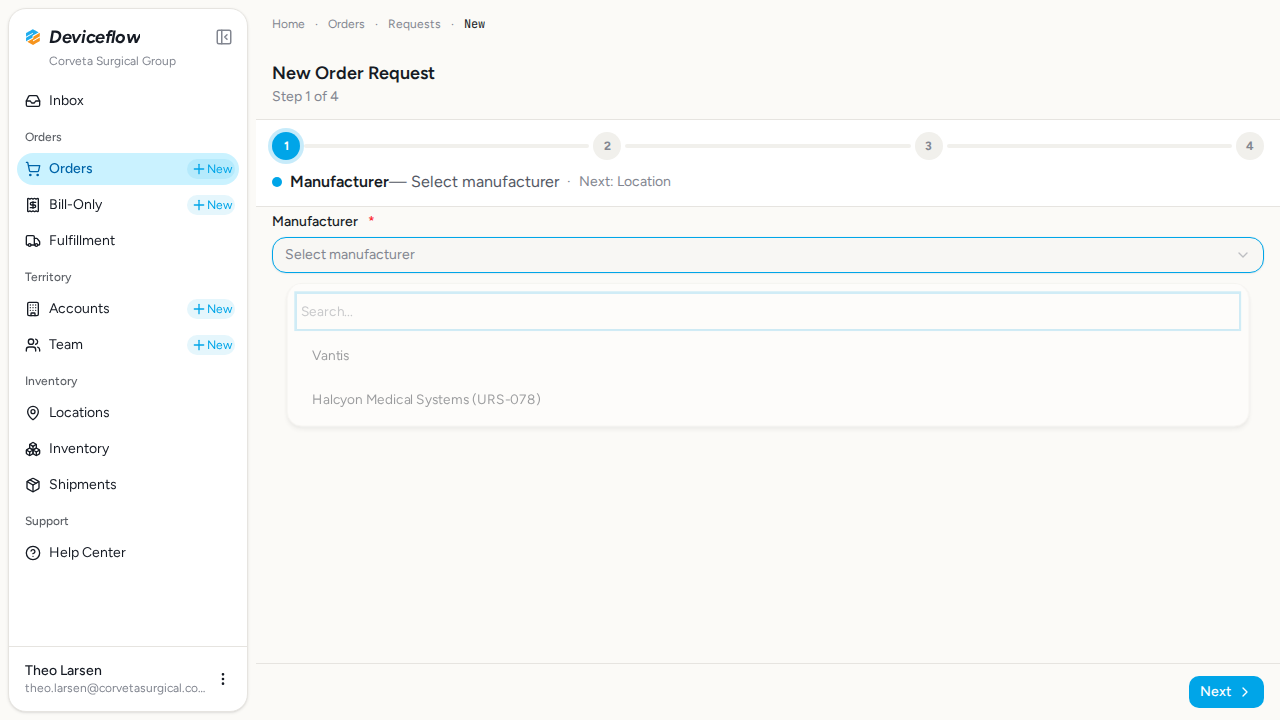

step 01 orders trunk allowed

3. Step 2: Recompletion creates a new record — ✅ PASS

Section titled “3. Step 2: Recompletion creates a new record — ✅ PASS”

What this step proves:

The representative completes version 2 behind the Part 11 signing re-authentication gate, using the MAGIC LINK path: a one-time signing code is requested, read out of the email the system sent, and carried into the page through the emailed link, which verifies it and strips the code from the URL. The representative then acknowledges the updated training document (timestamped server-side), passes the knowledge check at 100%, signs, and receives a fresh certificate. The recompletion writes a NEW certification record that supersedes the version-1 record; the historical record is never modified. The manufacturer immediately reappears in the pickers.

Audit events generated by this step:

(Evidence scoped to step execution window: 2026-09-29T02:31:31.492Z → 2026-09-29T02:31:52.426Z)

TimeTypeActionUserOrgPerformed
2026-09-29 02:31:32Ztransactional_emailcertification_signing_code—Vantis—
2026-09-29 02:31:33Zcertificationsigning_code_verifiedtheo.larsen@corvetasurgical.comVantis—
2026-09-29 02:31:42Zdecisionforms.grade_submissiontheo.larsen@corvetasurgical.comVantisyes
2026-09-29 02:31:46Zcertificationsigning_code_consumedtheo.larsen@corvetasurgical.comVantis—
2026-09-29 02:31:46Zcertificationcompletedtheo.larsen@corvetasurgical.comVantis—
2026-09-29 02:31:46Zcertificationsupersededtheo.larsen@corvetasurgical.comVantis—
2026-09-29 02:31:46Zorganization_representationstatus_changetheo.larsen@corvetasurgical.comVantis—
2026-09-29 02:31:46Zdecisioncertifications.complete_certification.mark_relationship_certifiedtheo.larsen@corvetasurgical.comVantisyes
2026-09-29 02:31:46Zdecisioncertifications.complete_certification.issue_certificatetheo.larsen@corvetasurgical.comVantisyes
2026-09-29 02:31:46Zuser_logrep_relationship_certifiedtheo.larsen@corvetasurgical.comVantis—
2026-09-29 02:31:47Zcertification_certificateissuedtheo.larsen@corvetasurgical.comVantis—
2026-09-29 02:31:47Zcertification_completion_recordissuedtheo.larsen@corvetasurgical.comVantis—

Emails triggered by this step:

(Evidence matched by declared name — step timing not available or no events fell in window)

Email 1: Your signing code for LiraLock Implant System Certification

Template: Your_signing_code_for_LiraLock_Implant_System_Certification

Your signing code for LiraLock Implant System Certification

Screenshots:

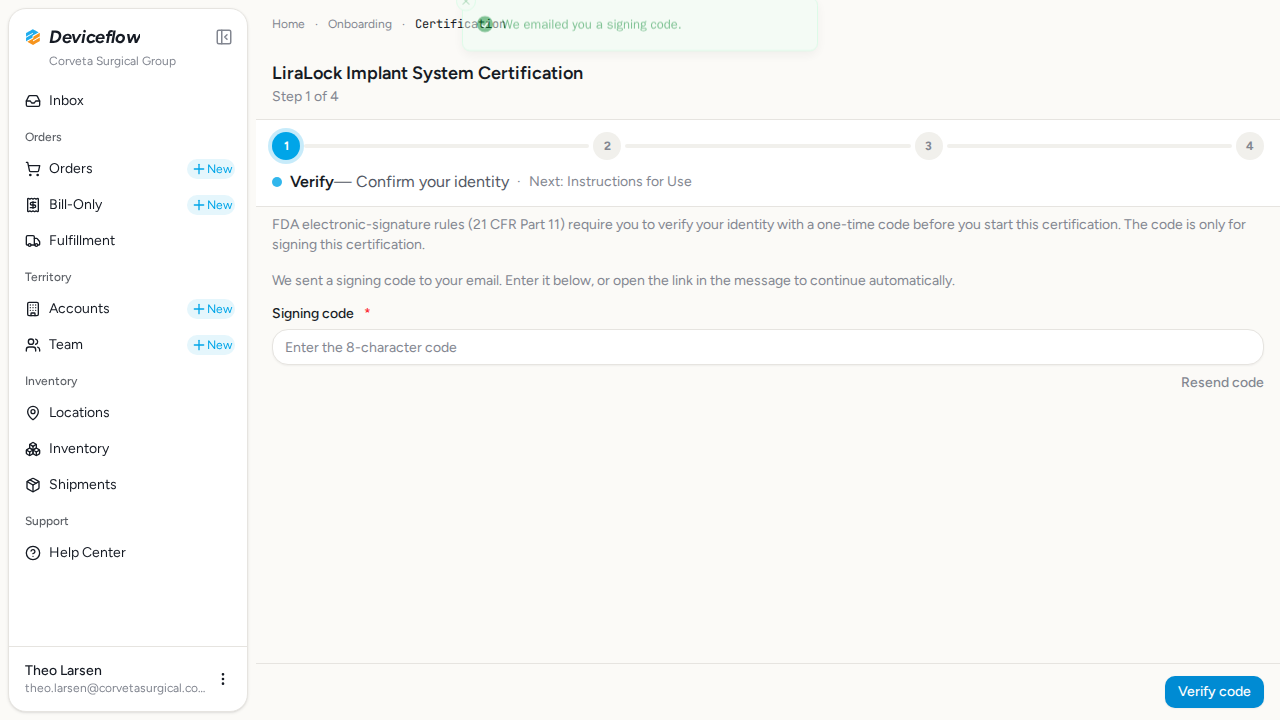

step 02 signing code sent

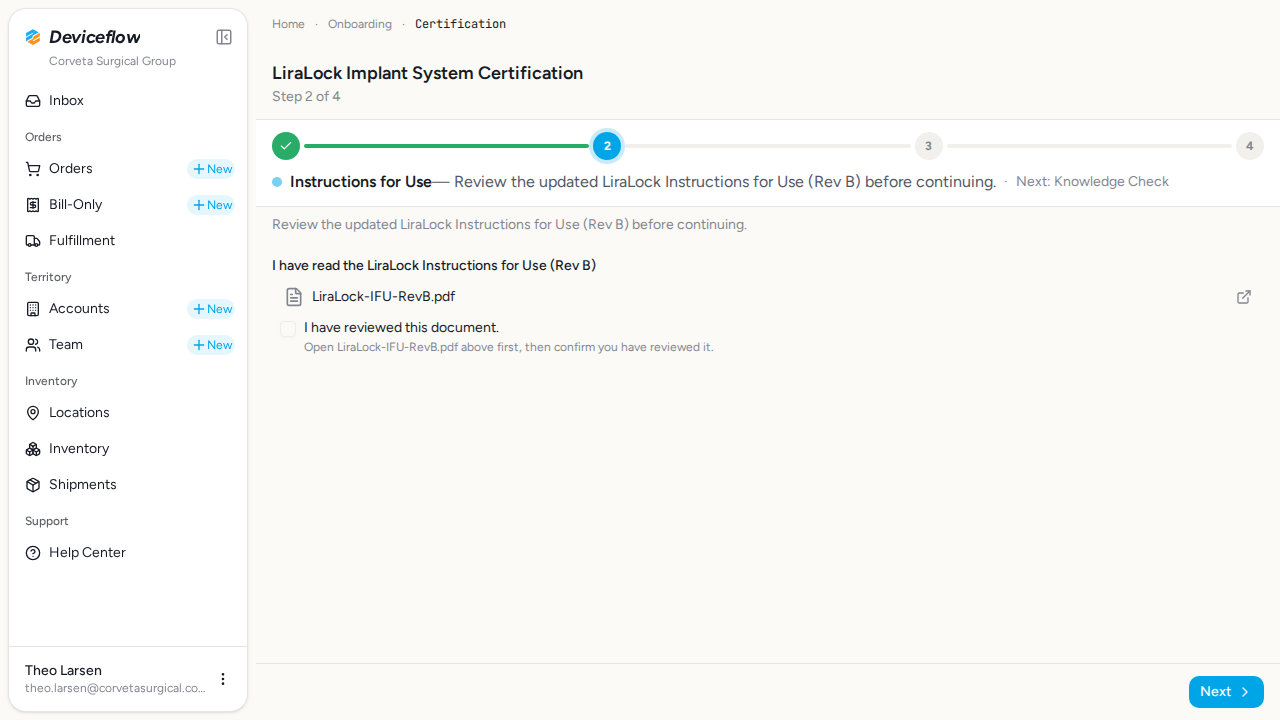

step 02 magic link verified

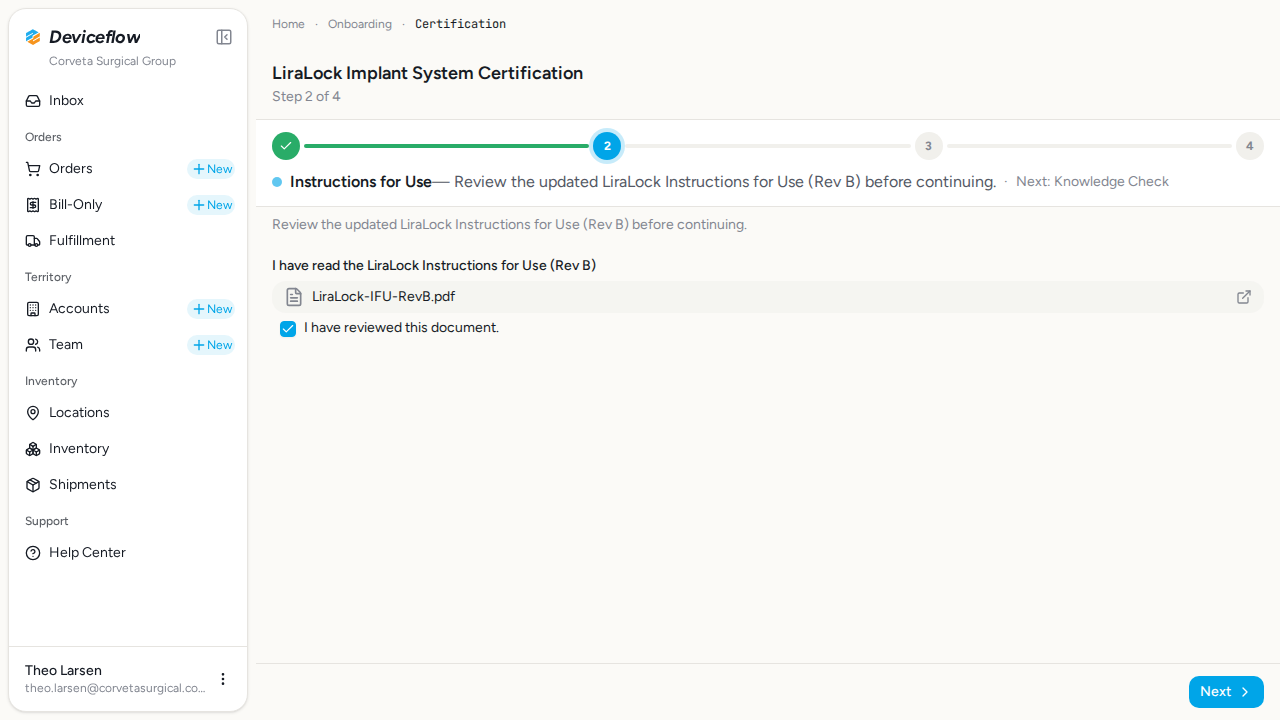

step 02 doc acknowledged

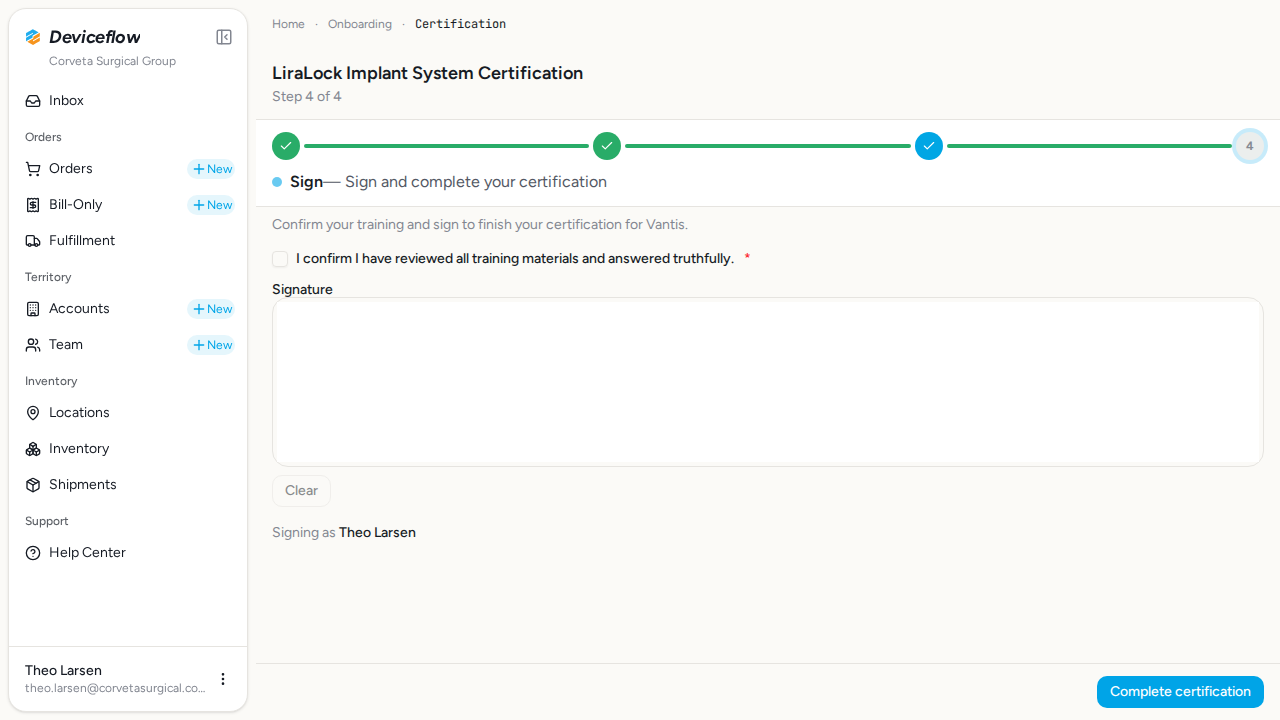

step 02 quiz passed

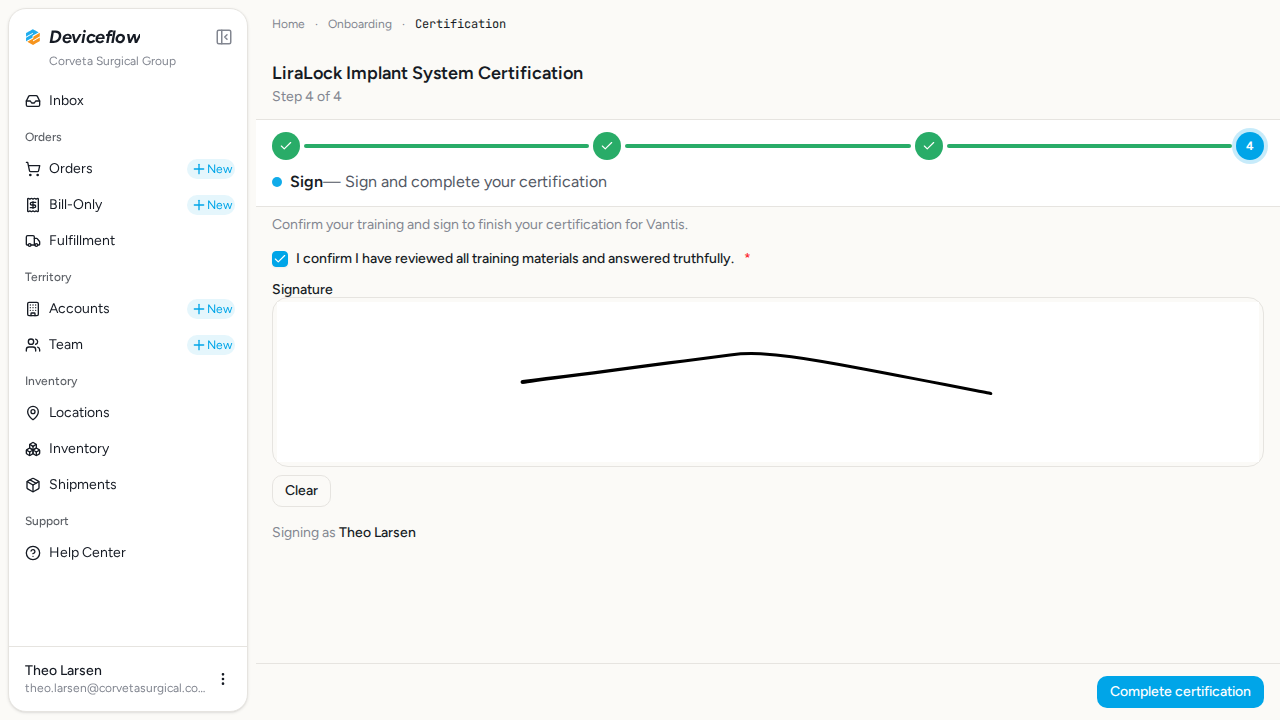

step 02 signature

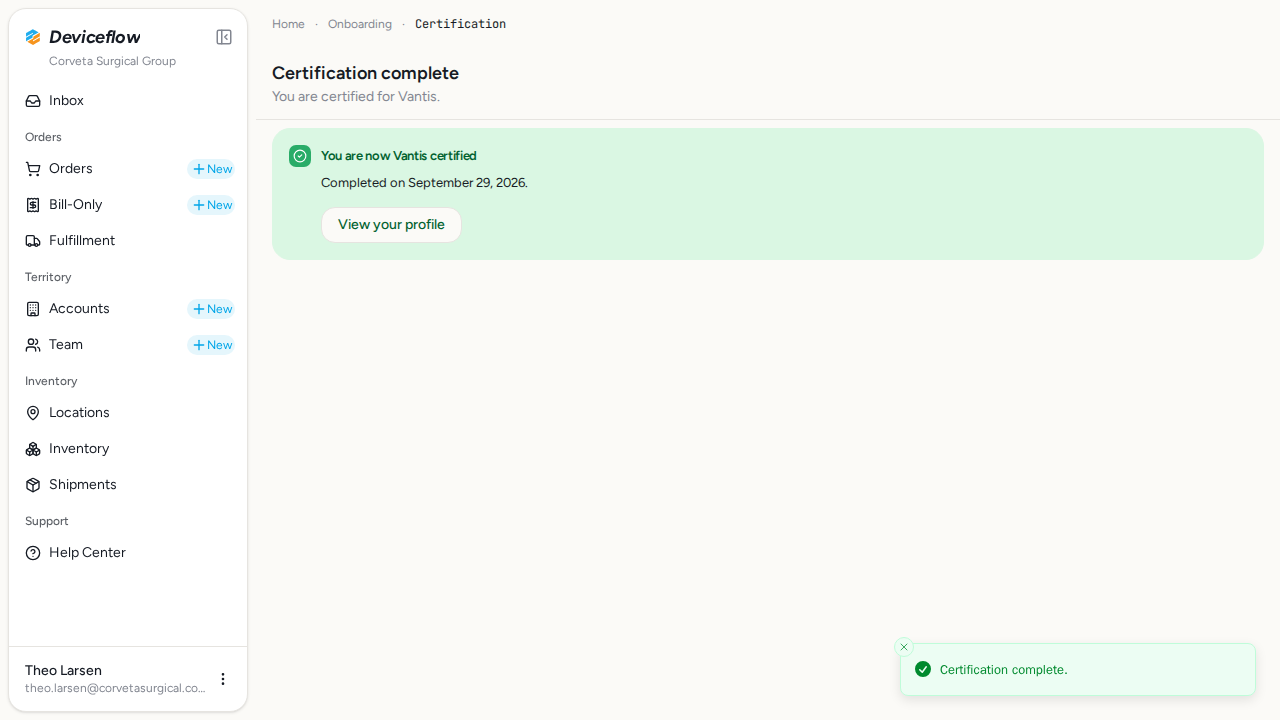

step 02 completed

step 02 certificate ready

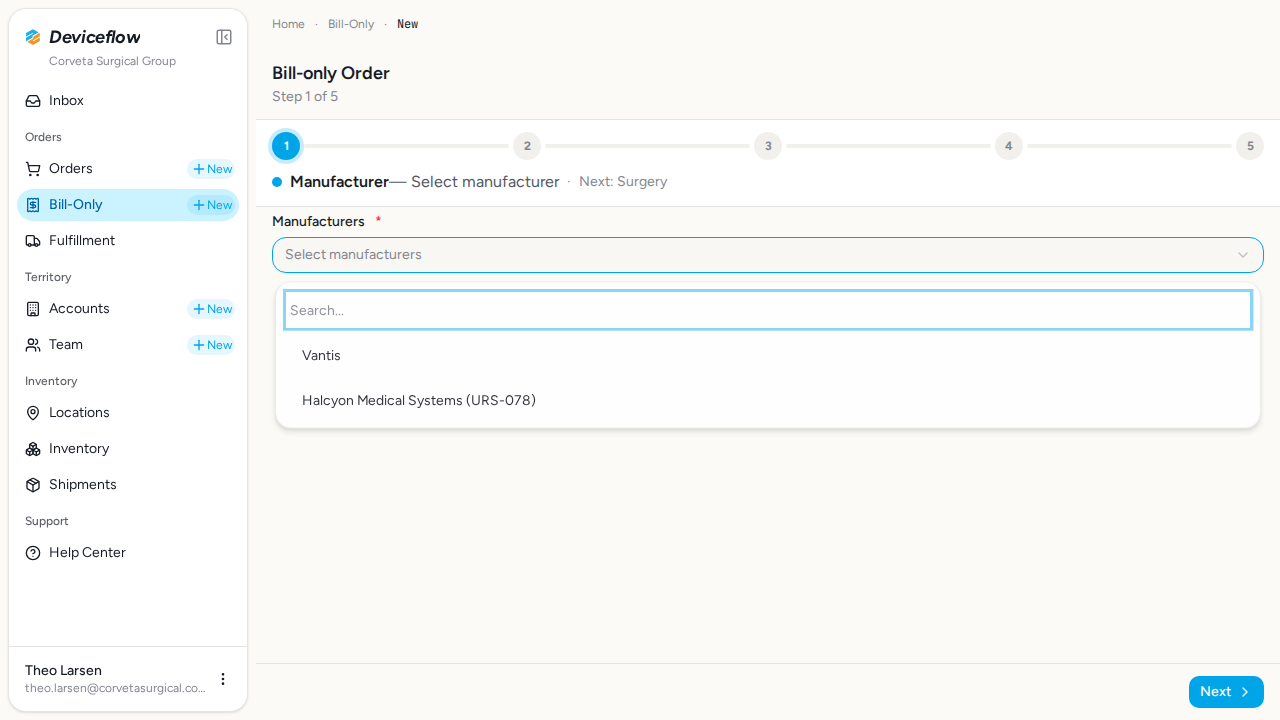

step 02 gate lifted

Video recording:

4. Step 3: New requirement re-gates per manufacturer — ✅ PASS

Section titled “4. Step 3: New requirement re-gates per manufacturer — ✅ PASS”

What this step proves:

A second manufacturer’s admin creates a certification required of all representatives. The previously active representative is demoted to pending certification for that manufacturer only: its name leaves the picker while the freshly recertified manufacturer remains selectable — the inverse of the run’s starting state, proving per-manufacturer isolation of the requirement.

Audit events generated by this step:

(Evidence scoped to step execution window: 2026-09-29T02:31:59.242Z → 2026-09-29T02:32:08.273Z)

TimeTypeActionUserOrgPerformed
2026-09-29 02:31:59Zchecklistchecklists.createhalcyon.admin@urs078.exampleCorveta Surgical Group—
2026-09-29 02:32:01Zuser_loguser:logintheo.larsen@corvetasurgical.comCorveta Surgical Group—

Screenshots:

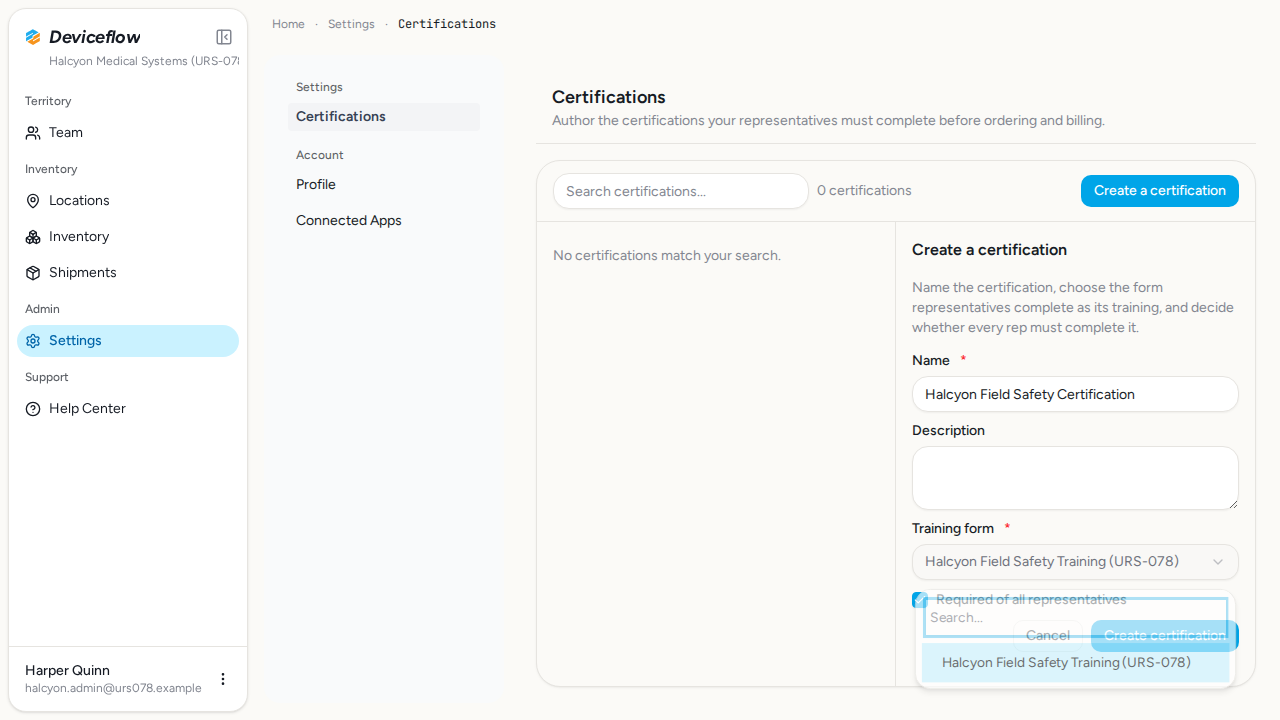

step 03 create dialog

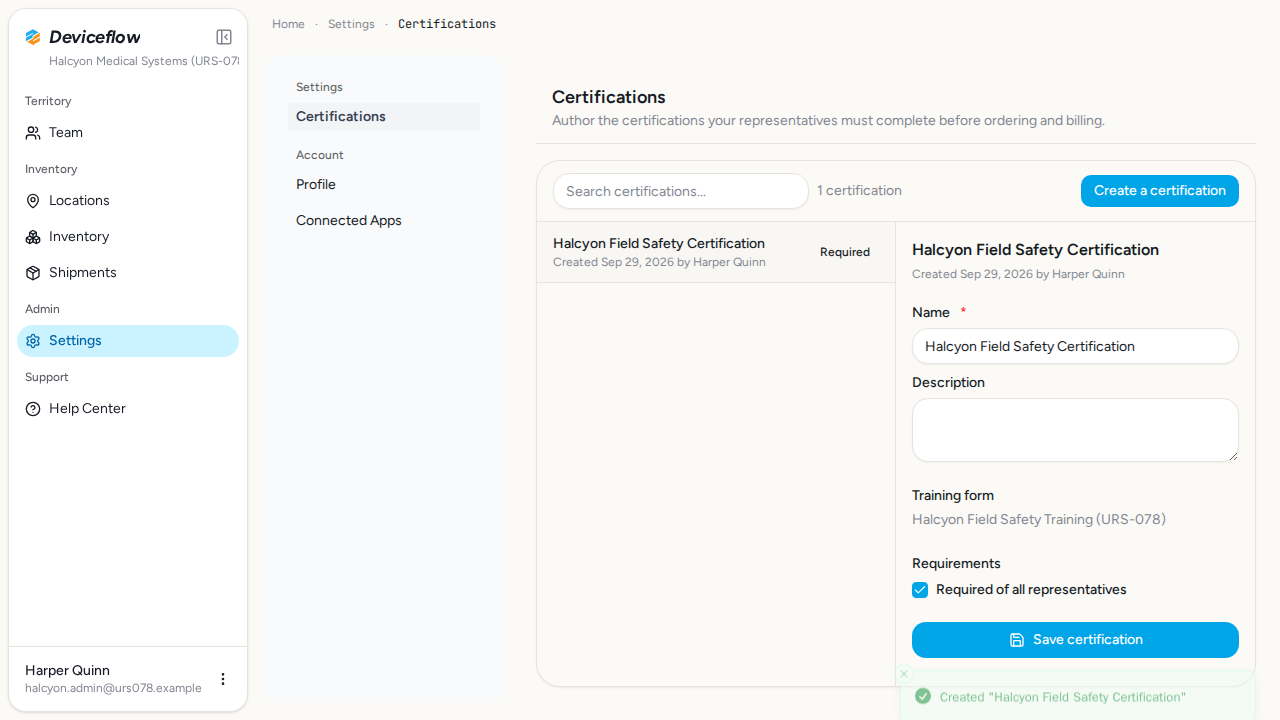

step 03 cert created

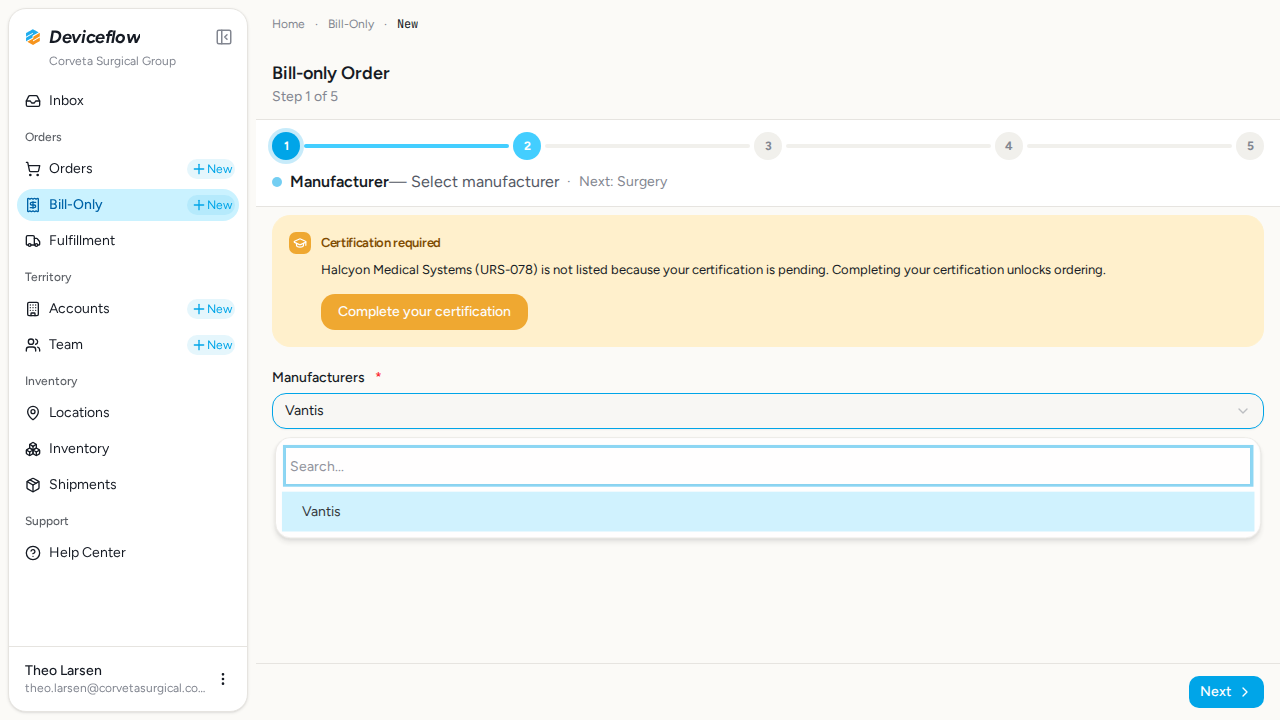

step 03 rep regated

Video recording:

Database Validations

Section titled “Database Validations”

The following SQL queries ran against the application database after the Playwright scenarios completed. Each query asserts a specific condition that proves the feature under test persisted its data correctly.

Historical version-1 record untouched by the recompletion — ✅ PASS

Section titled “Historical version-1 record untouched by the recompletion — ✅ PASS”

Assertion: Every column of the version-1 record is byte-identical to the setup snapshot

SELECT row_to_json(r)::text AS row FROM certification_records r WHERE r.id = $1
row
{“id”:“ce000700-0000-4000-8000-000000000004”,“organization_id”:“a1b2c3d4-e5f6-7890-abcd-ef1234567890”,“certification_id”:“ce000100-0000-4000-8000-000000000001”,“certification_version_id”:“ce000200-0000-4000-8000-000000000001”,“rep_user_id”:“ce000001-0000-4000-8000-000000000004”,“requesting_organization_id”:“b2c3d4e5-f6a7-8901-bcde-f12345678901”,“completed_at”:“2025-12-03T02:23:22.269+00:00”,“signature_ref”:“demo-signature/ce000700-0000-4000-8000-000000000004”,“form_submission_id”:“ce000600-0000-4000-8000-000000000004”,“supersedes_record_id”:null,“created_at”:“2025-12-03T02:23:22.269+00:00”,“expires_at”:“2027-12-03”}

Recompletion created a new record superseding the version-1 record — ✅ PASS

Section titled “Recompletion created a new record superseding the version-1 record — ✅ PASS”

Assertion: Exactly two records exist: the fixture version-1 record and a new version-2 record that supersedes it, with completion timestamp, signature reference, and form submission

SELECT id, certification_version_id, supersedes_record_id,
            completed_at, signature_ref, form_submission_id
     FROM certification_records
     WHERE rep_user_id = $1 AND certification_id = $2
     ORDER BY created_at
idcertification_version_idsupersedes_record_idcompleted_atsignature_refform_submission_id
ce000700-0000-4000-8000-000000000004ce000200-0000-4000-8000-000000000001NULL2025-12-03T02:23:22.269Zdemo-signature/ce000700-0000-4000-8000-000000000004ce000600-0000-4000-8000-000000000004
01a0eb01-017f-7c10-8dd3-1e49694588fece000200-0000-4000-8000-000000000002ce000700-0000-4000-8000-0000000000042026-09-29T02:31:46.815Z01a0eb01-017f-7c10-8dd3-1e4a40d10df401a0eb00-f08d-7fb9-b480-a4606690798d

Part 11 signing challenge (magic-link path) verified, consumed, and linked to the new signature — ✅ PASS

Section titled “Part 11 signing challenge (magic-link path) verified, consumed, and linked to the new signature — ✅ PASS”

Assertion: Exactly one consumed signing challenge exists for the recompletion: emailed, verified (magic link opened the signing window), consumed by the completion, linked to the NEW record’s signature, and storing only a sha256 hash — never the raw code

SELECT ch.code_hash, ch.email_sent_at, ch.verified_at, ch.signing_window_expires_at,
            ch.consumed_at, ch.consumed_signature_id, r.signature_ref
     FROM certification_signing_challenges ch
     JOIN certification_records r
       ON r.rep_user_id = ch.user_id AND r.certification_id = ch.certification_id
      AND r.id != $3
     WHERE ch.user_id = $1 AND ch.certification_id = $2
       AND ch.consumed_at IS NOT NULL
code_hashemail_sent_atverified_atsigning_window_expires_atconsumed_atconsumed_signature_idsignature_ref
16852c4e9dd03e855a14f158cc931cbe9113103563fe37864402d68a10f46e432026-09-29T02:31:31.235Z2026-09-29T02:31:33.638Z2026-09-29T06:31:33.638Z2026-09-29T02:31:46.823Z01a0eb01-017f-7c10-8dd3-1e4a40d10df401a0eb01-017f-7c10-8dd3-1e4a40d10df4

Status change recorded: relationship re-activated on recompletion — ✅ PASS

Section titled “Status change recorded: relationship re-activated on recompletion — ✅ PASS”

Assertion: A status-change row with reason_code certification_completed moved the relationship to active

SELECT from_status, to_status, reason_code
     FROM organization_representation_request_status_changes
     WHERE relationship_id = $1
       AND to_status = 'active' AND reason_code = 'certification_completed'
       AND created_at > NOW() - INTERVAL '2 hours'
from_statusto_statusreason_code
pending_certificationactivecertification_completed

Completed and superseded audit events recorded for the recompletion — ✅ PASS

Section titled “Completed and superseded audit events recorded for the recompletion — ✅ PASS”

Assertion: Both a certification ‘completed’ and a certification ‘superseded’ audit event exist

SELECT action, COUNT(*)::int AS count
     FROM audit_events
     WHERE event_type = 'certification' AND action IN ('completed', 'superseded')
       AND organization_id = $1 AND user_id = $2
       AND created_at > NOW() - INTERVAL '2 hours'
     GROUP BY action
actioncount
completed1
superseded1

Second manufacturer’s certification created with version 1 and an all-reps requirement — ✅ PASS

Section titled “Second manufacturer’s certification created with version 1 and an all-reps requirement — ✅ PASS”

Assertion: One certification exists for the second manufacturer with version_number 1 and an active mandatory all_reps assignment

SELECT c.name, v.version_number, a.target_type, a.mandatory, a.active
     FROM certifications c
     JOIN certification_versions v ON v.certification_id = c.id
     JOIN certification_assignments a ON a.certification_id = c.id
     WHERE c.organization_id = $1
nameversion_numbertarget_typemandatoryactive
Halcyon Field Safety Certification1all_repstruetrue

Second manufacturer’s created and assigned audit events recorded — ✅ PASS

Section titled “Second manufacturer’s created and assigned audit events recorded — ✅ PASS”

Assertion: Both a certification ‘created’ and a certification ‘assigned’ audit event exist

SELECT action FROM audit_events
     WHERE event_type = 'certification' AND action IN ('created', 'assigned')
       AND organization_id = $1
       AND created_at > NOW() - INTERVAL '2 hours'
action
assigned
created

New requirement demoted the representative to pending_certification — ✅ PASS

Section titled “New requirement demoted the representative to pending_certification — ✅ PASS”

Assertion: The second-manufacturer relationship is pending_certification with a demotion status-change row (reason_code recertification_assignment)

SELECT r.status, r.active,
       (SELECT COUNT(*)::int FROM organization_representation_request_status_changes sc
        WHERE sc.relationship_id = r.id
          AND sc.to_status = 'pending_certification' AND sc.reason_code = $2
          AND sc.created_at > NOW() - INTERVAL '2 hours') AS demotion_changes
     FROM organization_representation_relationships r WHERE r.id = $1
statusactivedemotion_changes
pending_certificationfalse1

No completion record exists for the second manufacturer’s certification — ✅ PASS

Section titled “No completion record exists for the second manufacturer’s certification — ✅ PASS”

Assertion: The representative has no completion record for the new requirement

SELECT COUNT(*)::int AS count
     FROM certification_records
     WHERE rep_user_id = $1 AND organization_id = $2
count
0

Audit & Email Assertion Ledger

Section titled “Audit & Email Assertion Ledger”

Per-declaration outcome of every expectedAuditActions and expectedEmailTemplates entry written into the orchestrator. Missing evidence here is a real test failure, not a soft warning.

Audit Action Assertions

Section titled “Audit Action Assertions”

Each row asserts that a declared expectedAuditActions entry produced a matching row in audit_events. A ❌ flips overall status to FAIL — the declaration is real proof, not just an annotation.

StepExpected Audit ActionFound
Step 2: Recompletion creates a new recordcertification:signing_code_issued✅
Step 2: Recompletion creates a new recordcertification:signing_code_verified✅
Step 2: Recompletion creates a new recordcertification:signing_code_consumed✅
Step 2: Recompletion creates a new recordcertification:completed✅
Step 2: Recompletion creates a new recordcertification:superseded✅

Email Template Assertions

Section titled “Email Template Assertions”

Each row asserts that a declared expectedEmailTemplates entry was matched (case-insensitive substring) by a captured email subject or template. A ❌ flips overall status to FAIL.

StepExpected TemplateFound
Step 2: Recompletion creates a new recordYour signing code✅

Audit Log Events

Section titled “Audit Log Events”

Every row written to audit_events while this test was running (scoped to the demo organizations). Provides compliance evidence that user actions are traced end-to-end (URS-003).

Capture window start: 2026-09-29T02:30:57.812Z

SELECT
    ae.created_at,
    ae.event_type,
    ae.action,
    ae.user_id,
    u.email AS user_email,
    ae.organization_id,
    o.name AS organization_name,
    ae.object_id,
    ae.secondary_object_id,
    ae.payload,
    ae.route,
    ae.trace_id
  FROM audit_events ae
  LEFT JOIN users u ON u.id = ae.user_id
  LEFT JOIN organizations o ON o.id = ae.organization_id
  WHERE ae.created_at >= $1
    AND ae.organization_id = ANY($2::uuid[])
  ORDER BY ae.created_at ASC

18 event(s) captured:

TimeTypeActionUserOrgObject IDPerformedReason
2026-09-29 02:31:05Zuser_loguser:logintheo.larsen@corvetasurgical.comCorveta Surgical Group——
2026-09-29 02:31:25Zuser_loguser:logintheo.larsen@corvetasurgical.comCorveta Surgical Group——
2026-09-29 02:31:31Zdecisioncertifications.signing_challenge.send_smstheo.larsen@corvetasurgical.comVantis01a0eb00-c46f-708c-8ed7-eebc71e00c0enono_phone_channel
2026-09-29 02:31:31Zcertificationsigning_code_issuedtheo.larsen@corvetasurgical.comVantisce000100-0000-4000-8000-000000000001—
2026-09-29 02:31:32Ztransactional_emailcertification_signing_code—Vantis01a0eb00-c46f-708c-8ed7-eebc71e00c0e—
2026-09-29 02:31:33Zcertificationsigning_code_verifiedtheo.larsen@corvetasurgical.comVantisce000100-0000-4000-8000-000000000001—
2026-09-29 02:31:42Zdecisionforms.grade_submissiontheo.larsen@corvetasurgical.comVantisce000300-0000-4000-8000-000000000002yesall_answers_correct
2026-09-29 02:31:46Zcertificationsigning_code_consumedtheo.larsen@corvetasurgical.comVantisce000100-0000-4000-8000-000000000001—
2026-09-29 02:31:46Zcertificationcompletedtheo.larsen@corvetasurgical.comVantis01a0eb01-017f-7c10-8dd3-1e49694588fe—
2026-09-29 02:31:46Zcertificationsupersededtheo.larsen@corvetasurgical.comVantisce000700-0000-4000-8000-000000000004—
2026-09-29 02:31:46Zorganization_representationstatus_changetheo.larsen@corvetasurgical.comVantisce000002-0000-4000-8000-000000000004—Certification completed
2026-09-29 02:31:46Zdecisioncertifications.complete_certification.mark_relationship_certifiedtheo.larsen@corvetasurgical.comVantisce000002-0000-4000-8000-000000000004yesrelationship_pending_certification
2026-09-29 02:31:46Zdecisioncertifications.complete_certification.issue_certificatetheo.larsen@corvetasurgical.comVantis01a0eb01-017f-7c10-8dd3-1e49694588feyesquiz_backed_completion
2026-09-29 02:31:46Zuser_logrep_relationship_certifiedtheo.larsen@corvetasurgical.comVantis——Certification completed
2026-09-29 02:31:47Zcertification_certificateissuedtheo.larsen@corvetasurgical.comVantis01a0eb01-01da-78a6-b524-f038348c0e19—
2026-09-29 02:31:47Zcertification_completion_recordissuedtheo.larsen@corvetasurgical.comVantis01a0eb01-01e3-7782-9baa-2d36e2a55b13—
2026-09-29 02:31:59Zchecklistchecklists.createhalcyon.admin@urs078.exampleCorveta Surgical Group01a0eb01-349e-701c-b1ca-fa5a165ebaaa—
2026-09-29 02:32:01Zuser_loguser:logintheo.larsen@corvetasurgical.comCorveta Surgical Group——

Email Evidence

Section titled “Email Evidence”

1 notification email(s) were captured during this test run. Each email is rendered as a screenshot for compliance review.

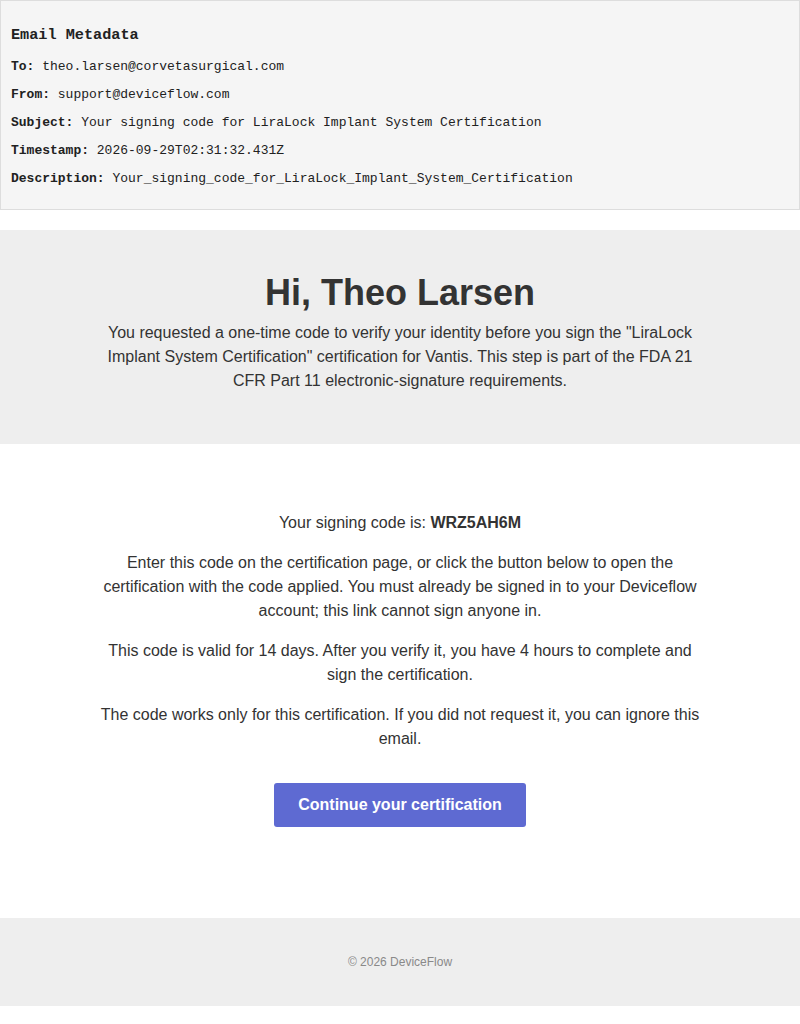

1. Your signing code for LiraLock Implant System Certification

Section titled “1. Your signing code for LiraLock Implant System Certification”

Template: Your_signing_code_for_LiraLock_Implant_System_Certification

Your signing code for LiraLock Implant System Certification

Additional Video Evidence

Section titled “Additional Video Evidence”

The following screencast recordings were captured but could not be matched to a specific test step. Step-matched recordings appear inline in their respective step sections above.

Downloads

Section titled “Downloads”

Feedback

Section titled “Feedback”
