URS-055 · Restrict uncertified reps from actions until approved

Title: Restrict uncertified reps from actions until approved Date: 2026-09-29T02:25:14.883Z Duration: 194.5s Overall Status: ✅ PASS

User Requirement

Section titled “User Requirement”

The system shall restrict regulated sales actions to authorized and approved rep users only

Source: User_Requirement_Specifications_Vantis_DeviceFlow.xlsx — the run below proves the system meets this requirement.

Environment

Section titled “Environment”

Setup

Section titled “Setup”

Status: ✅ PASS

Test Steps

Section titled “Test Steps”

Each step below corresponds to one Playwright test that ran sequentially. Screenshots and video recordings provide visual evidence of the UI behaviour.

1. Step 1: Bill-only blocked — ✅ PASS

Section titled “1. Step 1: Bill-only blocked — ✅ PASS”

What this step proves:

A sales rep who has not completed the manufacturer’s required certification attempts to create a bill-only order. The form shows a “Certification required” notice linking to the certification checklist, and the gated manufacturer is absent from the manufacturer picker — confirming that the certification requirement is enforced before any order can be submitted.

Screenshots:

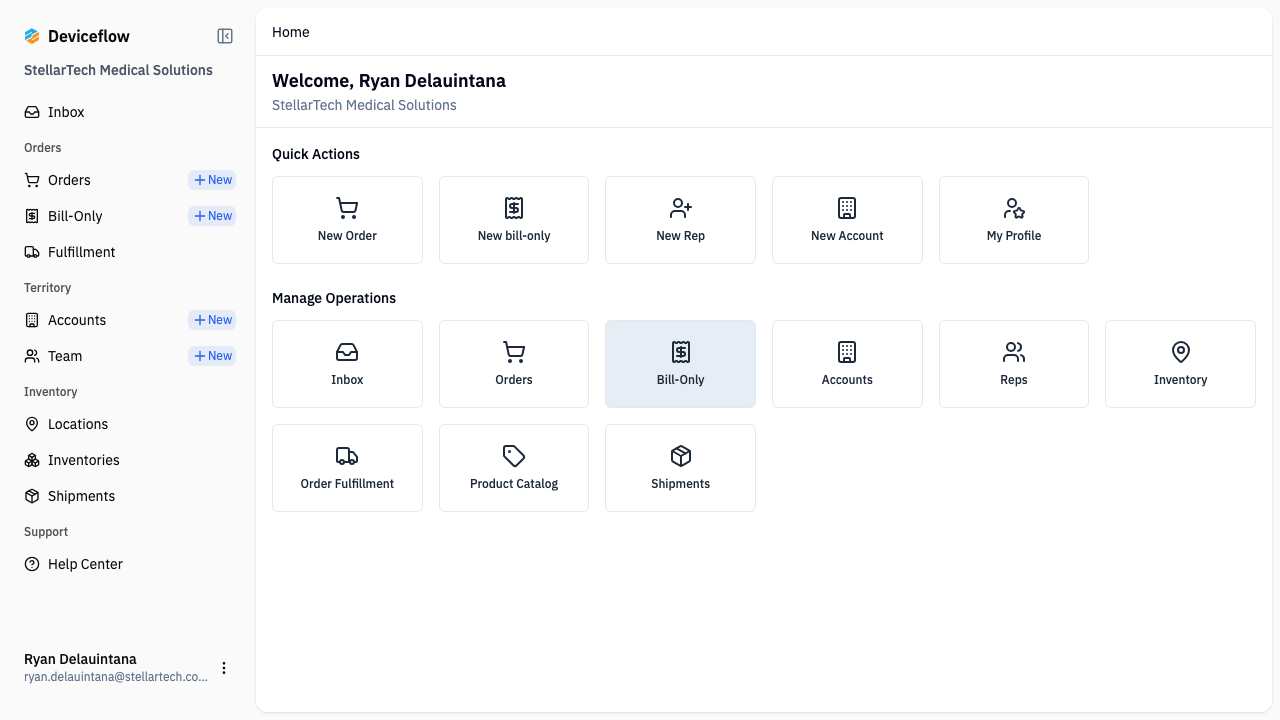

step 01 ryan dashboard

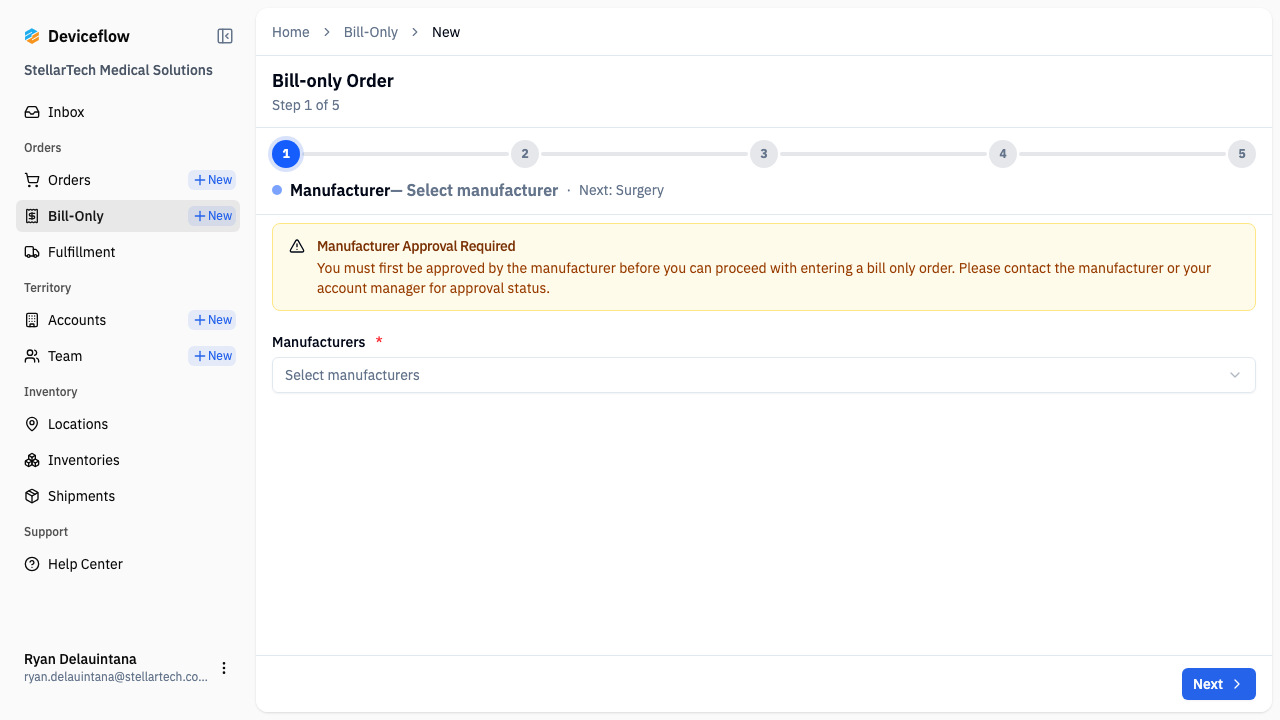

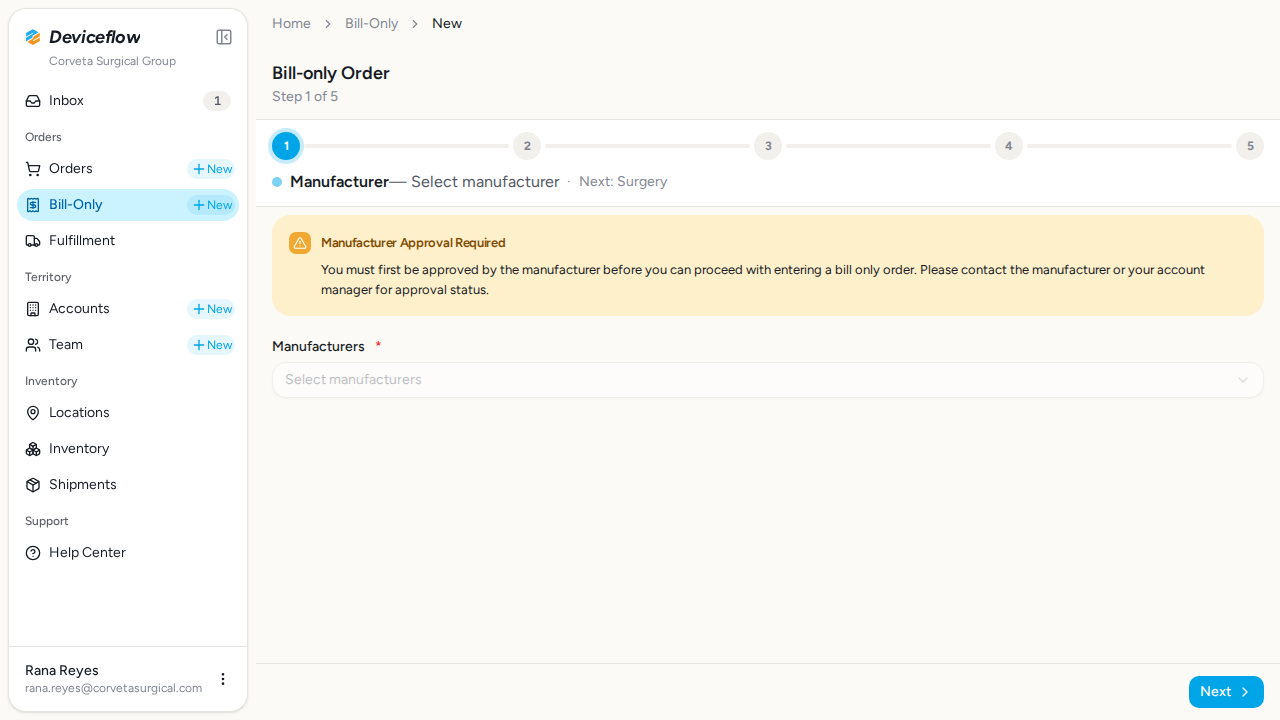

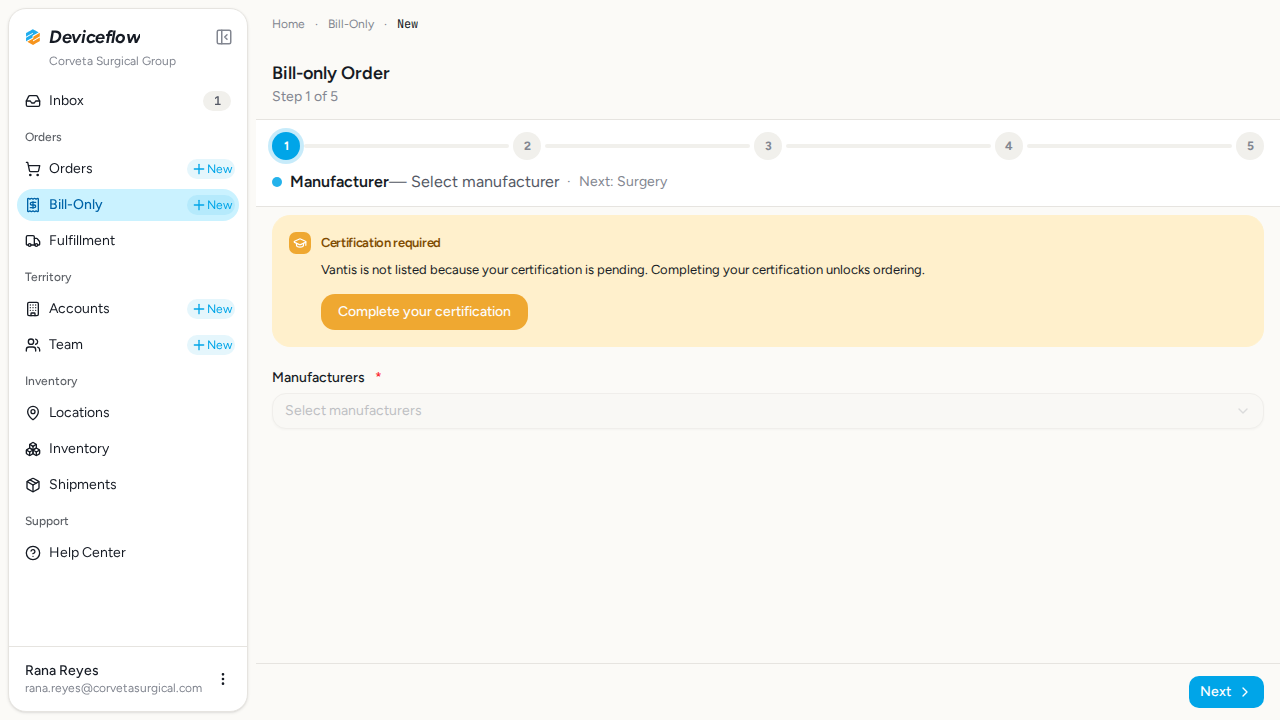

step 01 billing blocked

Video recording:

2. Step 2: Order request trunk allowed — ✅ PASS

Section titled “2. Step 2: Order request trunk allowed — ✅ PASS”

Screenshots:

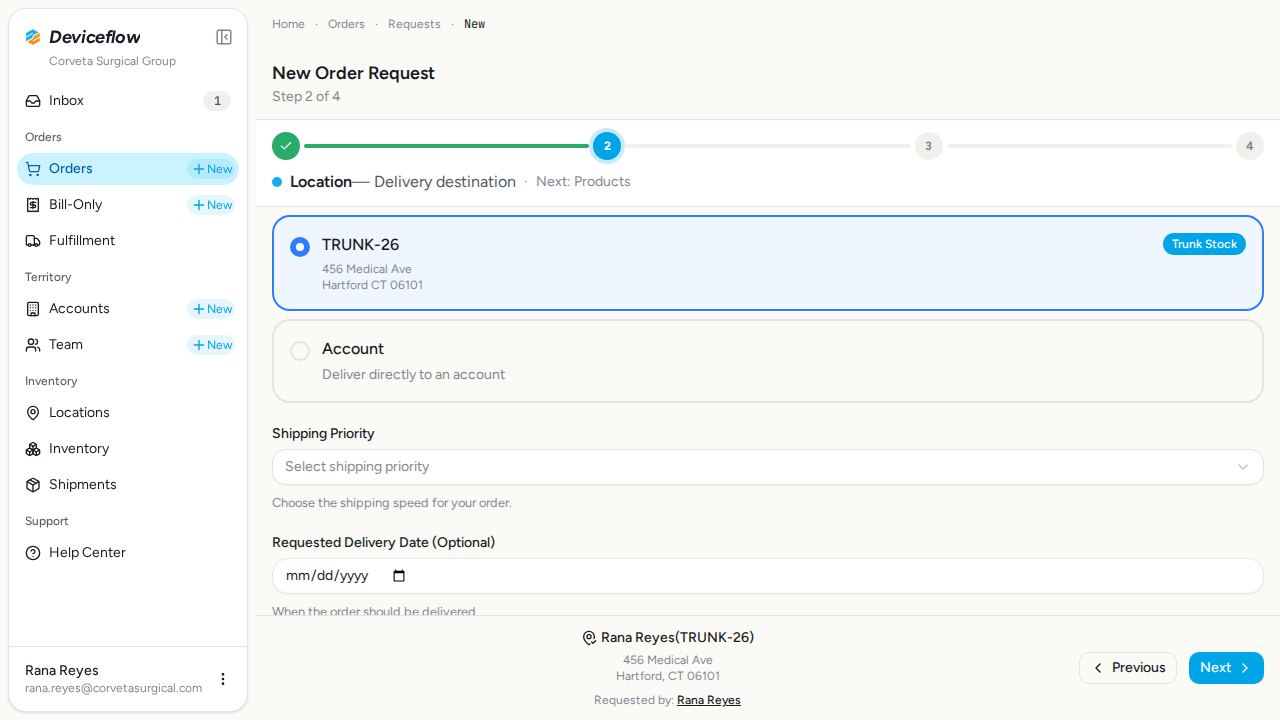

step 02 order request trunk allowed

Video recording:

3. Step 3: Certified rep control — ✅ PASS

Section titled “3. Step 3: Certified rep control — ✅ PASS”

What this step proves:

A certified sales rep navigates through the bill-only form without being blocked. The form heading and step indicator both render, and the certification-required notice is absent — confirming the restriction is applied only to uncertified reps.

Blair’s relationship row has active = true in the fixtures, which is the column the gating logic (getAvailableFulfillingOrganizations) consults. The status column in the demo data may read proposed_pending_onboarding rather than active because the seed set preserves the original onboarding history — but the boolean active flag is authoritative for whether the rep may place orders, which is why the DB assertion in this run checks active = true for the control case rather than the status string.

Screenshots:

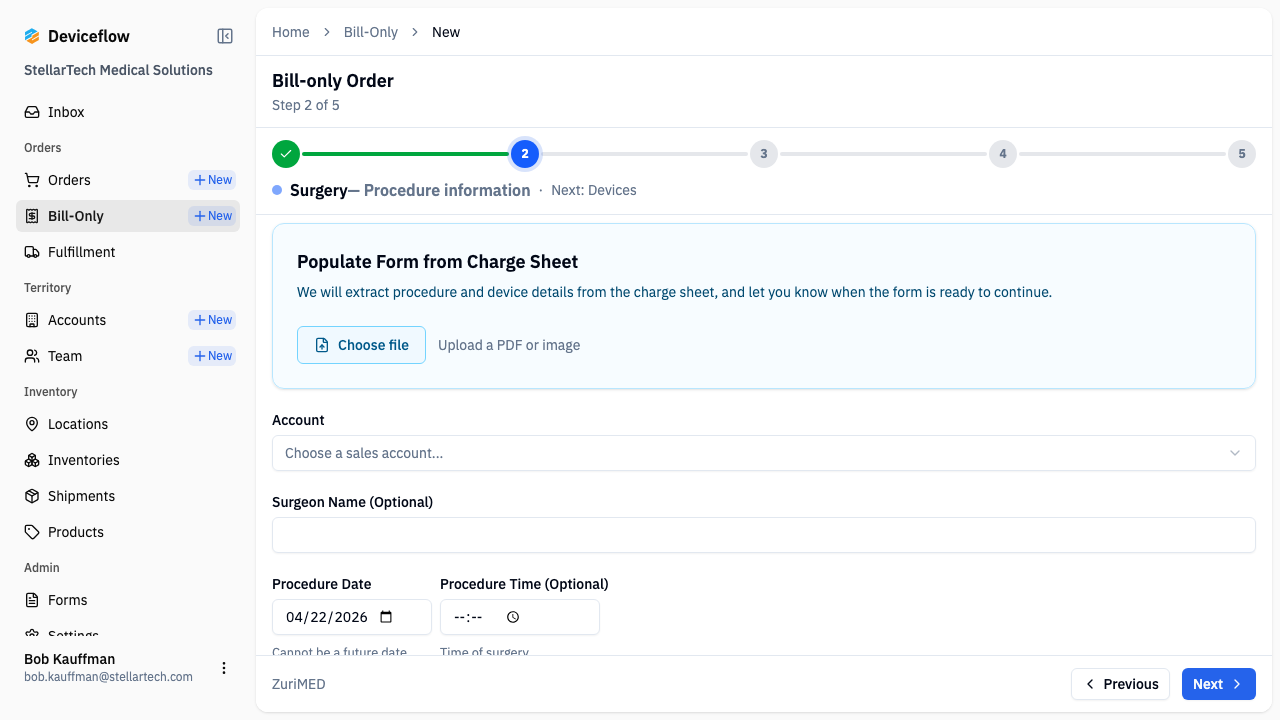

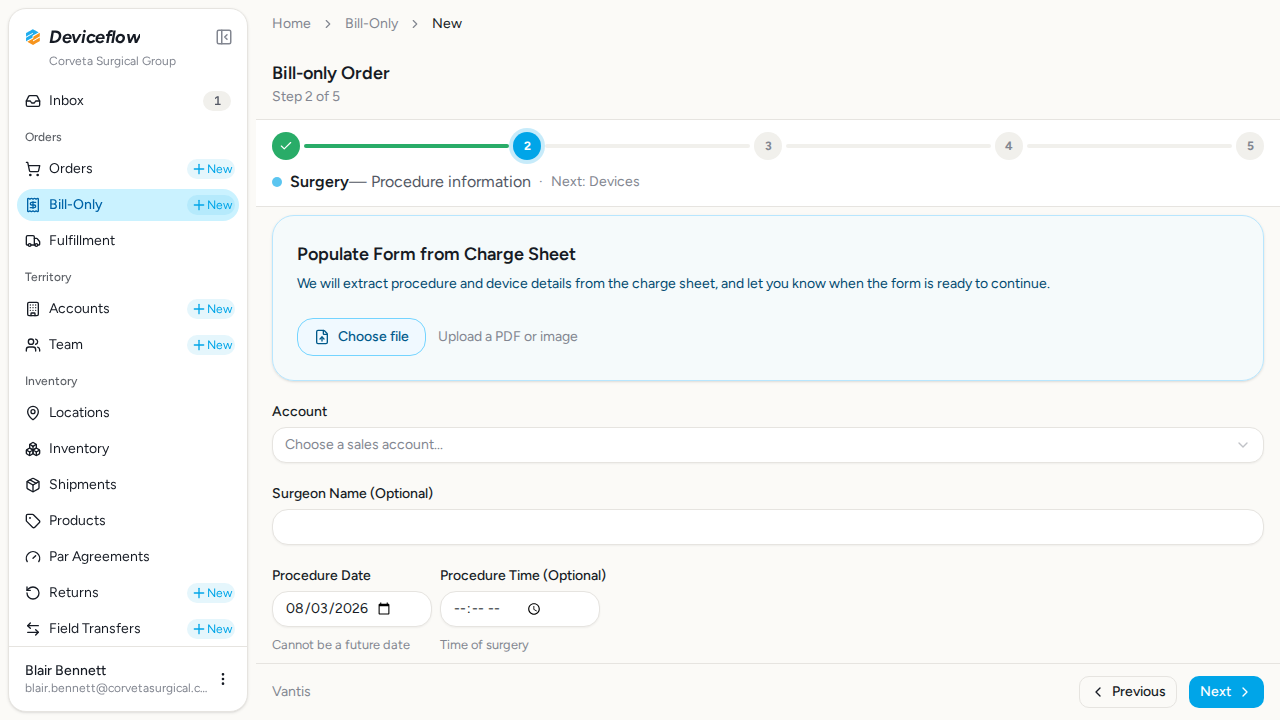

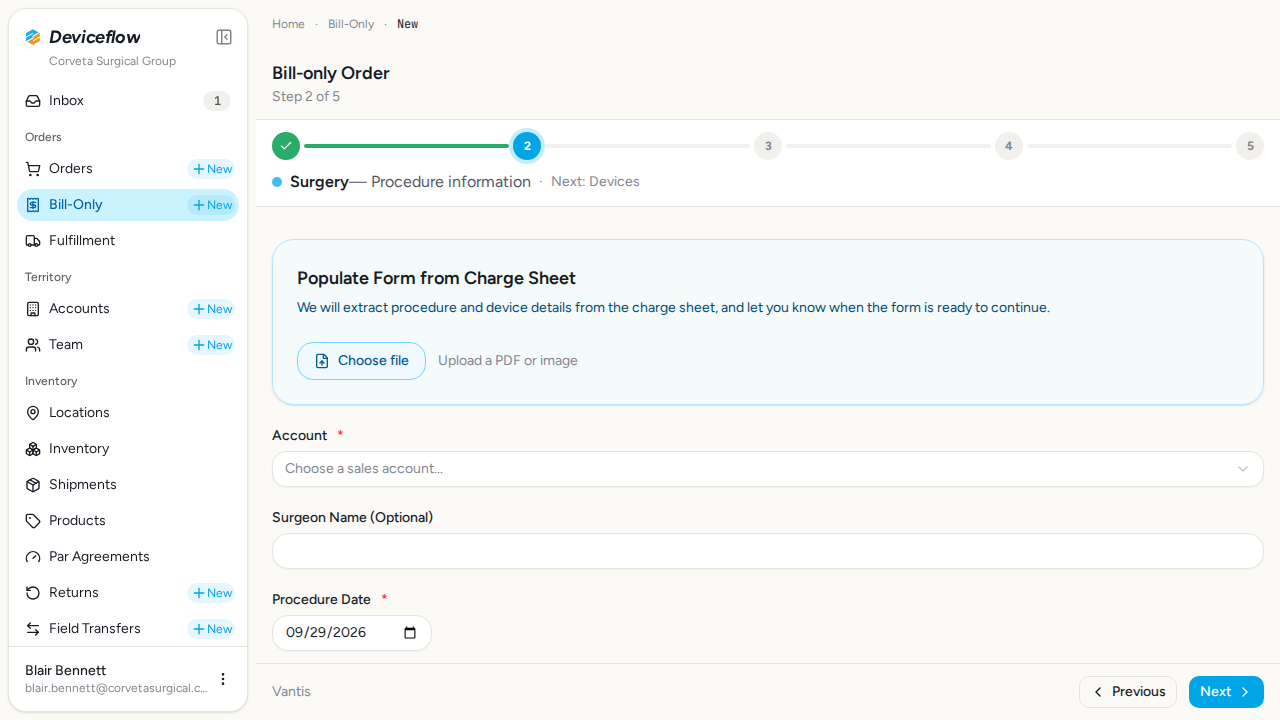

step 03 bob billing form

Video recording:

4. Step 4: Rep completes certification — ✅ PASS

Section titled “4. Step 4: Rep completes certification — ✅ PASS”

What this step proves:

The gated rep opens the manufacturer’s required certification and completes it in the UI: opens and acknowledges the training document (timestamped server-side), passes the knowledge check (graded server-side), and signs. Completion activates the representation relationship (status=‘active’, reason_code=‘certification_completed’) — this is what lifts both order gates.

Audit events generated by this step:

(Evidence scoped to step execution window: 2026-09-29T02:26:47.210Z → 2026-09-29T02:26:58.286Z)

TimeTypeActionUserOrgPerformed
2026-09-29 02:26:54Zdecisionforms.grade_submissionrana.reyes@corvetasurgical.comVantisyes
2026-09-29 02:26:58Zcertificationsigning_code_consumedrana.reyes@corvetasurgical.comVantis—
2026-09-29 02:26:58Zdecisioncertifications.complete_certification.issue_certificaterana.reyes@corvetasurgical.comVantisyes
2026-09-29 02:26:58Zdecisioncertifications.complete_certification.mark_relationship_certifiedrana.reyes@corvetasurgical.comVantisyes
2026-09-29 02:26:58Zorganization_representationstatus_changerana.reyes@corvetasurgical.comVantis—
2026-09-29 02:26:58Zcertificationcompletedrana.reyes@corvetasurgical.comVantis—
2026-09-29 02:26:58Zuser_logrep_relationship_certifiedrana.reyes@corvetasurgical.comVantis—

Screenshots:

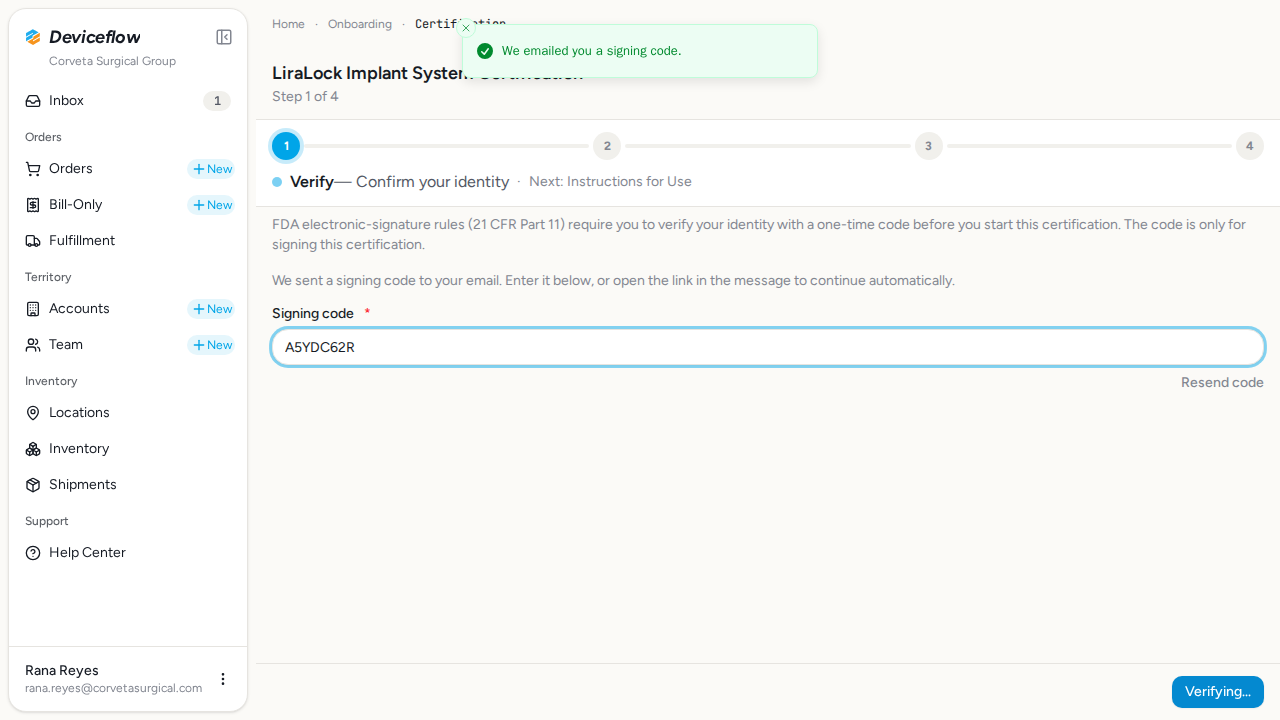

step 04 identity verified

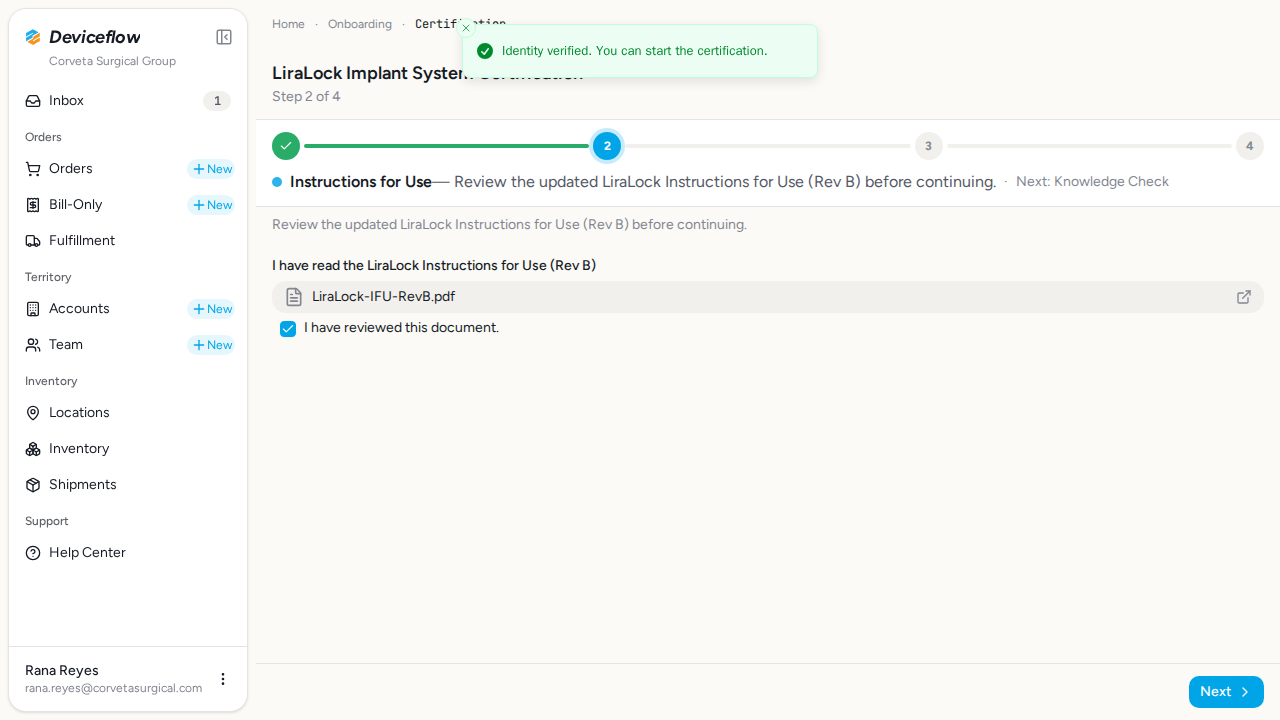

step 04 doc acknowledged

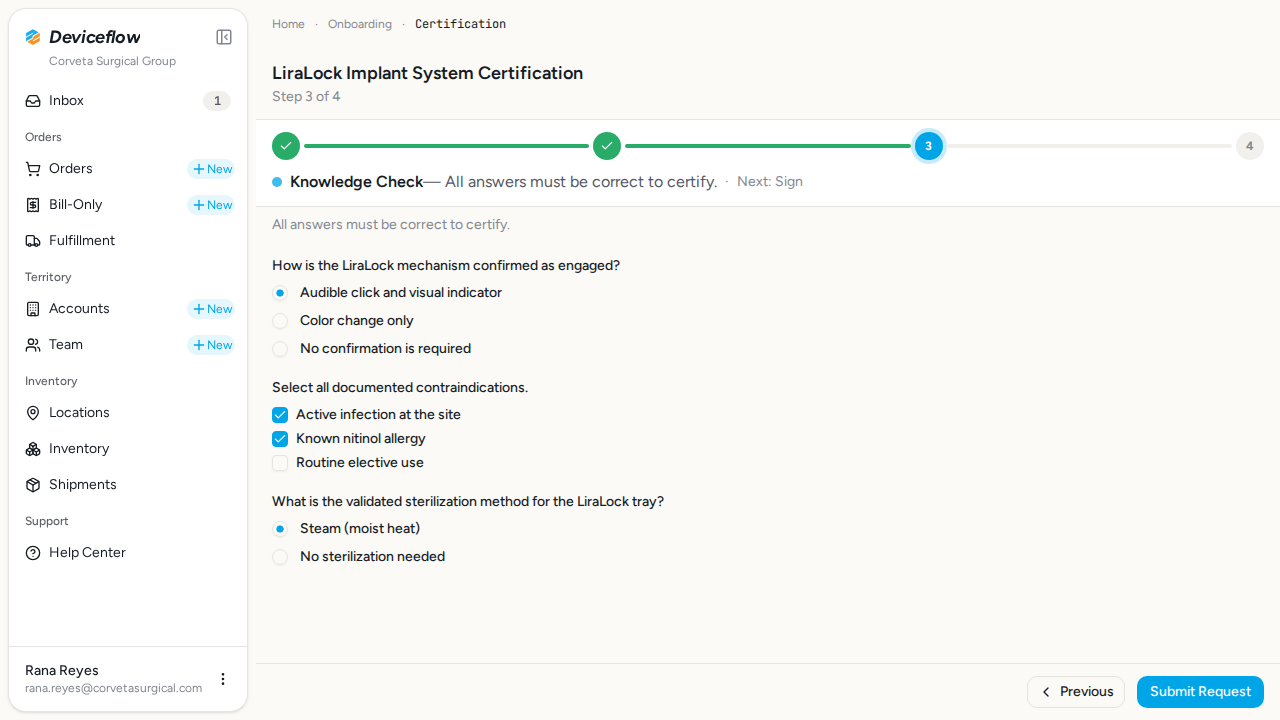

step 04 quiz answers

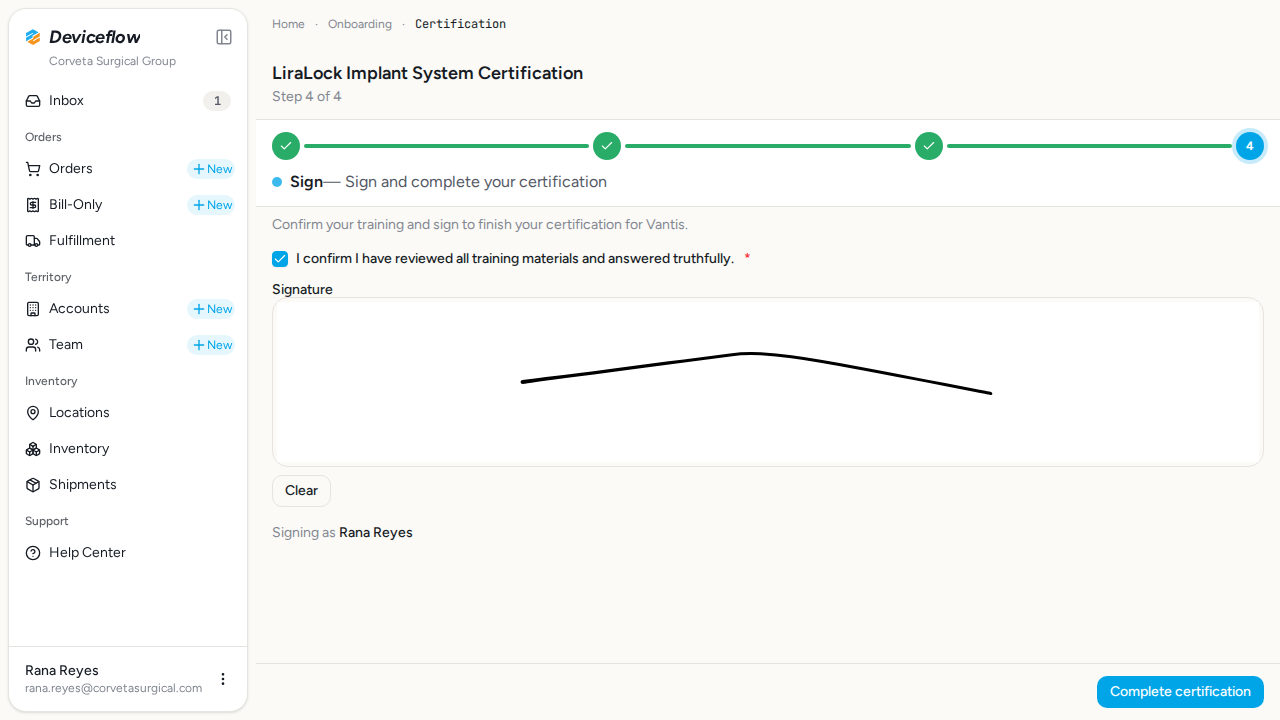

step 04 signature

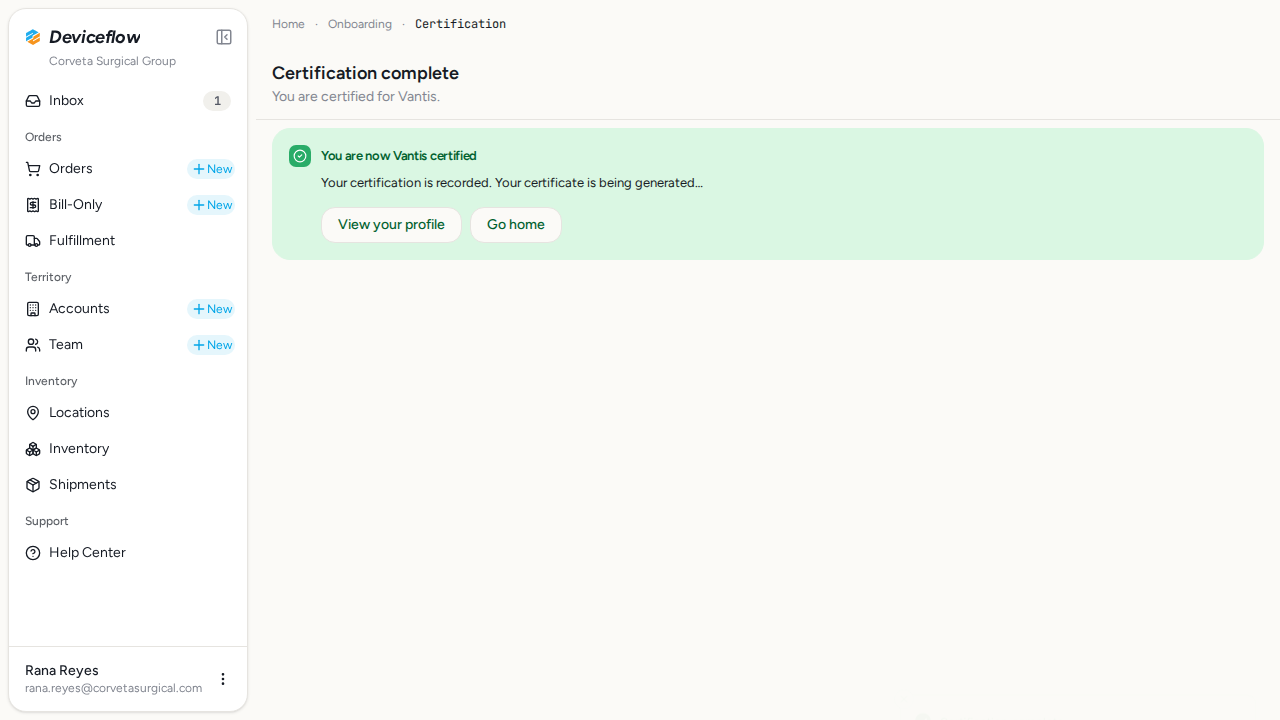

step 04 completed

Video recording:

5. Step 5: Bill-only after certification — ✅ PASS

Section titled “5. Step 5: Bill-only after certification — ✅ PASS”

What this step proves:

The newly certified rep navigates to the bill-only form and is no longer blocked. The form is accessible and the order is submitted successfully, confirming that certification takes immediate effect.

Audit events generated by this step:

(Evidence scoped to step execution window: 2026-09-29T02:27:05.940Z → 2026-09-29T02:27:29.775Z)

TimeTypeActionUserOrgPerformed
2026-09-29 02:27:13Zdecisionbill_only_order.duplicate_submission_blockrana.reyes@corvetasurgical.comCorveta Surgical Groupno
2026-09-29 02:27:27Zdecisionrepresentatives.gate_rep_actionrana.reyes@corvetasurgical.comVantisno
2026-09-29 02:27:27Zdecisionbill_only_order.inventory_items_decrementrana.reyes@corvetasurgical.comVantisyes
2026-09-29 02:27:27Zdecisionbill_only_order.direct_po_import_on_createrana.reyes@corvetasurgical.comVantisno
2026-09-29 02:27:27Zbilling_orderstatus_changerana.reyes@corvetasurgical.comVantis—
2026-09-29 02:27:27ZdecisionbasicErp.deriveSalesOrderrana.reyes@corvetasurgical.comVantisno
2026-09-29 02:27:27Zscheduled_taskscheduled_task.scheduledrana.reyes@corvetasurgical.comVantis—
2026-09-29 02:27:27Zscheduled_taskscheduled_task.scheduledrana.reyes@corvetasurgical.comVantis—
2026-09-29 02:27:27Zscheduled_taskscheduled_task.scheduledrana.reyes@corvetasurgical.comVantis—
2026-09-29 02:27:27Zdecisionbill_only.link_purchase_orderrana.reyes@corvetasurgical.comCorveta Surgical Groupno
2026-09-29 02:27:27Zdecisionbill_only_order.duplicate_submission_blockrana.reyes@corvetasurgical.comCorveta Surgical Groupno
2026-09-29 02:27:27Zdecisionrepresentatives.gate_rep_actionrana.reyes@corvetasurgical.comVantisno
2026-09-29 02:27:28Zdecisionbill_only.notifications.cc_incident_recipients—Vantisno

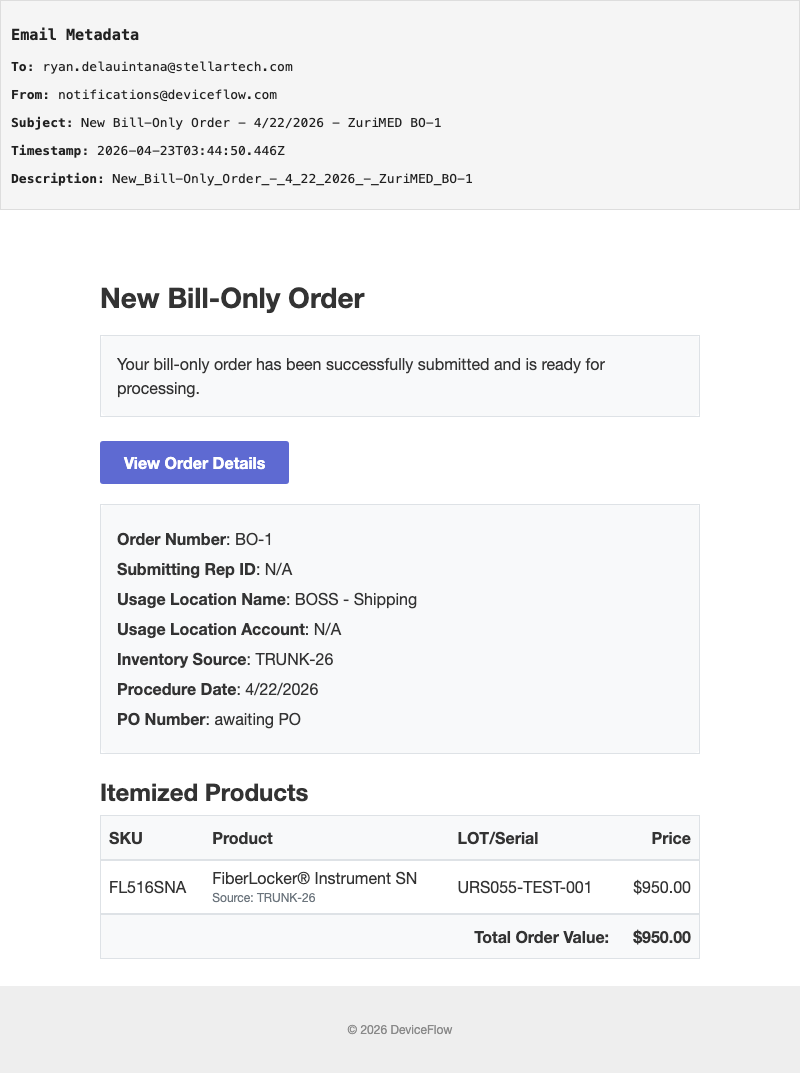

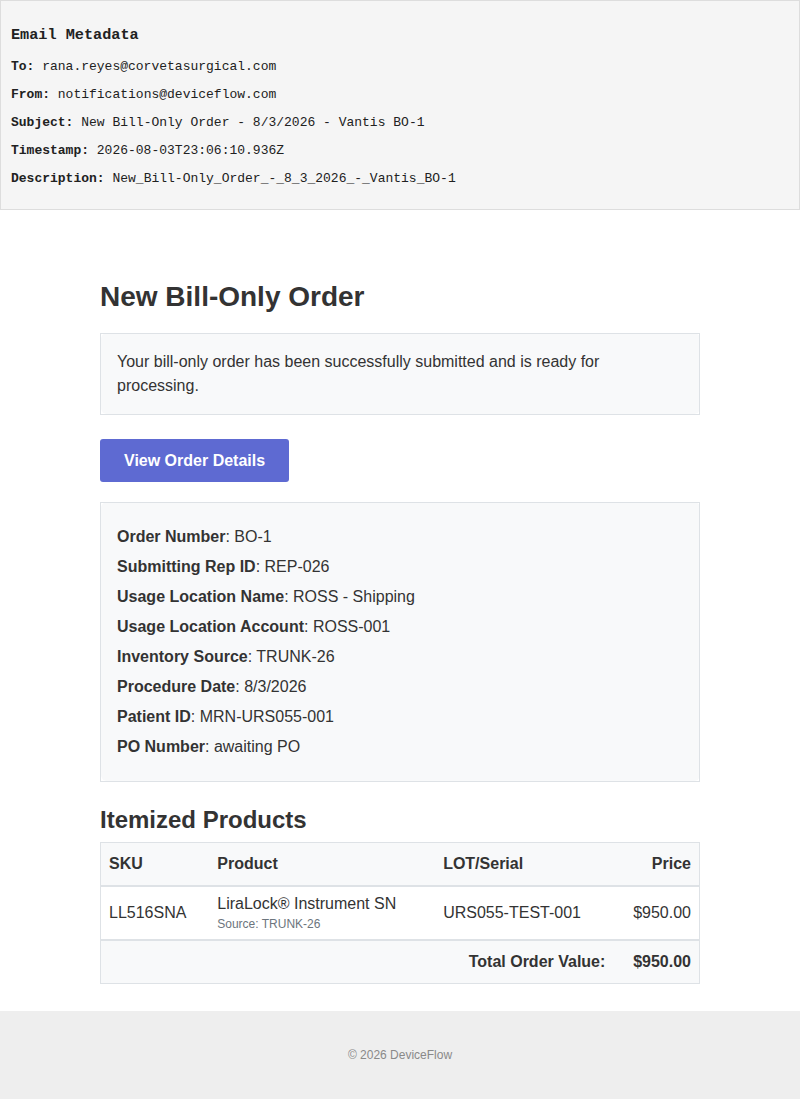

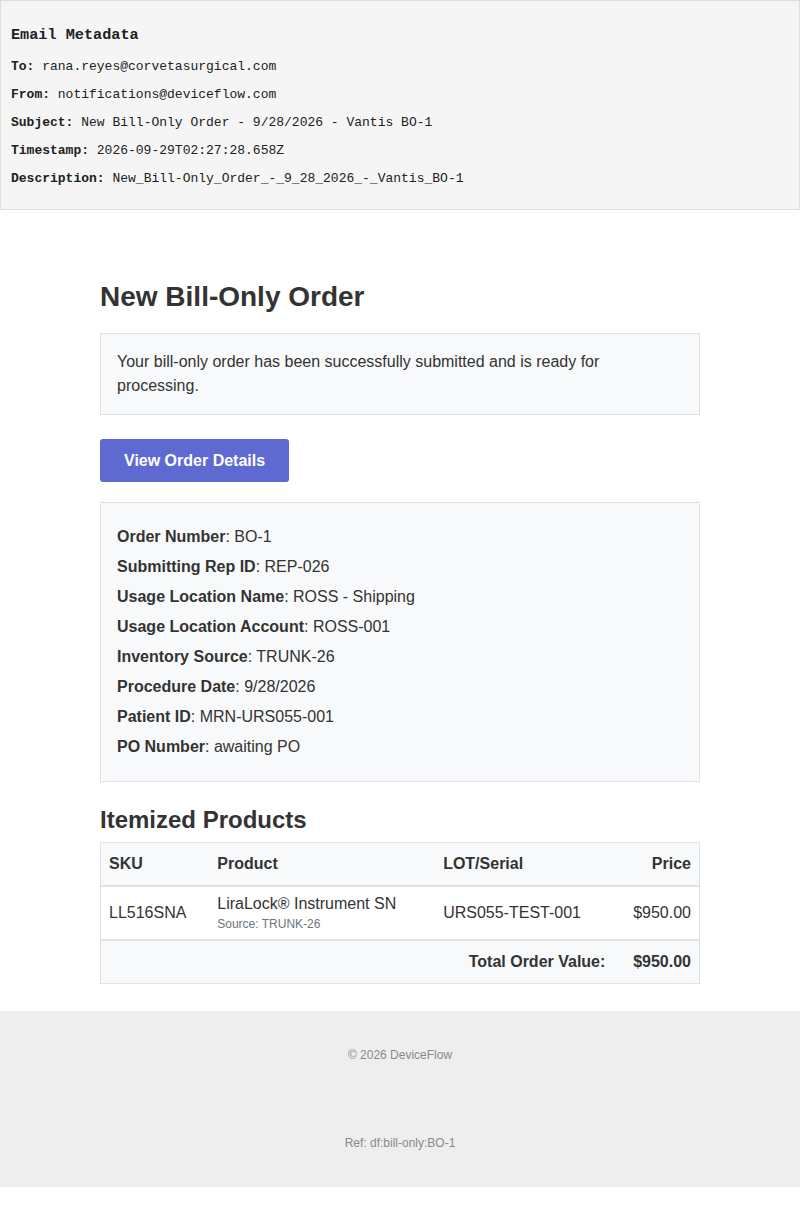

2026-09-29 02:27:28Ztransactional_emailnew_bill_only—Corveta Surgical Group—

Screenshots:

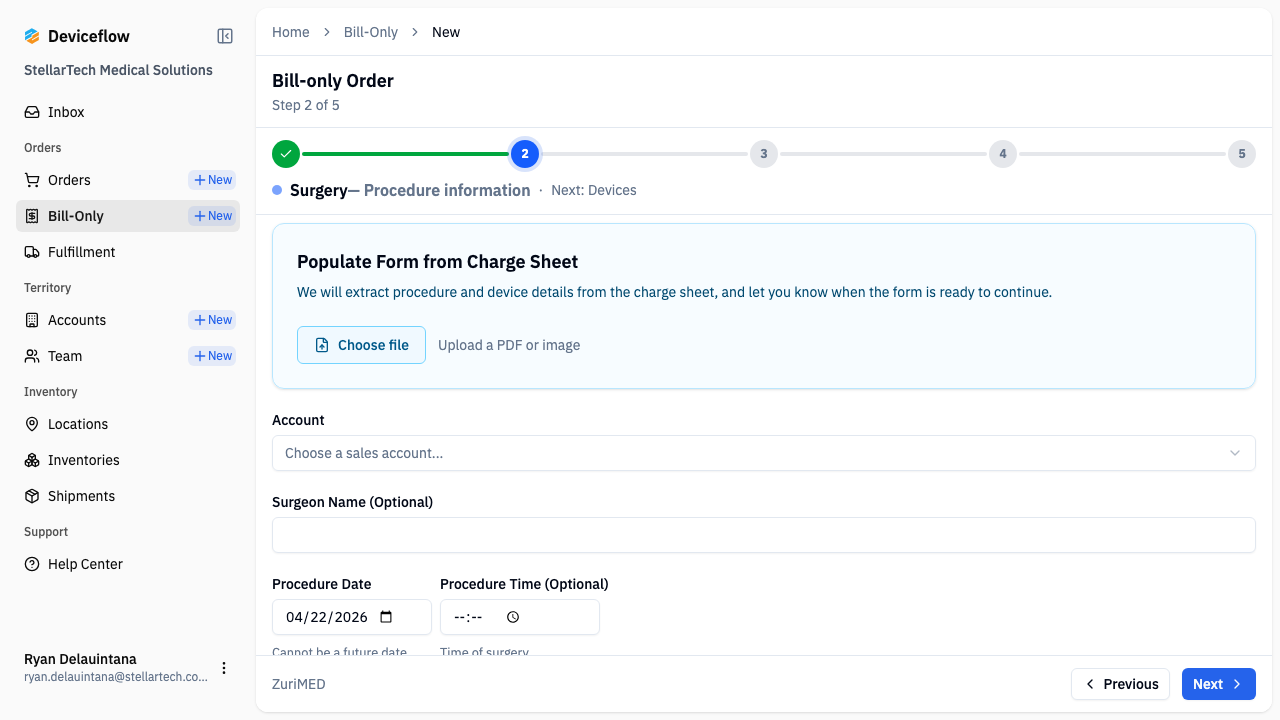

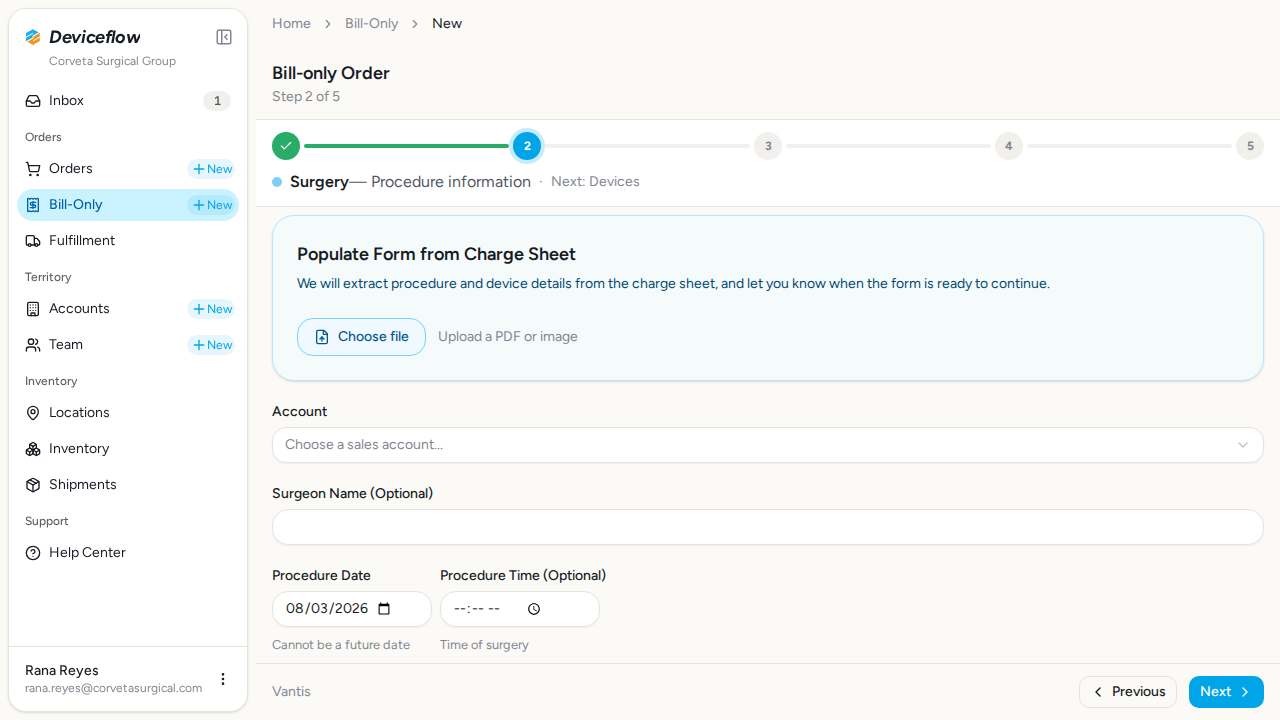

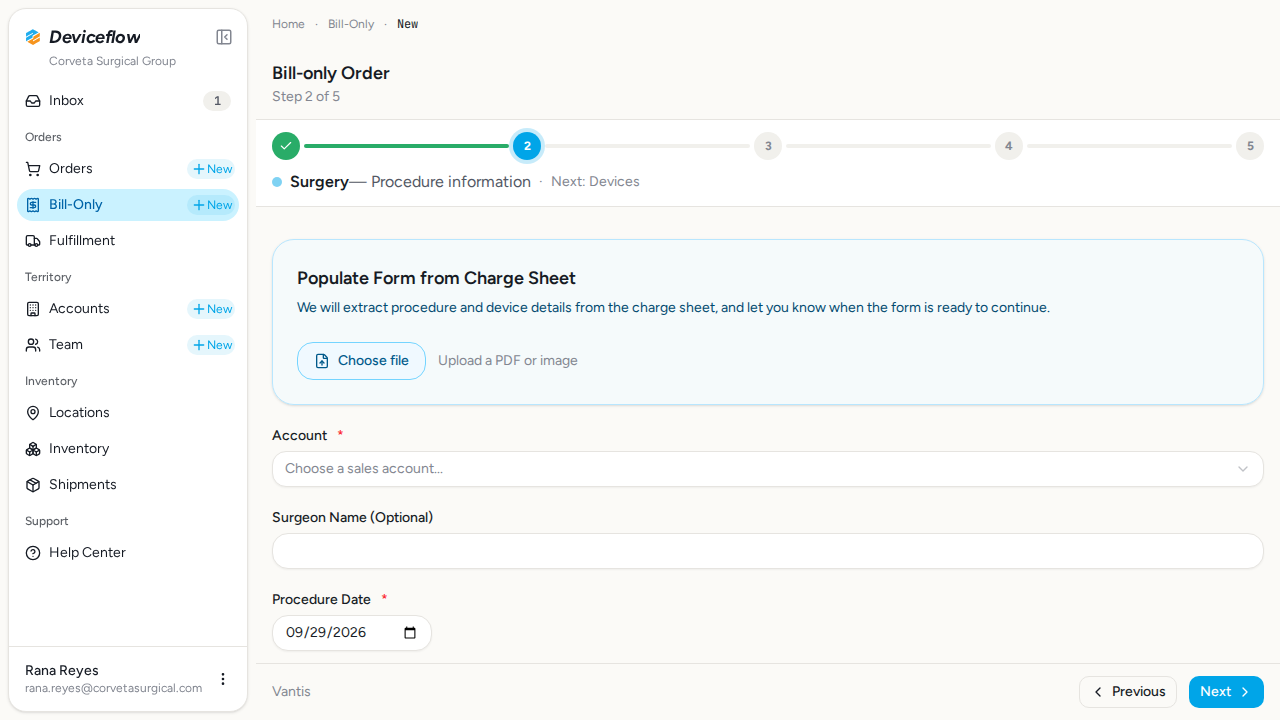

step 05 billing form accessible

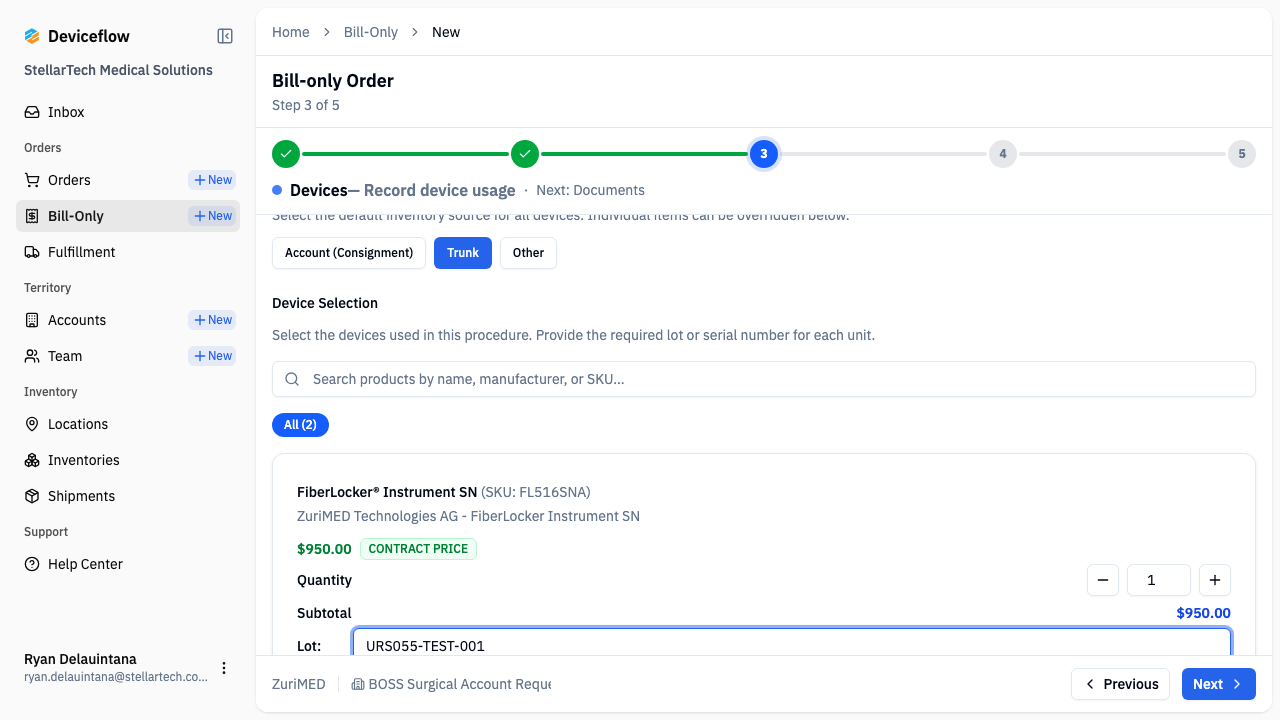

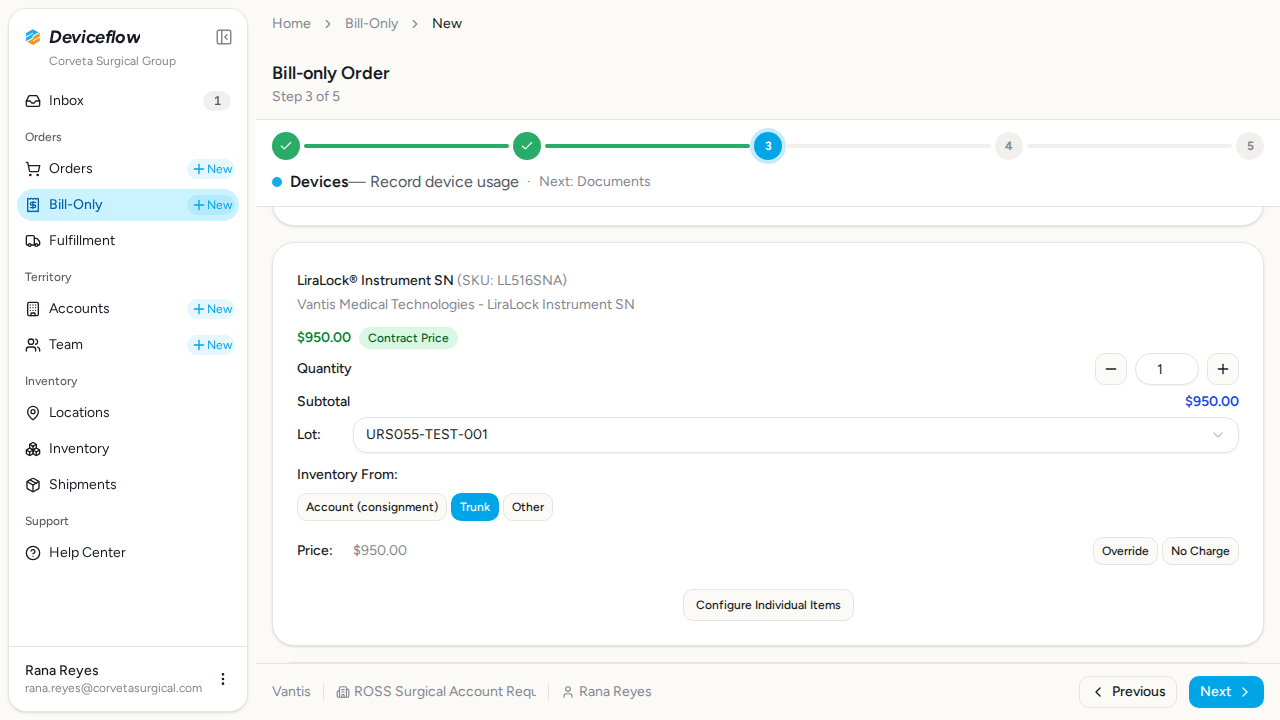

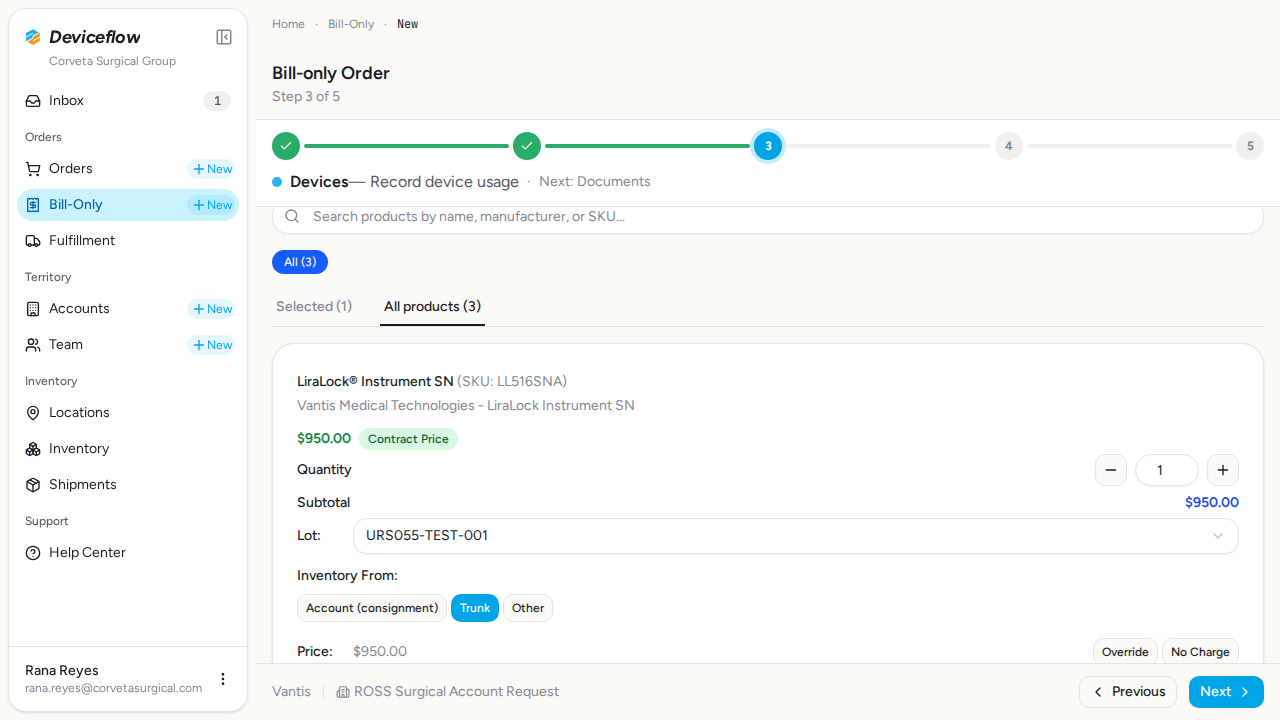

step 05 devices selected

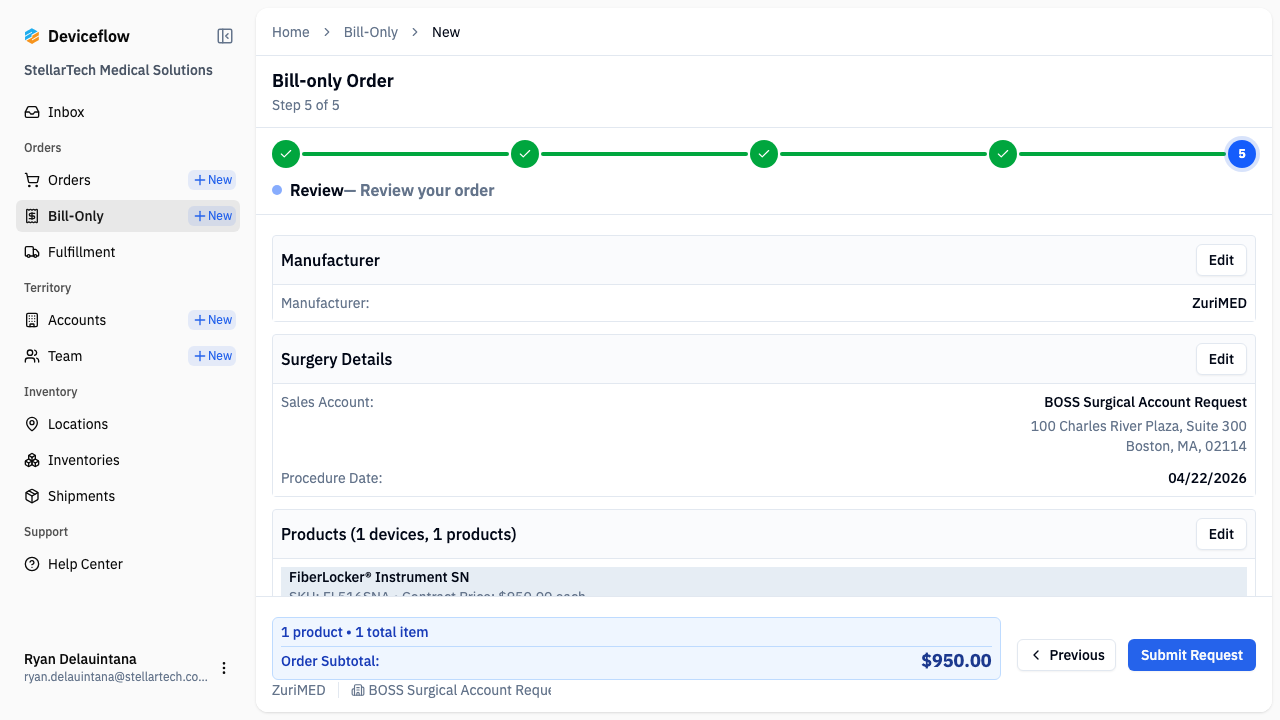

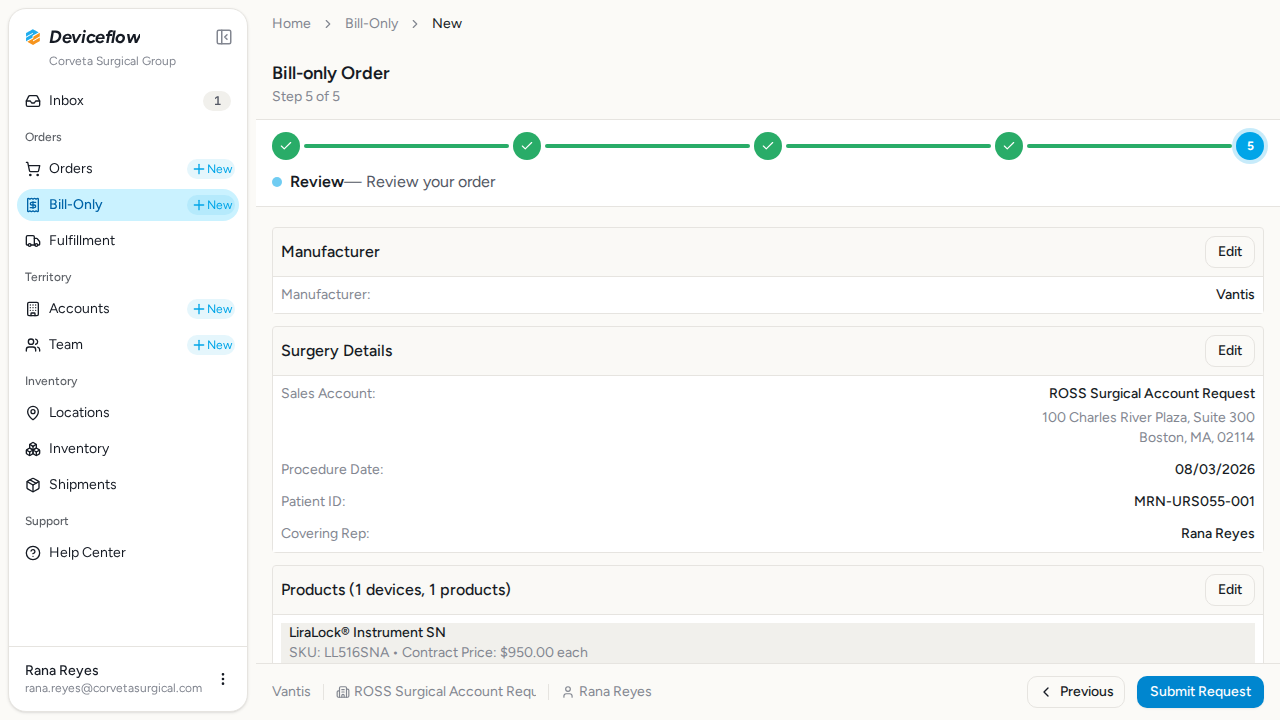

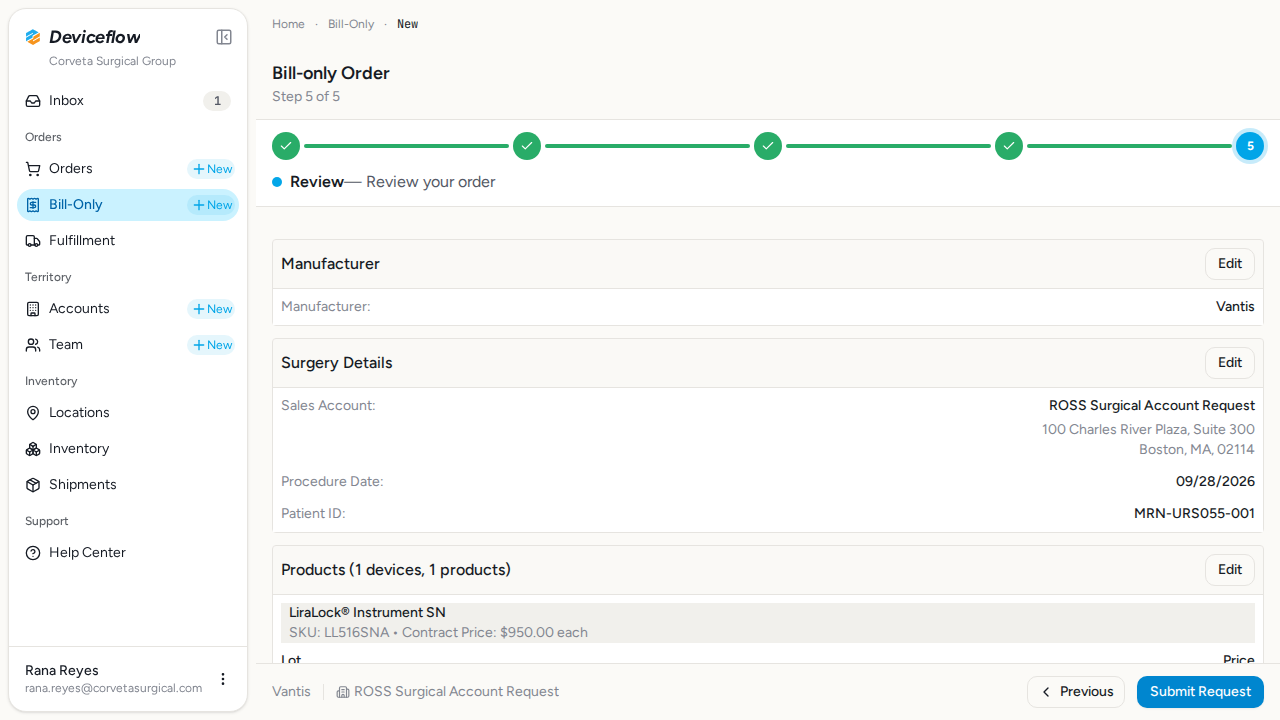

step 05 review

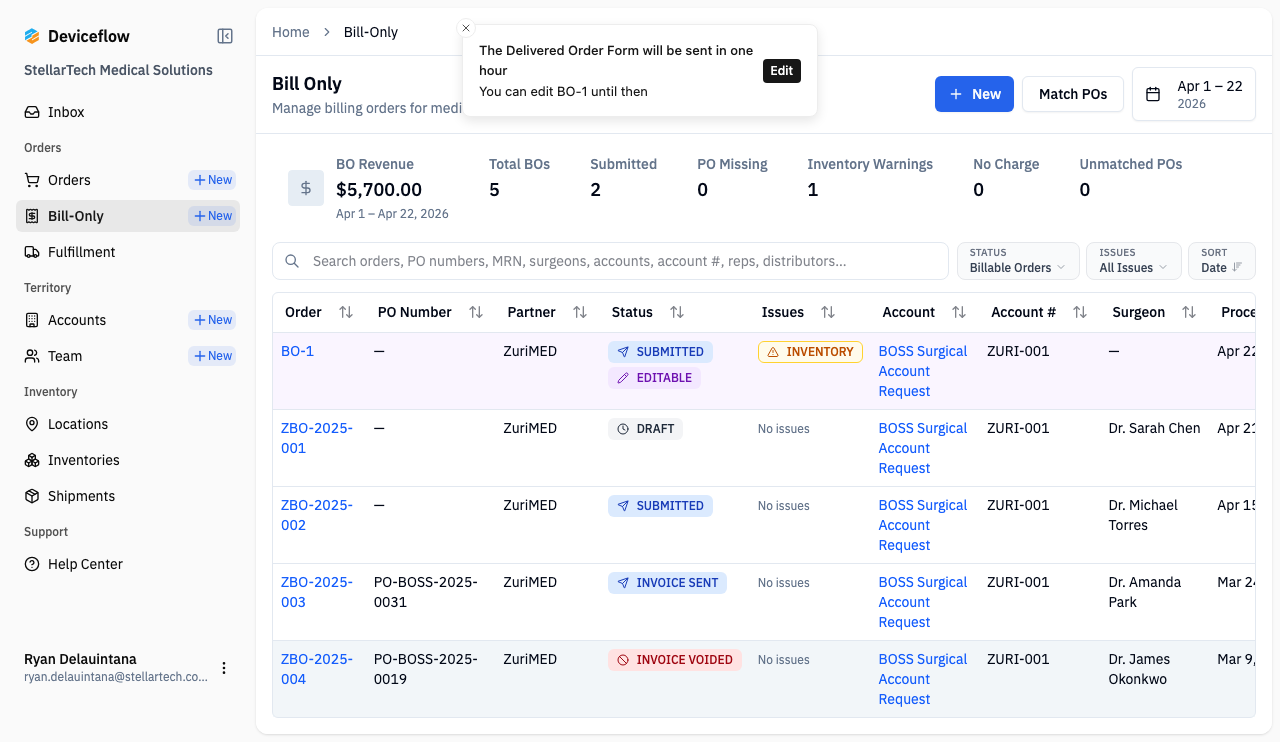

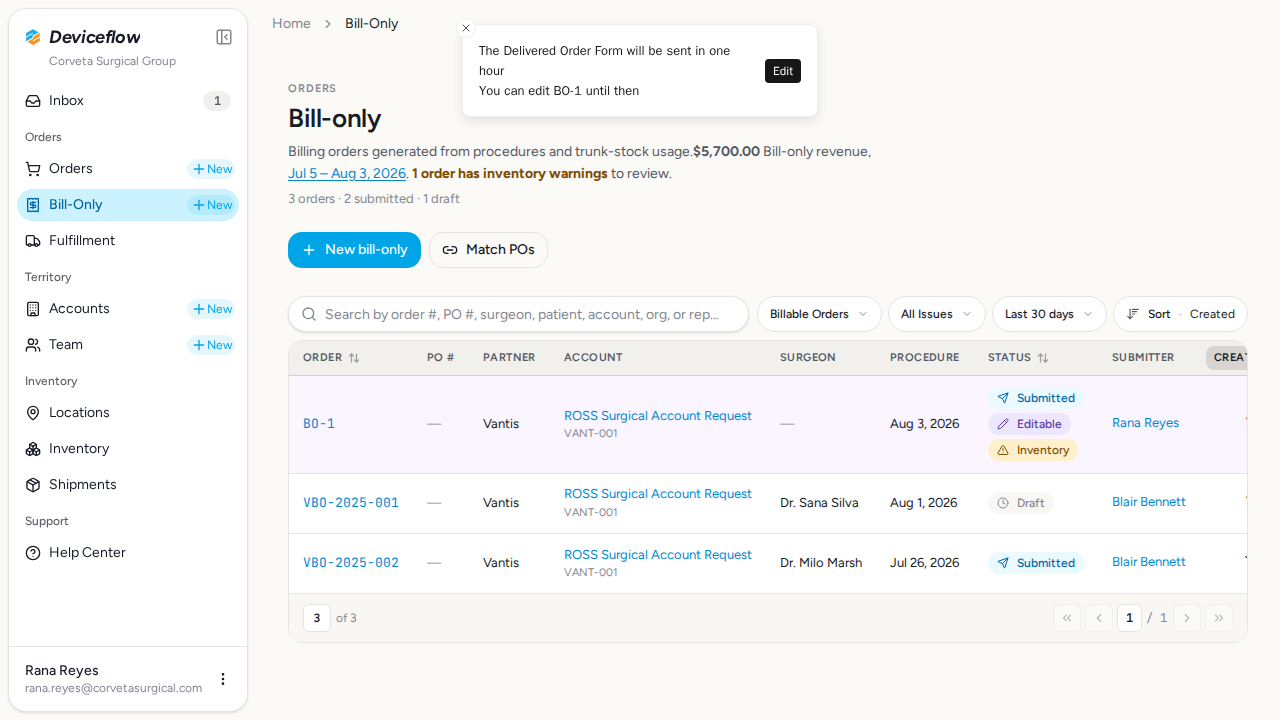

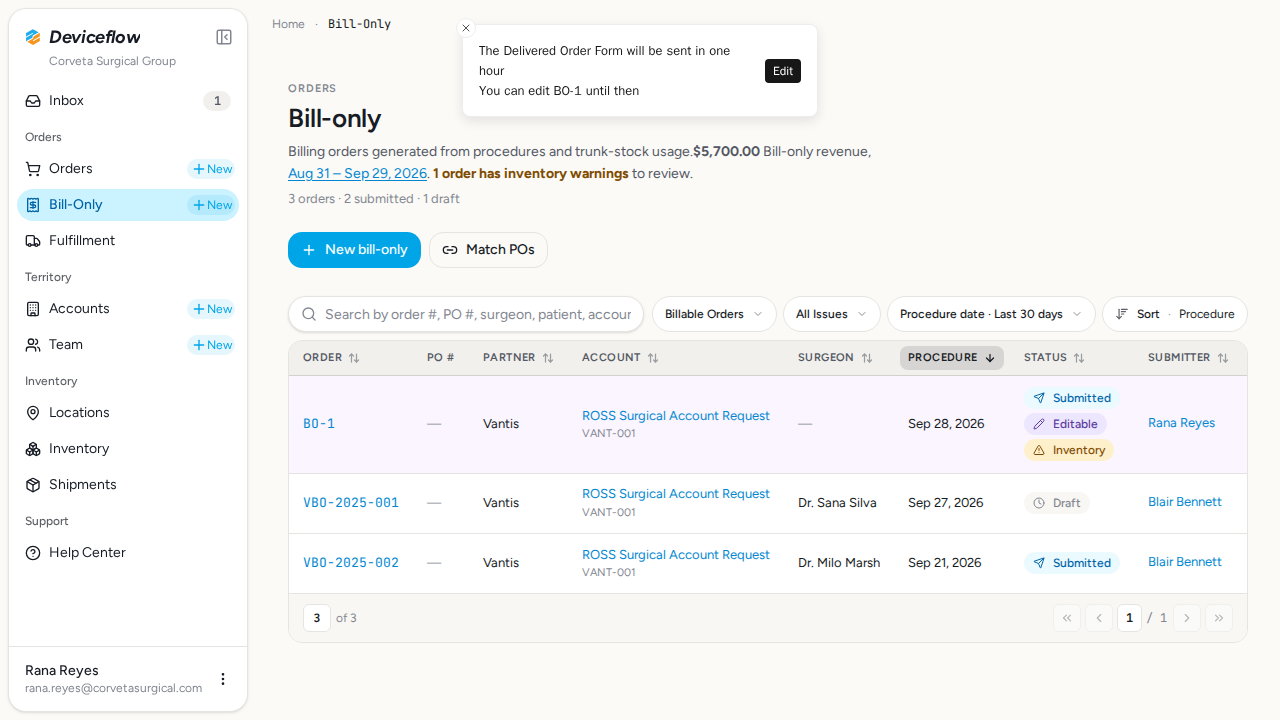

step 05 order submitted

Video recording:

6. Step 6: Order request after certification — ✅ PASS

Section titled “6. Step 6: Order request after certification — ✅ PASS”

What this step proves:

The certified rep navigates to the standard order request form without the approval warning, then submits a consignment order end-to-end. A DB assertion subsequently confirms that a row was persisted to the order_requests table — proving the post-certification path is unlocked at the database level, not just the UI level.

Audit events generated by this step:

(Evidence scoped to step execution window: 2026-09-29T02:28:07.880Z → 2026-09-29T02:28:26.526Z)

TimeTypeActionUserOrgPerformed
2026-09-29 02:28:24Zdecisionorder_request_createdrana.reyes@corvetasurgical.comVantisyes
2026-09-29 02:28:24Zchecklistchecklists.createrana.reyes@corvetasurgical.comVantis—
2026-09-29 02:28:24Zdecisionrepresentatives.gate_rep_actionrana.reyes@corvetasurgical.comVantisno

Screenshots:

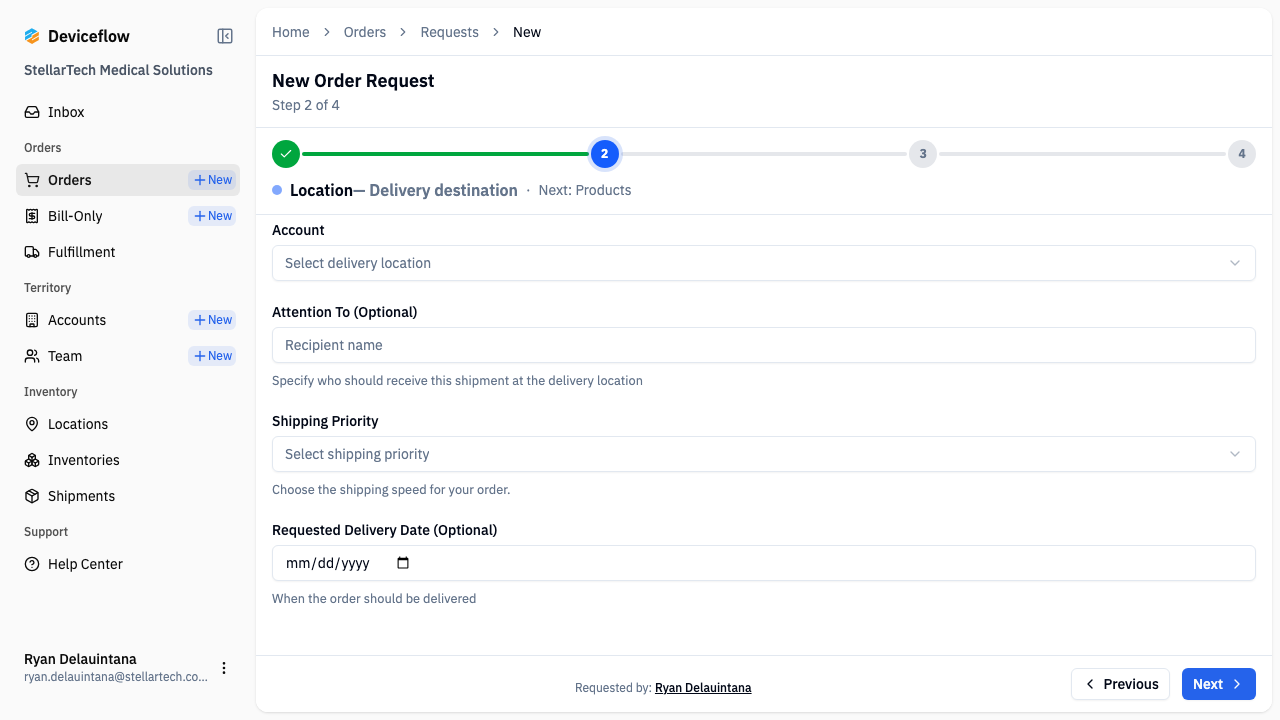

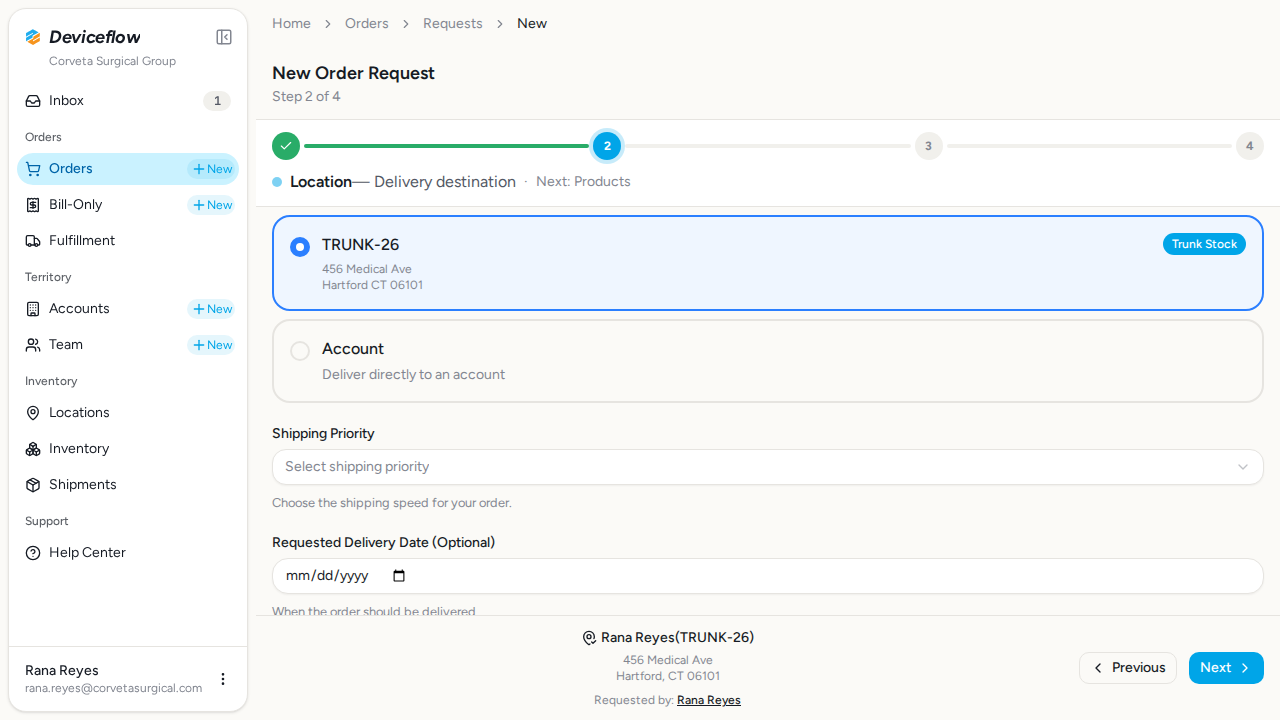

step 06 order request form accessible

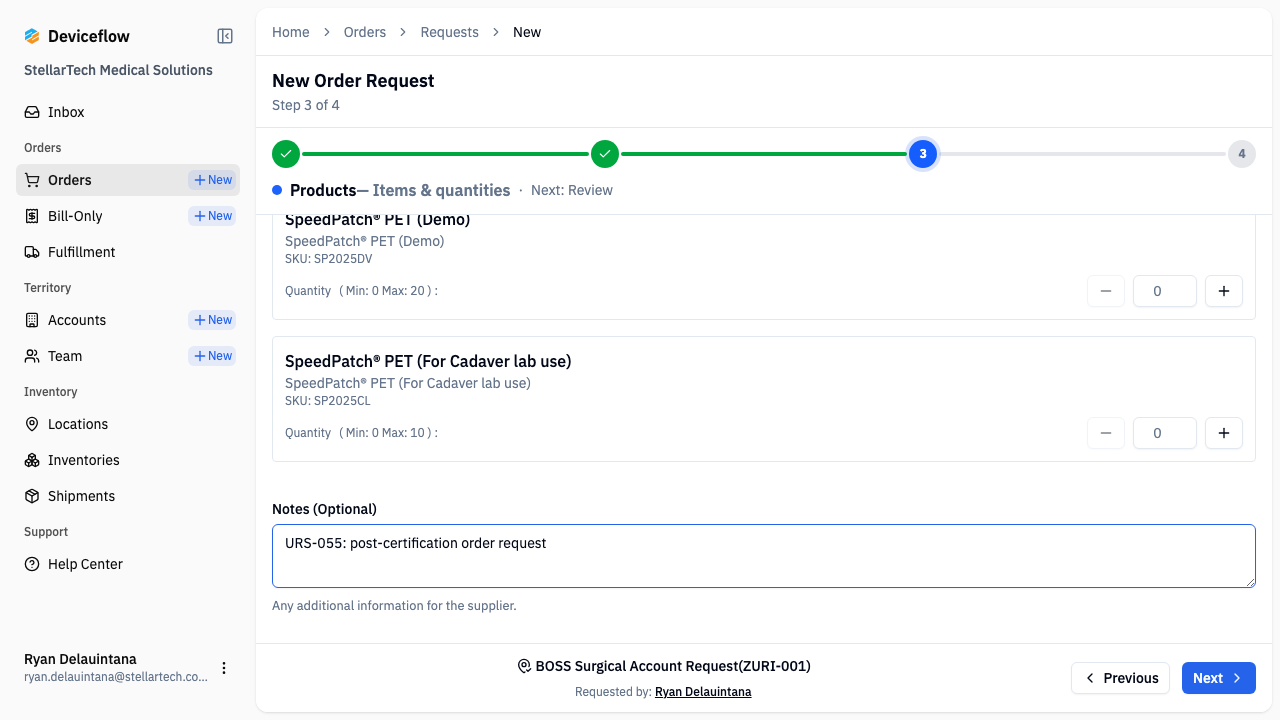

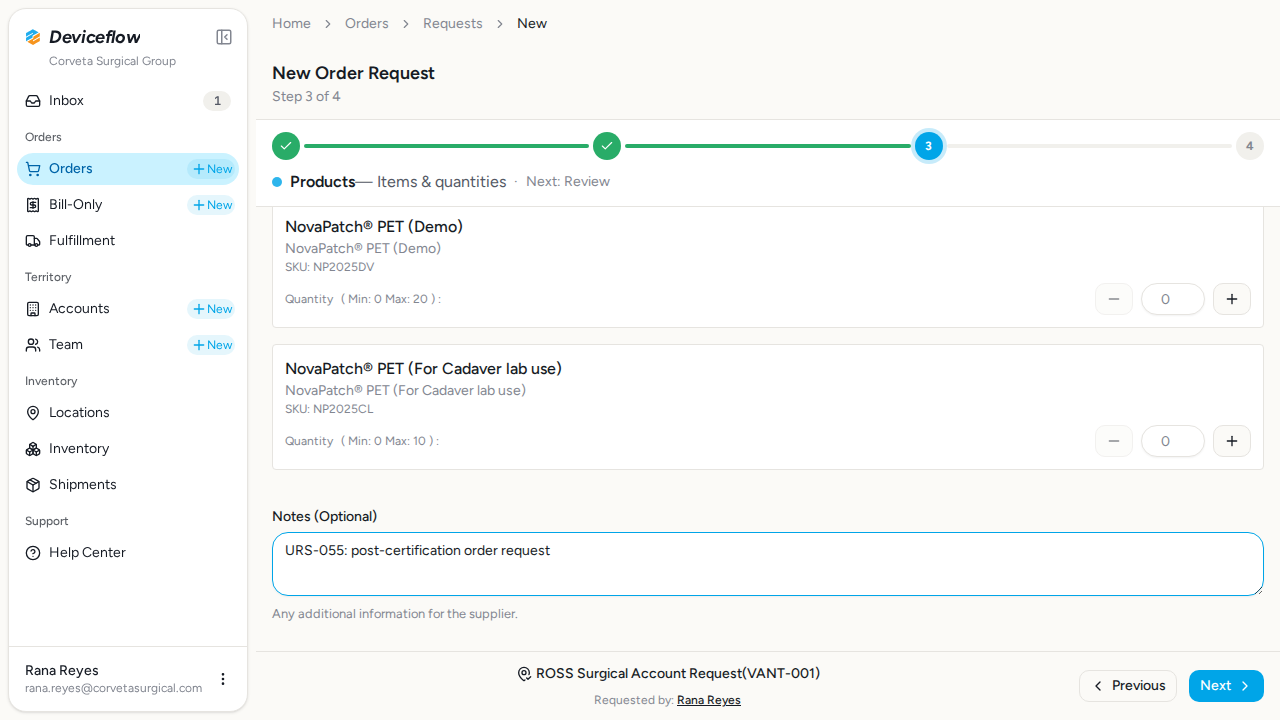

step 06 order request product

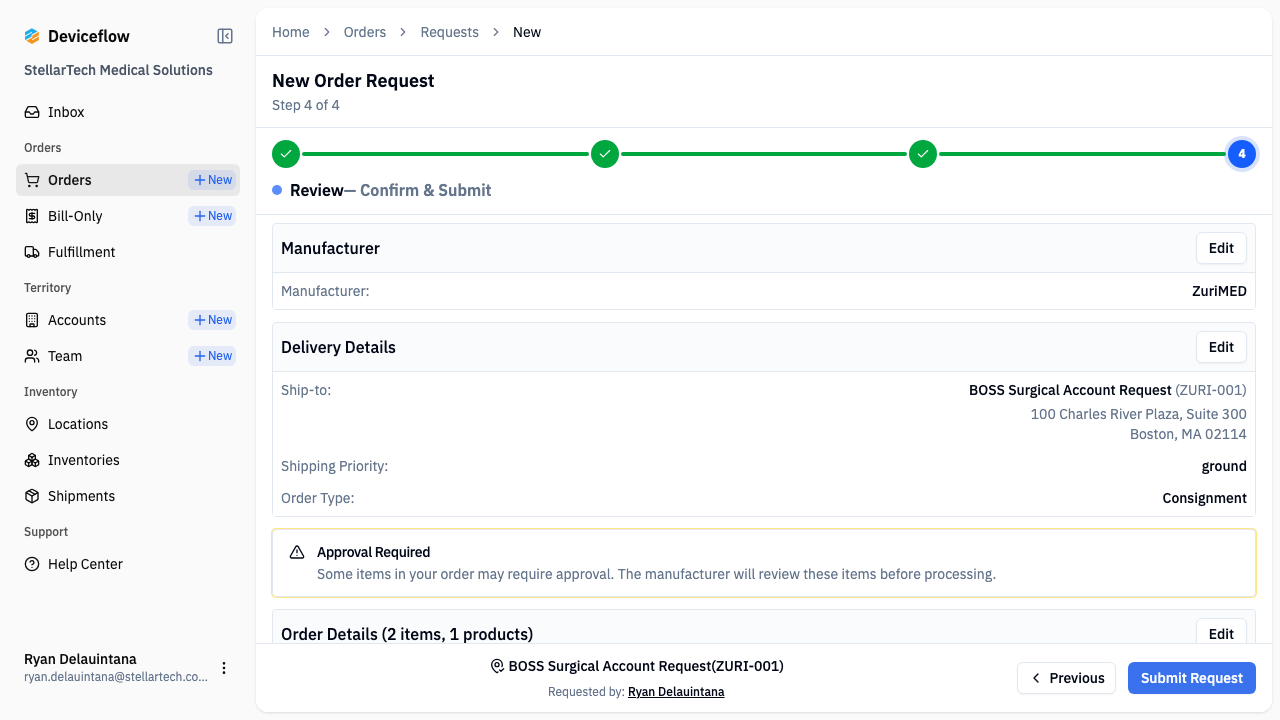

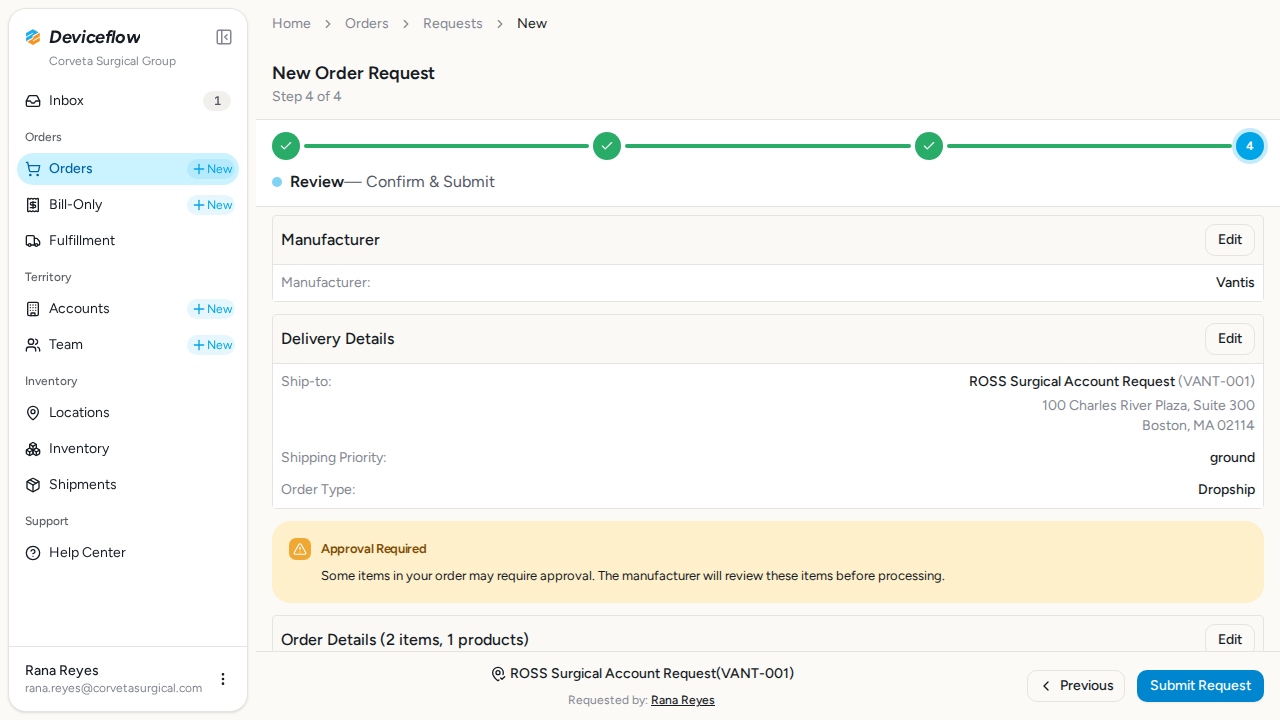

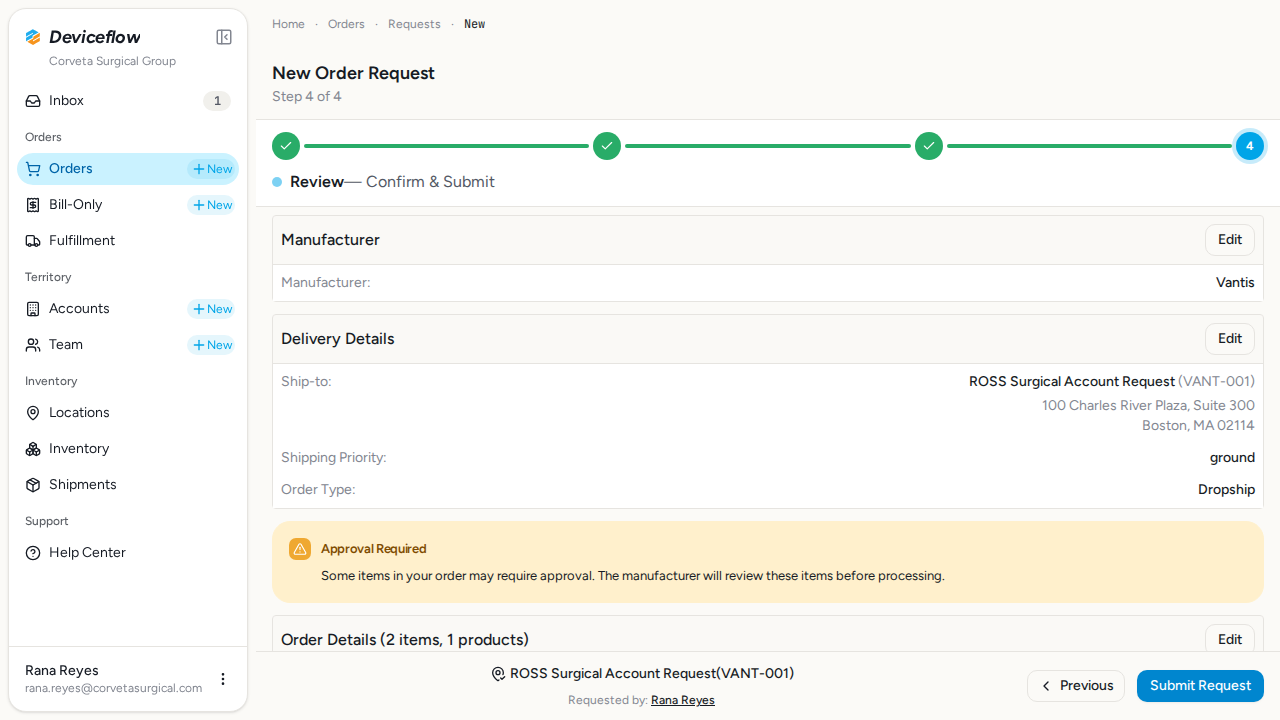

step 06 order request review

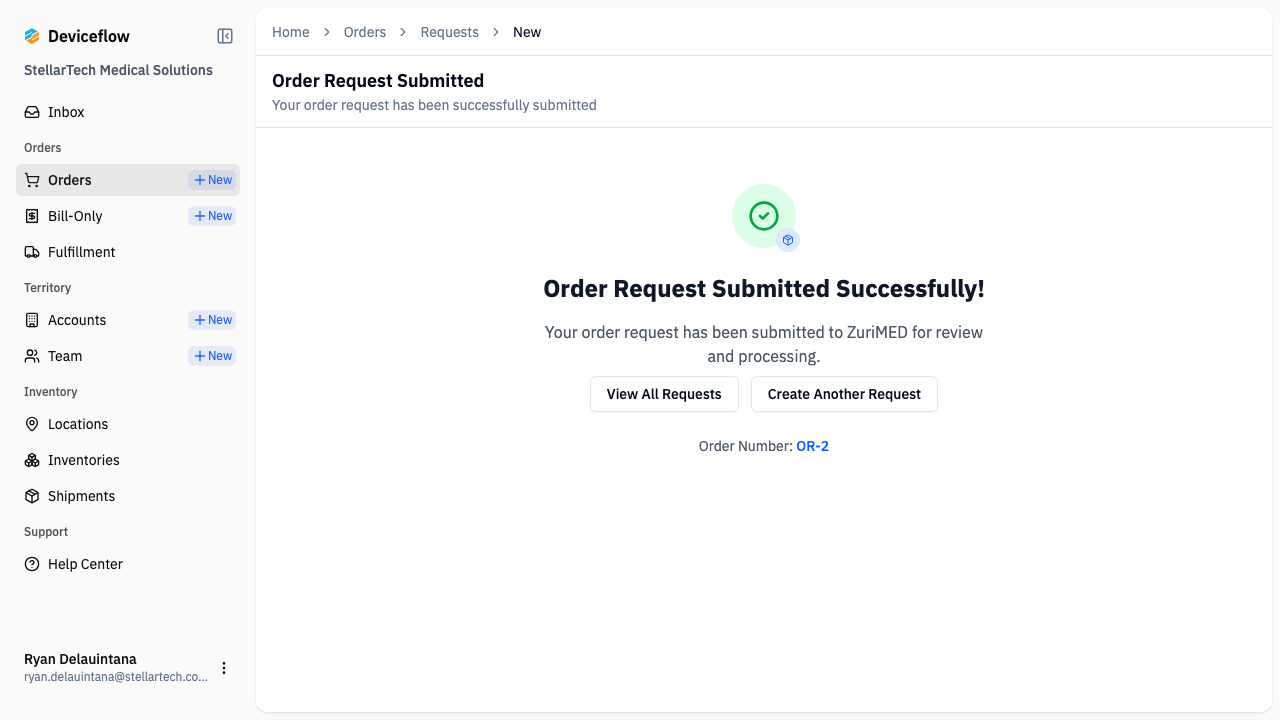

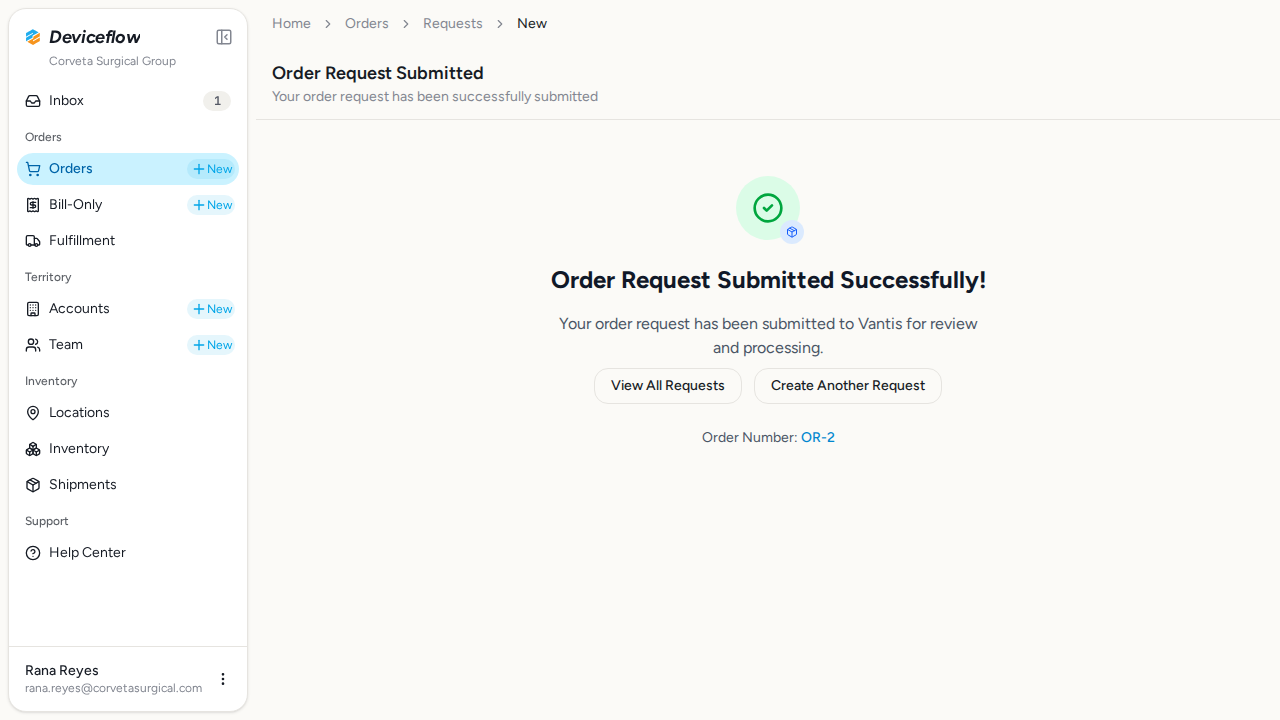

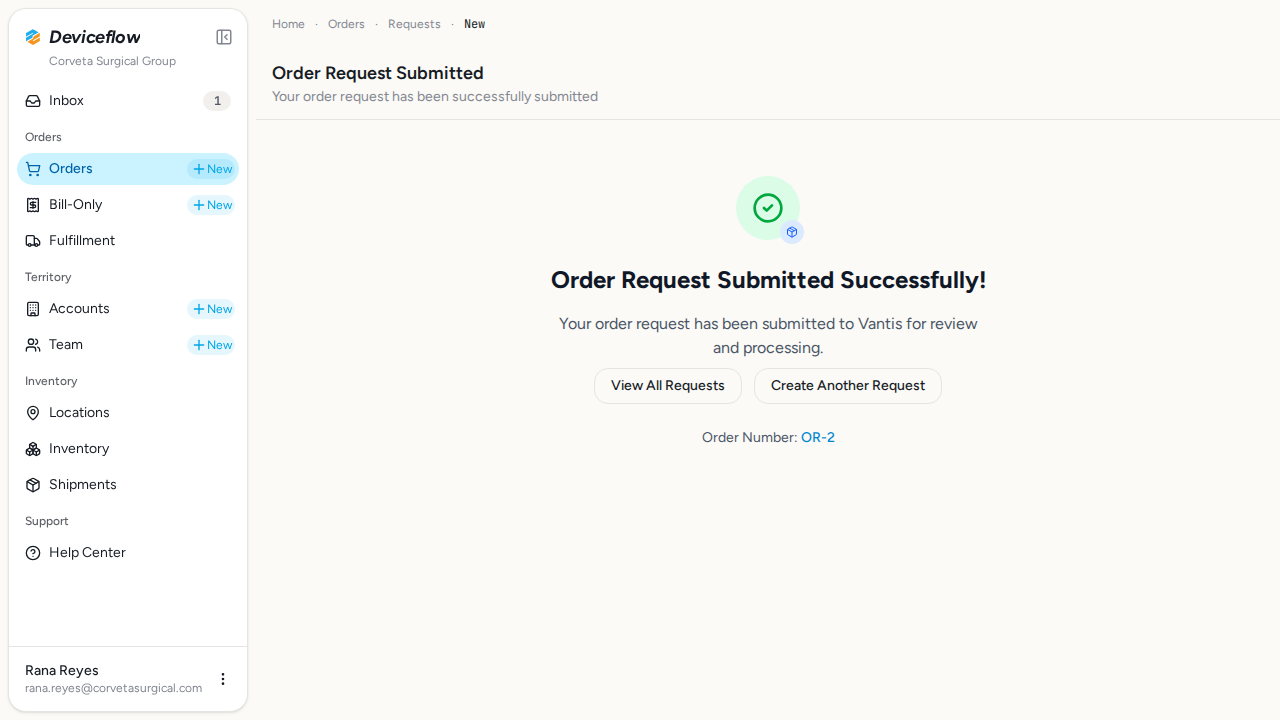

step 06 order request submitted

Video recording:

Database Validations

Section titled “Database Validations”

The following SQL queries ran against the application database after the Playwright scenarios completed. Each query asserts a specific condition that proves the feature under test persisted its data correctly.

Rana relationship now active — ✅ PASS

Section titled “Rana relationship now active — ✅ PASS”

Assertion: Rana’s representation relationship should be active after certification completion

SELECT id, status, active, responded_at, responded_by_user_id
      FROM organization_representation_relationships
      WHERE id = $1
idstatusactiveresponded_atresponded_by_user_id
95d6e7f8-a9b0-1234-9012-345678901234activetrueNULLNULL

Blair relationship still active (control) — ✅ PASS

Section titled “Blair relationship still active (control) — ✅ PASS”

Assertion: Blair’s relationship should remain active = true (the column the certification gate actually reads) and be unaffected by Rana’s approval. The status string in this row is informational only and may read proposed_pending_onboarding from the seed data.

SELECT id, status, active
      FROM organization_representation_relationships
      WHERE id = $1
idstatusactive
84c5d6e7-f8a9-0123-8901-234567890123proposed_pending_onboardingtrue

Certification completion status change recorded — ✅ PASS

Section titled “Certification completion status change recorded — ✅ PASS”

Assertion: A status change to ‘active’ with reason_code ‘certification_completed’ should be recorded in the history table

SELECT id, to_status, from_status, reason_code, changed_by_user_id, created_at
      FROM organization_representation_request_status_changes
      WHERE relationship_id = $1
        AND created_at > NOW() - INTERVAL '30 minutes'
      ORDER BY created_at DESC
      LIMIT 5
idto_statusfrom_statusreason_codechanged_by_user_idcreated_at
01a0eafc-9a1a-7ced-b964-aee406836e38activepending_certificationcertification_completed28c9d0e1-f2a3-4567-2345-6789012345672026-09-29T02:26:58.172Z

Rana’s certification record created on completion — ✅ PASS

Section titled “Rana’s certification record created on completion — ✅ PASS”

Assertion: Exactly one certification record should exist for Rana, on the current version, with a completion timestamp and a signature reference

SELECT rep_user_id, certification_id, certification_version_id,
        completed_at, signature_ref
      FROM certification_records
      WHERE rep_user_id = $1 AND certification_id = $2
rep_user_idcertification_idcertification_version_idcompleted_atsignature_ref
28c9d0e1-f2a3-4567-2345-678901234567ce000100-0000-4000-8000-000000000001ce000200-0000-4000-8000-0000000000022026-09-29T02:26:58.181Z01a0eafc-9a05-76de-8074-2067c5092048

Bill-only order created by Rana after certification — ✅ PASS

Section titled “Bill-only order created by Rana after certification — ✅ PASS”

Assertion: At least one bill-only order should have been created by Rana after being certified

SELECT bo.id, bo.order_number, bo.status, bo.created_at, bo.created_by_user_id
      FROM billing_orders bo
      WHERE bo.created_by_user_id = $1
        AND bo.created_at > NOW() - INTERVAL '30 minutes'
      ORDER BY bo.created_at DESC
      LIMIT 5
idorder_numberstatuscreated_atcreated_by_user_id
01a0eafd-0c1b-770f-8f1c-80b4c85d3fb2BO-1submitted2026-09-29T02:27:27.320Z28c9d0e1-f2a3-4567-2345-678901234567

Order request created by Rana after certification — ✅ PASS

Section titled “Order request created by Rana after certification — ✅ PASS”

Assertion: A standard order request should have been persisted by Rana after certification (Step 6) — tagged with the URS-055 notes marker

SELECT id, request_number, order_type, status, sales_account_id, notes, created_at
      FROM order_requests
      WHERE requested_by_user_id = $1
        AND notes LIKE $2
        AND created_at > NOW() - INTERVAL '30 minutes'
      ORDER BY created_at DESC
      LIMIT 5
idrequest_numberorder_typestatussales_account_idnotescreated_at
01a0eafd-eacb-7a28-b19c-2d5dd0fa2596OR-2dropshipsubmittedfea7b8c9-d0e1-2345-0123-456789012345URS-055: post-certification order request2026-09-29T02:28:24.367Z

Audit trail for certification completion — ✅ PASS

Section titled “Audit trail for certification completion — ✅ PASS”

Assertion: Audit/decision events should exist referencing Rana or his relationship after the certification completion

SELECT ae.id, ae.event_type, ae.action, ae.created_at, ae.user_id, ae.object_id,
        substring(ae.payload::text, 1, 500) as payload_preview
      FROM audit_events ae
      WHERE ae.created_at > NOW() - INTERVAL '30 minutes'
        AND (ae.object_id = $1 OR ae.object_id = $2)
      ORDER BY ae.created_at DESC
      LIMIT 10
idevent_typeactioncreated_atuser_idobject_idpayload_preview
01a0eafc-9a1e-7c54-919b-96deb2953d4dorganization_representationstatus_change2026-09-29T02:26:58.172Z28c9d0e1-f2a3-4567-2345-67890123456795d6e7f8-a9b0-1234-9012-345678901234{“reason”: “Certification completed”, “toStatus”: “active”, “fromStatus”: “pending_certification”, “reasonCode”: “certification_completed”, “requestingOrganizationId”: “b2c3d4e5-f6a7-8901-bcde-f12345678901”}
01a0eafc-9a24-7566-a684-5c2d868c37d7decisioncertifications.complete_certification.mark_relationship_certified2026-09-29T02:26:58.172Z28c9d0e1-f2a3-4567-2345-67890123456795d6e7f8-a9b0-1234-9012-345678901234{“reason”: “relationship_pending_certification”, “performed”: true, “entityType”: “organization_representation_relationship”}

Audit & Email Assertion Ledger

Section titled “Audit & Email Assertion Ledger”

Per-declaration outcome of every expectedAuditActions and expectedEmailTemplates entry written into the orchestrator. Missing evidence here is a real test failure, not a soft warning.

Audit Action Assertions

Section titled “Audit Action Assertions”

Each row asserts that a declared expectedAuditActions entry produced a matching row in audit_events. A ❌ flips overall status to FAIL — the declaration is real proof, not just an annotation.

StepExpected Audit ActionFound
Step 4: Rep completes certificationcertification:completed✅

Audit Log Events

Section titled “Audit Log Events”

Every row written to audit_events while this test was running (scoped to the demo organizations). Provides compliance evidence that user actions are traced end-to-end (URS-003).

Capture window start: 2026-09-29T02:25:13.558Z

SELECT
    ae.created_at,
    ae.event_type,
    ae.action,
    ae.user_id,
    u.email AS user_email,
    ae.organization_id,
    o.name AS organization_name,
    ae.object_id,
    ae.secondary_object_id,
    ae.payload,
    ae.route,
    ae.trace_id
  FROM audit_events ae
  LEFT JOIN users u ON u.id = ae.user_id
  LEFT JOIN organizations o ON o.id = ae.organization_id
  WHERE ae.created_at >= $1
    AND ae.organization_id = ANY($2::uuid[])
  ORDER BY ae.created_at ASC

36 event(s) captured:

TimeTypeActionUserOrgObject IDPerformedReason
2026-09-29 02:25:23Zuser_loguser:loginrana.reyes@corvetasurgical.comCorveta Surgical Group——
2026-09-29 02:25:37Zuser_loguser:loginrana.reyes@corvetasurgical.comCorveta Surgical Group——
2026-09-29 02:25:48Zuser_loguser:loginblair.bennett@corvetasurgical.comCorveta Surgical Group——
2026-09-29 02:26:39Zuser_loguser:loginrana.reyes@corvetasurgical.comCorveta Surgical Group——
2026-09-29 02:26:43Zcertificationsigning_code_issuedrana.reyes@corvetasurgical.comVantisce000100-0000-4000-8000-000000000001—
2026-09-29 02:26:43Zdecisioncertifications.signing_challenge.send_smsrana.reyes@corvetasurgical.comVantis01a0eafc-6225-7d53-8233-cb1833f8f9cdnono_phone_channel

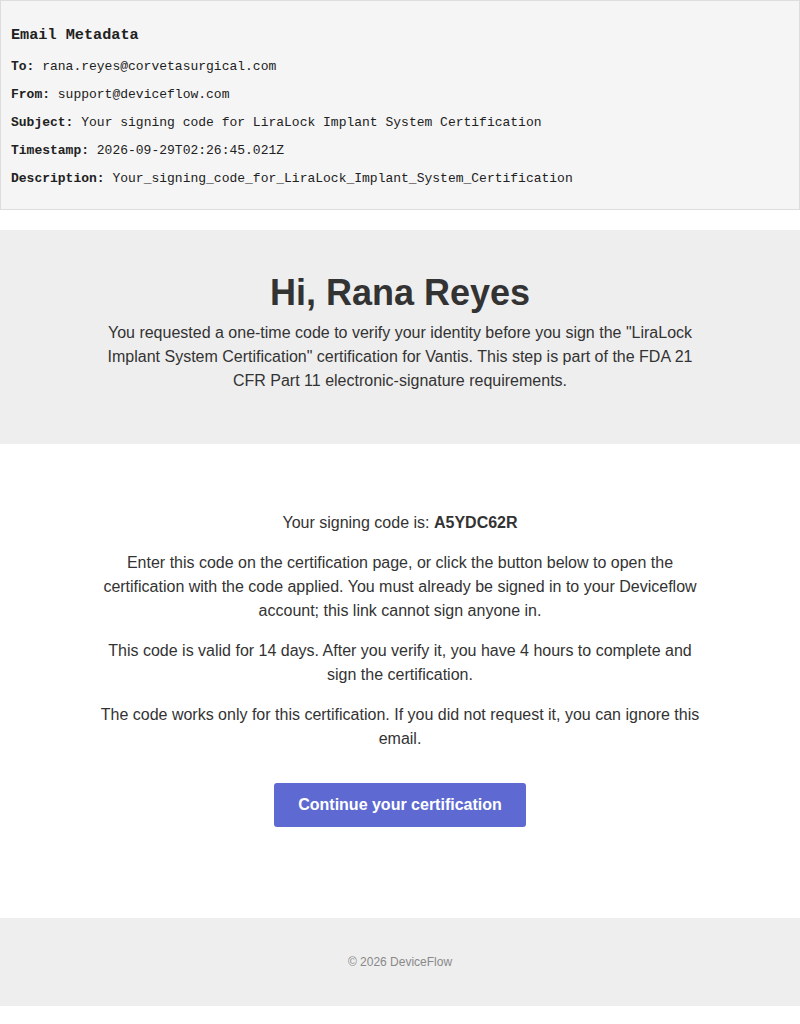

2026-09-29 02:26:45Ztransactional_emailcertification_signing_code—Vantis01a0eafc-6225-7d53-8233-cb1833f8f9cd—
2026-09-29 02:26:47Zcertificationsigning_code_verifiedrana.reyes@corvetasurgical.comVantisce000100-0000-4000-8000-000000000001—
2026-09-29 02:26:54Zdecisionforms.grade_submissionrana.reyes@corvetasurgical.comVantisce000300-0000-4000-8000-000000000002yesall_answers_correct
2026-09-29 02:26:58Zcertificationsigning_code_consumedrana.reyes@corvetasurgical.comVantisce000100-0000-4000-8000-000000000001—
2026-09-29 02:26:58Zdecisioncertifications.complete_certification.issue_certificaterana.reyes@corvetasurgical.comVantis01a0eafc-9a05-76de-8074-2066a386833dyesquiz_backed_completion
2026-09-29 02:26:58Zdecisioncertifications.complete_certification.mark_relationship_certifiedrana.reyes@corvetasurgical.comVantis95d6e7f8-a9b0-1234-9012-345678901234yesrelationship_pending_certification
2026-09-29 02:26:58Zorganization_representationstatus_changerana.reyes@corvetasurgical.comVantis95d6e7f8-a9b0-1234-9012-345678901234—Certification completed
2026-09-29 02:26:58Zcertificationcompletedrana.reyes@corvetasurgical.comVantis01a0eafc-9a05-76de-8074-2066a386833d—
2026-09-29 02:26:58Zuser_logrep_relationship_certifiedrana.reyes@corvetasurgical.comVantis——Certification completed
2026-09-29 02:26:59Zcertification_certificateissuedrana.reyes@corvetasurgical.comVantis01a0eafc-9a28-78a1-b912-357c24cfdb65—
2026-09-29 02:26:59Zcertification_completion_recordissuedrana.reyes@corvetasurgical.comVantis01a0eafc-9a2b-708c-9bd8-16e676557758—
2026-09-29 02:27:01Zuser_loguser:loginrana.reyes@corvetasurgical.comCorveta Surgical Group——
2026-09-29 02:27:13Zdecisionbill_only_order.duplicate_submission_blockrana.reyes@corvetasurgical.comCorveta Surgical Groupfea7b8c9-d0e1-2345-0123-456789012345nono_same_day_candidates
2026-09-29 02:27:27Zdecisionrepresentatives.gate_rep_actionrana.reyes@corvetasurgical.comVantisa1b2c3d4-e5f6-7890-abcd-ef1234567890nono_blocking_relationship
2026-09-29 02:27:27Zdecisionbill_only_order.inventory_items_decrementrana.reyes@corvetasurgical.comVantis01a0eafd-0c1b-770f-8f1c-80b4c85d3fb2yesinventory_items_decremented
2026-09-29 02:27:27Zdecisionbill_only_order.direct_po_import_on_createrana.reyes@corvetasurgical.comVantis01a0eafd-0c1b-770f-8f1c-80b4c85d3fb2noNo uploaded PO documents
2026-09-29 02:27:27Zbilling_orderstatus_changerana.reyes@corvetasurgical.comVantis01a0eafd-0c1b-770f-8f1c-80b4c85d3fb2—
2026-09-29 02:27:27ZdecisionbasicErp.deriveSalesOrderrana.reyes@corvetasurgical.comVantis01a0eafd-0c1b-770f-8f1c-80b4c85d3fb2noflag_disabled
2026-09-29 02:27:27Zscheduled_taskscheduled_task.scheduledrana.reyes@corvetasurgical.comVantis01a0eafd-0c46-7466-8402-7d347ba2f96e—
2026-09-29 02:27:27Zscheduled_taskscheduled_task.scheduledrana.reyes@corvetasurgical.comVantis01a0eafd-0c4a-7714-b545-9bcd8ac33a5f—
2026-09-29 02:27:27Zscheduled_taskscheduled_task.scheduledrana.reyes@corvetasurgical.comVantis01a0eafd-0c4d-745e-a2e6-2d9ad2b546b9—
2026-09-29 02:27:27Zdecisionbill_only.link_purchase_orderrana.reyes@corvetasurgical.comCorveta Surgical Group01a0eafd-0c1b-770f-8f1c-80b4c85d3fb2nono_purchase_order_selected
2026-09-29 02:27:27Zdecisionbill_only_order.duplicate_submission_blockrana.reyes@corvetasurgical.comCorveta Surgical Groupfea7b8c9-d0e1-2345-0123-456789012345nono_same_day_candidates
2026-09-29 02:27:27Zdecisionrepresentatives.gate_rep_actionrana.reyes@corvetasurgical.comVantisa1b2c3d4-e5f6-7890-abcd-ef1234567890nono_blocking_relationship
2026-09-29 02:27:28Zdecisionbill_only.notifications.cc_incident_recipients—Vantis01a0eafd-0c1b-770f-8f1c-80b4c85d3fb2noorder has no no-charge item with an incident reason
2026-09-29 02:27:28Ztransactional_emailnew_bill_only—Corveta Surgical Group01a0eafd-0c1b-770f-8f1c-80b4c85d3fb2—
2026-09-29 02:28:03Zuser_loguser:loginrana.reyes@corvetasurgical.comCorveta Surgical Group——
2026-09-29 02:28:24Zdecisionorder_request_createdrana.reyes@corvetasurgical.comVantis01a0eafd-eacb-7a28-b19c-2d5dd0fa2596yesOrder request OR-2 created (importSource=manual)
2026-09-29 02:28:24Zchecklistchecklists.createrana.reyes@corvetasurgical.comVantis01a0eafd-ead8-7ebf-ad80-4d4ed7ee4bfc—
2026-09-29 02:28:24Zdecisionrepresentatives.gate_rep_actionrana.reyes@corvetasurgical.comVantisa1b2c3d4-e5f6-7890-abcd-ef1234567890nono_blocking_relationship

Email Evidence

Section titled “Email Evidence”

2 notification email(s) were captured during this test run. Each email is rendered as a screenshot for compliance review.

1. Your signing code for LiraLock Implant System Certification

Section titled “1. Your signing code for LiraLock Implant System Certification”

Template: Your_signing_code_for_LiraLock_Implant_System_Certification

Your signing code for LiraLock Implant System Certification

2. New Bill-Only Order - 9/28/2026 - Vantis BO-1

Section titled “2. New Bill-Only Order - 9/28/2026 - Vantis BO-1”

Template: New_Bill-Only_Order_-_9_28_2026_-_Vantis_BO-1

New Bill-Only Order - 9/28/2026 - Vantis BO-1

Downloads

Section titled “Downloads”

Feedback

Section titled “Feedback”
