URS-001 · Secure Login with Unique User Credentials

Title: Secure Login with Unique User Credentials Date: 2026-09-29T02:26:37.482Z Duration: 174.0s Overall Status: ✅ PASS

User Requirement

Section titled “User Requirement”

The system shall provide secure login using unique user credentials.

Source: User_Requirement_Specifications_Vantis_DeviceFlow.xlsx — the run below proves the system meets this requirement.

Environment

Section titled “Environment”

Setup

Section titled “Setup”

Status: ✅ PASS

Test Steps

Section titled “Test Steps”

Each step below corresponds to one Playwright test that ran sequentially. Screenshots and video recordings provide visual evidence of the UI behaviour.

1. Step 1: Login page loads correctly — ✅ PASS

Section titled “1. Step 1: Login page loads correctly — ✅ PASS”

What this step proves:

The system presents a login form with email and password fields and a password reset link. This confirms the authentication entry point is functional and that all users are directed to credential-based login rather than any unauthenticated route.

Screenshots:

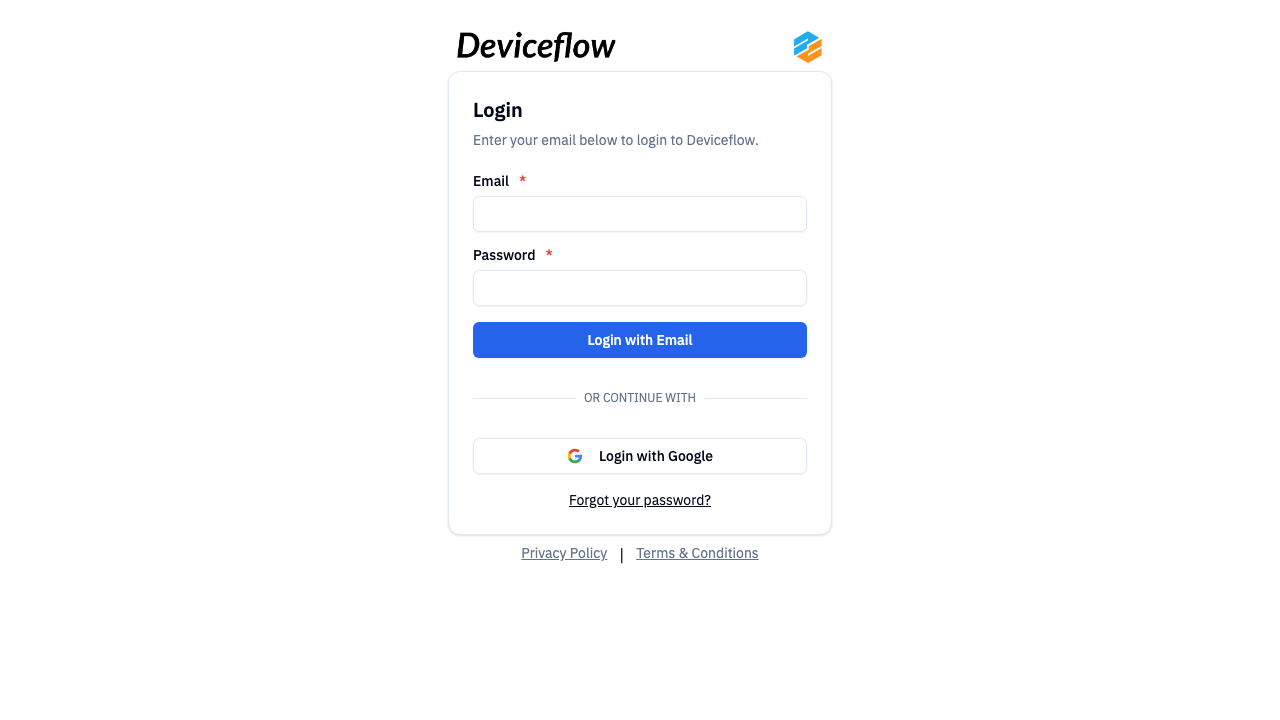

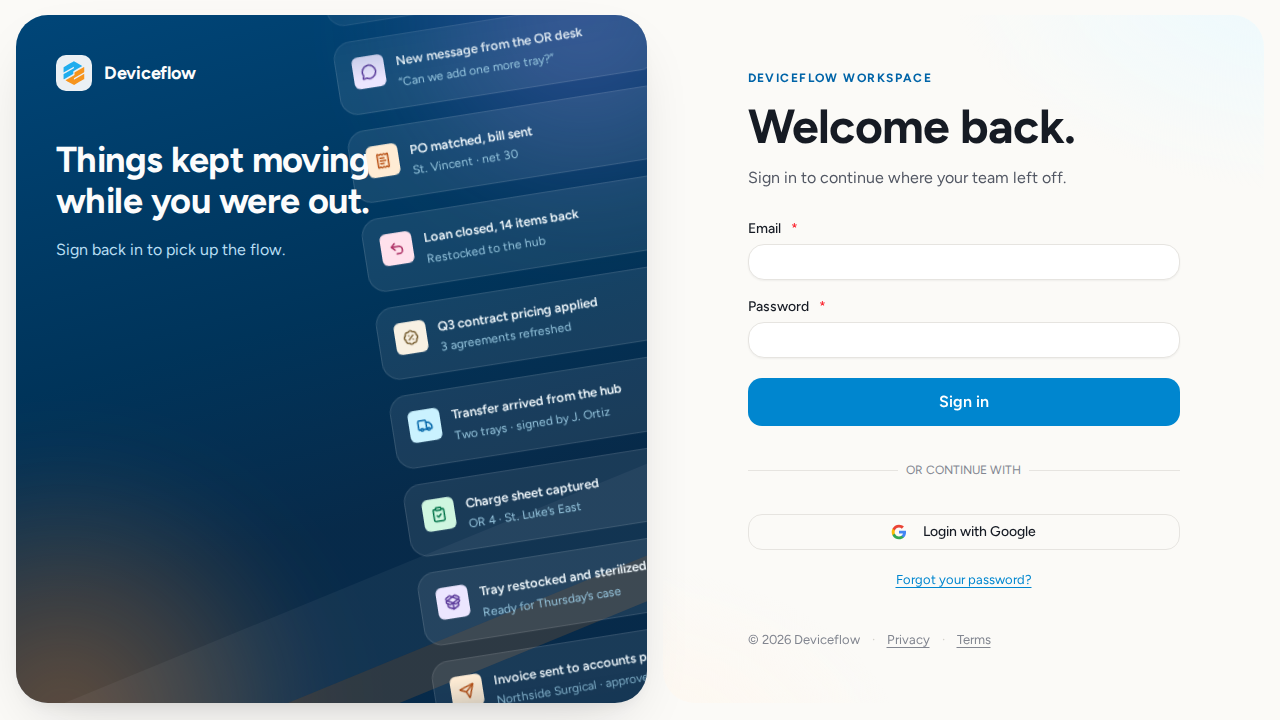

step 01 login page

Video recording:

2. Step 2: Valid login - Distributor user — ✅ PASS

Section titled “2. Step 2: Valid login - Distributor user — ✅ PASS”

What this step proves:

A distributor user authenticates successfully with correct credentials. The system validates the credentials, creates a session, and redirects the user to the authenticated application. This demonstrates that valid credentials grant access as required by URS-001.

Audit events generated by this step:

(Evidence matched by declared name — step timing not available or no events fell in window)

TimeTypeActionUserOrgPerformed
2026-09-29 02:27:49Zuser_loguser:logindan.distributor@corvetasurgical.comCorveta Surgical Group—
2026-09-29 02:27:55Zuser_loguser:loginmark.manufacturer@vantismedical.comVantis—
2026-09-29 02:28:32Zuser_loguser:loginalex.admin@vantismedical.comVantis—
2026-09-29 02:29:11Zuser_loguser:loginalex.admin@vantismedical.comVantis—
2026-09-29 02:29:17Zuser_loguser:logindan.distributor@corvetasurgical.comCorveta Surgical Group—
2026-09-29 02:29:18Zuser_loguser:loginalex.admin@vantismedical.comVantis—
2026-09-29 02:29:24Zuser_loguser:loginalex.admin@vantismedical.comVantis—

Screenshots:

step 02 distributor logged in

Video recording:

3. Step 3: Valid login - Manufacturer user — ✅ PASS

Section titled “3. Step 3: Valid login - Manufacturer user — ✅ PASS”

What this step proves:

A manufacturer-type user authenticates successfully, confirming that the secure credential flow handles multiple organization types uniformly. No special path exists for different org types.

Audit events generated by this step:

(Evidence matched by declared name — step timing not available or no events fell in window)

TimeTypeActionUserOrgPerformed
2026-09-29 02:27:49Zuser_loguser:logindan.distributor@corvetasurgical.comCorveta Surgical Group—
2026-09-29 02:27:55Zuser_loguser:loginmark.manufacturer@vantismedical.comVantis—
2026-09-29 02:28:32Zuser_loguser:loginalex.admin@vantismedical.comVantis—
2026-09-29 02:29:11Zuser_loguser:loginalex.admin@vantismedical.comVantis—
2026-09-29 02:29:17Zuser_loguser:logindan.distributor@corvetasurgical.comCorveta Surgical Group—
2026-09-29 02:29:18Zuser_loguser:loginalex.admin@vantismedical.comVantis—
2026-09-29 02:29:24Zuser_loguser:loginalex.admin@vantismedical.comVantis—

Screenshots:

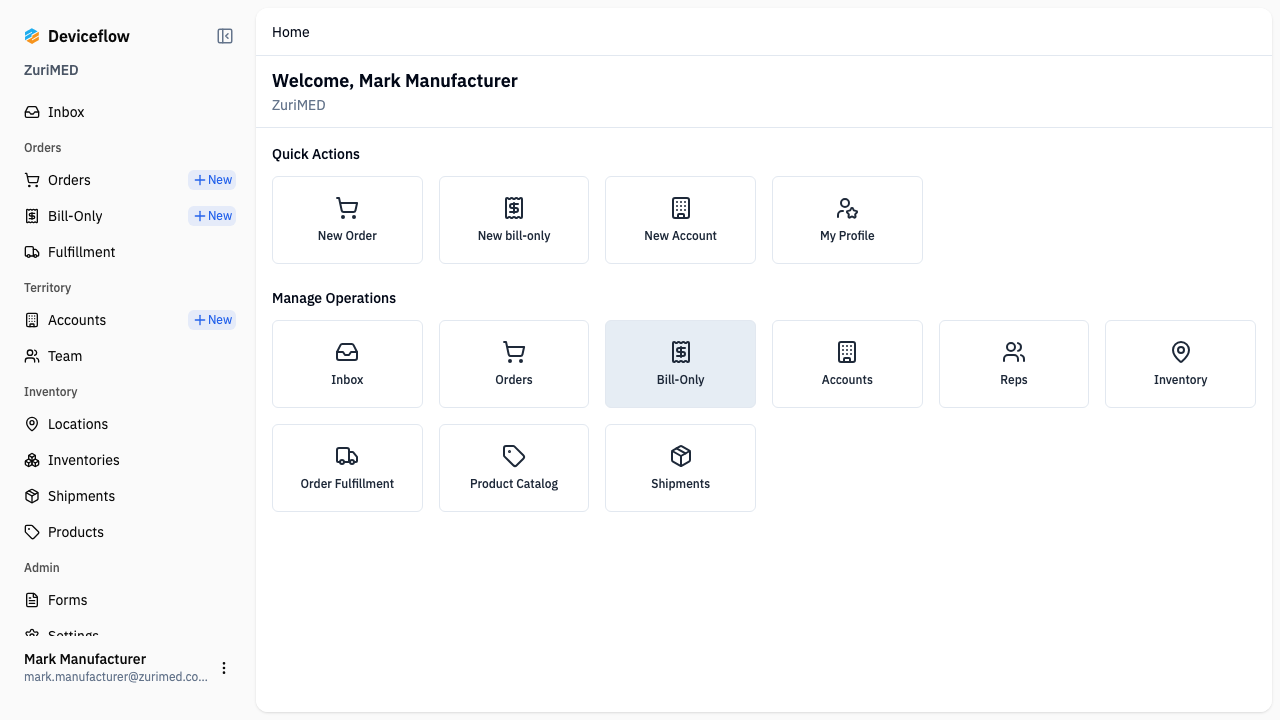

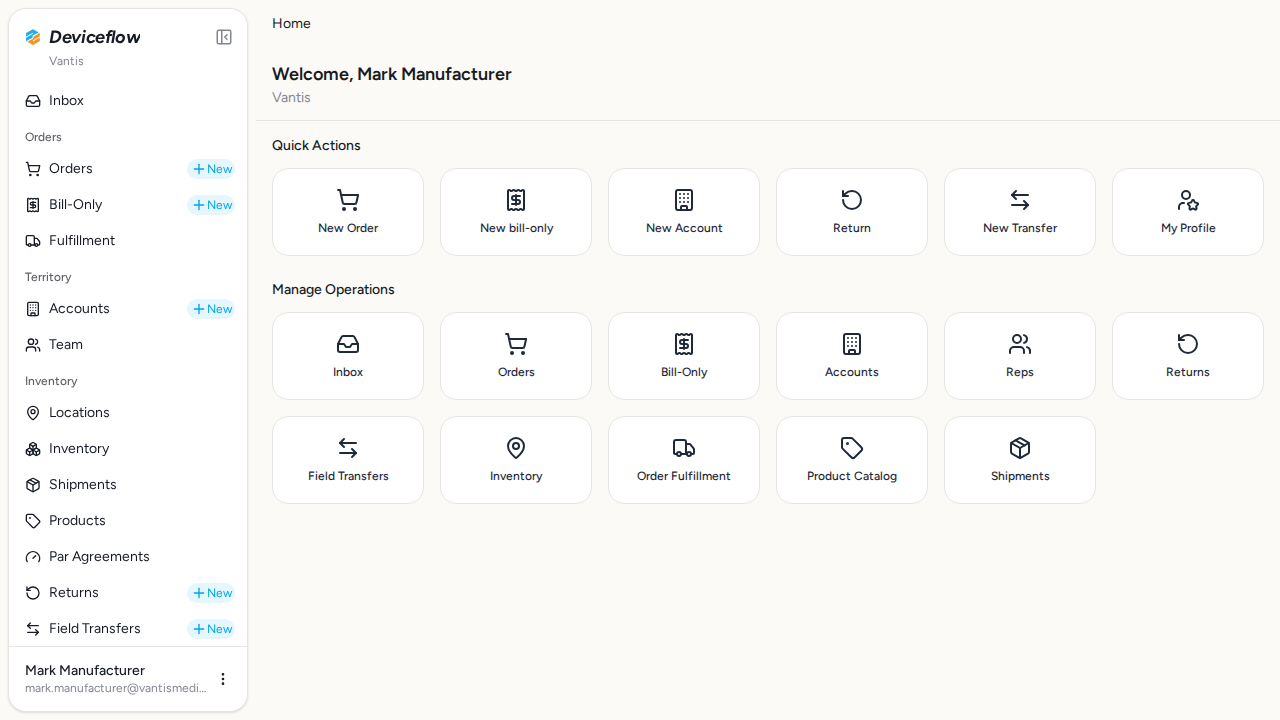

step 03 manufacturer logged in

Video recording:

4. Step 4: Valid login - Admin user — ✅ PASS

Section titled “4. Step 4: Valid login - Admin user — ✅ PASS”

What this step proves:

An admin user authenticates successfully, confirming that all system roles use the same credential-based authentication mechanism.

Audit events generated by this step:

(Evidence matched by declared name — step timing not available or no events fell in window)

TimeTypeActionUserOrgPerformed
2026-09-29 02:27:49Zuser_loguser:logindan.distributor@corvetasurgical.comCorveta Surgical Group—
2026-09-29 02:27:55Zuser_loguser:loginmark.manufacturer@vantismedical.comVantis—
2026-09-29 02:28:32Zuser_loguser:loginalex.admin@vantismedical.comVantis—
2026-09-29 02:29:11Zuser_loguser:loginalex.admin@vantismedical.comVantis—
2026-09-29 02:29:17Zuser_loguser:logindan.distributor@corvetasurgical.comCorveta Surgical Group—
2026-09-29 02:29:18Zuser_loguser:loginalex.admin@vantismedical.comVantis—
2026-09-29 02:29:24Zuser_loguser:loginalex.admin@vantismedical.comVantis—

Screenshots:

step 04 admin logged in

Video recording:

5. Step 5: Invalid credentials - Wrong password — ✅ PASS

Section titled “5. Step 5: Invalid credentials - Wrong password — ✅ PASS”

What this step proves:

Attempting to log in with a valid registered email but an incorrect password is rejected. The system returns a generic error message and keeps the user on the login page. The exact error text is captured for comparison in Step 6 to verify protection against email enumeration.

Screenshots:

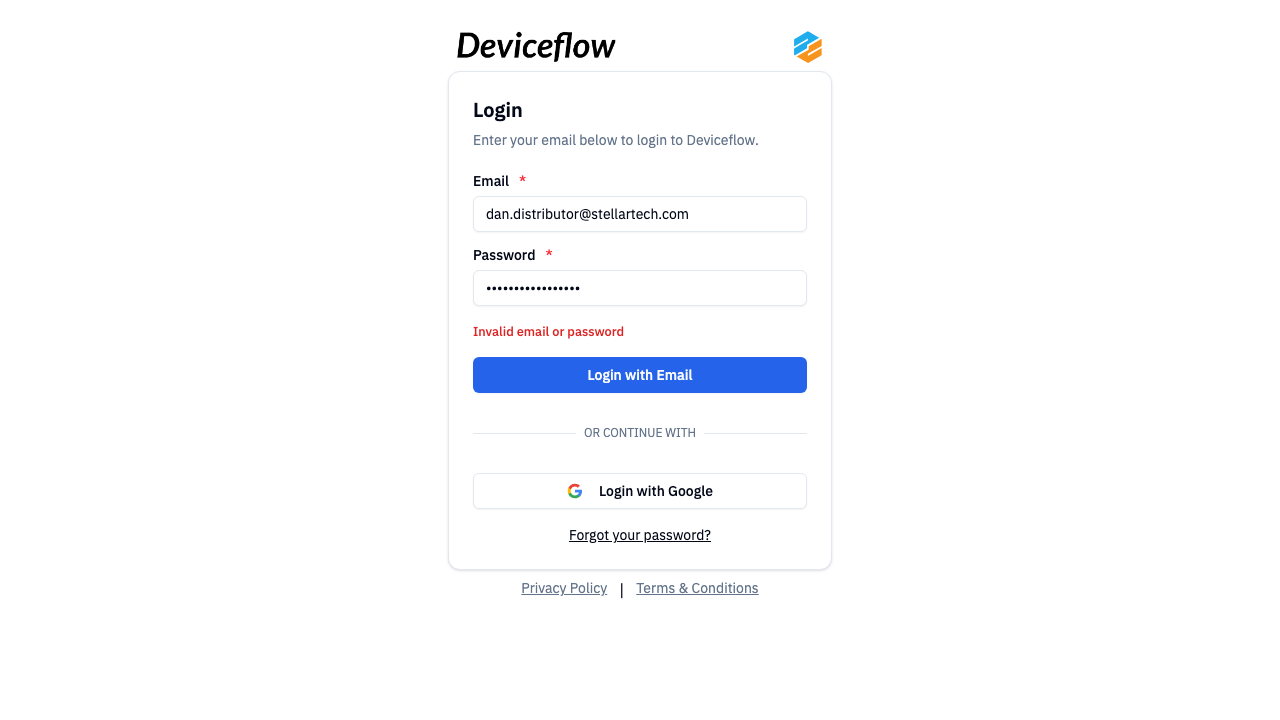

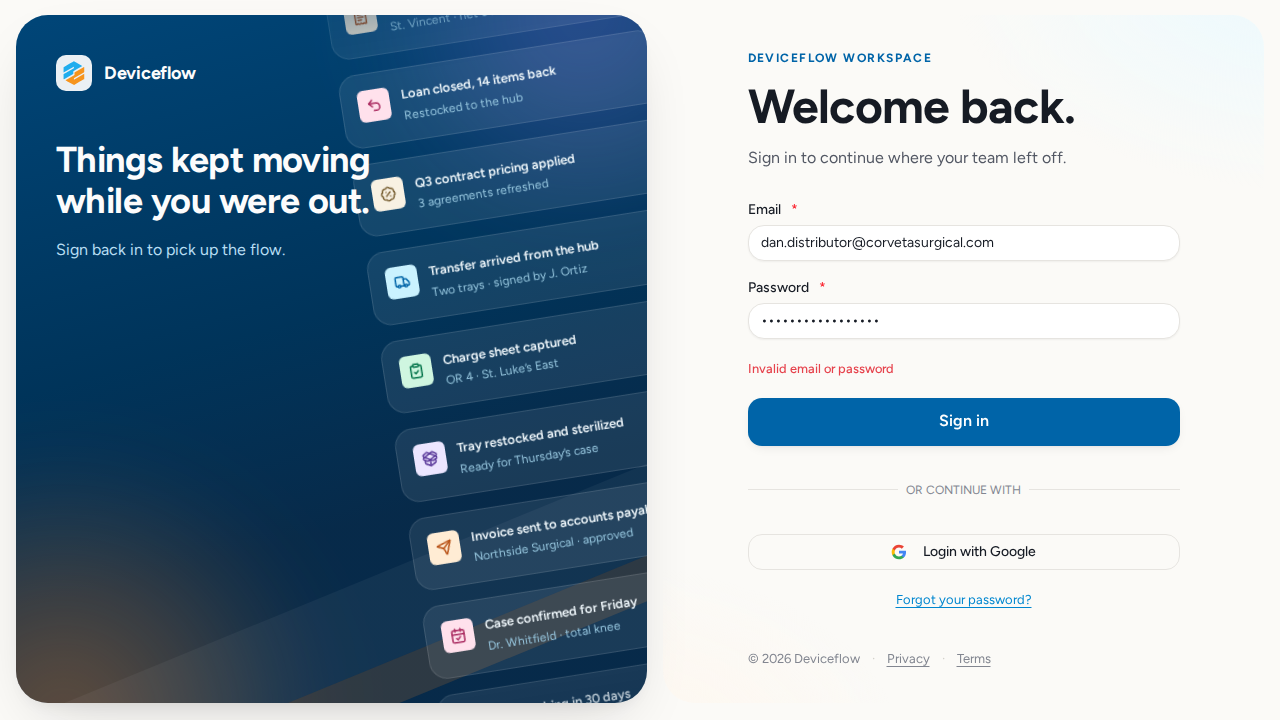

step 05 wrong password error

Video recording:

6. Step 6a: Invalid credentials - Non-existent email — ✅ PASS

Section titled “6. Step 6a: Invalid credentials - Non-existent email — ✅ PASS”

What this step proves:

Attempting to log in with an email address that has never been registered returns the exact same error message as Step 5. Identical responses for wrong-password and unknown-email requests prevent attackers from determining whether a given email address exists in the system.

Screenshots:

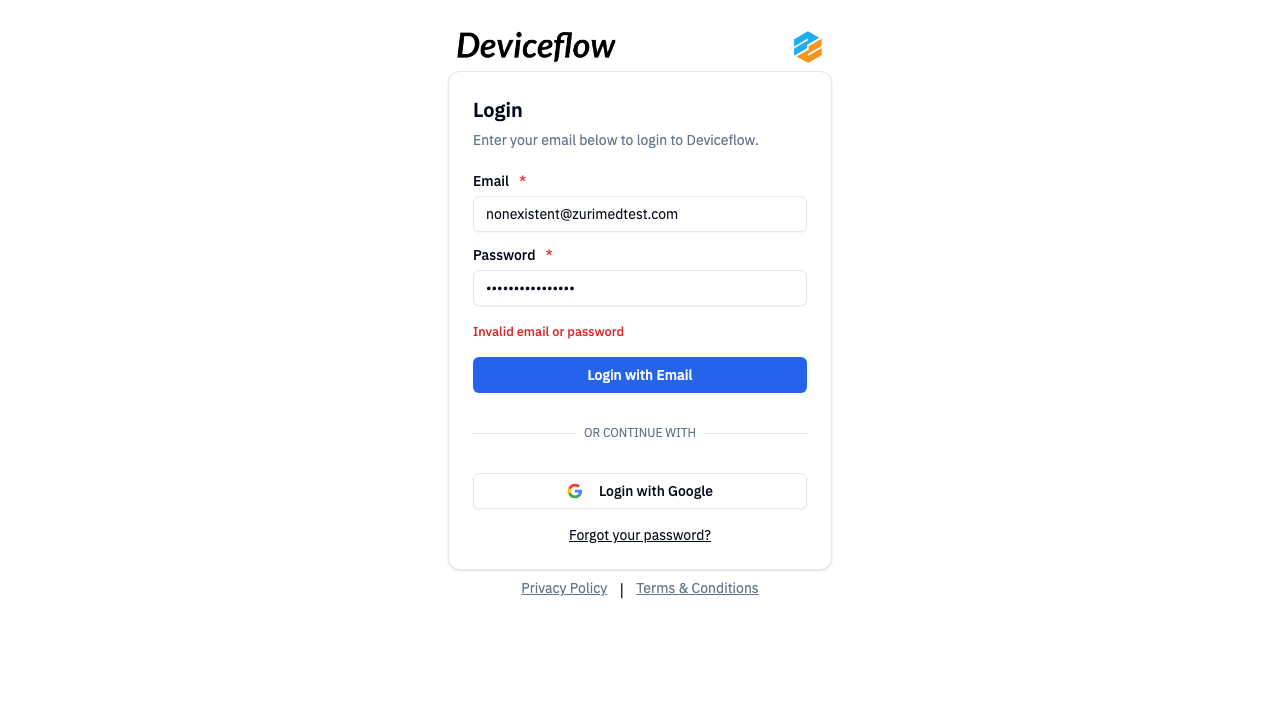

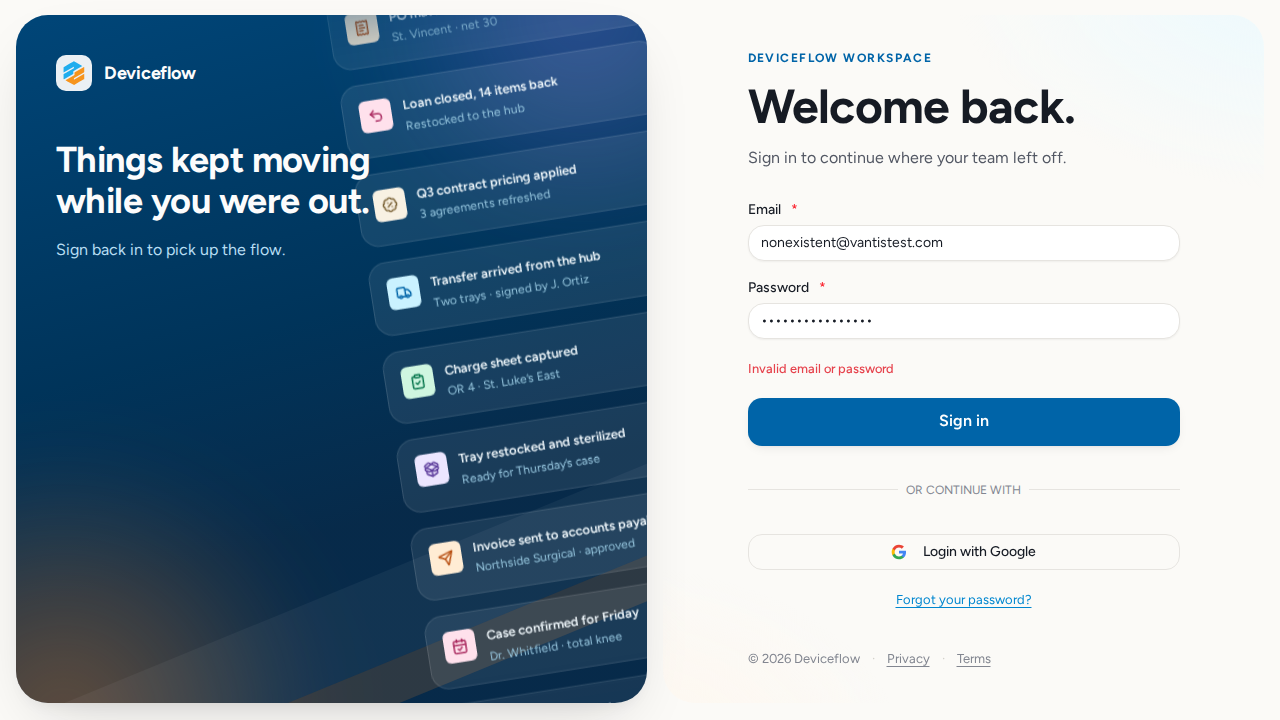

step 06 nonexistent email error

Video recording:

7. Step 6b: Locked account - inactive user cannot login — ✅ PASS

Section titled “7. Step 6b: Locked account - inactive user cannot login — ✅ PASS”

What this step proves:

A user whose organization membership has been deactivated is blocked from logging in even when submitting the correct credentials. This confirms that deactivating a user account takes effect immediately and that credential validity alone is insufficient for access.

Screenshots:

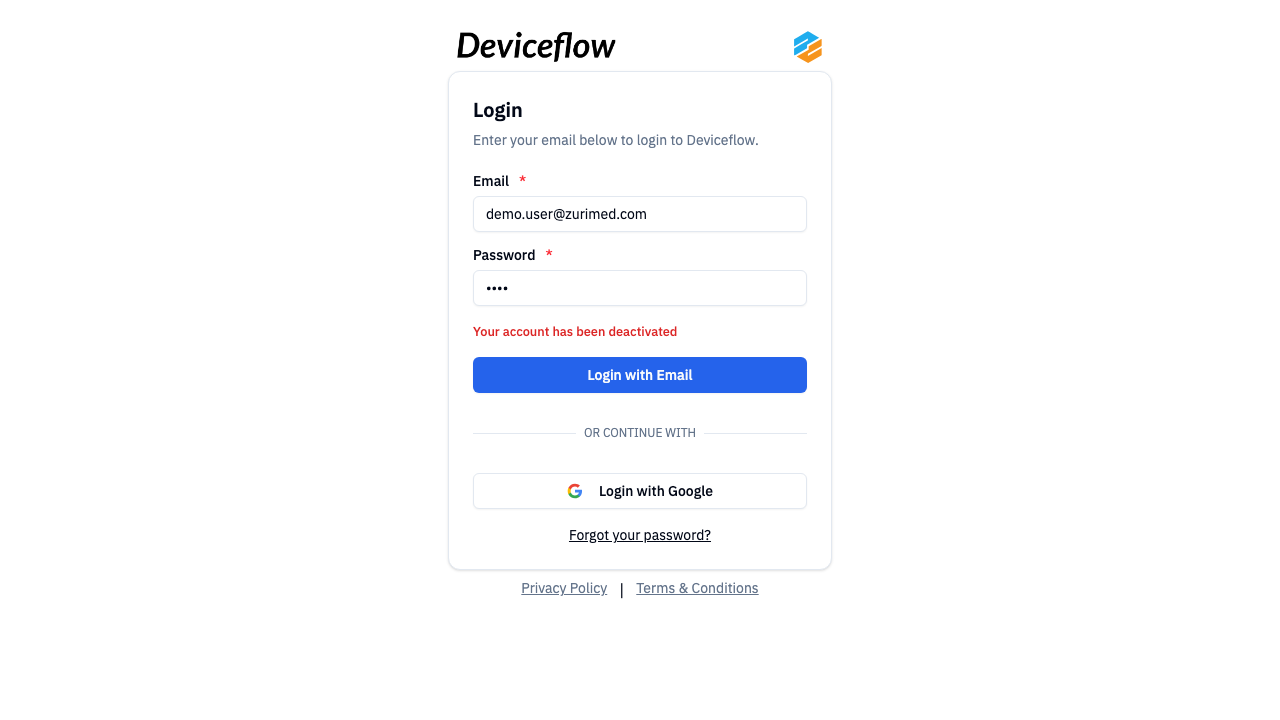

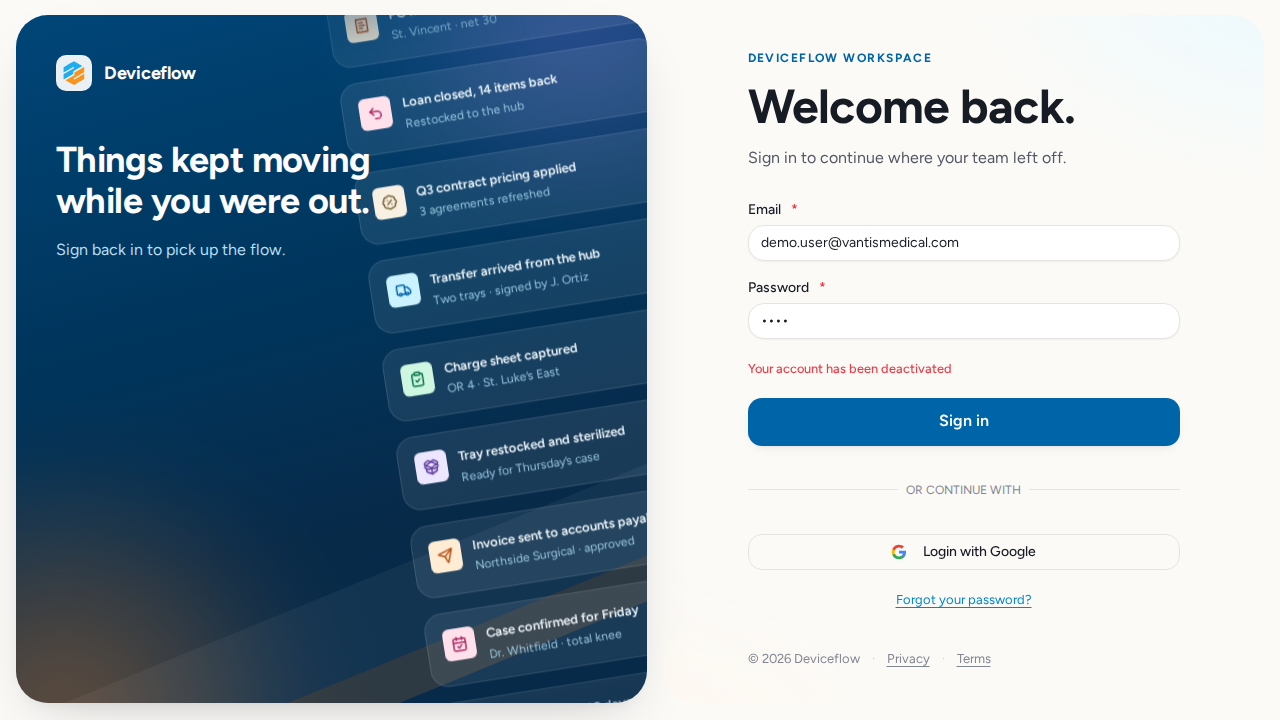

step 06b locked account error

Video recording:

8. Step 7: Empty field validation — ✅ PASS

Section titled “8. Step 7: Empty field validation — ✅ PASS”

What this step proves:

Submitting the login form with empty fields triggers validation errors before any server request is made, displaying field-level messages such as “Invalid email” and “Password is required”. This confirms that required-field enforcement provides clear feedback and prevents malformed requests.

Screenshots:

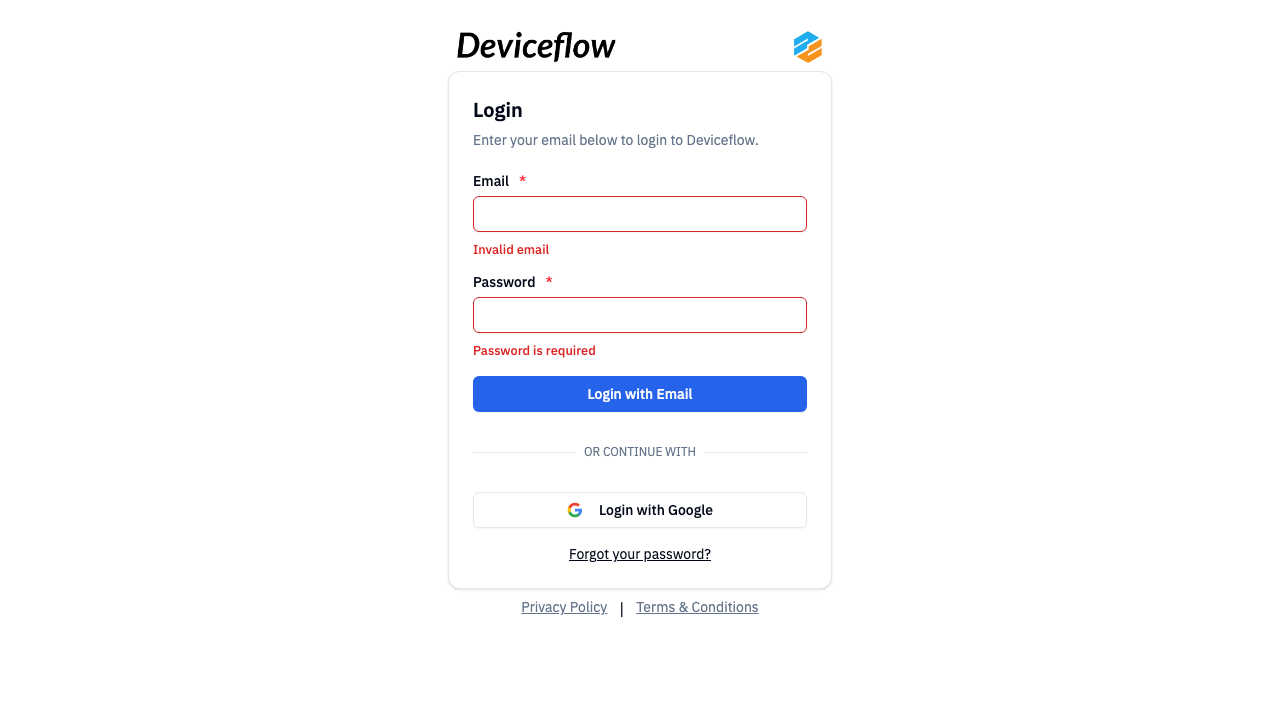

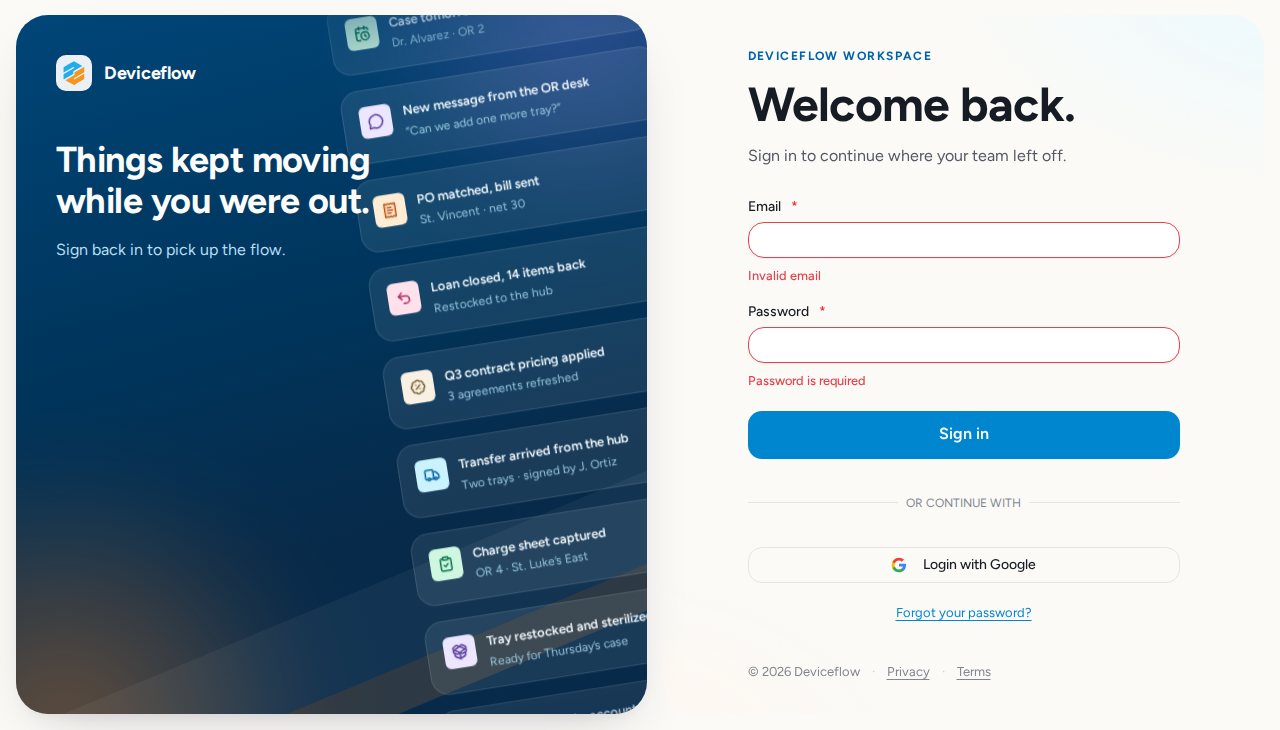

step 07 empty both fields

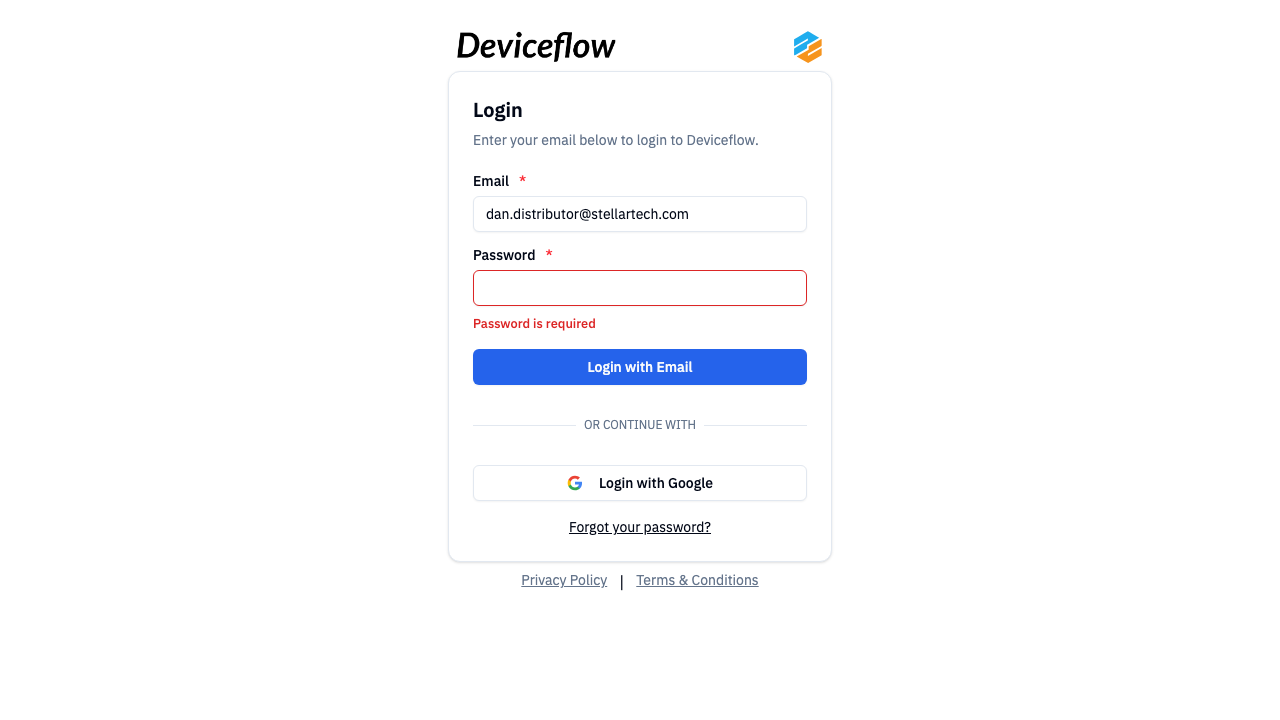

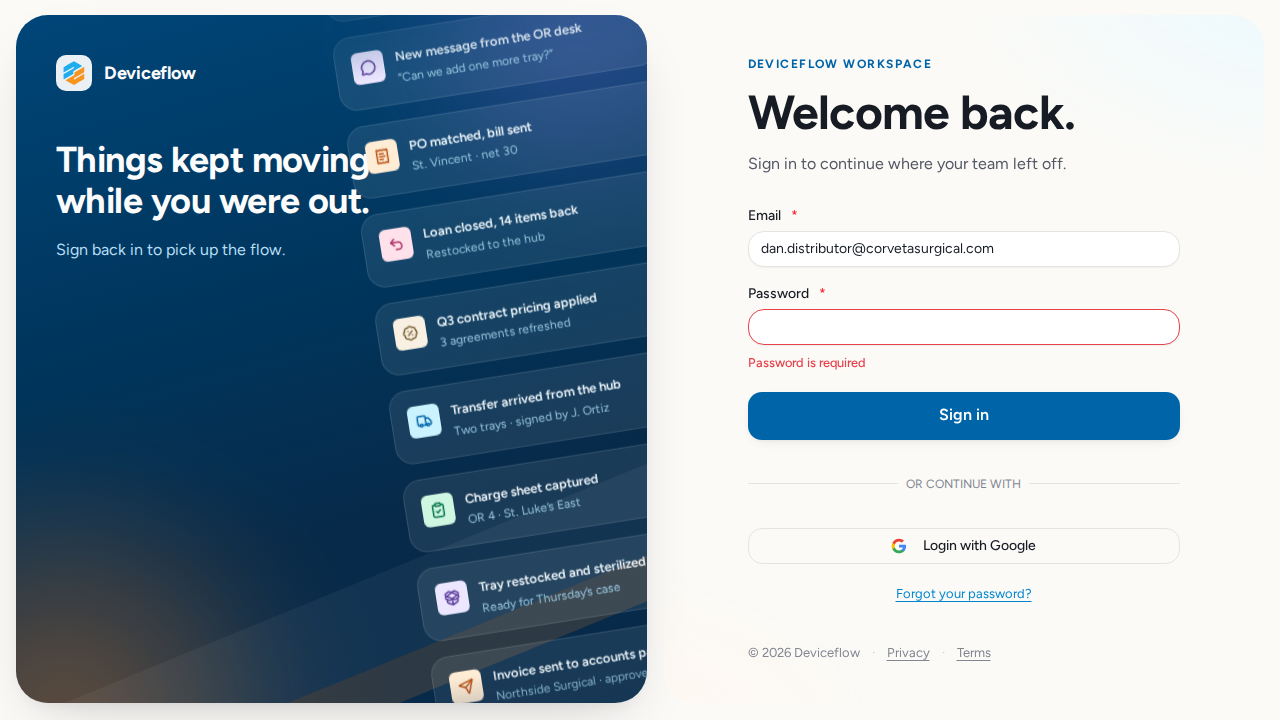

step 07 empty password

Video recording:

9. Step 8: Session security - Cookie verification — ✅ PASS

Section titled “9. Step 8: Session security - Cookie verification — ✅ PASS”

What this step proves:

After successful login the session cookie attributes are inspected. The httpOnly flag confirms that JavaScript cannot read the token, mitigating XSS-based session theft. The SameSite=Lax setting blocks cross-site request forgery. Cookie evidence is written to session-cookie-evidence.json.

Screenshots:

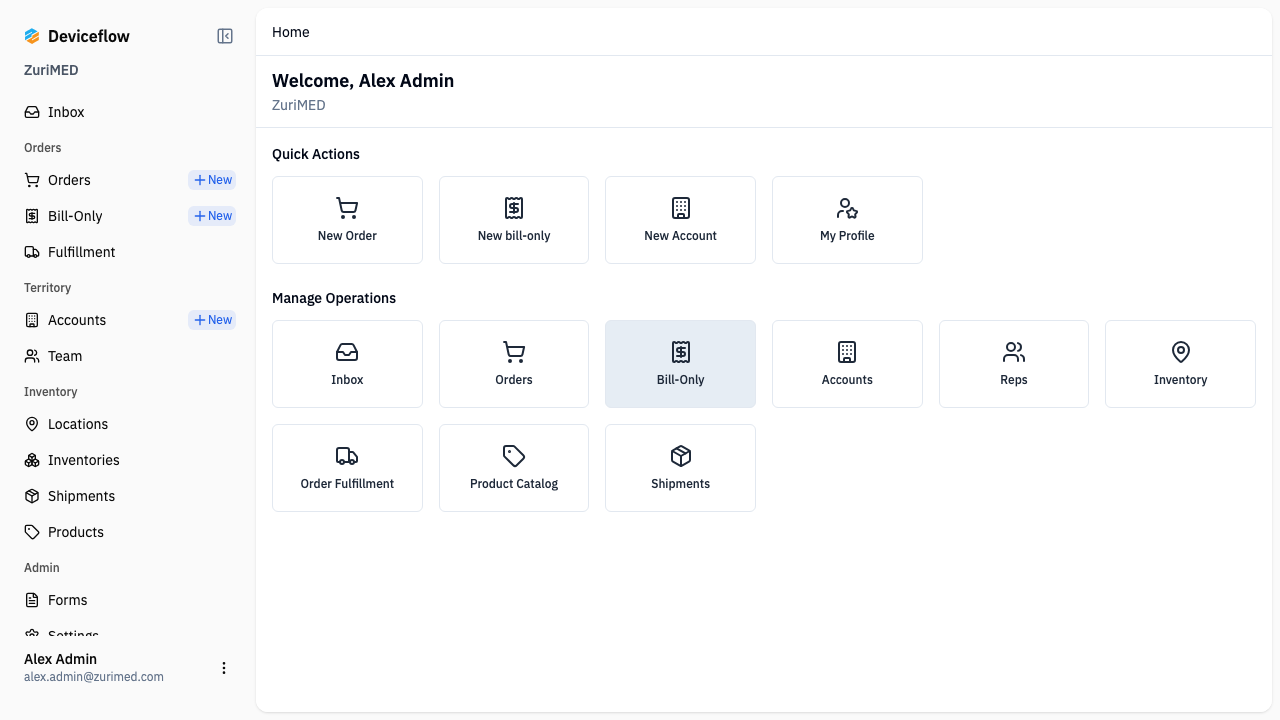

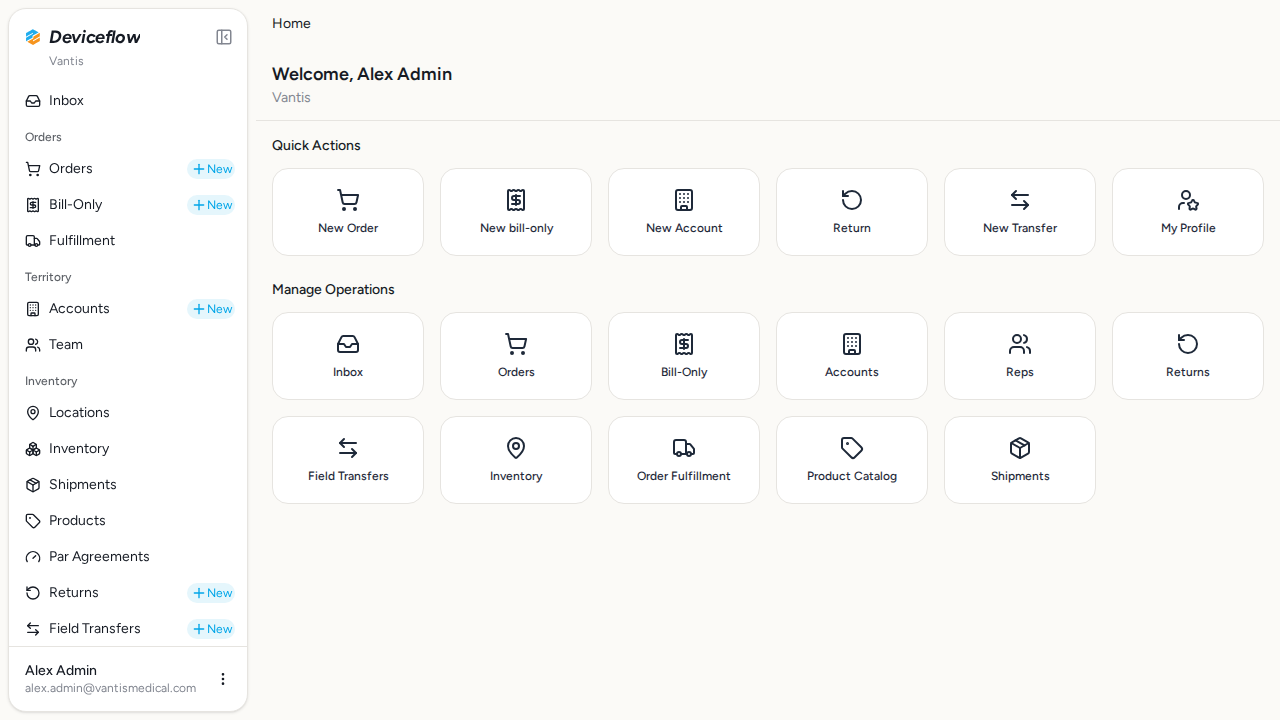

step 08 session security

Video recording:

10. Step 9: Session isolation - Multiple users — ✅ PASS

Section titled “10. Step 9: Session isolation - Multiple users — ✅ PASS”

What this step proves:

Two users log in simultaneously in separate browser contexts (equivalent to separate incognito windows) and each receives a distinct, non-overlapping session token. This confirms that sessions are fully isolated and one user’s session cannot be used to access another user’s account.

Screenshots:

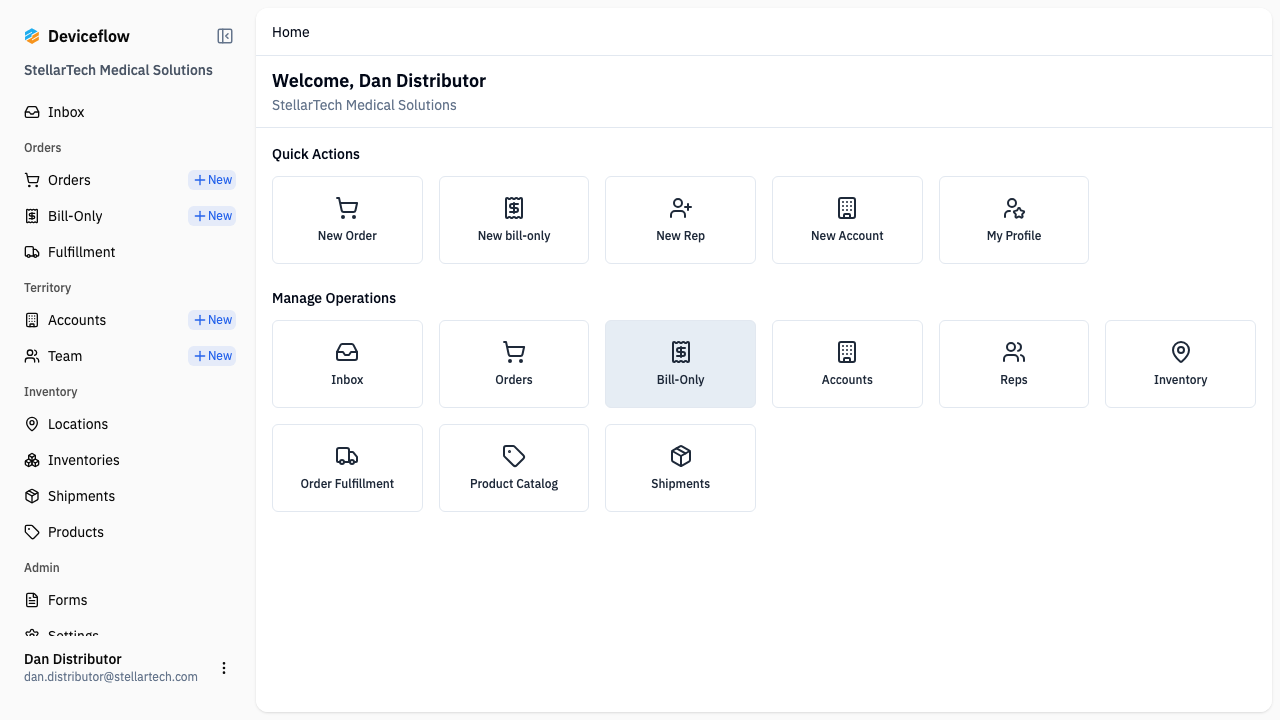

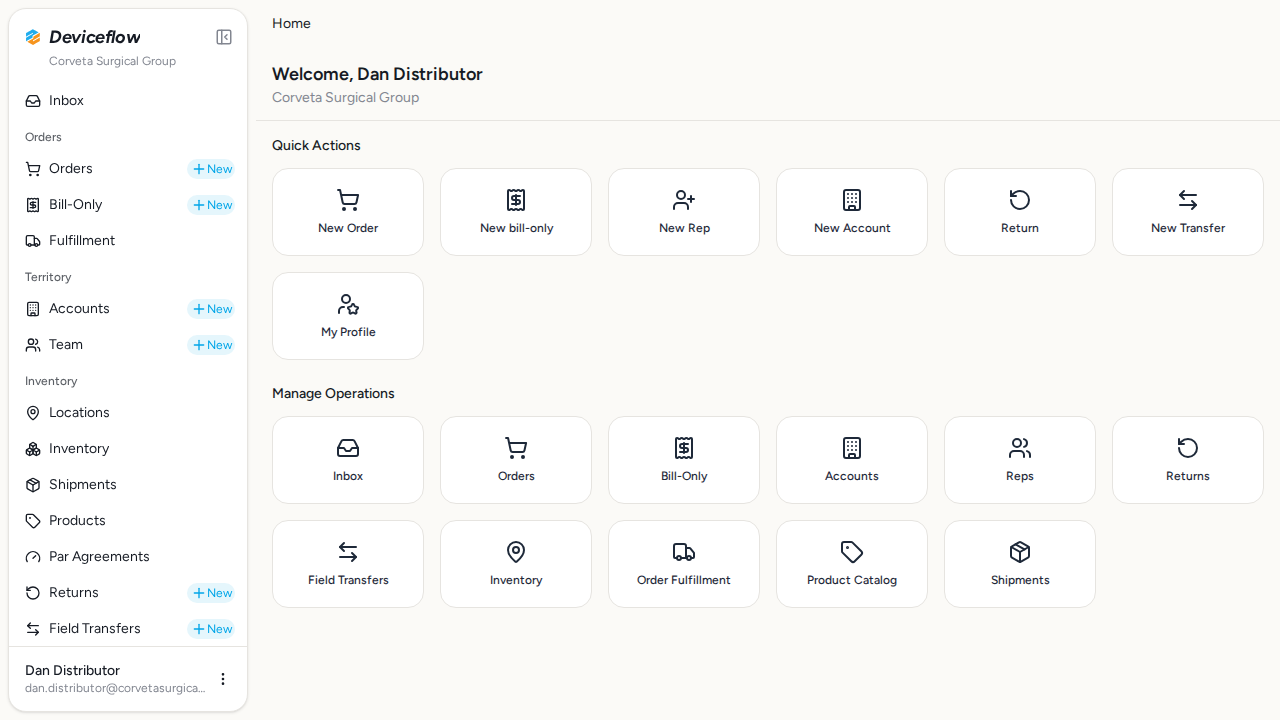

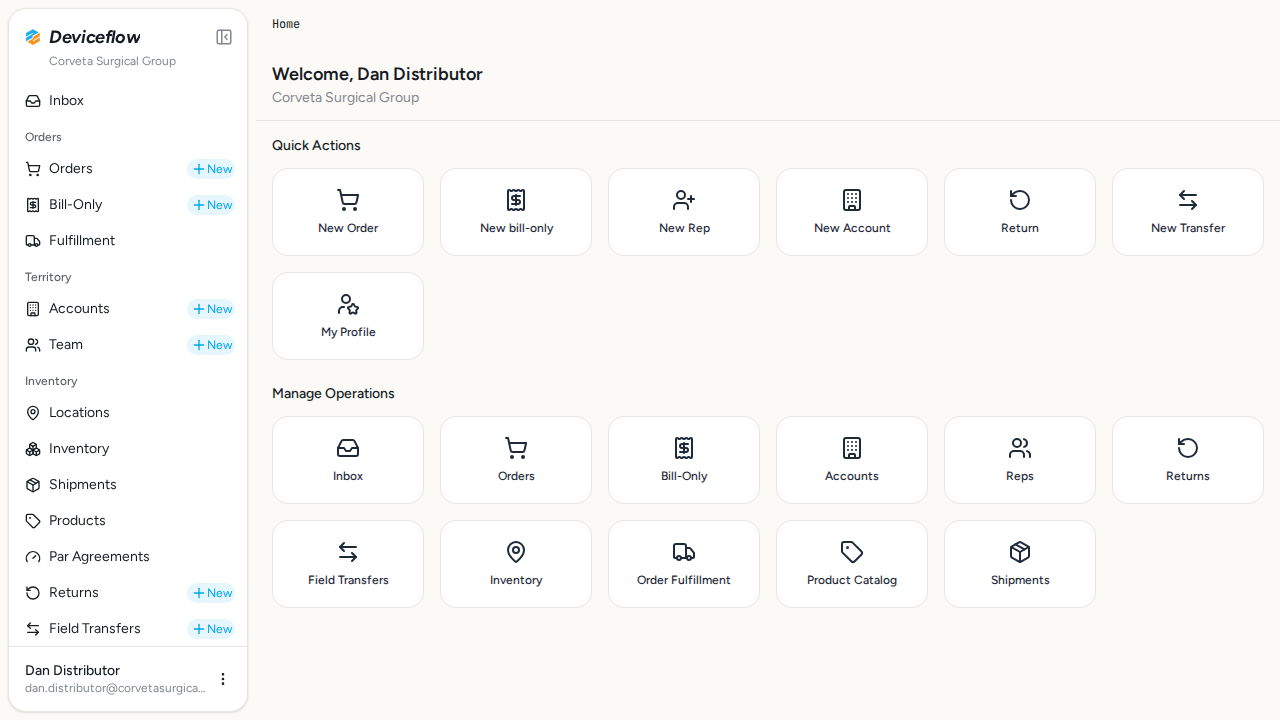

step 09 session a distributor

step 09 session b admin

Video recording:

11. Step 10: Logout and session termination — ✅ PASS

Section titled “11. Step 10: Logout and session termination — ✅ PASS”

What this step proves:

A logged-in user opens the sidebar user menu and clicks Logout. The server invalidates the session, clears the session cookie, and redirects the browser. A subsequent attempt to access /inbox confirms that the session can no longer authenticate: the user is redirected to login.

Screenshots:

step 10 before logout

step 10 after logout

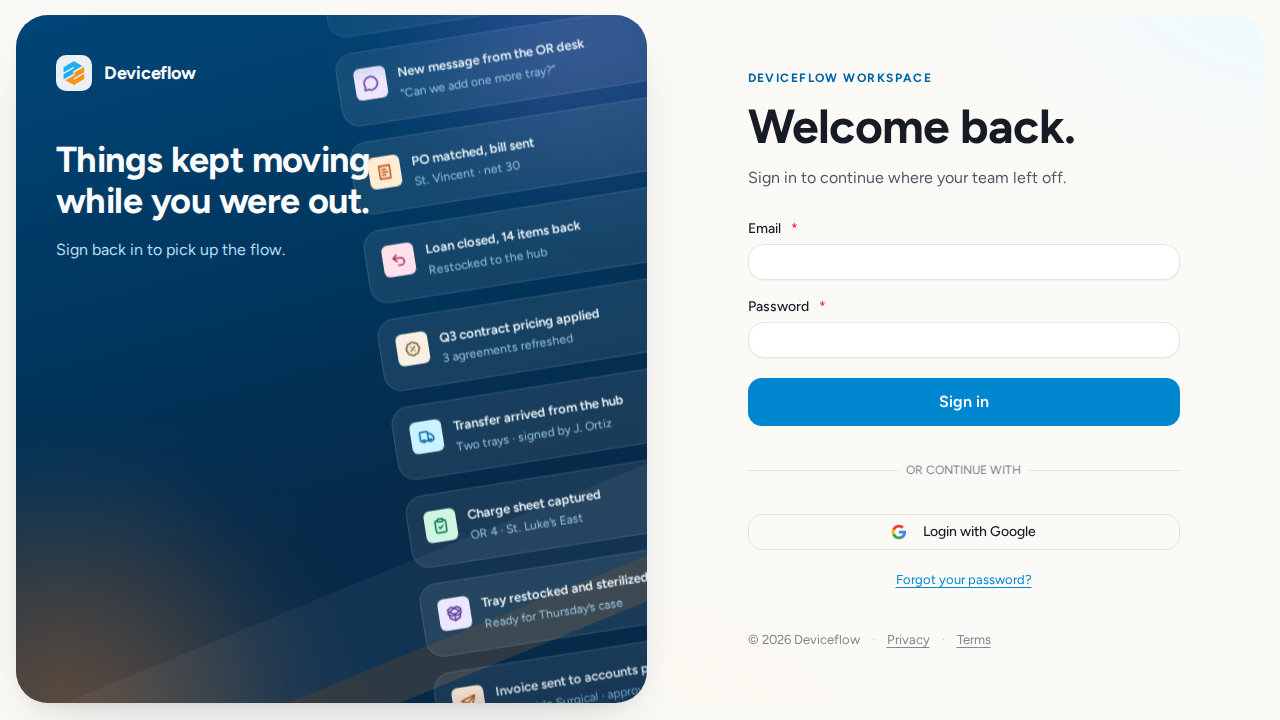

step 10 protected route redirect

Video recording:

Database Validations

Section titled “Database Validations”

The following SQL queries ran against the application database after the Playwright scenarios completed. Each query asserts a specific condition that proves the feature under test persisted its data correctly.

Demo users exist — ✅ PASS

Section titled “Demo users exist — ✅ PASS”

Assertion: All 4 demo users should exist in the users table

SELECT id, email, name, created_at
      FROM users
      WHERE email IN (
        'alex.admin@vantismedical.com',
        'mark.manufacturer@vantismedical.com',
        'dan.distributor@corvetasurgical.com',
        'demo.user@vantismedical.com'
      )
      ORDER BY email
idemailnamecreated_at
f6a7b8c9-d0e1-2345-f123-456789012345alex.admin@vantismedical.comAlex Admin2026-09-29T02:23:23.011Z
c3d4e5f6-a7b8-9012-cdef-123456789012dan.distributor@corvetasurgical.comDan Distributor2026-09-29T02:23:23.011Z
e5f6a7b8-c9d0-1234-ef12-345678901234demo.user@vantismedical.comDemo User2026-09-29T02:23:23.011Z
d4e5f6a7-b8c9-0123-def1-234567890123mark.manufacturer@vantismedical.comMark Manufacturer2026-09-29T02:23:23.011Z

No duplicate emails — ✅ PASS

Section titled “No duplicate emails — ✅ PASS”

Assertion: No email address should appear more than once in the users table

SELECT email, COUNT(*) as count
      FROM users
      GROUP BY email
      HAVING COUNT(*) > 1

No rows returned

Passwords are hashed — ✅ PASS

Section titled “Passwords are hashed — ✅ PASS”

Assertion: All password hashes should use Argon2id algorithm (not plaintext)

SELECT id, email,
        LEFT(password_hash, 10) as hash_prefix,
        password_hash LIKE '$argon2id$%' as is_argon2
      FROM users
      WHERE email IN (
        'alex.admin@vantismedical.com',
        'mark.manufacturer@vantismedical.com',
        'dan.distributor@corvetasurgical.com',
        'demo.user@vantismedical.com'
      )
      ORDER BY email
idemailhash_prefixis_argon2
f6a7b8c9-d0e1-2345-f123-456789012345alex.admin@vantismedical.com$argon2id$true
c3d4e5f6-a7b8-9012-cdef-123456789012dan.distributor@corvetasurgical.com$argon2id$true
e5f6a7b8-c9d0-1234-ef12-345678901234demo.user@vantismedical.com$argon2id$true
d4e5f6a7-b8c9-0123-def1-234567890123mark.manufacturer@vantismedical.com$argon2id$true

Recent sessions created — ✅ PASS

Section titled “Recent sessions created — ✅ PASS”

Assertion: Sessions should have been created within the last 10 minutes for users who logged in during the test

SELECT s.id as session_id, u.email, s.created_at, s.expires_at
      FROM session s
      JOIN users u ON s.user_id = u.id
      WHERE u.email IN (
        'alex.admin@vantismedical.com',
        'mark.manufacturer@vantismedical.com',
        'dan.distributor@corvetasurgical.com'
      )
      AND s.created_at > NOW() - INTERVAL '10 minutes'
      ORDER BY s.created_at DESC
      LIMIT 10
session_idemailcreated_atexpires_at
274c4b8ebe5216c6206c5c1c694b06714034cc8886d1fc80e20bf358716cbd55alex.admin@vantismedical.com2026-09-29T02:29:18.840Z2026-10-06T02:29:18.838Z
d364894f19d4af6af240910917a7c3f50b7e83aa1f7bc372329a31f0badaf96bdan.distributor@corvetasurgical.com2026-09-29T02:29:17.197Z2026-10-06T02:29:17.195Z
93730bf5b17f1df95d6e260727958a6e907feda10bdd91f36bde56feb35e1325alex.admin@vantismedical.com2026-09-29T02:29:11.267Z2026-10-06T02:29:11.264Z
eb11510071ffd13a091af93aea0e4524d02350f9ea44f99d10ca2b875be3448ealex.admin@vantismedical.com2026-09-29T02:28:32.253Z2026-10-06T02:28:32.250Z
78f1c8635720f1f3666de77ee07215175368e267c55179289526ecfb98e19764mark.manufacturer@vantismedical.com2026-09-29T02:27:55.680Z2026-10-06T02:27:55.678Z
6f7706f2500dfb663f1ad9246f082e3a85b54668a0b38cadd1216c0c32ab88a0dan.distributor@corvetasurgical.com2026-09-29T02:27:49.744Z2026-10-06T02:27:49.735Z

Locked user is inactive — ✅ PASS

Section titled “Locked user is inactive — ✅ PASS”

Assertion: demo.user@vantismedical.com should have inactive org membership (locked account)

SELECT u.email, om.active, om.organization_id
      FROM organization_members om
      JOIN users u ON om.user_id = u.id
      WHERE u.email = 'demo.user@vantismedical.com'
emailactiveorganization_id
demo.user@vantismedical.comfalsea1b2c3d4-e5f6-7890-abcd-ef1234567890
demo.user@vantismedical.comfalseb2c3d4e5-f6a7-8901-bcde-f12345678901
demo.user@vantismedical.comfalse6763fc17-7da1-47e3-851e-8f4fac570dc6

Global email uniqueness — ✅ PASS

Section titled “Global email uniqueness — ✅ PASS”

Assertion: Every user should have a unique email address

SELECT COUNT(DISTINCT email) as unique_emails, COUNT(*) as total_users
      FROM users
      WHERE email IS NOT NULL
unique_emailstotal_users
2020

Audit & Email Assertion Ledger

Section titled “Audit & Email Assertion Ledger”

Per-declaration outcome of every expectedAuditActions and expectedEmailTemplates entry written into the orchestrator. Missing evidence here is a real test failure, not a soft warning.

Audit Action Assertions

Section titled “Audit Action Assertions”

Each row asserts that a declared expectedAuditActions entry produced a matching row in audit_events. A ❌ flips overall status to FAIL — the declaration is real proof, not just an annotation.

StepExpected Audit ActionFound
Step 2: Valid login - Distributor useruser_log:user:login✅
Step 3: Valid login - Manufacturer useruser_log:user:login✅
Step 4: Valid login - Admin useruser_log:user:login✅

Audit Log Events

Section titled “Audit Log Events”

Every row written to audit_events while this test was running (scoped to the demo organizations). Provides compliance evidence that user actions are traced end-to-end (URS-003).

Capture window start: 2026-09-29T02:26:35.681Z

SELECT
    ae.created_at,
    ae.event_type,
    ae.action,
    ae.user_id,
    u.email AS user_email,
    ae.organization_id,
    o.name AS organization_name,
    ae.object_id,
    ae.secondary_object_id,
    ae.payload,
    ae.route,
    ae.trace_id
  FROM audit_events ae
  LEFT JOIN users u ON u.id = ae.user_id
  LEFT JOIN organizations o ON o.id = ae.organization_id
  WHERE ae.created_at >= $1
    AND ae.organization_id = ANY($2::uuid[])
  ORDER BY ae.created_at ASC

8 event(s) captured:

TimeTypeActionUserOrgObject IDPerformedReason
2026-09-29 02:27:49Zuser_loguser:logindan.distributor@corvetasurgical.comCorveta Surgical Group——
2026-09-29 02:27:55Zuser_loguser:loginmark.manufacturer@vantismedical.comVantis——
2026-09-29 02:28:32Zuser_loguser:loginalex.admin@vantismedical.comVantis——
2026-09-29 02:28:55Zuser_loguser:login_deactivateddemo.user@vantismedical.comVantis——
2026-09-29 02:29:11Zuser_loguser:loginalex.admin@vantismedical.comVantis——
2026-09-29 02:29:17Zuser_loguser:logindan.distributor@corvetasurgical.comCorveta Surgical Group——
2026-09-29 02:29:18Zuser_loguser:loginalex.admin@vantismedical.comVantis——
2026-09-29 02:29:24Zuser_loguser:loginalex.admin@vantismedical.comVantis——
