URS-063 · Distributor Onboarding Workflow with Roles

Title: Distributor Onboarding Workflow with Roles Date: 2026-04-23T03:45:07.127Z Duration: 91.4s Overall Status: ✅ PASS

User Requirement

The system shall support onboarding and role assignment of distributors.

Source: User_Requirement_Specifications_ZuriMED_DeviceFlow.xlsx — the run below proves the system meets this requirement.

Environment

• Inbox URL: http://localhost:65472
• Database: localhost:65473/cc_repinbox_dev

Setup

Status: ✅ PASS

Test Steps

Each step below corresponds to one Playwright test that ran sequentially. Screenshots and video recordings provide visual evidence of the UI behaviour.

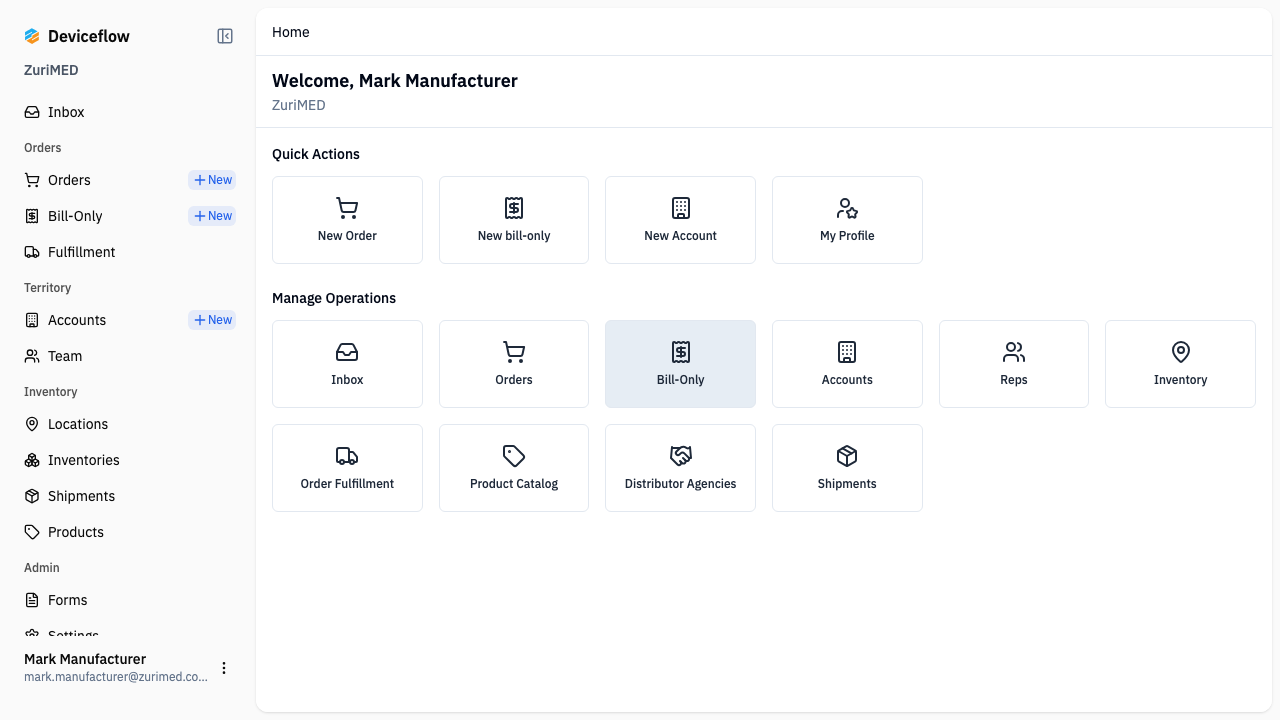

1. Step 1: Login as manufacturer admin — ✅ PASS

What this step proves:

Proves that Mark (ZuriMED manufacturer admin) can authenticate successfully. Establishes the administrative context required to manage distributor relationships and member invitations in all subsequent steps. This step also opens the single browser context re-used by steps 2–11 so the audit log records exactly one user:login event for the manufacturer session (not one per step).

Screenshots:

Video recording:

---

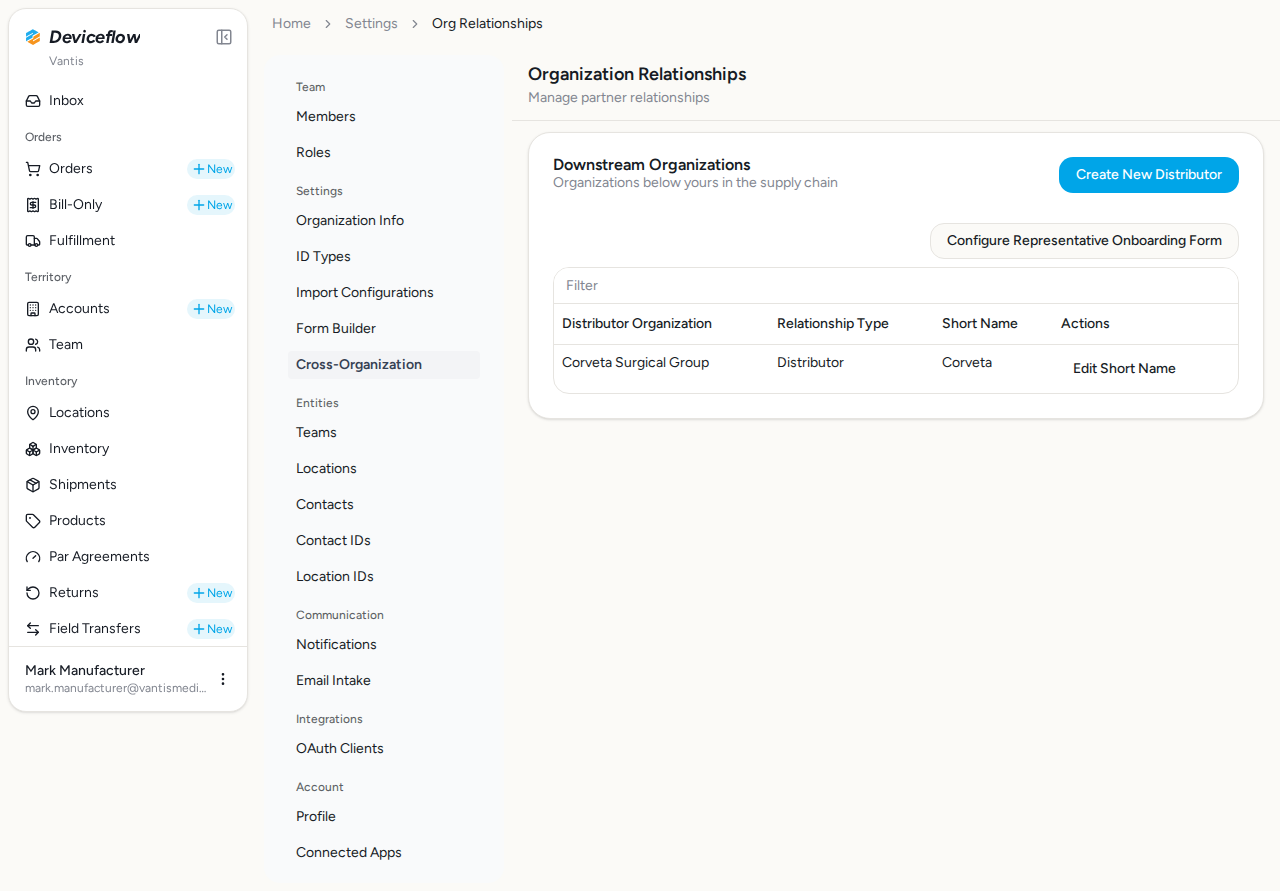

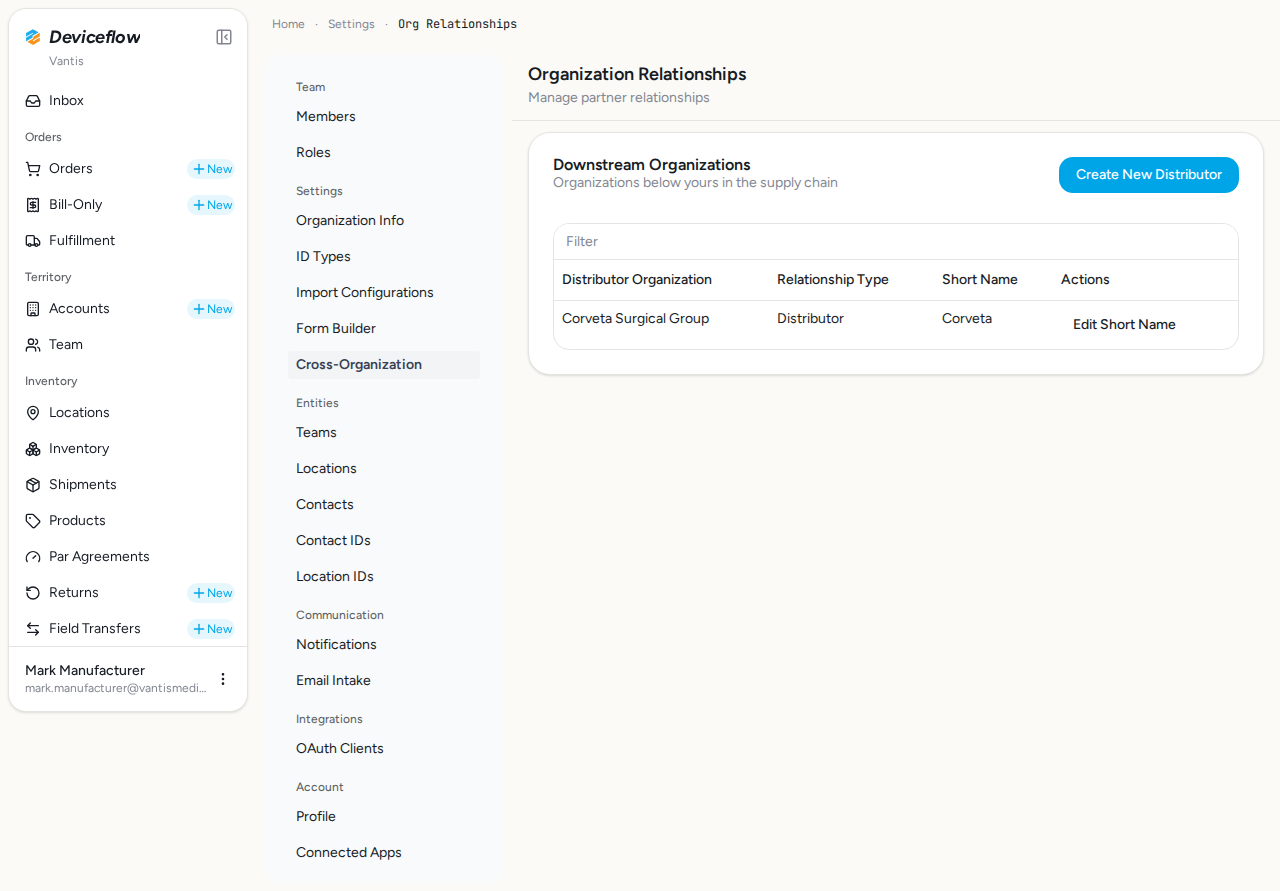

2. Step 2: Navigate to Distributor Agencies — ✅ PASS

What this step proves:

Navigates to the Organization Relationships settings page where distributor agency relationships are managed. Confirms the page is accessible to manufacturer admins and displays the correct heading.

Screenshots:

Video recording:

---

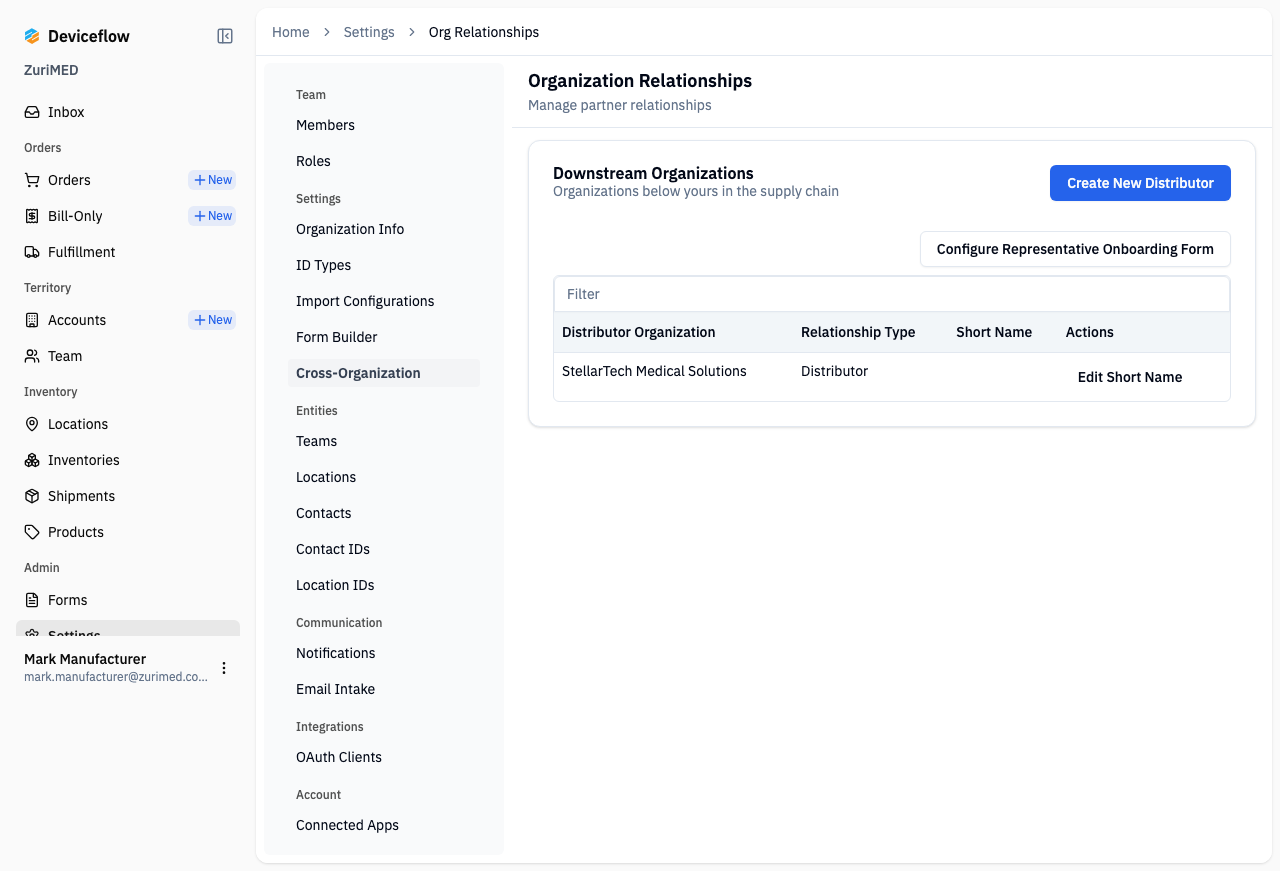

3. Step 3: Existing distributors — ✅ PASS

What this step proves:

Verifies that existing downstream distributor relationships (StellarTech Medical Solutions) are displayed in the Downstream Organizations section, and that the “Create New Distributor” action is available to the admin.

Screenshots:

Video recording:

---

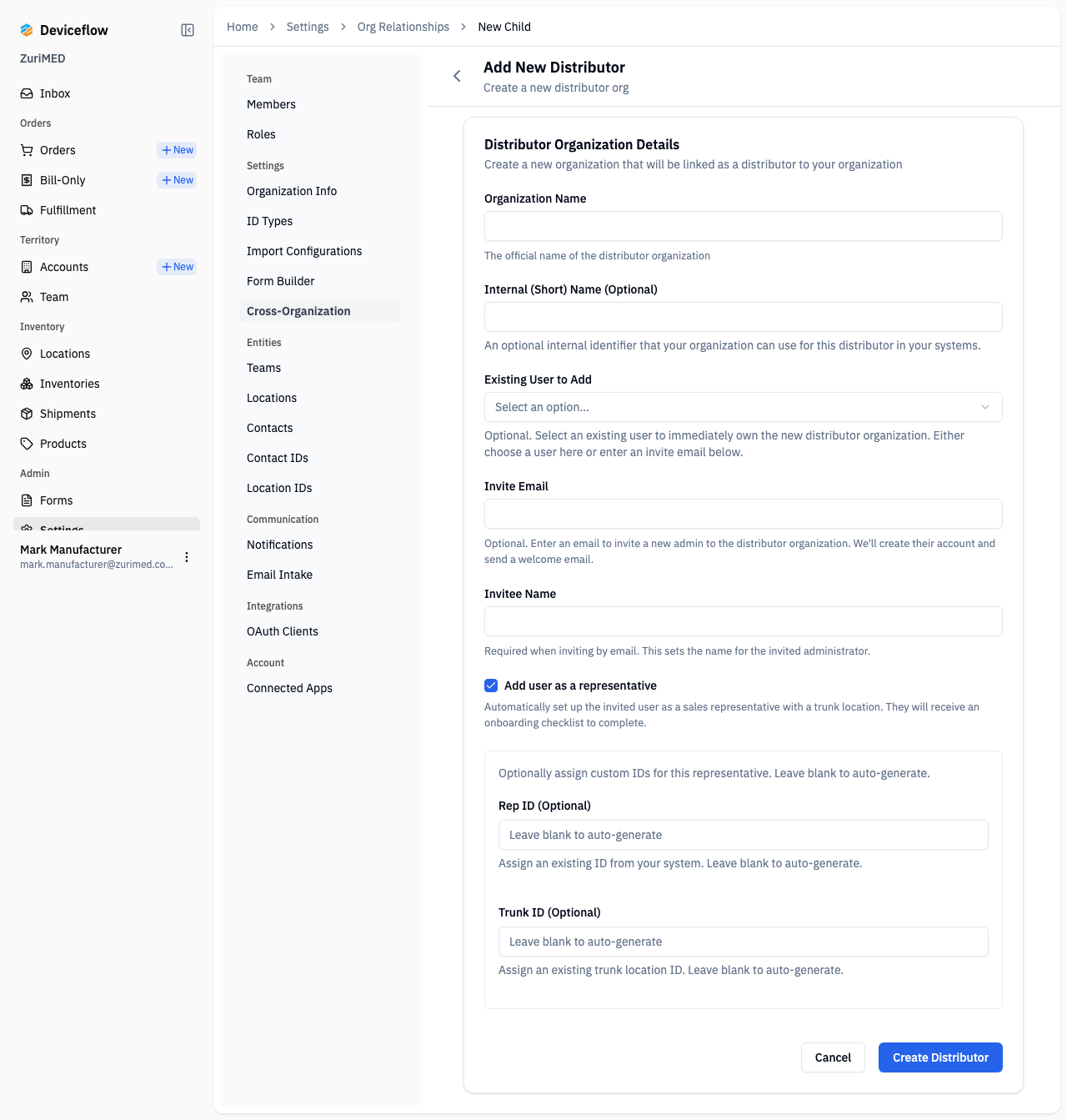

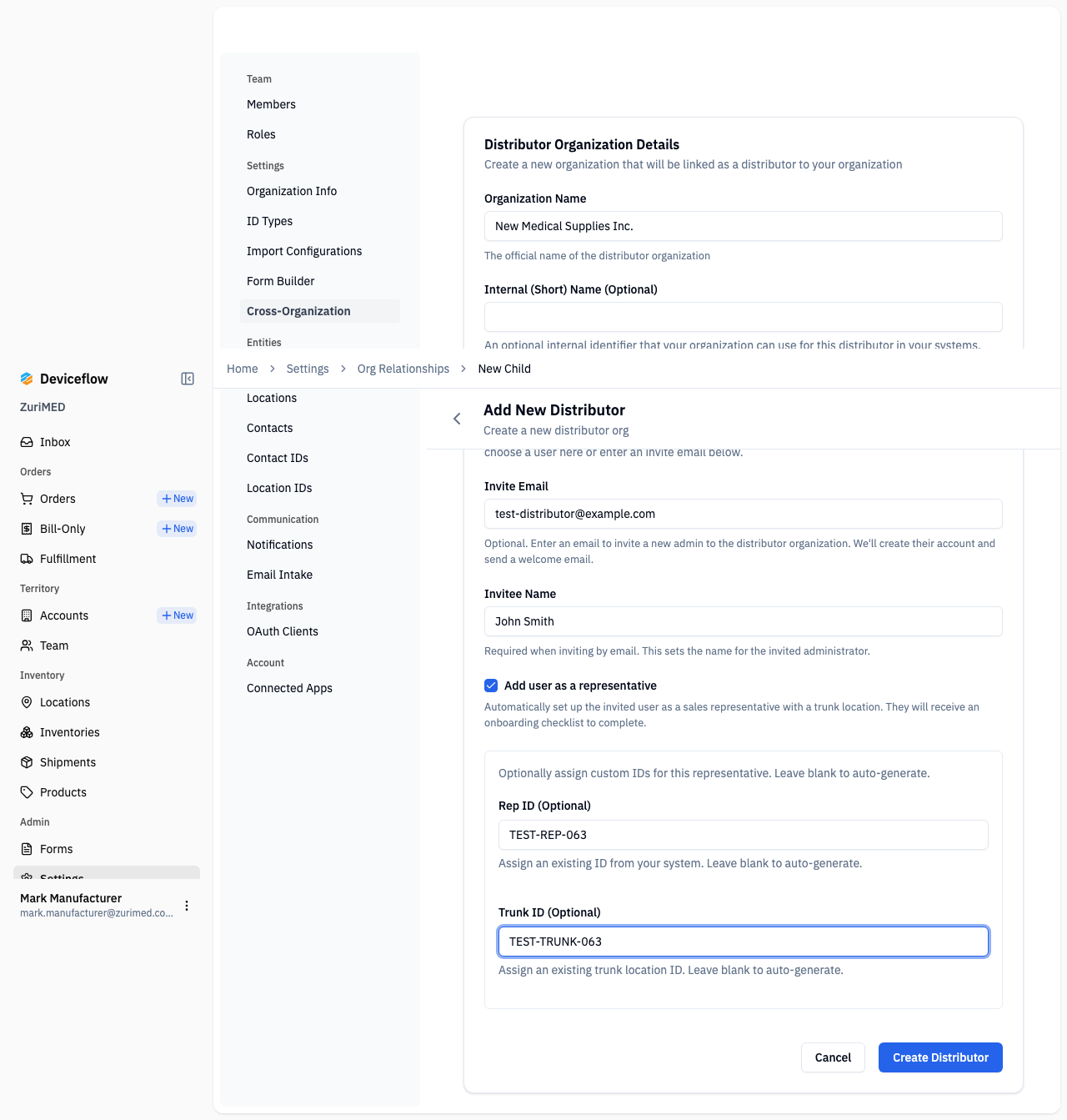

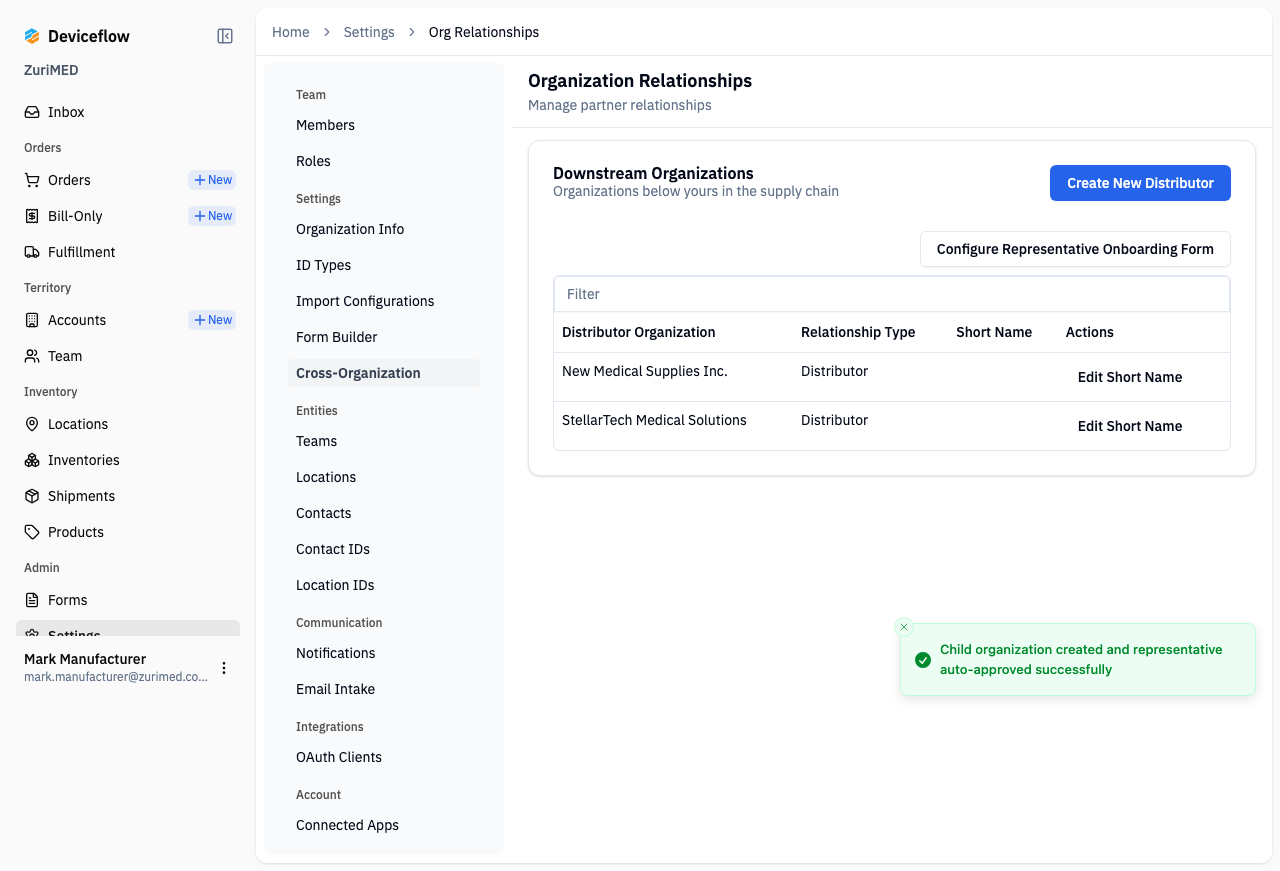

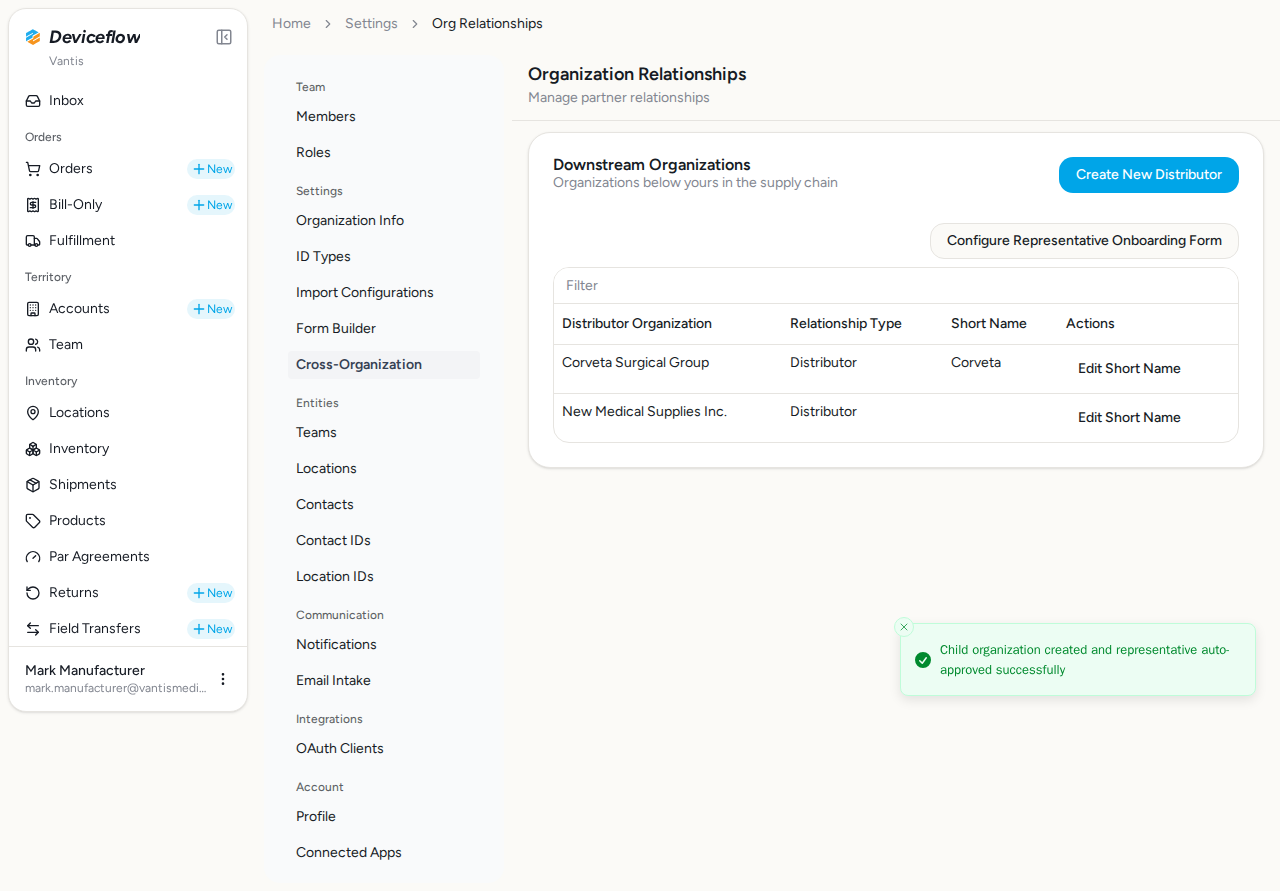

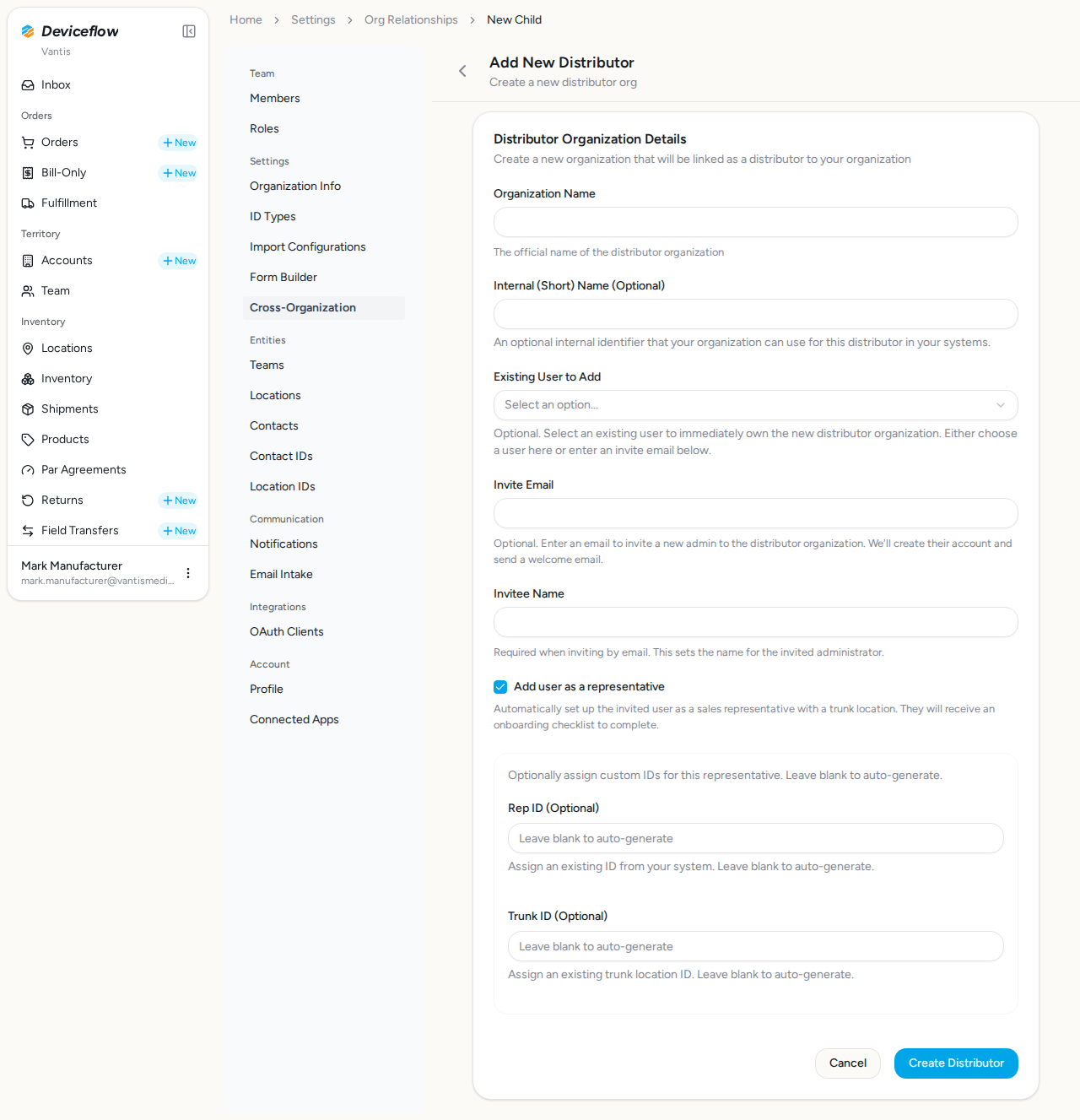

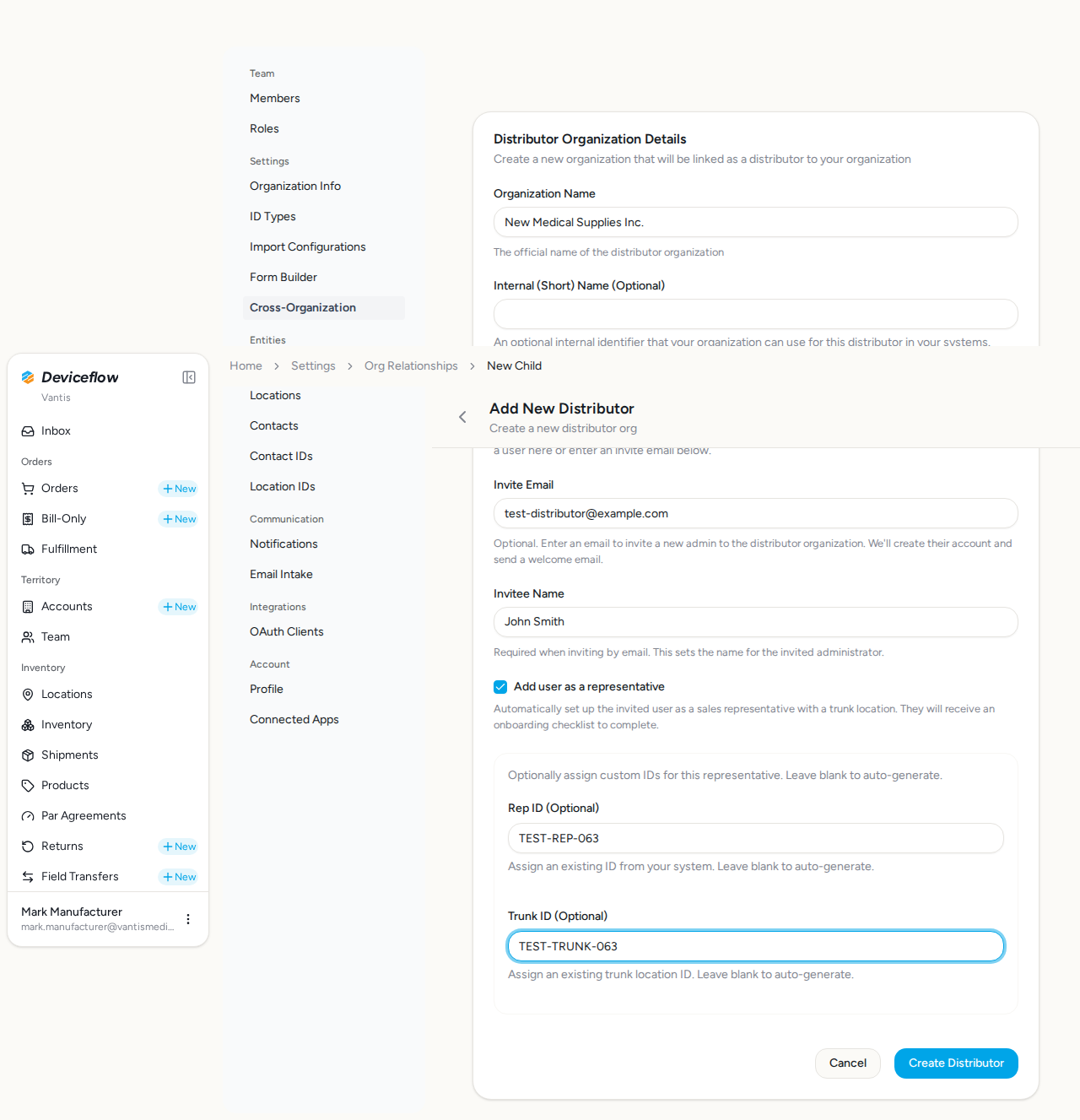

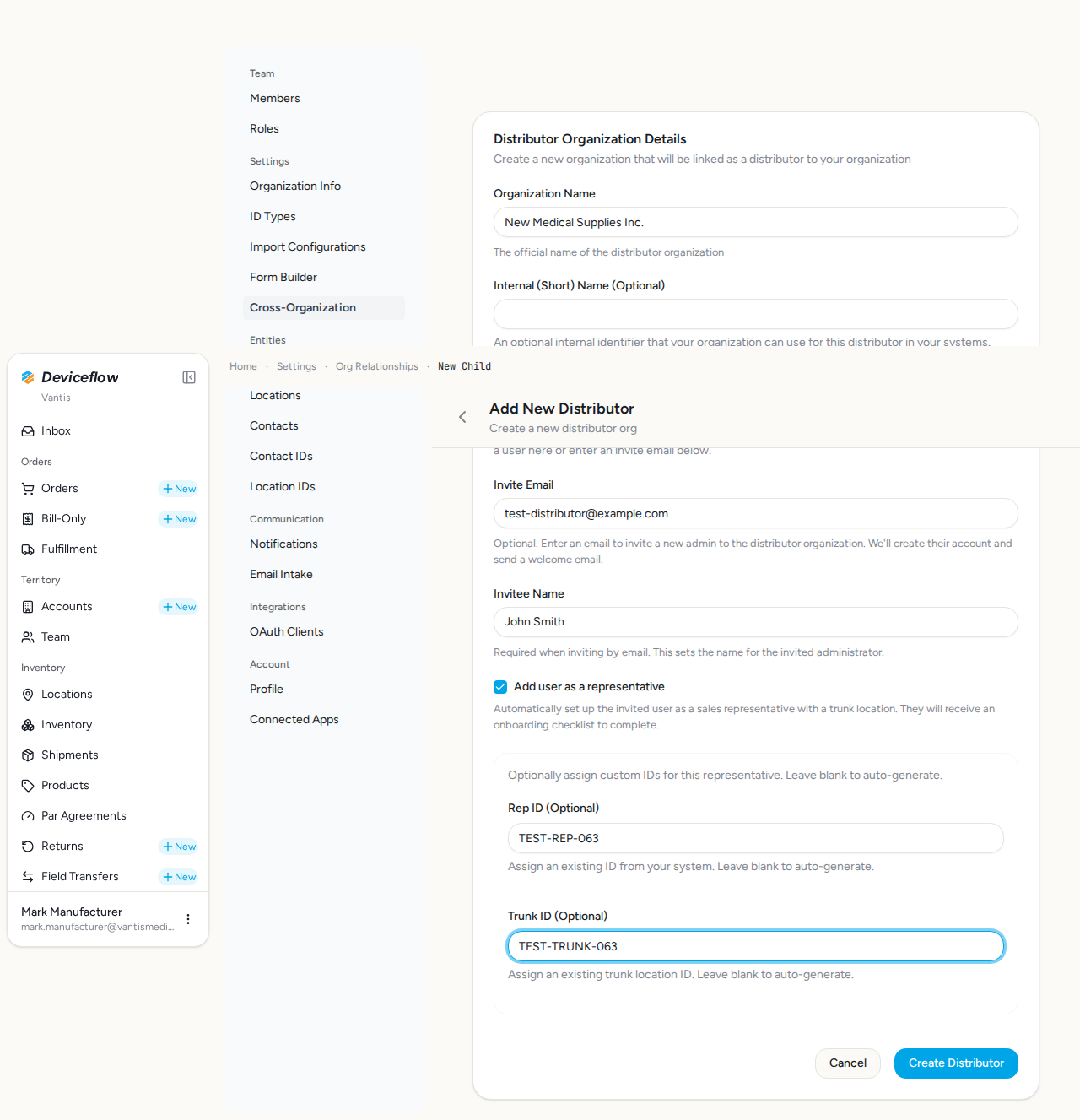

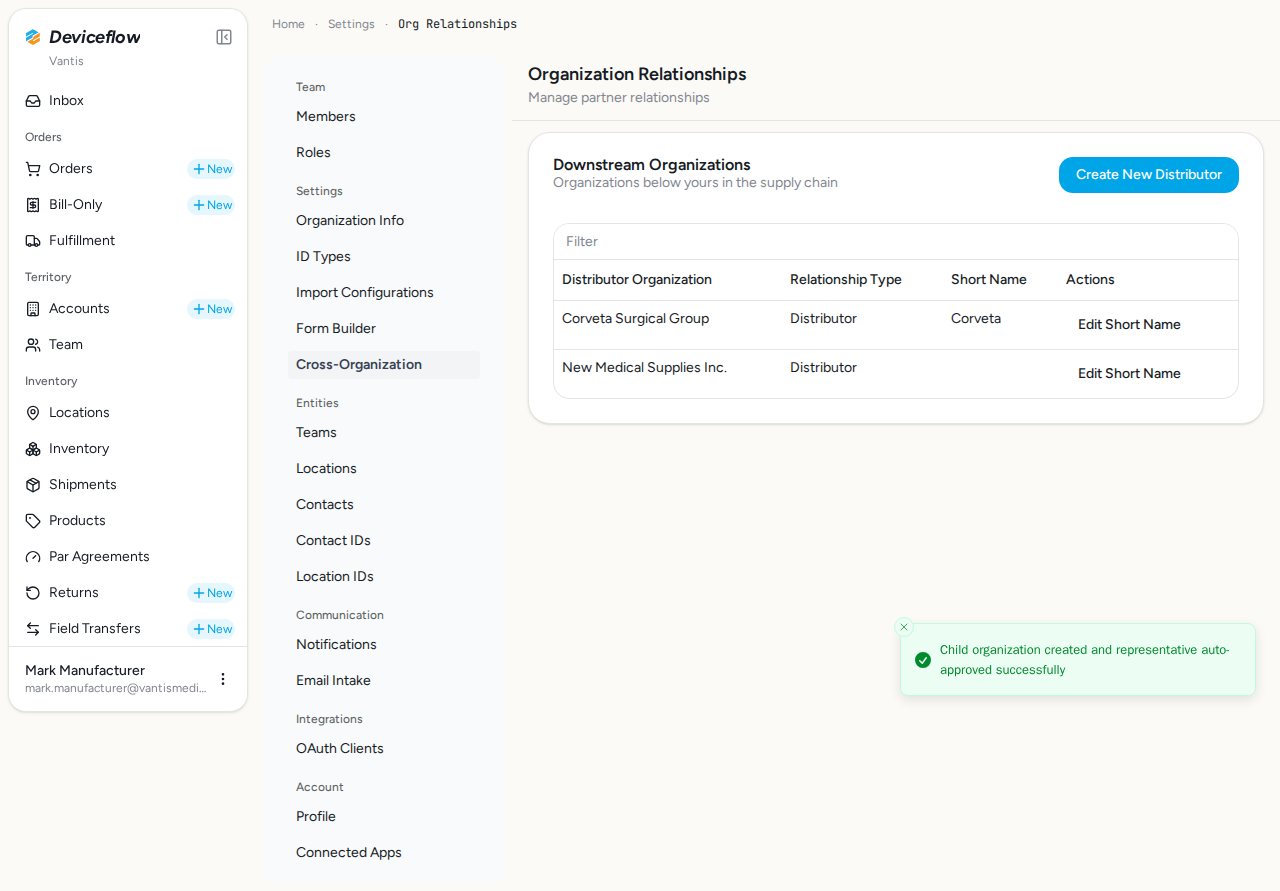

4. Step 4: Create distributor — ✅ PASS

What this step proves:

Fills out and submits the new distributor form with an organization name, invite email, invitee name, the “Add user as a representative” option, and the Rep ID and Trunk ID inputs. Confirms the system creates the distributor relationship and redirects back to the org-relationships page on success. The submitted Rep ID / Trunk ID values are asserted in DB validation to prove they were persisted.

Audit events generated by this step:

(Evidence scoped to step execution window: 2026-04-23T03:45:28.772Z → 2026-04-23T03:45:36.082Z)

Time	Type	Action	User	Org	Performed
2026-04-23 03:45:34Z	user_log	rep_onboarding_request_approved	test-distributor@example.com	New Medical Supplies Inc.	—
2026-04-23 03:45:34Z	transactional_email	rep_created	—	New Medical Supplies Inc.	—
2026-04-23 03:45:35Z	transactional_email	verify_email	—	ZuriMED	—

Emails triggered by this step:

(Evidence matched by declared name — step timing not available or no events fell in window)

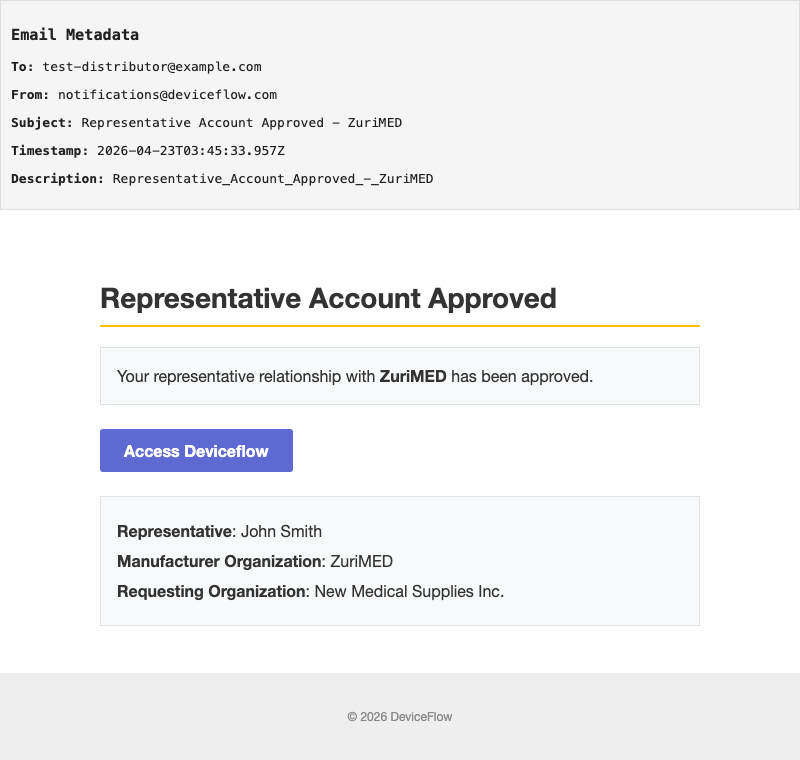

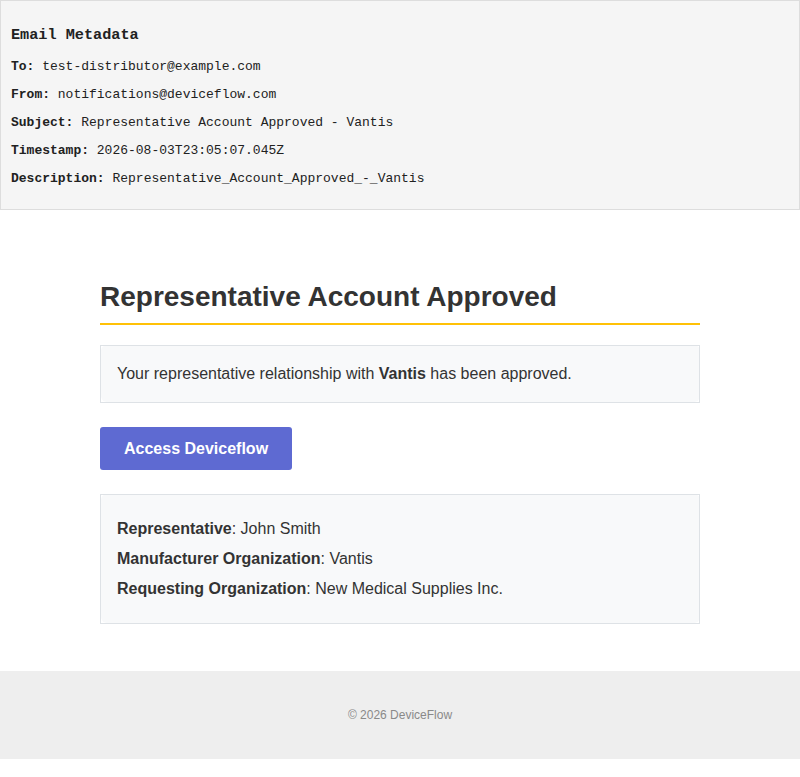

Email 1: Representative Account Approved - ZuriMED

Template: Representative_Account_Approved_-_ZuriMED

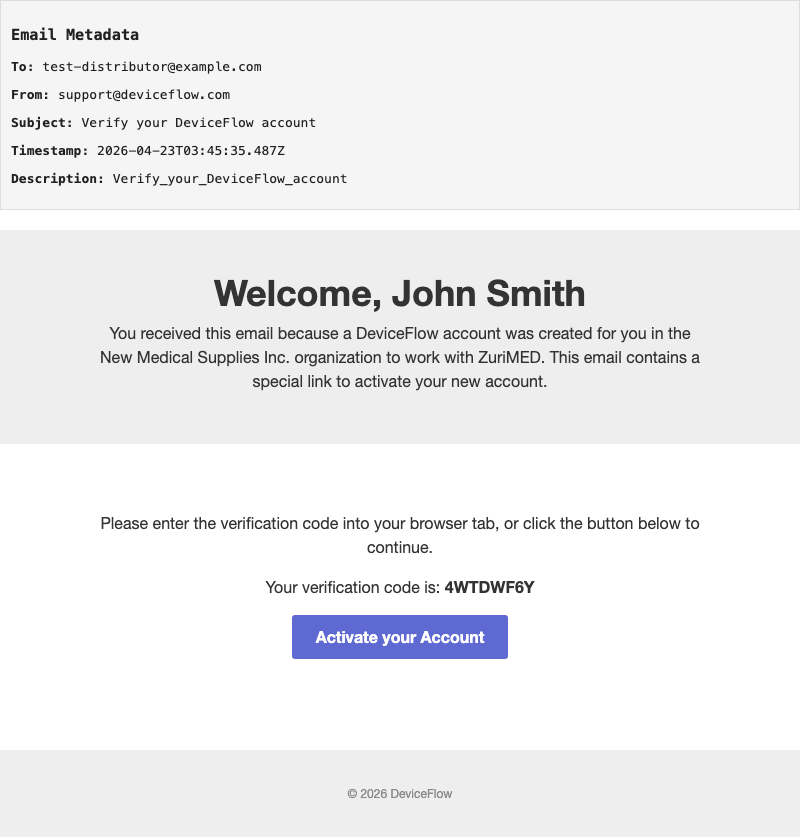

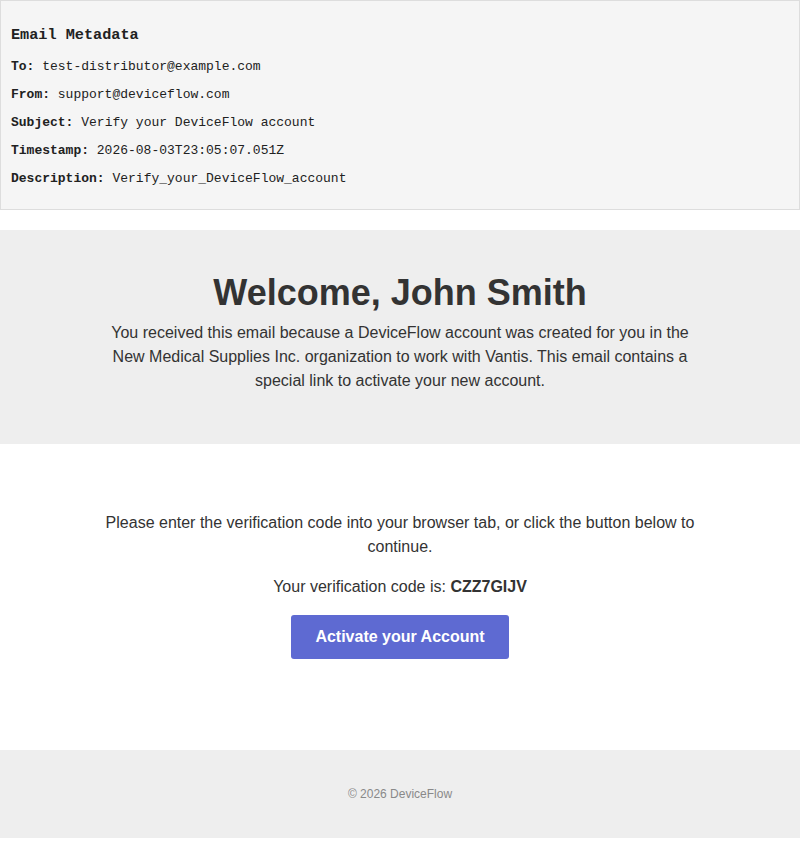

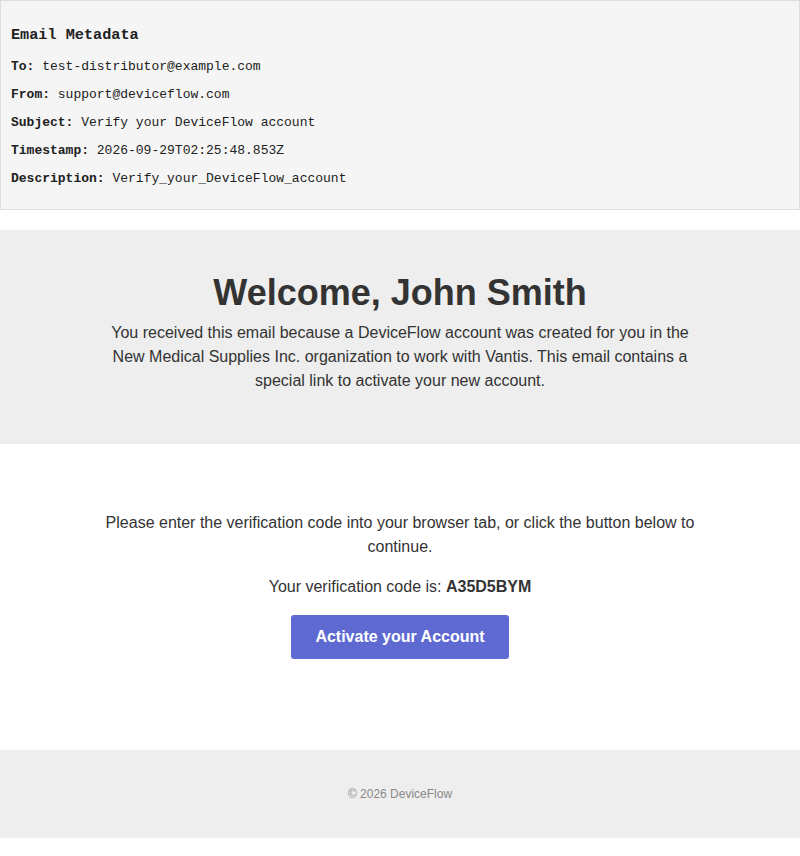

Email 2: Verify your DeviceFlow account

Template: Verify_your_DeviceFlow_account

Email 3: Verify your DeviceFlow account

Template: Verify_your_DeviceFlow_account

Screenshots:

Video recording:

---

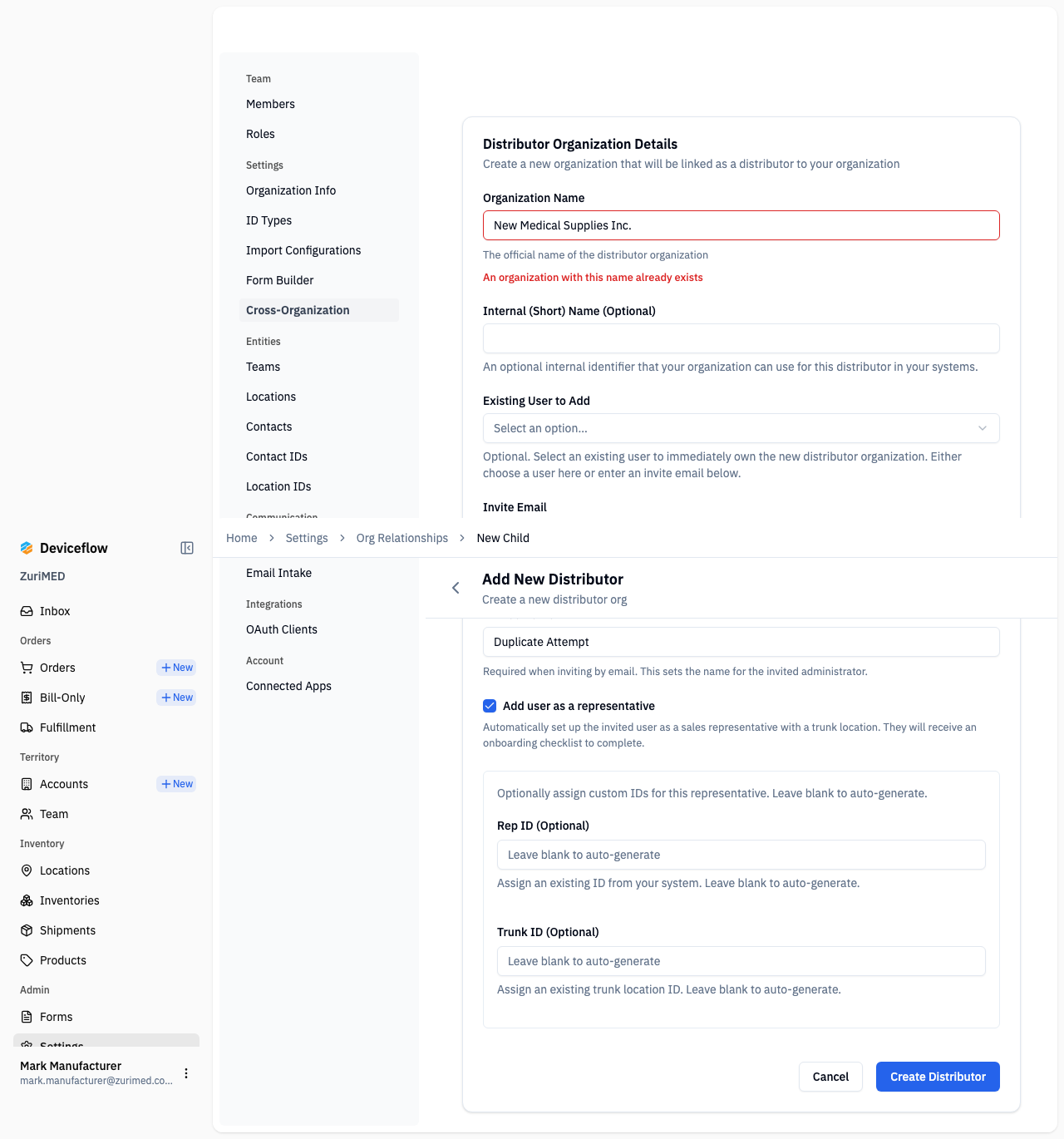

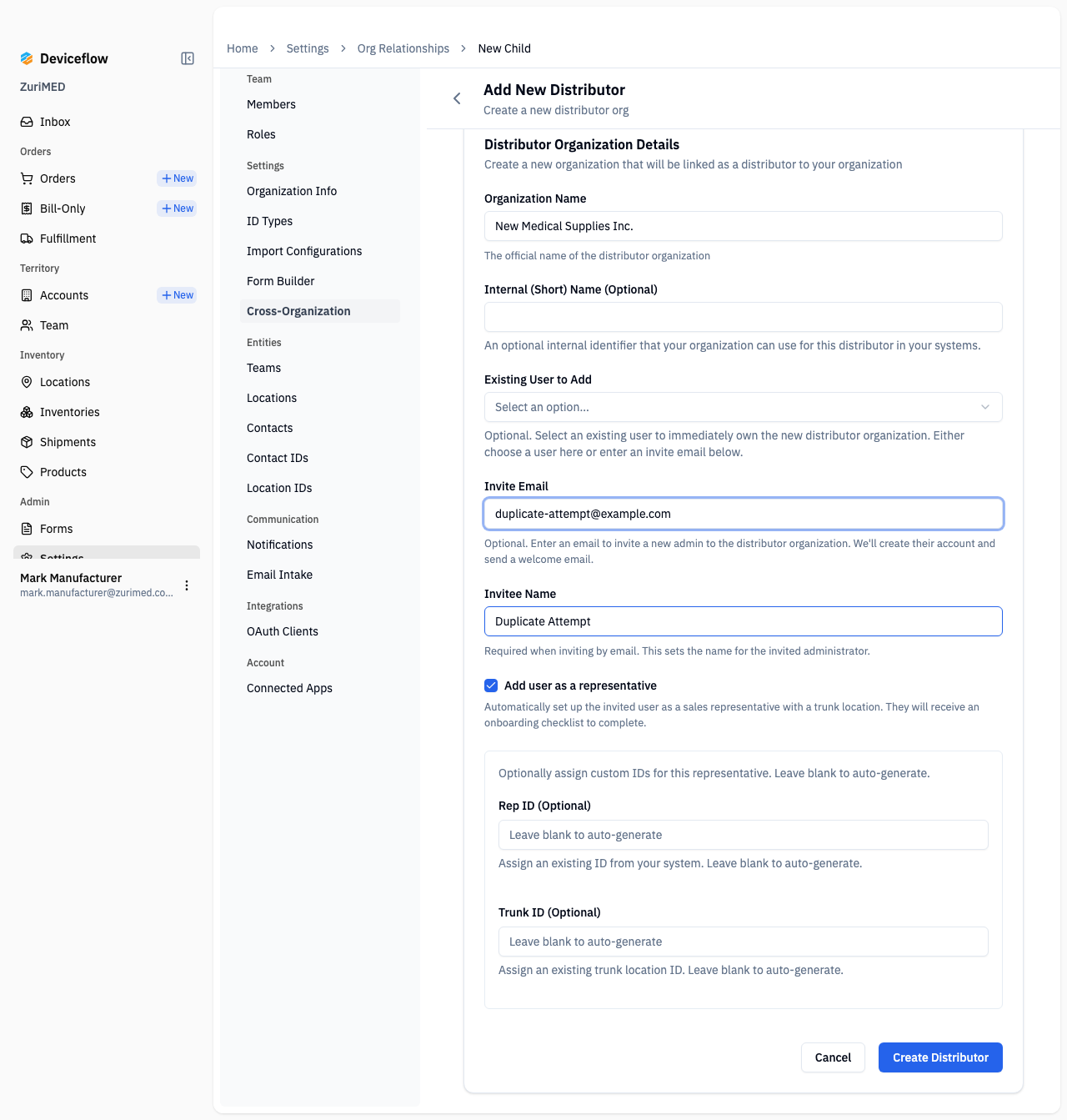

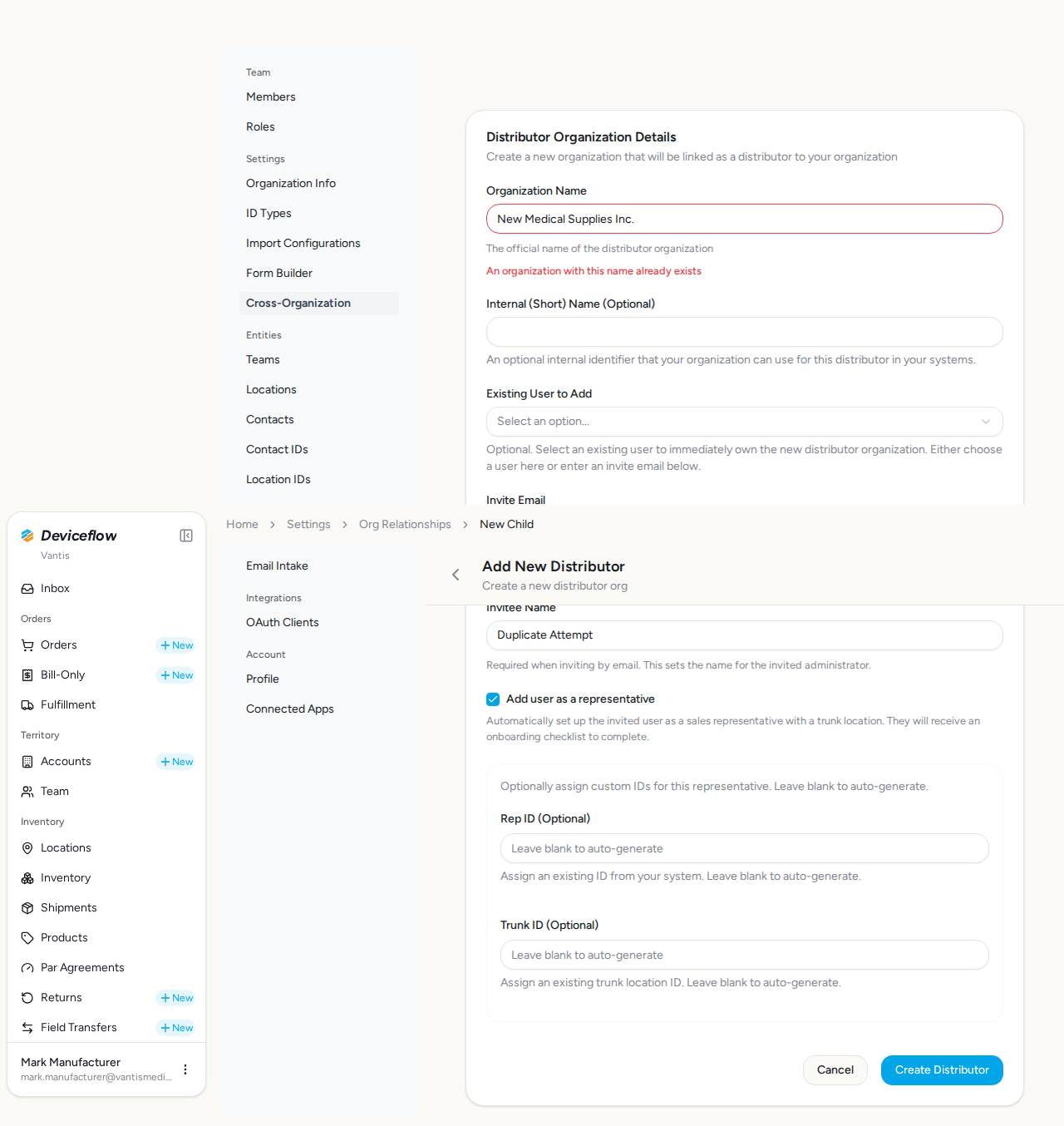

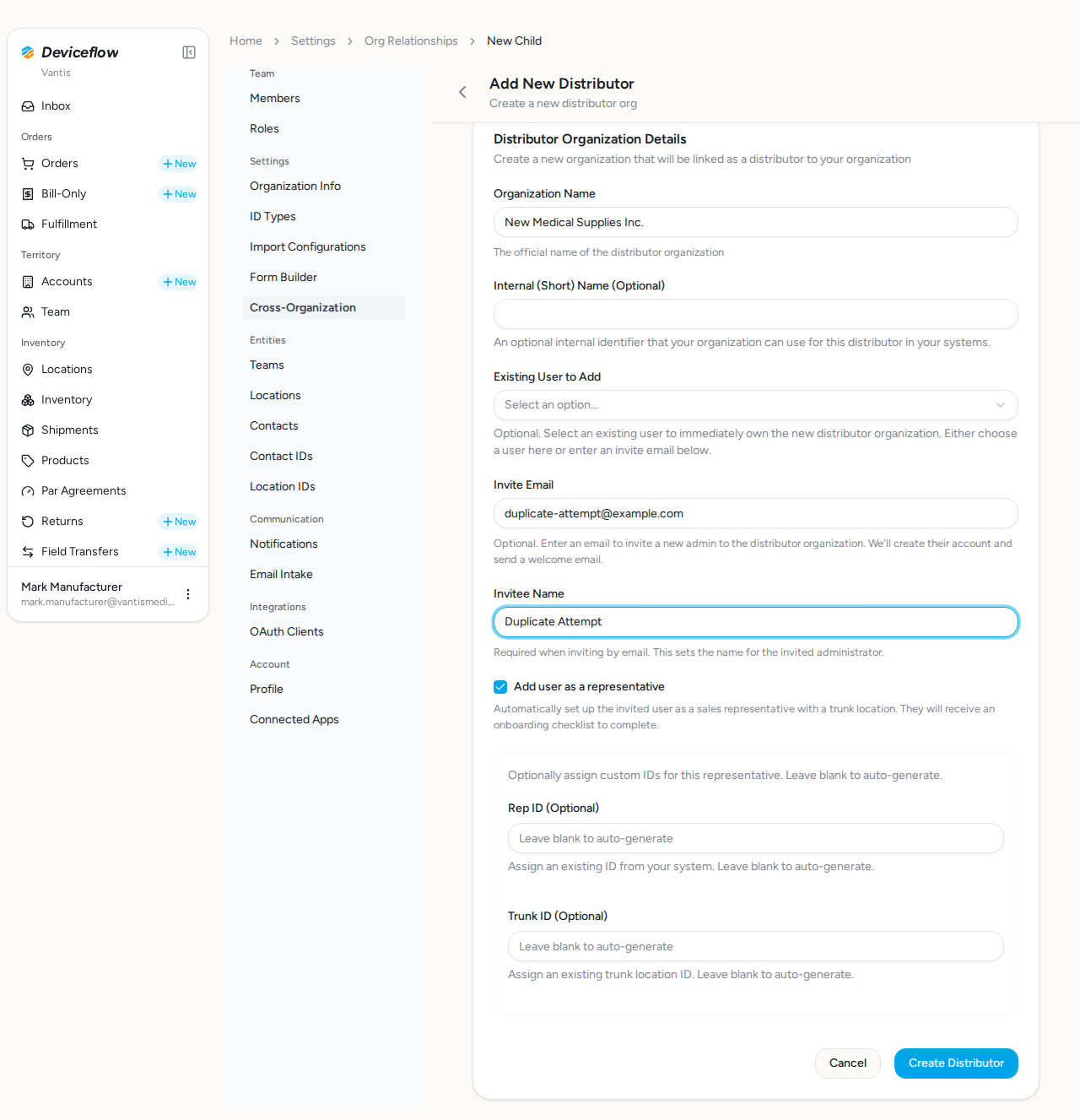

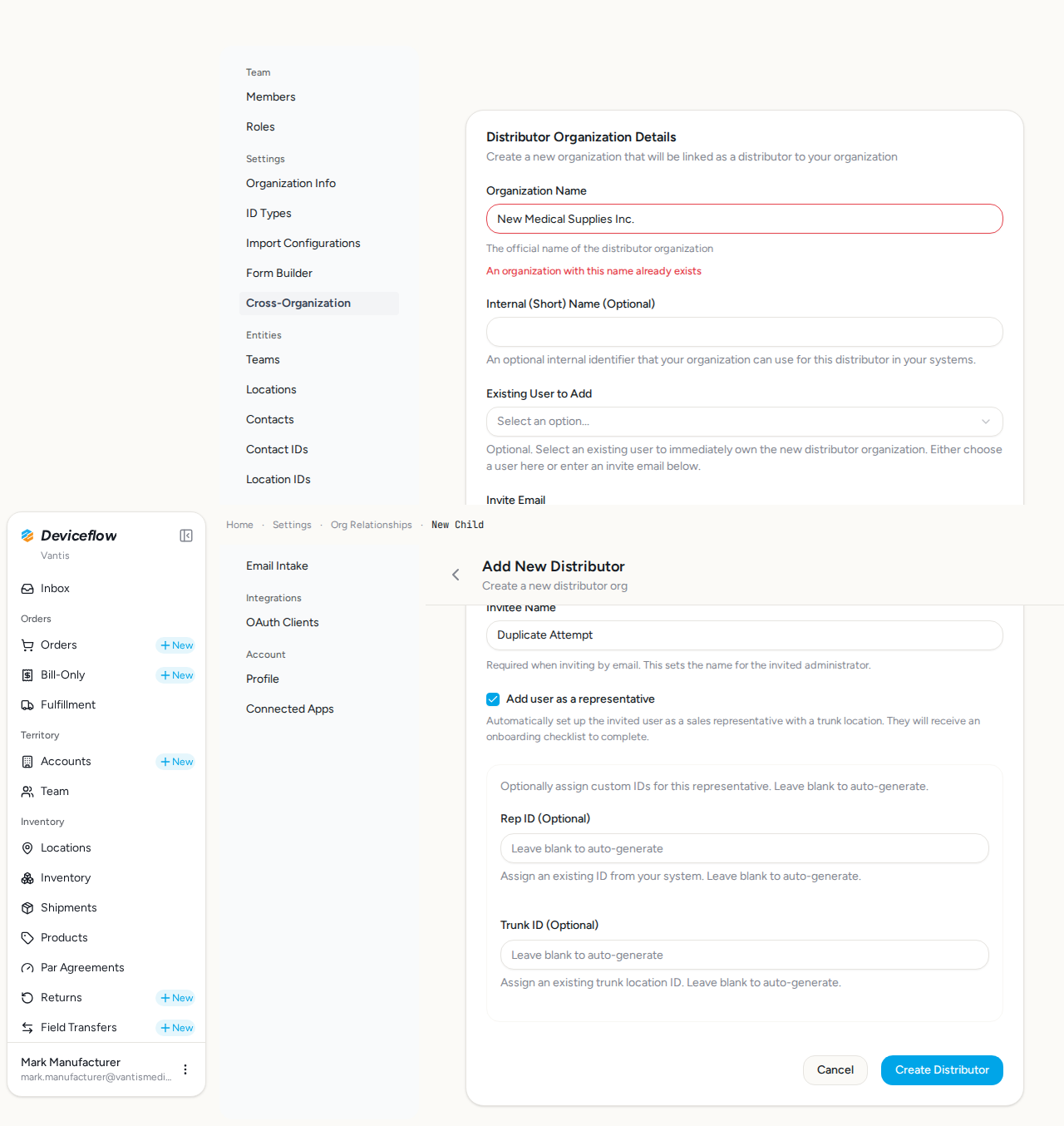

5. Step 5: Duplicate name rejected — ✅ PASS

What this step proves:

Re-submits the new-distributor form with the same organization name and asserts the server rejects it with the inline message “An organization with this name already exists”. Proves the case-insensitive ilike duplicate-name guard in new-child.remote.ts is active end-to-end — not just at the form schema level.

Screenshots:

Video recording:

---

6. Step 6: New distributor in list — ✅ PASS

What this step proves:

After creation, the new distributor organization (“New Medical Supplies Inc.”) appears alongside the existing StellarTech in the downstream organizations list, confirming the relationship was persisted correctly.

Screenshots:

Video recording:

---

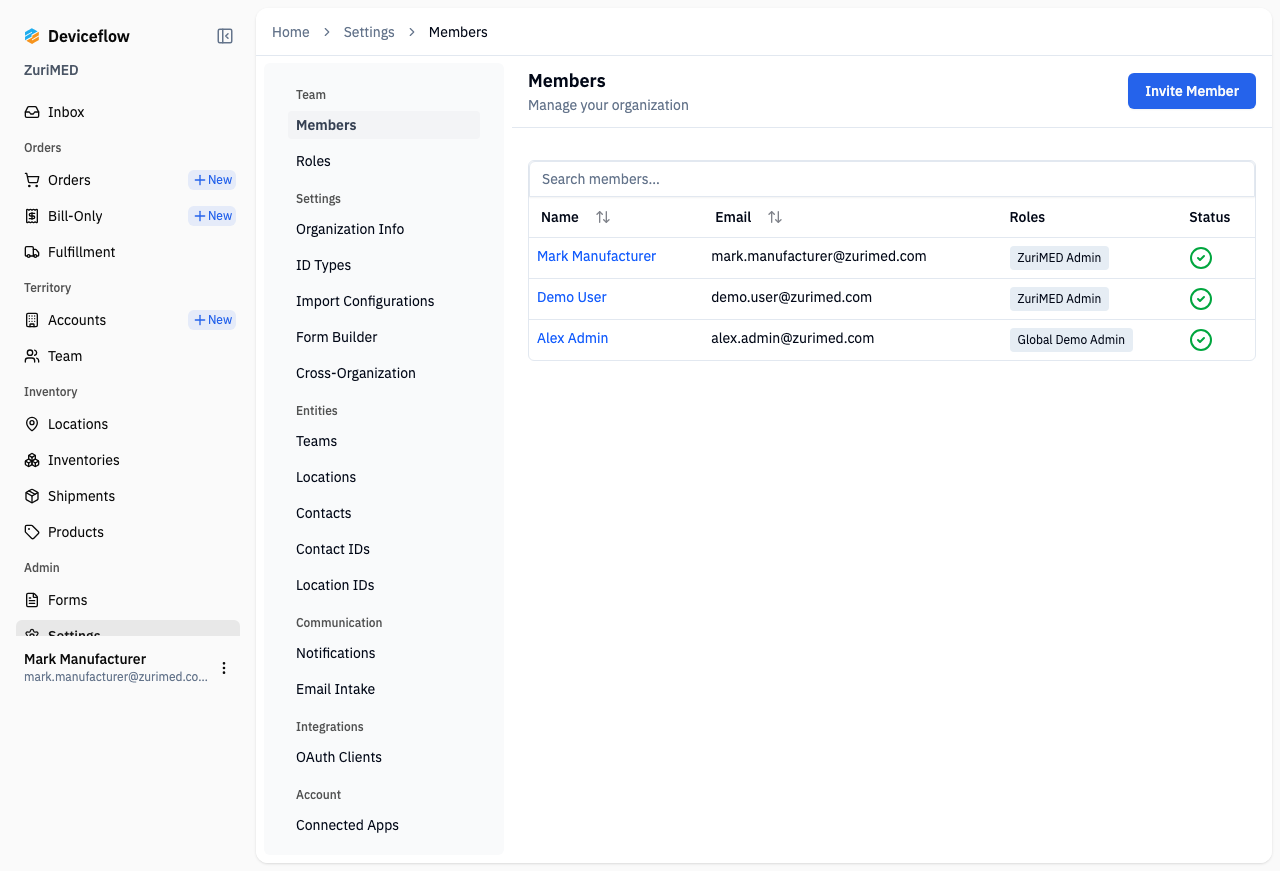

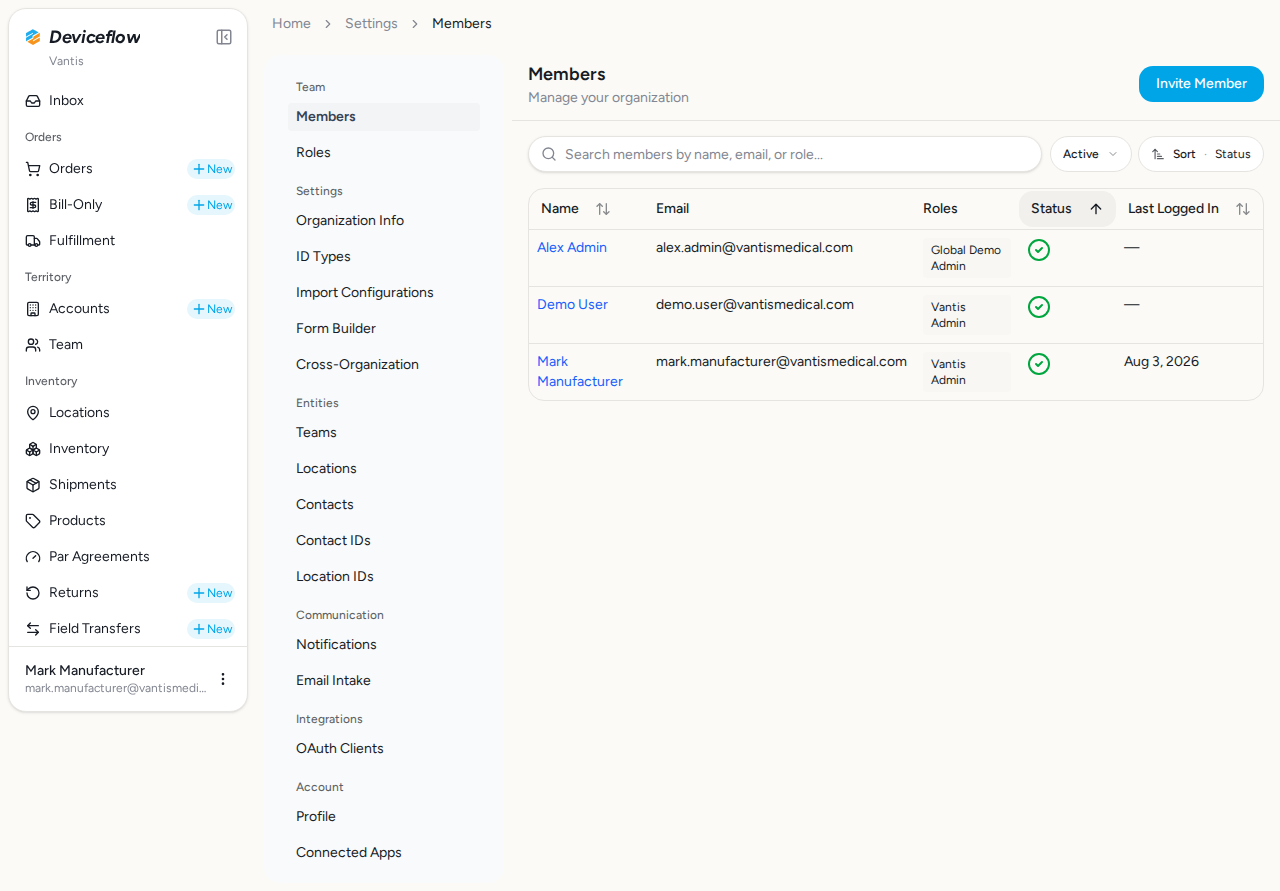

7. Step 7: Members page — ✅ PASS

What this step proves:

Navigates to the Members settings page and confirms it loads with an existing member table and the “Invite Member” button visible. Proves the admin has the manage_users permission required to send invitations.

Screenshots:

Video recording:

---

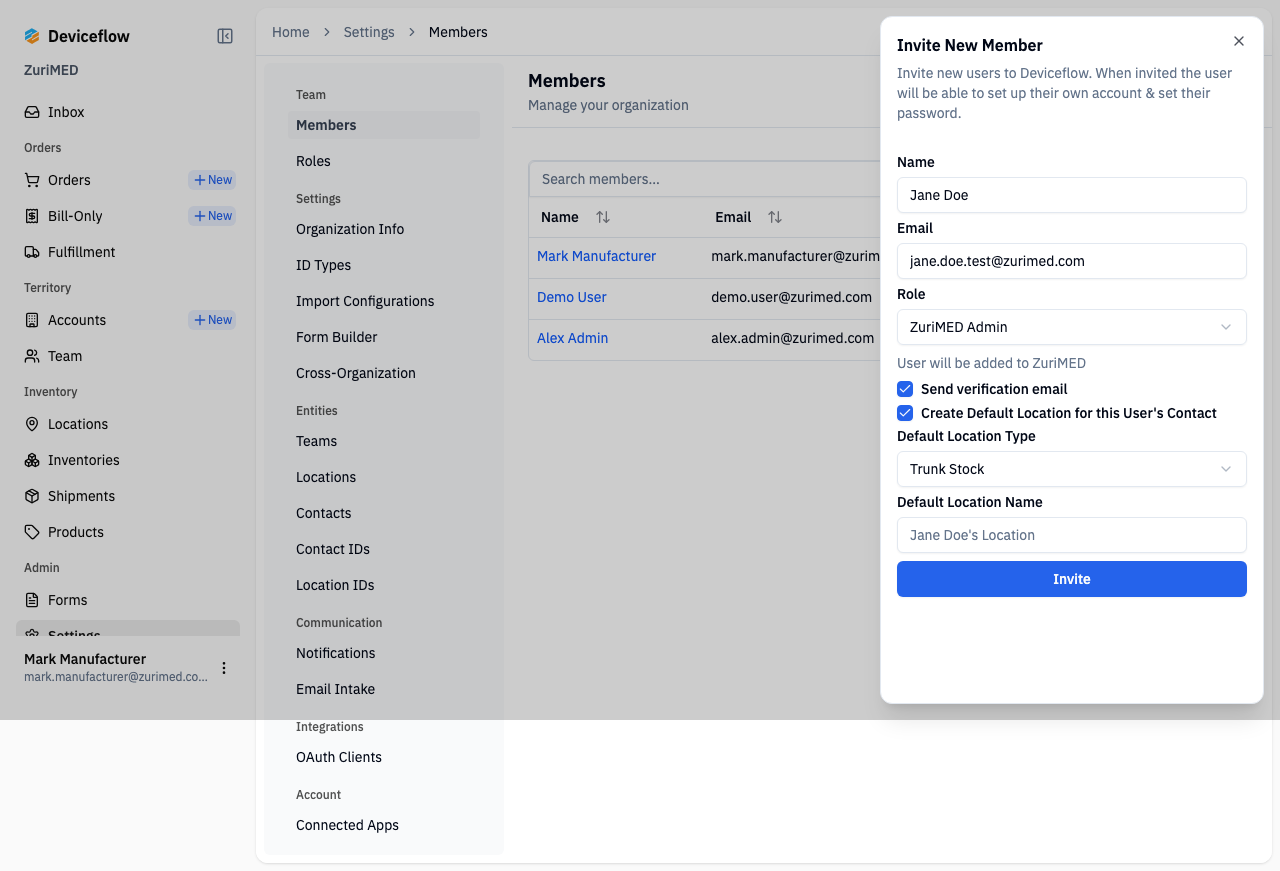

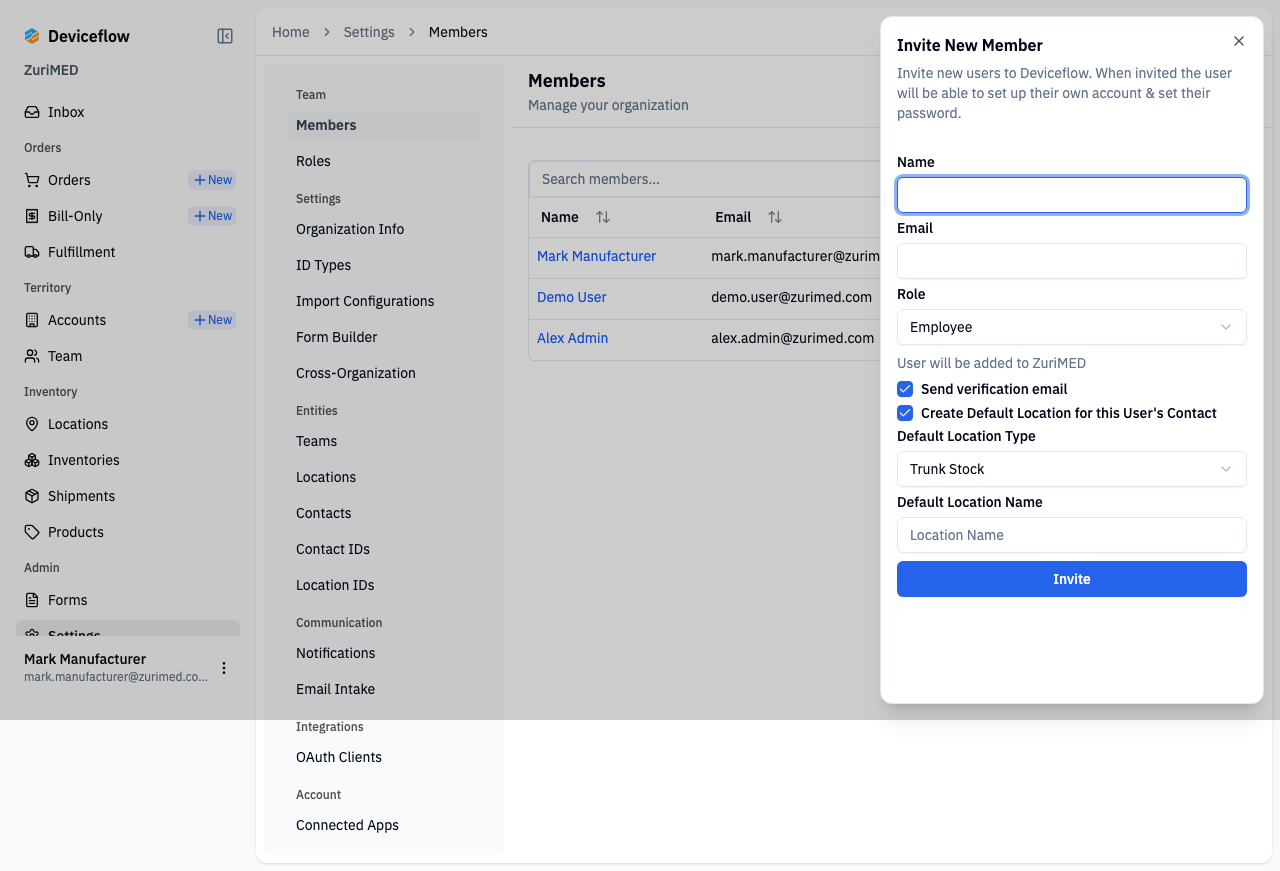

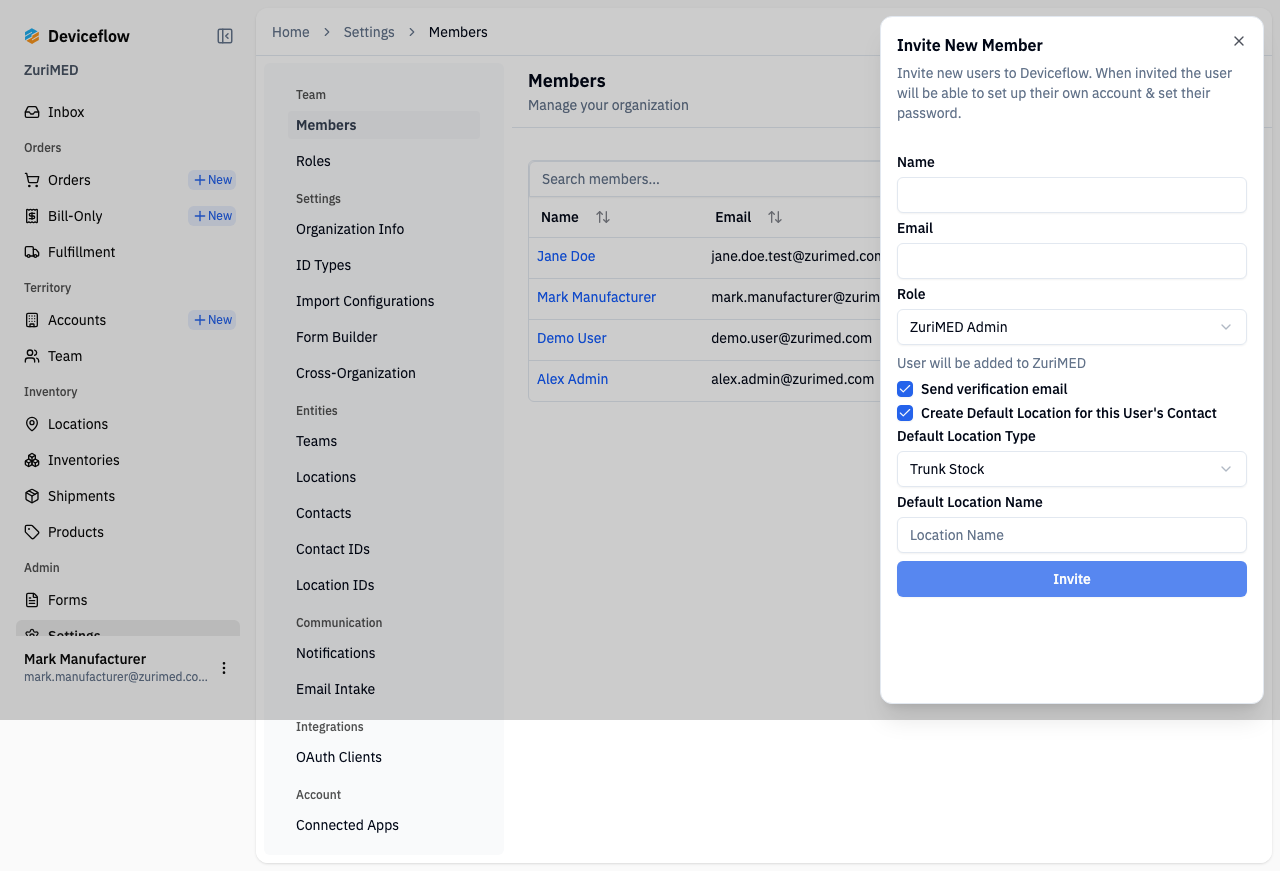

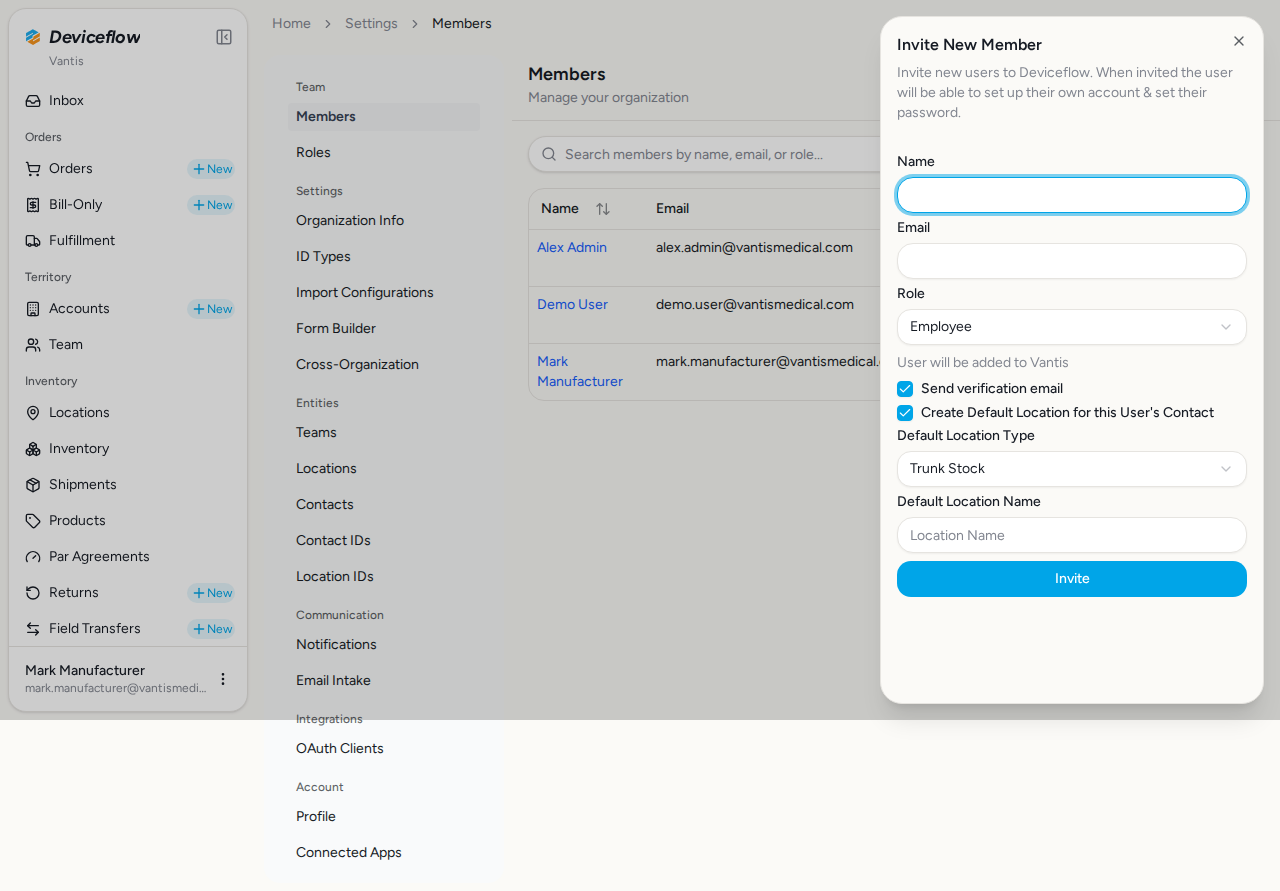

8. Step 8: Invite member — ✅ PASS

What this step proves:

Opens the Invite Member form, fills in the new member’s name and email, and explicitly selects the “ZuriMED Admin” role from the role dropdown. Submits the invitation and verifies the form resets on success. The specific role picked here is asserted in DB check 8 so a silent regression (e.g. hardcoding the role on the server) is caught.

Emails triggered by this step:

(Evidence matched by declared name — step timing not available or no events fell in window)

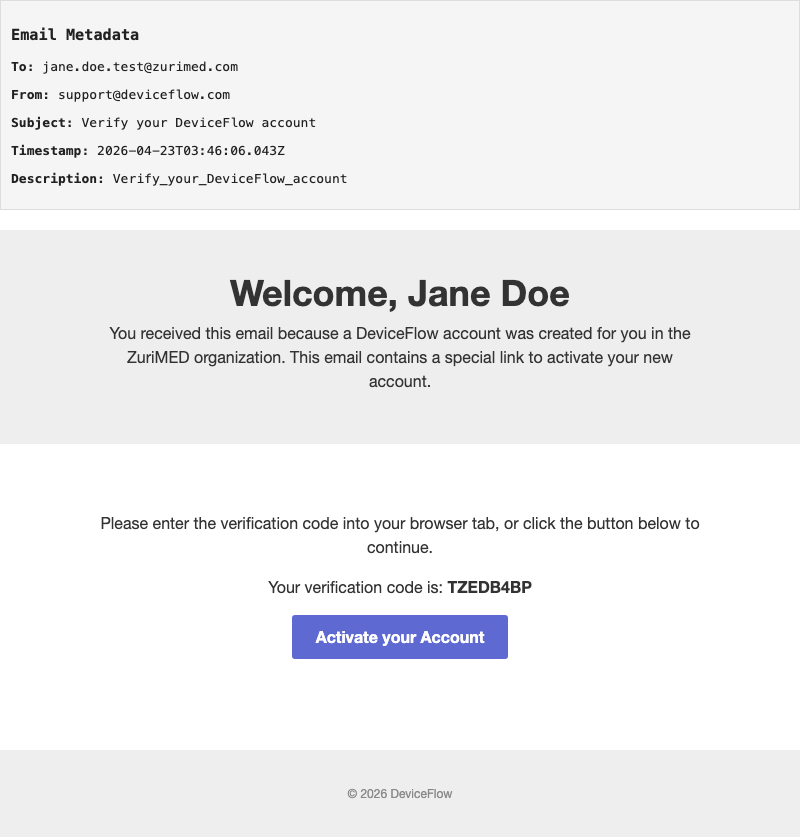

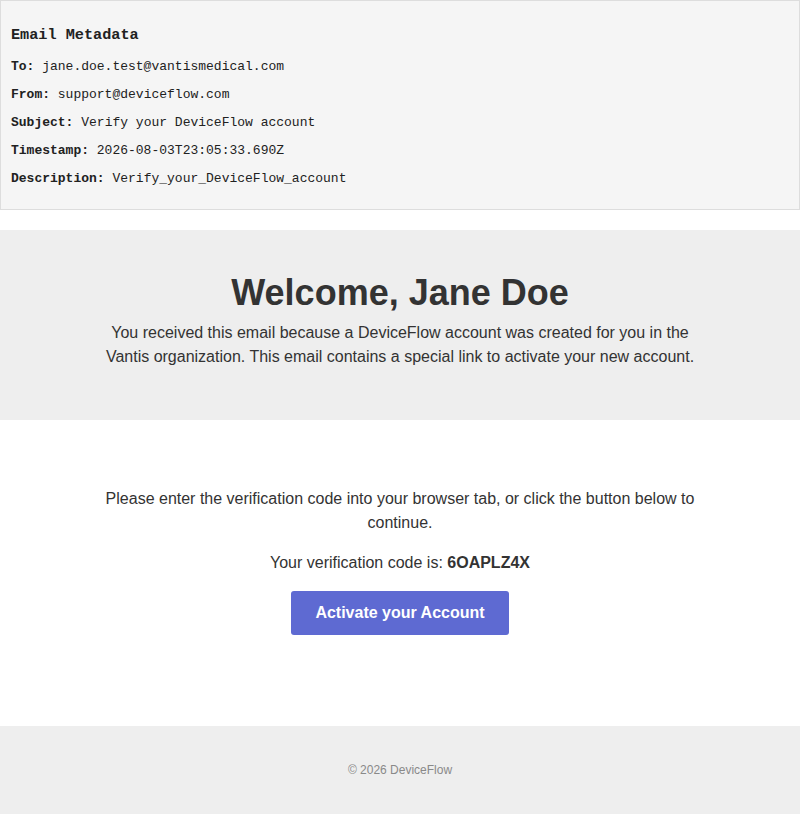

Email 1: Verify your DeviceFlow account

Template: Verify_your_DeviceFlow_account

Email 2: Verify your DeviceFlow account

Template: Verify_your_DeviceFlow_account

Screenshots:

Video recording:

---

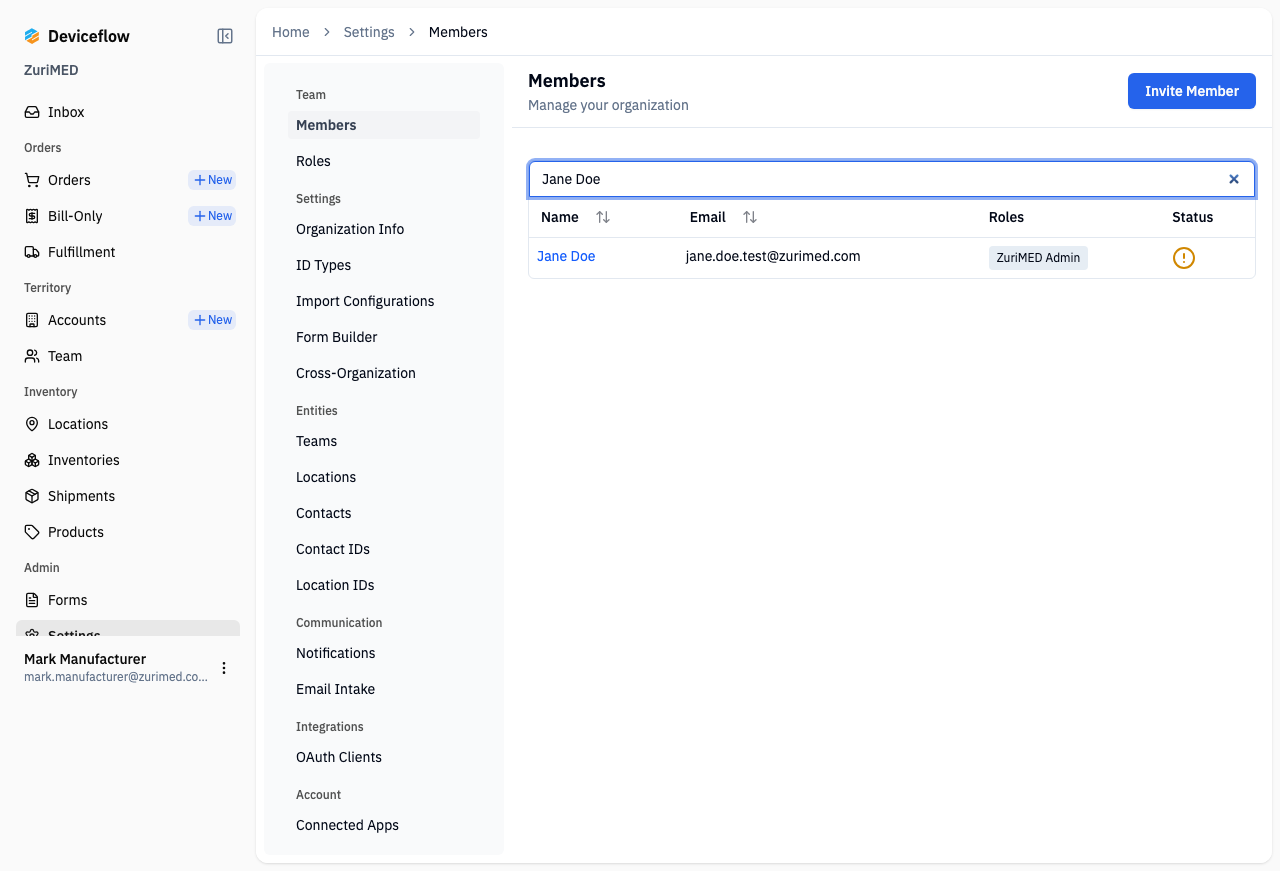

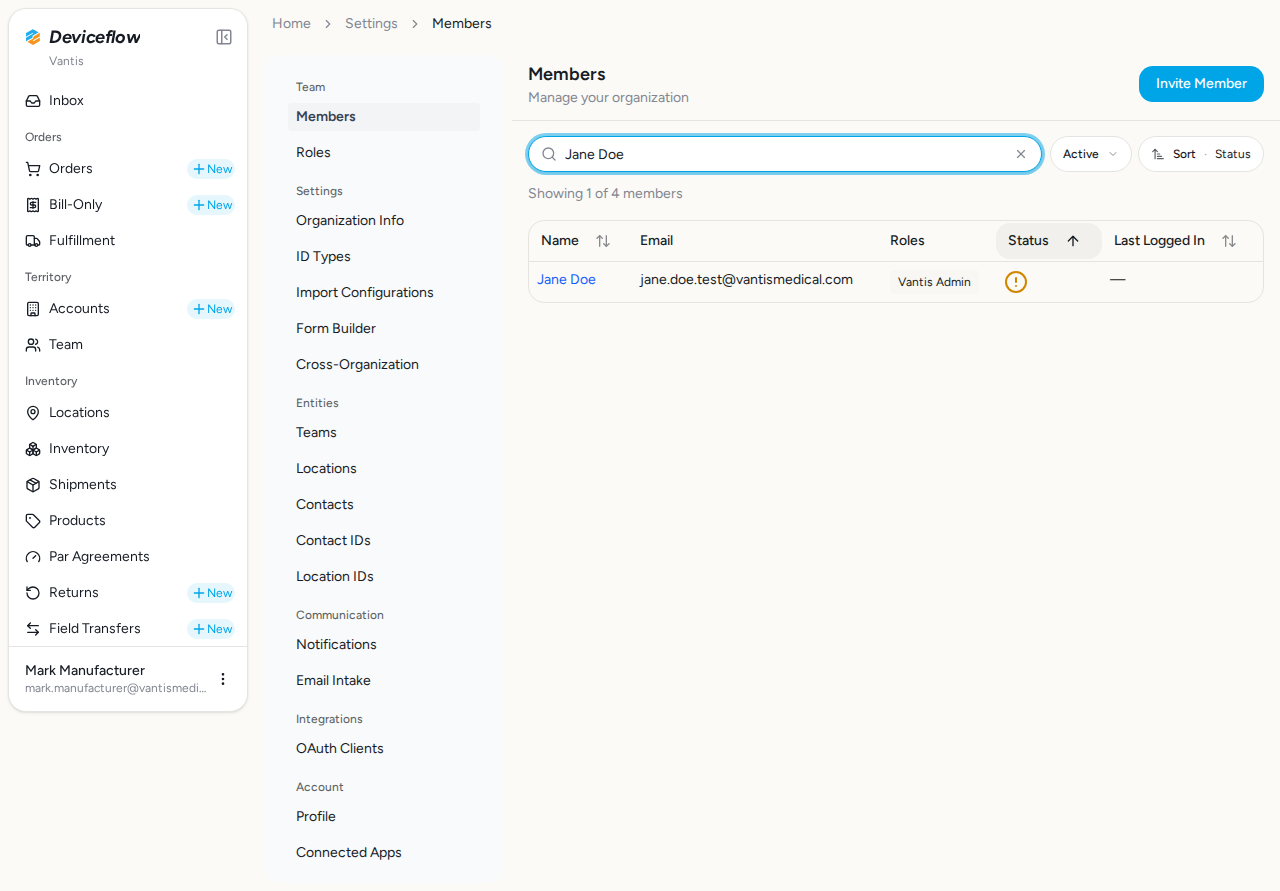

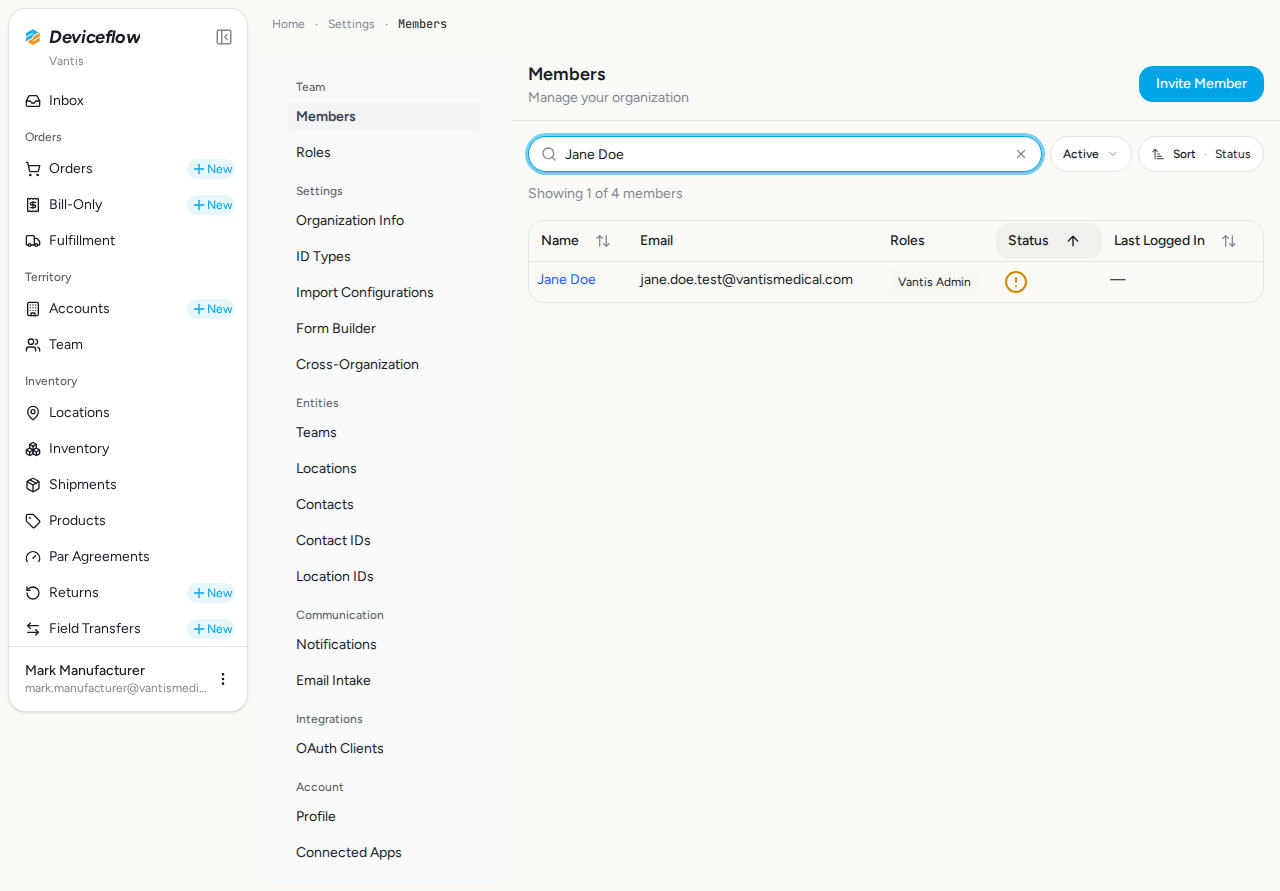

9. Step 9: Member in list — ✅ PASS

What this step proves:

After invitation, the new member (“Jane Doe”) appears in the members list with their email address visible, confirming the invitation was recorded and the member is searchable from the admin interface.

Screenshots:

Video recording:

---

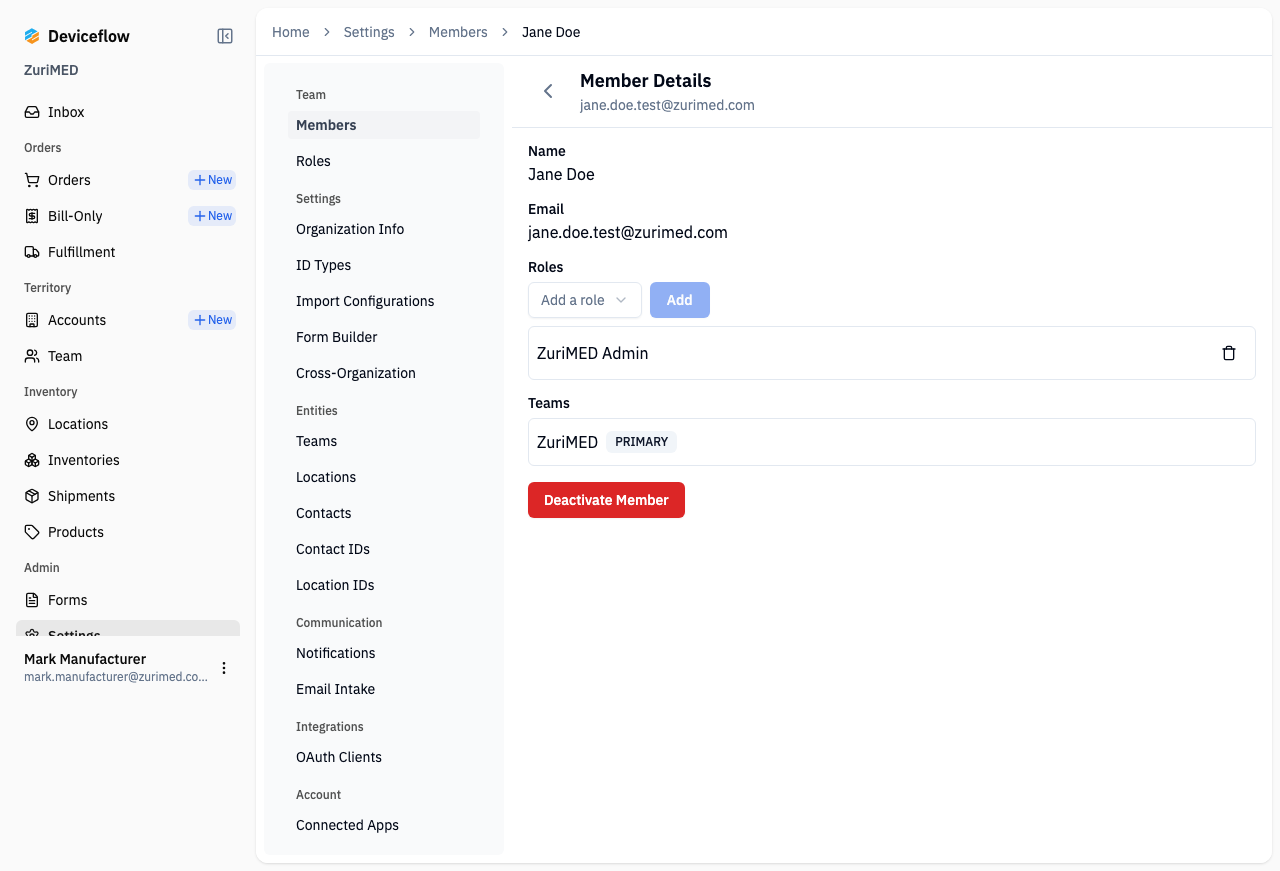

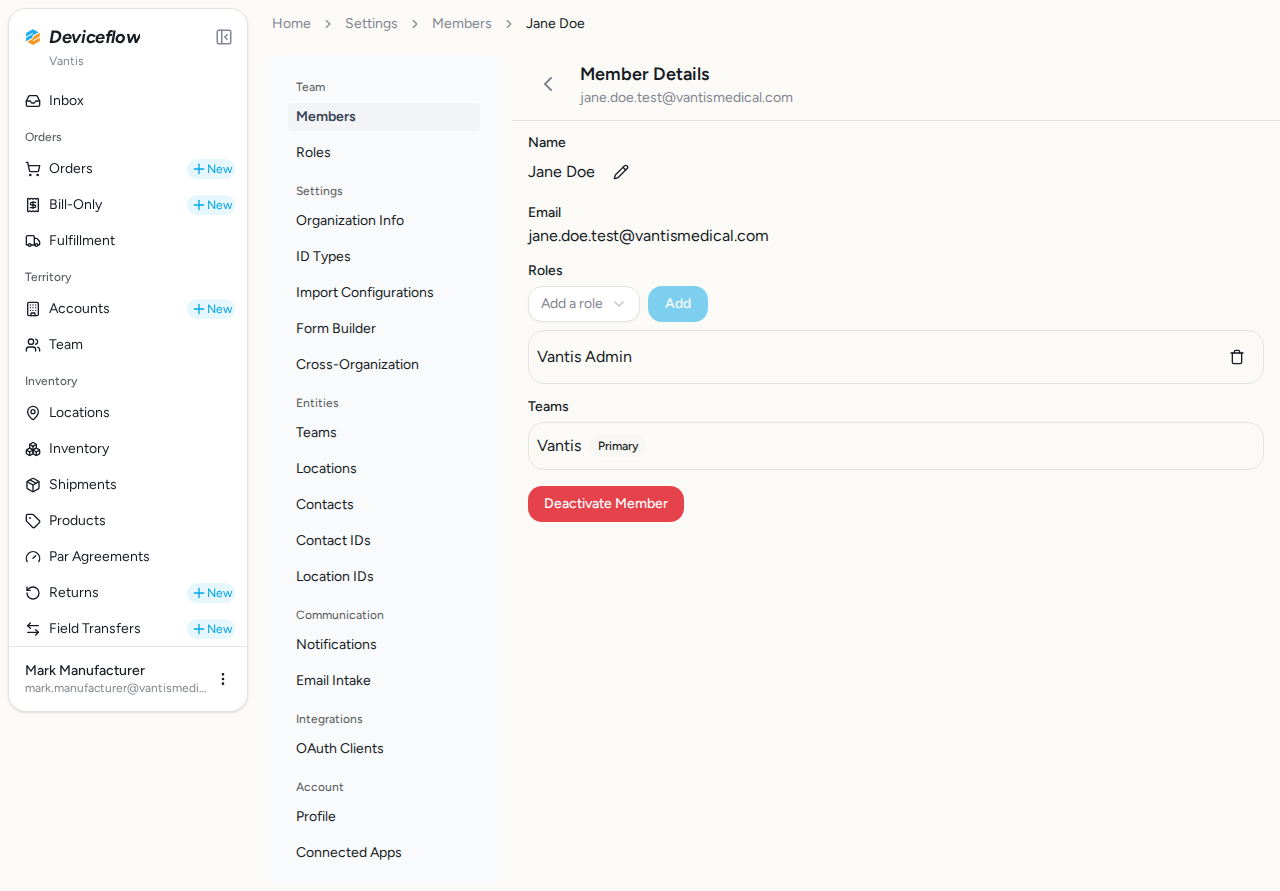

10. Step 10: Member details — ✅ PASS

What this step proves:

Opens the member detail page for the invited user and verifies the Roles section is present. Confirms that role assignments made during invitation are accessible and visible to administrators.

Screenshots:

Video recording:

---

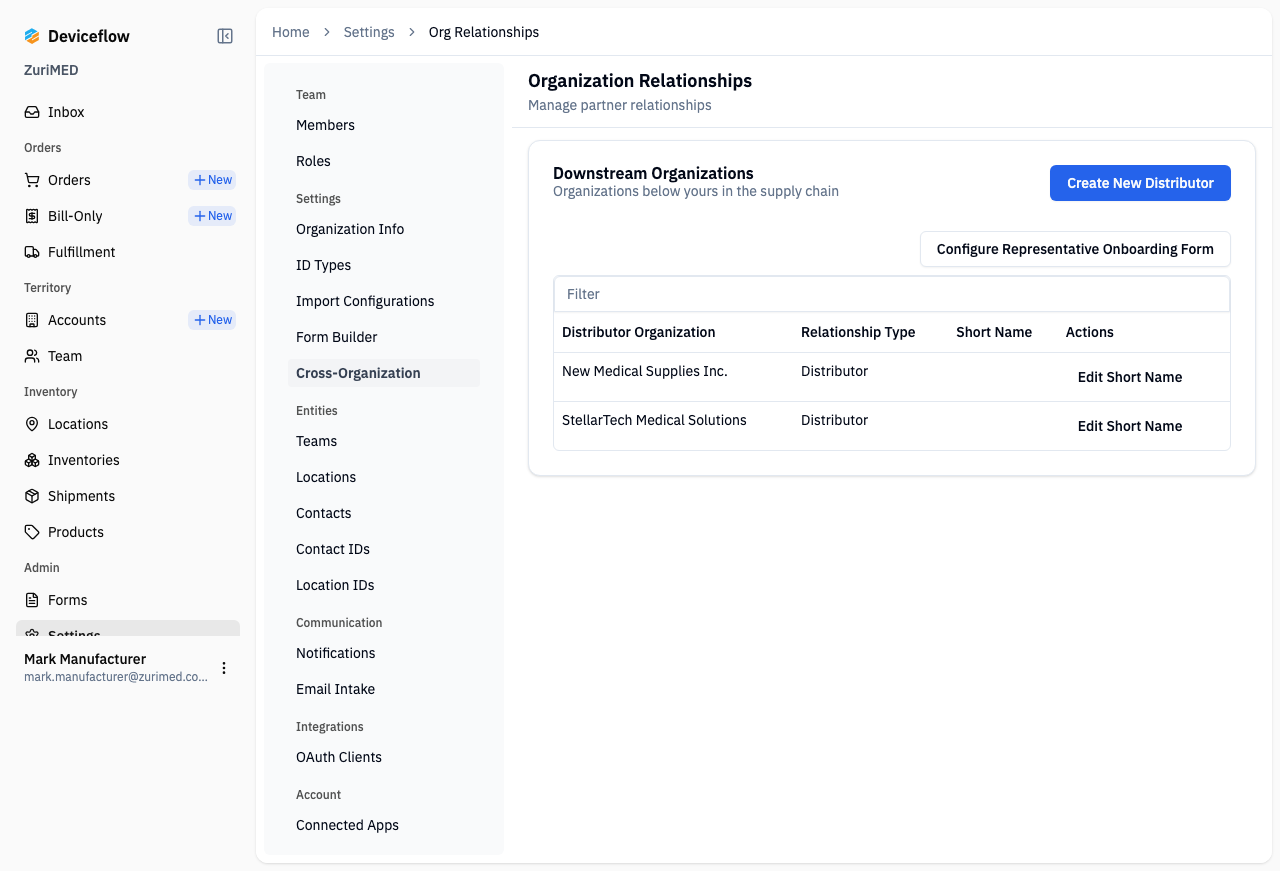

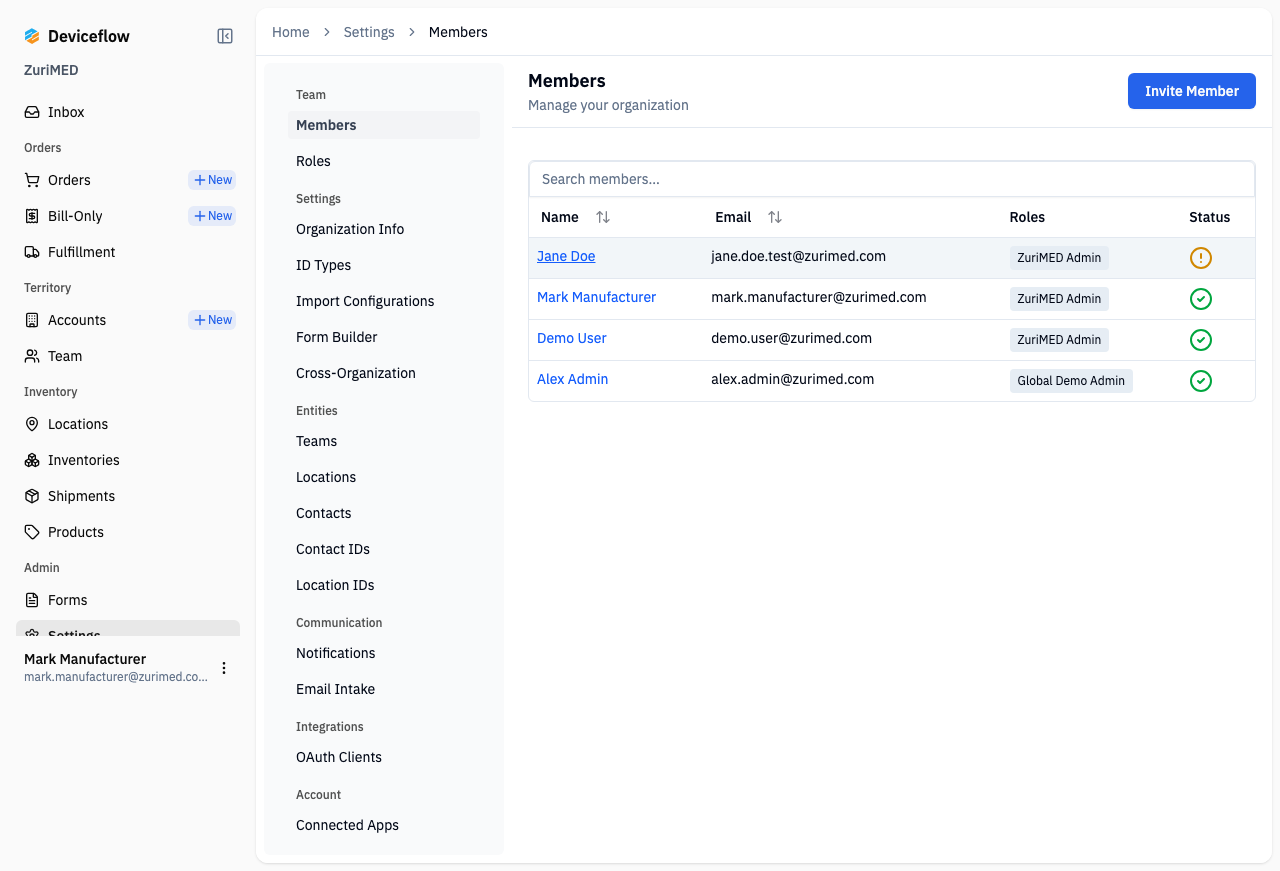

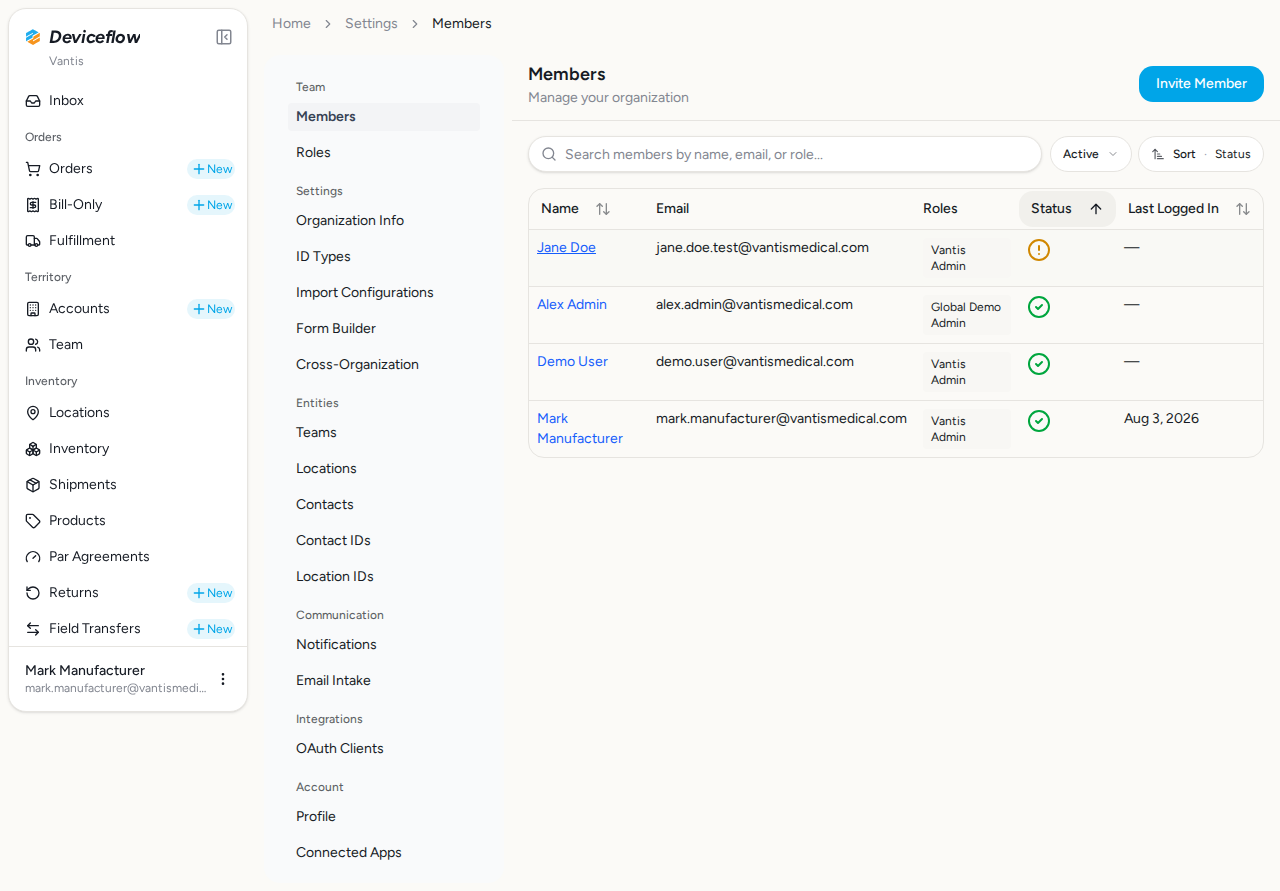

11. Step 11: Admin overview — ✅ PASS

What this step proves:

Final admin view showing both the full distributor list (StellarTech + new distributor) and the complete member roster. Provides end-to-end evidence that the entire distributor onboarding workflow — from agency creation through member invitation and role assignment — is operational.

Screenshots:

Video recording:

---

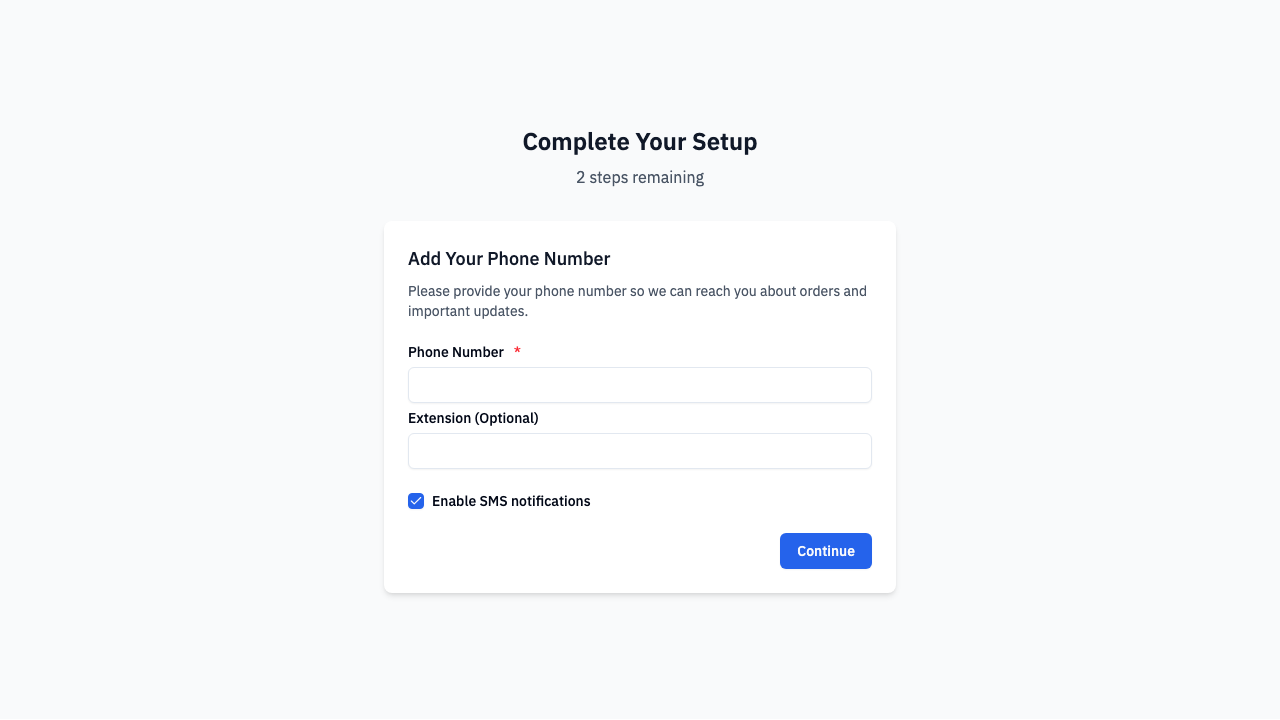

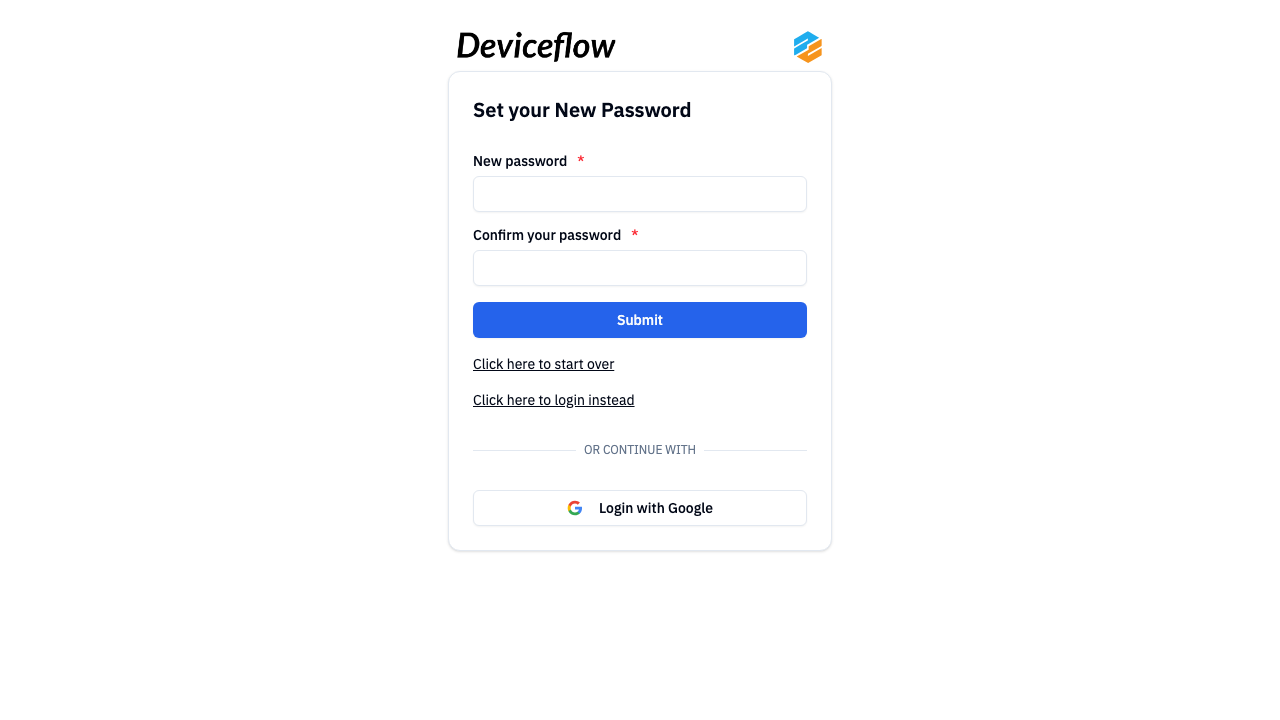

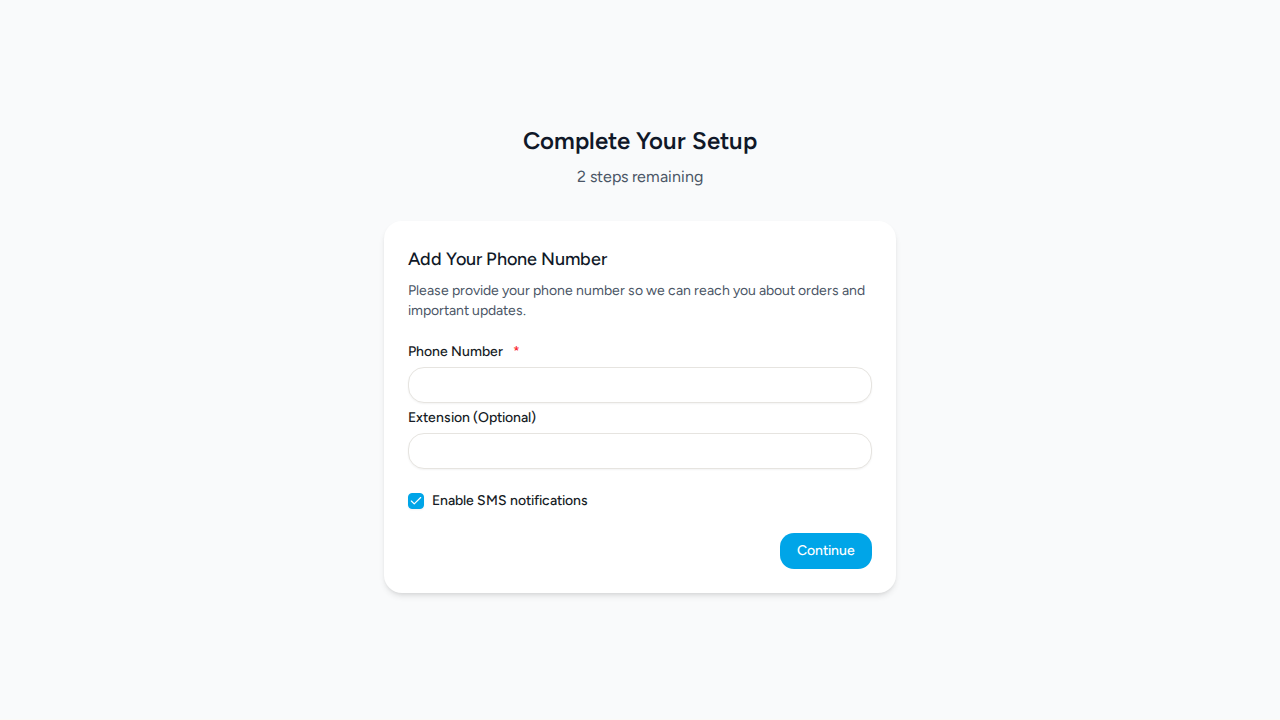

12. Step 12: Distributor first login — ✅ PASS

What this step proves:

Switches to the distributor invitee’s perspective in a fresh browser context. Reads the verification email captured during step 4, extracts the /verify-email?requestId=…&code=… link, and navigates to it. The server auto-verifies the code and redirects through the password-reset flow, where the invitee sets an initial password and lands on the app home page. Proves the invitation link is functional from the recipient’s point of view, not just from the admin’s.

Screenshots:

Video recording:

---

Database Validations

The following SQL queries ran against the application database after the Playwright scenarios completed. Each query asserts a specific condition that proves the feature under test persisted its data correctly.

New distributor organization created — ✅ PASS

Assertion: Organization “New Medical Supplies Inc.” should exist in the organizations table

SELECT id, name, created_at
      FROM organizations
      WHERE name = $1

id	name	created_at
019db871-6ad0-78b9-88d0-1a0a769394fd	New Medical Supplies Inc.	2026-04-23T03:45:33.904Z

Distributor relationship established — ✅ PASS

Assertion: A distributor relationship should exist between ZuriMED and New Medical Supplies Inc.

SELECT
        r.parent_organization_id,
        r.child_organization_id,
        r.relationship_type,
        p.name as parent_name,
        c.name as child_name
      FROM organization_relationships r
      JOIN organizations p ON p.id = r.parent_organization_id
      JOIN organizations c ON c.id = r.child_organization_id
      WHERE r.parent_organization_id = $1
        AND c.name = $2

parent_organization_id	child_organization_id	relationship_type	parent_name	child_name
a1b2c3d4-e5f6-7890-abcd-ef1234567890	019db871-6ad0-78b9-88d0-1a0a769394fd	distributor	ZuriMED	New Medical Supplies Inc.

Invited distributor user created — ✅ PASS

Assertion: User with email test-distributor@example.com should exist in the users table

SELECT id, email, name, created_at
      FROM users
      WHERE email = $1

id	email	name	created_at
019db871-6ace-7c25-ac42-eda8884f37d1	test-distributor@example.com	John Smith	2026-04-23T03:45:33.902Z

Distributor user has expected role assigned — ✅ PASS

Assertion: User test-distributor@example.com should have role “Administrator (preset)” in New Medical Supplies Inc. (hardcoded at new-child.remote.ts as globalOrgAdminRoleId)

SELECT
        ur.user_id,
        ur.role_id,
        ur.organization_id,
        r.name as role_name,
        u.email,
        o.name as org_name
      FROM user_roles ur
      JOIN users u ON u.id = ur.user_id
      JOIN roles r ON r.id = ur.role_id
      JOIN organizations o ON o.id = ur.organization_id
      WHERE u.email = $1
        AND o.name = $2

user_id	role_id	organization_id	role_name	email	org_name
019db871-6ace-7c25-ac42-eda8884f37d1	24ee9b94-92a6-4bd4-89e6-48d4f19cfdbe	019db871-6ad0-78b9-88d0-1a0a769394fd	Administrator (preset)	test-distributor@example.com	New Medical Supplies Inc.

User is member of distributor org — ✅ PASS

Assertion: User test-distributor@example.com should be a member of New Medical Supplies Inc.

SELECT
        om.user_id,
        om.organization_id,
        om.active,
        u.email,
        o.name as org_name
      FROM organization_members om
      JOIN users u ON u.id = om.user_id
      JOIN organizations o ON o.id = om.organization_id
      WHERE u.email = $1
        AND o.name = $2

user_id	organization_id	active	email	org_name
019db871-6ace-7c25-ac42-eda8884f37d1	019db871-6ad0-78b9-88d0-1a0a769394fd	true	test-distributor@example.com	New Medical Supplies Inc.

Representation relationship created — ✅ PASS

Assertion: A representation relationship should exist for test-distributor@example.com (created via “Add as representative” checkbox)

SELECT
        orr.id,
        orr.user_id,
        orr.approving_organization_id,
        orr.requesting_organization_id,
        orr.status,
        orr.representative_type,
        u.email,
        ao.name as approving_org,
        ro.name as requesting_org
      FROM organization_representation_relationships orr
      JOIN users u ON u.id = orr.user_id
      JOIN organizations ao ON ao.id = orr.approving_organization_id
      JOIN organizations ro ON ro.id = orr.requesting_organization_id
      WHERE u.email = $1

id	user_id	approving_organization_id	requesting_organization_id	status	representative_type	email	approving_org	requesting_org
019db871-6af3-7bc1-83e2-9b20e8b3232e	019db871-6ace-7c25-ac42-eda8884f37d1	a1b2c3d4-e5f6-7890-abcd-ef1234567890	019db871-6ad0-78b9-88d0-1a0a769394fd	active	salesperson	test-distributor@example.com	ZuriMED	New Medical Supplies Inc.

Submitted Rep ID persisted for invited user — ✅ PASS

Assertion: Rep ID “TEST-REP-063” submitted through the new-distributor form should be stored in real_world_contact_ids for test-distributor@example.com scoped to New Medical Supplies Inc.

SELECT
        rwci.id,
        rwci.organization_id,
        rwci.contact_id,
        rwci.id_type,
        rwci.value,
        u.email,
        o.name as org_name
      FROM real_world_contact_ids rwci
      JOIN contacts c ON c.id = rwci.contact_id
      JOIN users u ON u.id = c.user_id
      JOIN organizations o ON o.id = rwci.organization_id
      WHERE u.email = $1
        AND o.name = $2

id	organization_id	contact_id	id_type	value	email	org_name
019db871-6af1-7d68-94e0-a15bd635c0bd	019db871-6ad0-78b9-88d0-1a0a769394fd	019db871-6ad3-7057-bf8f-1361ee09c9dc	zurimed_rep_id	TEST-REP-063	test-distributor@example.com	New Medical Supplies Inc.

Submitted Trunk ID persisted for invited user — ✅ PASS

Assertion: Trunk ID “TEST-TRUNK-063” submitted through the new-distributor form should be stored in real_world_location_ids scoped to the manufacturer org (ZuriMED)

SELECT
        rwli.id,
        rwli.organization_id,
        rwli.location_id,
        rwli.id_type,
        rwli.value,
        u.email,
        o.name as org_name
      FROM real_world_location_ids rwli
      JOIN real_world_locations rwl ON rwl.id = rwli.location_id
      JOIN contacts c ON c.default_location_id = rwl.id
      JOIN users u ON u.id = c.user_id
      JOIN organizations o ON o.id = rwli.organization_id
      WHERE u.email = $1
        AND o.id = $2

id	organization_id	location_id	id_type	value	email	org_name
019db871-6af2-708c-9ab1-ae40de821be0	a1b2c3d4-e5f6-7890-abcd-ef1234567890	019db871-6ae3-7fd5-a11e-994d6fb5b94b	TRUNK_LOCATION_ID	TEST-TRUNK-063	test-distributor@example.com	ZuriMED

Invited member exists in ZuriMED org — ✅ PASS

Assertion: User jane.doe.test@zurimed.com should be a member of ZuriMED

SELECT
        u.id, u.email, u.name,
        om.active,
        o.name as org_name
      FROM users u
      JOIN organization_members om ON om.user_id = u.id
      JOIN organizations o ON o.id = om.organization_id
      WHERE u.email = $1
        AND om.organization_id = $2

id	email	name	active	org_name
019db871-e1ce-7006-aaf8-b2cafb26bdf5	jane.doe.test@zurimed.com	Jane Doe	true	ZuriMED

Invited member has the role selected in the form — ✅ PASS

Assertion: User jane.doe.test@zurimed.com should have role “ZuriMED Admin” in ZuriMED (this is the role the spec picks from the Invite Member dropdown)

SELECT
        ur.user_id,
        ur.role_id,
        r.name as role_name,
        u.email,
        o.name as org_name
      FROM user_roles ur
      JOIN users u ON u.id = ur.user_id
      JOIN roles r ON r.id = ur.role_id
      JOIN organizations o ON o.id = ur.organization_id
      WHERE u.email = $1
        AND ur.organization_id = $2

user_id	role_id	role_name	email	org_name
019db871-e1ce-7006-aaf8-b2cafb26bdf5	39d0e1f2-a3b4-5678-3456-789012345678	ZuriMED Admin	jane.doe.test@zurimed.com	ZuriMED

Distributor org has feature flags — ✅ PASS

Assertion: New Medical Supplies Inc. should have feature flags propagated from parent org

SELECT
        ff.id as flag_id,
        ff.value,
        o.name as org_name
      FROM feature_flags ff
      JOIN organizations o ON o.id = ff.organization_id
      WHERE o.name = $1
      ORDER BY ff.id

flag_id	value	org_name
billing	true	New Medical Supplies Inc.
home_screen_prototype	true	New Medical Supplies Inc.
inbox_checklist_items	true	New Medical Supplies Inc.
inbox_tickets	true	New Medical Supplies Inc.
inventory_snapshots	true	New Medical Supplies Inc.
order_requests	true	New Medical Supplies Inc.
org_type:distributor	true	New Medical Supplies Inc.
organization_representation	true	New Medical Supplies Inc.
sales_accounts	true	New Medical Supplies Inc.
workflow_visualization	true	New Medical Supplies Inc.

manufacturer_can_create_distributors flag enabled — ✅ PASS

Assertion: manufacturer_can_create_distributors feature flag should be enabled for ZuriMED

SELECT id, organization_id, value
      FROM feature_flags
      WHERE id = 'manufacturer_can_create_distributors'
        AND organization_id = $1

id	organization_id	value
manufacturer_can_create_distributors	a1b2c3d4-e5f6-7890-abcd-ef1234567890	true

Audit & Email Assertion Ledger

Per-declaration outcome of every expectedAuditActions and expectedEmailTemplates entry written into the orchestrator. Missing evidence here is a real test failure, not a soft warning.

Audit Action Assertions

Each row asserts that a declared expectedAuditActions entry produced a matching row in audit_events. A ❌ flips overall status to FAIL — the declaration is real proof, not just an annotation.

Step	Expected Audit Action	Found
Step 4: Create distributor	user_log:rep_onboarding_request_approved	✅

Email Template Assertions

Each row asserts that a declared expectedEmailTemplates entry was matched (case-insensitive substring) by a captured email subject or template. A ❌ flips overall status to FAIL.

Step	Expected Template	Found
Step 4: Create distributor	Verify your DeviceFlow	✅
Step 4: Create distributor	Representative Account Approved	✅
Step 8: Invite member	Verify your DeviceFlow	✅

Audit Log Events

Every row written to audit_events while this test was running (scoped to the demo organizations). Provides compliance evidence that user actions are traced end-to-end (URS-003).

Capture window start: 2026-04-23T03:45:05.195Z

SELECT
    ae.created_at,
    ae.event_type,
    ae.action,
    ae.user_id,
    u.email AS user_email,
    ae.organization_id,
    o.name AS organization_name,
    ae.object_id,
    ae.secondary_object_id,
    ae.payload,
    ae.route,
    ae.trace_id
  FROM audit_events ae
  LEFT JOIN users u ON u.id = ae.user_id
  LEFT JOIN organizations o ON o.id = ae.organization_id
  WHERE ae.created_at >= $1
    AND ae.organization_id = ANY($2::uuid[])
  ORDER BY ae.created_at ASC

5 event(s) captured:

Time	Type	Action	User	Org	Object ID	Performed	Reason
2026-04-23 03:45:13Z	user_log	user:login	mark.manufacturer@zurimed.com	ZuriMED	—	—
2026-04-23 03:45:34Z	user_log	rep_onboarding_request_approved	test-distributor@example.com	New Medical Supplies Inc.	019db871-6af3-7bc1-83e2-9b20e8b3232e	—
2026-04-23 03:45:34Z	transactional_email	rep_created	—	New Medical Supplies Inc.	019db871-6af3-7bc1-83e2-9b20e8b3232e	—
2026-04-23 03:45:35Z	transactional_email	verify_email	—	ZuriMED	019db871-6ace-7c25-ac42-eda8884f37d1	—
2026-04-23 03:46:06Z	transactional_email	verify_email	—	ZuriMED	019db871-e1ce-7006-aaf8-b2cafb26bdf5	—

Email Evidence

3 notification email(s) were captured during this test run. Each email is rendered as a screenshot for compliance review.

1. Representative Account Approved - ZuriMED

Template: Representative_Account_Approved_-_ZuriMED

2. Verify your DeviceFlow account

Template: Verify_your_DeviceFlow_account

3. Verify your DeviceFlow account

Template: Verify_your_DeviceFlow_account

Downloads

• audit-events.json
• report.md
• result.json
• screenshots-index.json
• step-timings.json

Feedback
