URS-049 · Update inventory from Uniphar ASN on delivered status

Title: Update inventory from Uniphar ASN on delivered status Date: 2026-04-23T03:43:11.182Z Duration: 101.8s Overall Status: ✅ PASS

User Requirement

The system shall update inventory based on ASN information, upon receipt of “delivered” status from Uniphar.

Source: User_Requirement_Specifications_ZuriMED_DeviceFlow.xlsx — the run below proves the system meets this requirement.

Environment

• Inbox URL: http://localhost:64871
• Database: localhost:64872/cc_repinbox_dev

Setup

Status: ✅ PASS

Run Recording

This validation was captured as a single end-to-end screencast covering every step below.

Test Steps

Each step below corresponds to one Playwright test that ran sequentially. Screenshots and video recordings provide visual evidence of the UI behaviour.

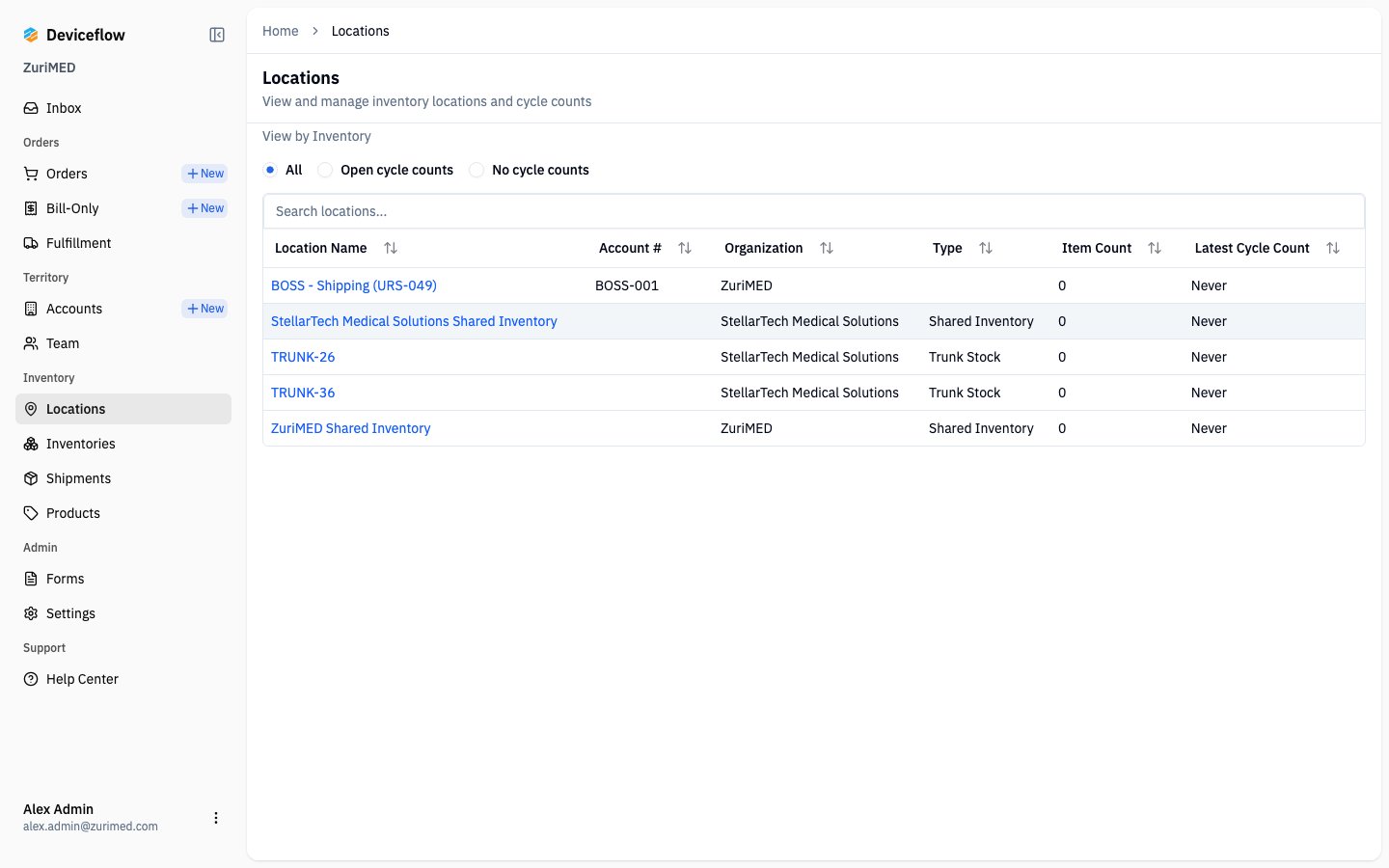

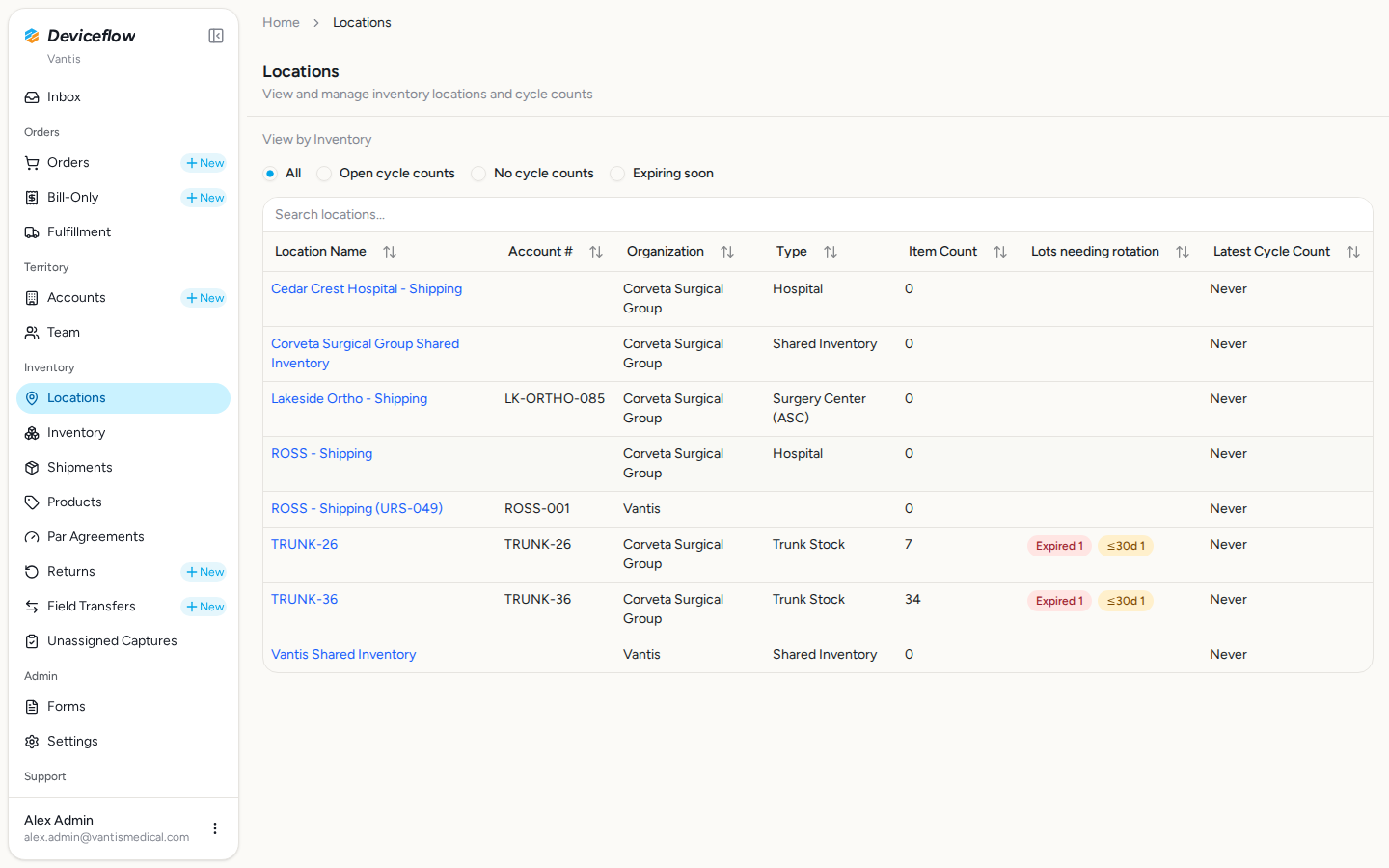

1. Step 1: Pre-ASN inventory — ✅ PASS

What this step proves:

Documents the inventory state at BOSS-001 before any ASN is processed. This baseline proves that inventory increases seen after Step 9 are caused by the ASN delivery, not by pre-existing stock. The full end-to-end screencast video (attached below) covers all steps from pre-ASN baseline through delivery confirmation and inventory materialization.

Screenshots:

---

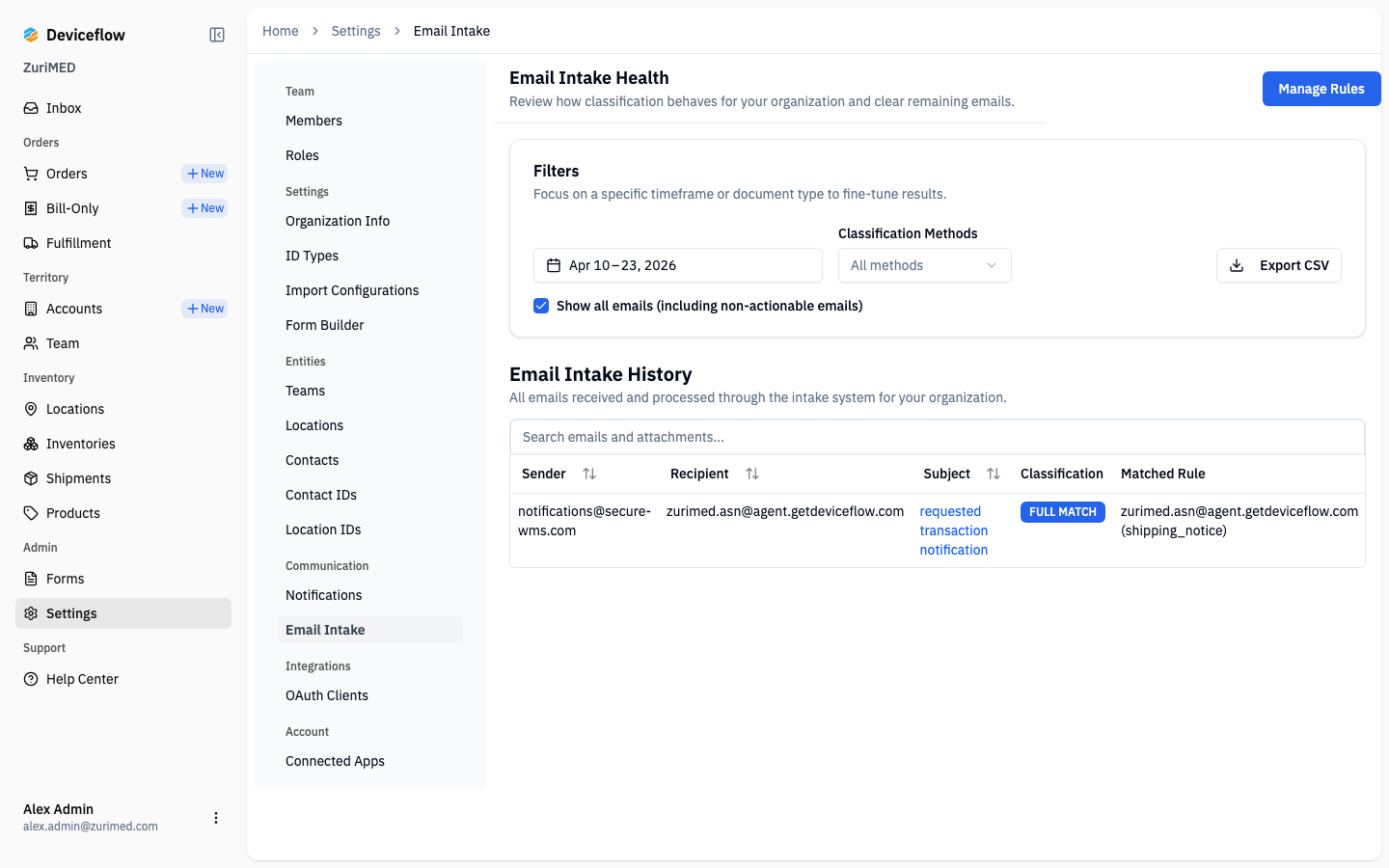

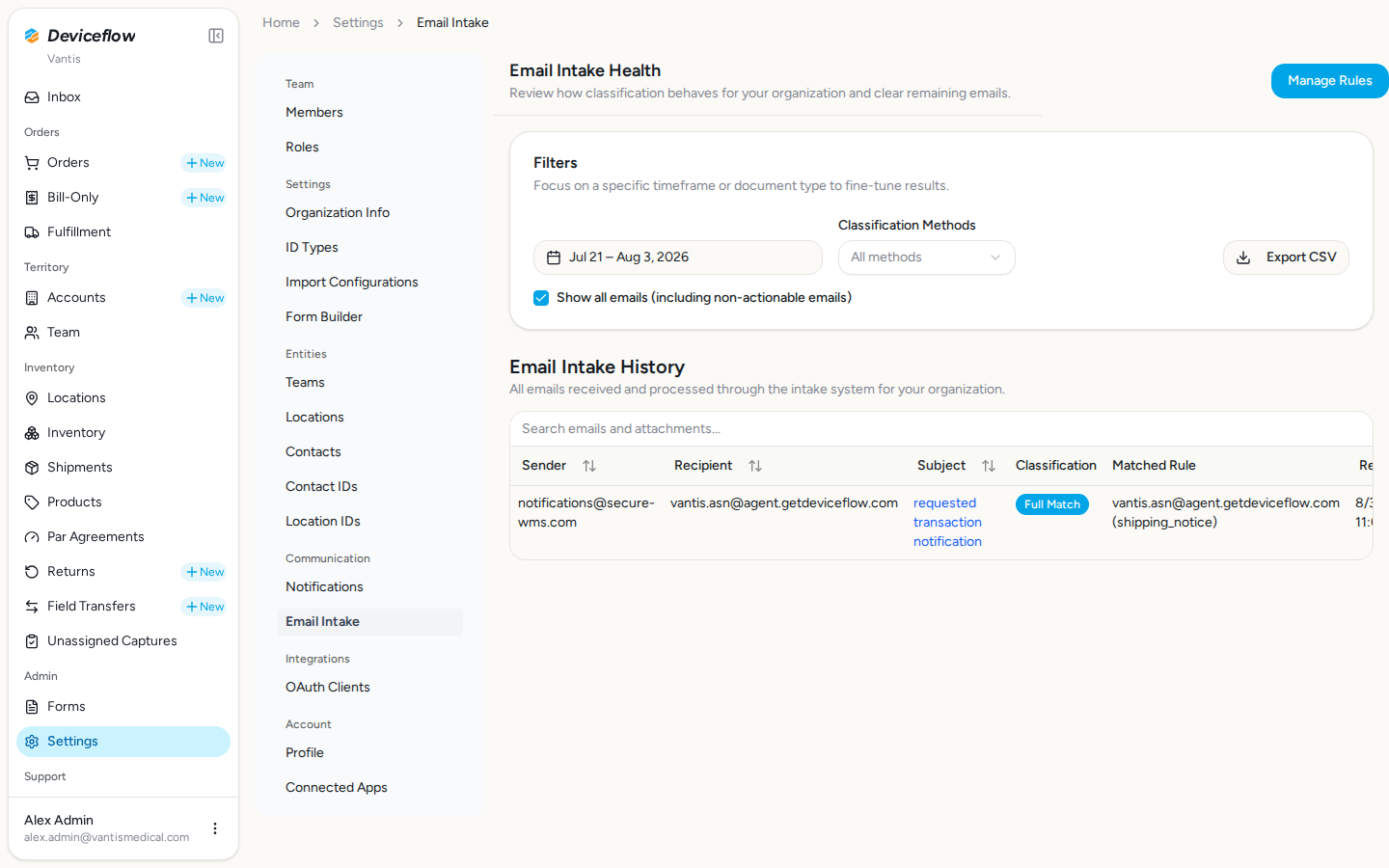

2. Step 3: Intake email list (ASN received) — ✅ PASS

What this step proves:

Confirms the Uniphar/secure-wms.com ASN email appears in the email intake log (/settings/email_intake) with a “processed” status. The email arrived via the same SES → Minio → Restate Import.processMail pipeline used in production — only the SES/SQS hops are replaced by a direct Minio upload in the test environment.

Screenshots:

---

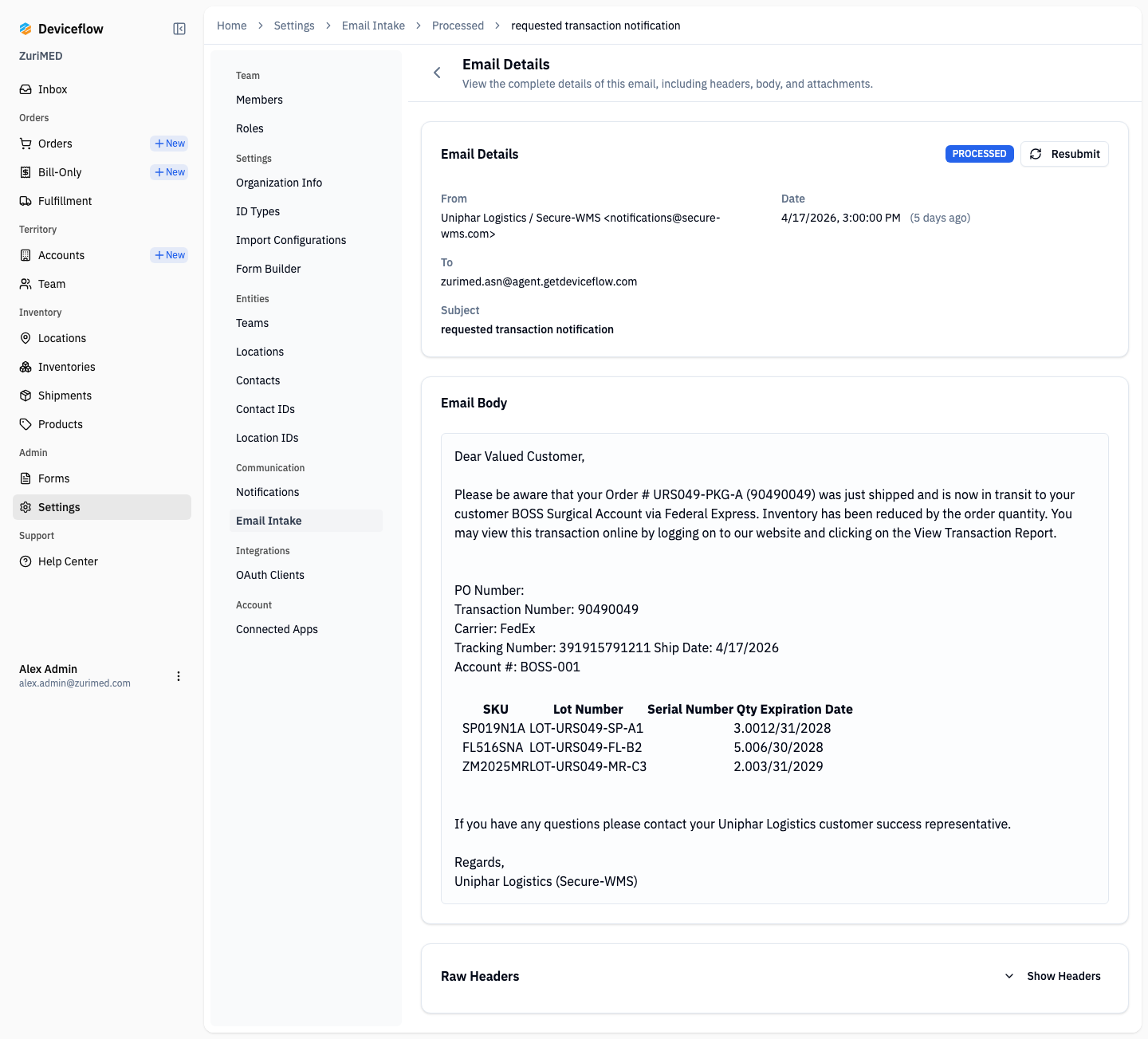

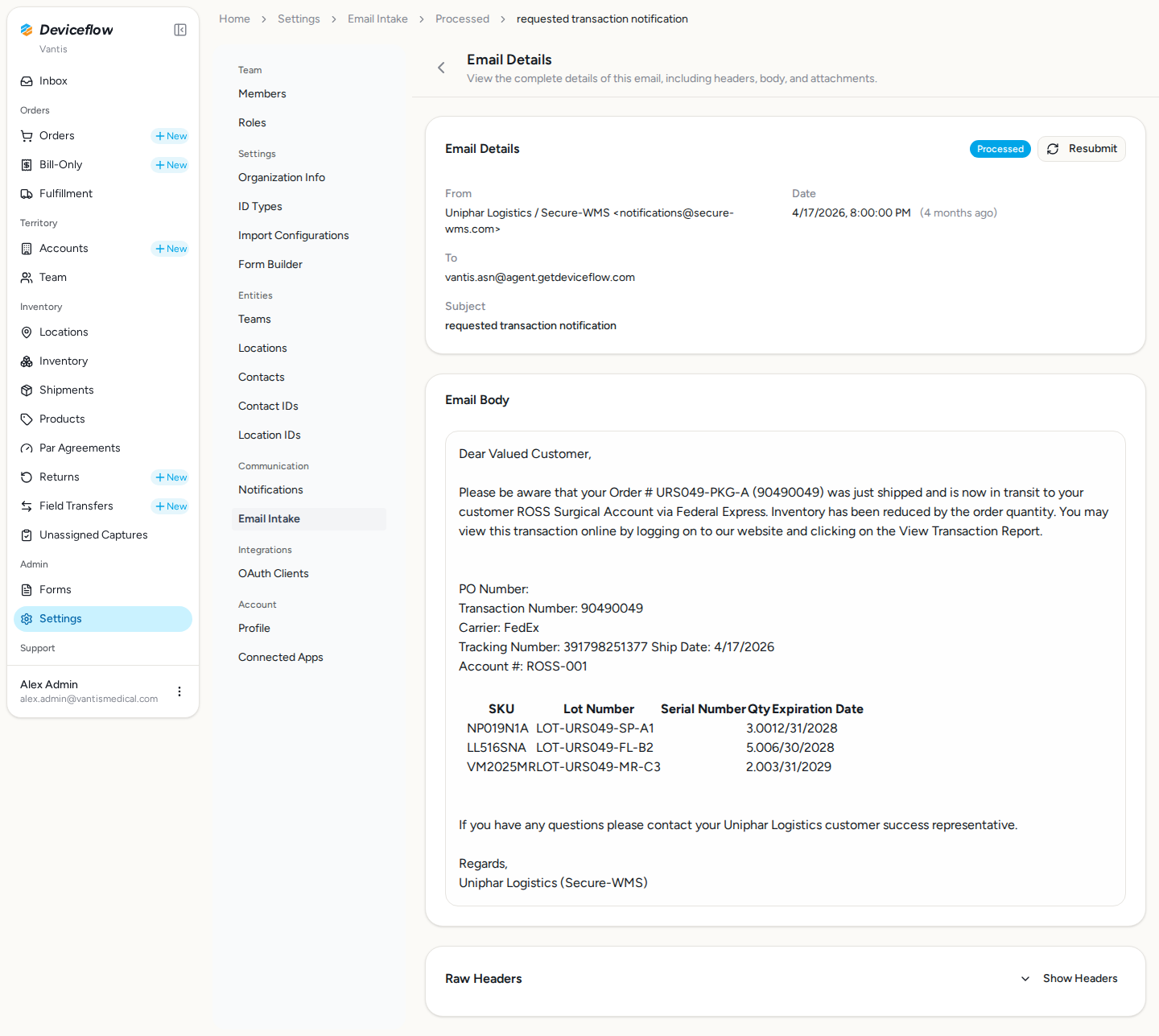

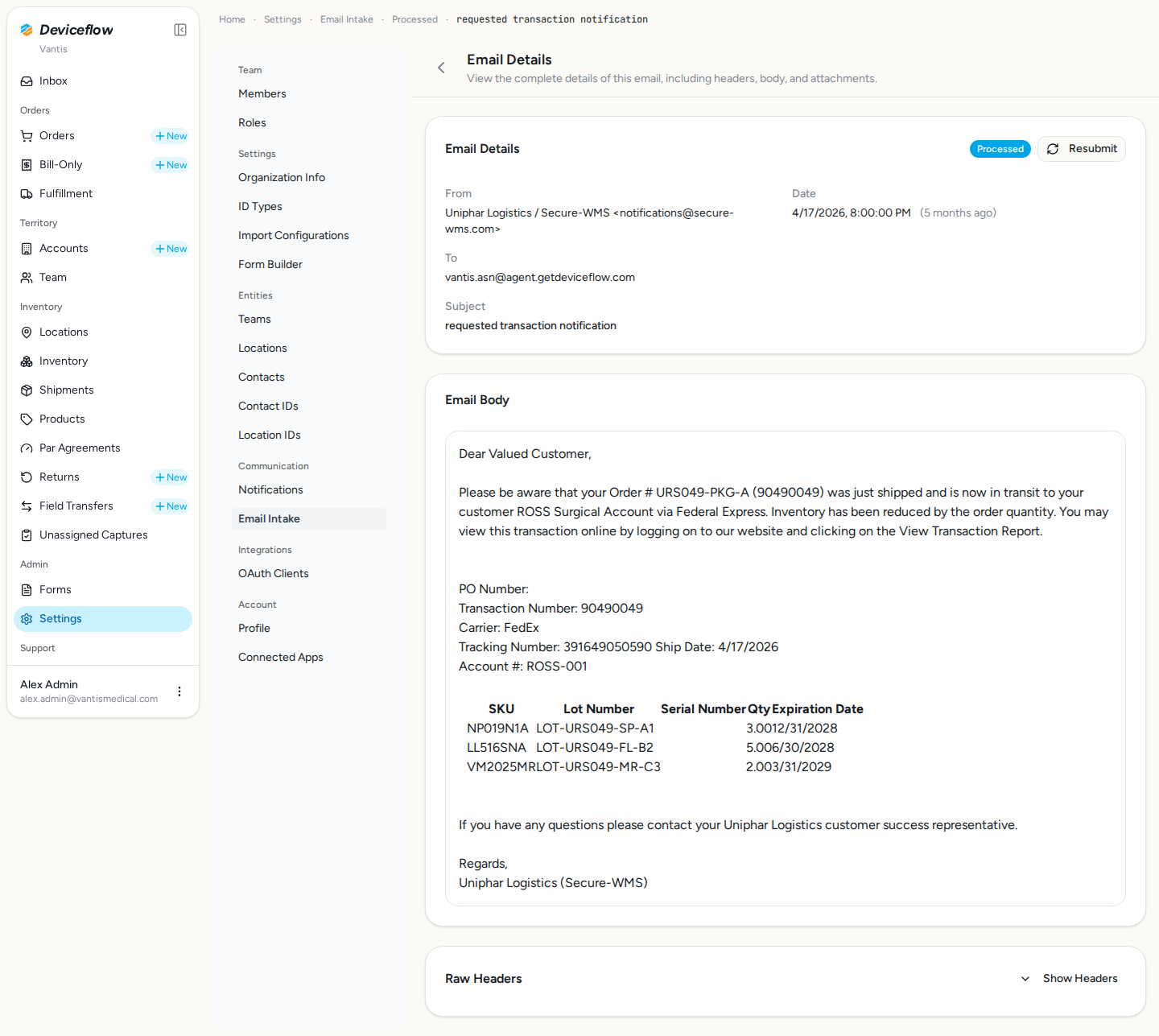

3. Step 4: Intake email detail (parsed ASN body) — ✅ PASS

What this step proves:

Drills into the ASN email detail page, showing the sender (notifications@secure-wms.com), subject, HTML table body, and the shipping_package + import_job entities the pipeline produced. Proves the parser correctly extracted account code, carrier, tracking number, and all three SKU/lot/quantity rows from the secure-wms.com HTML table format.

Screenshots:

---

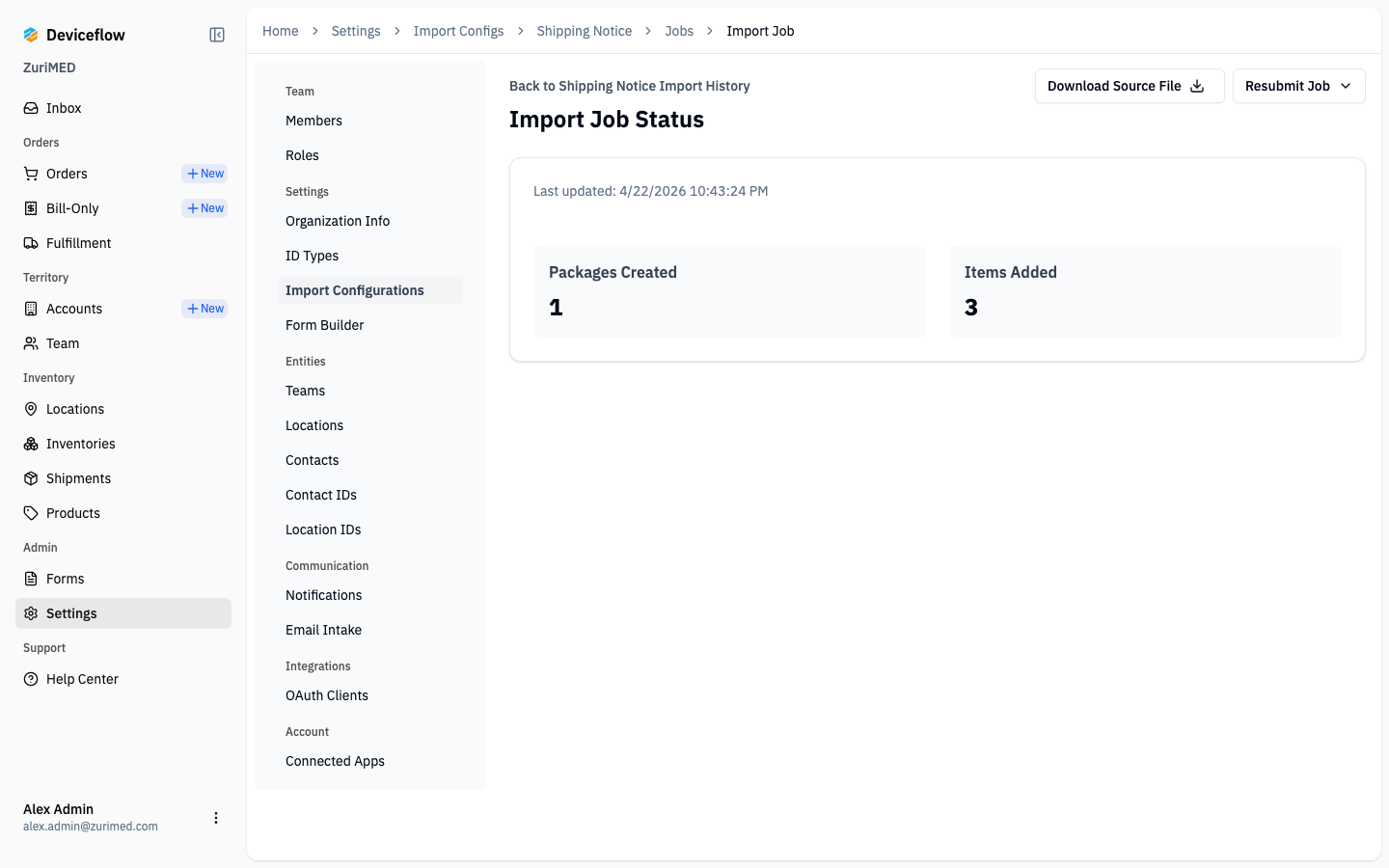

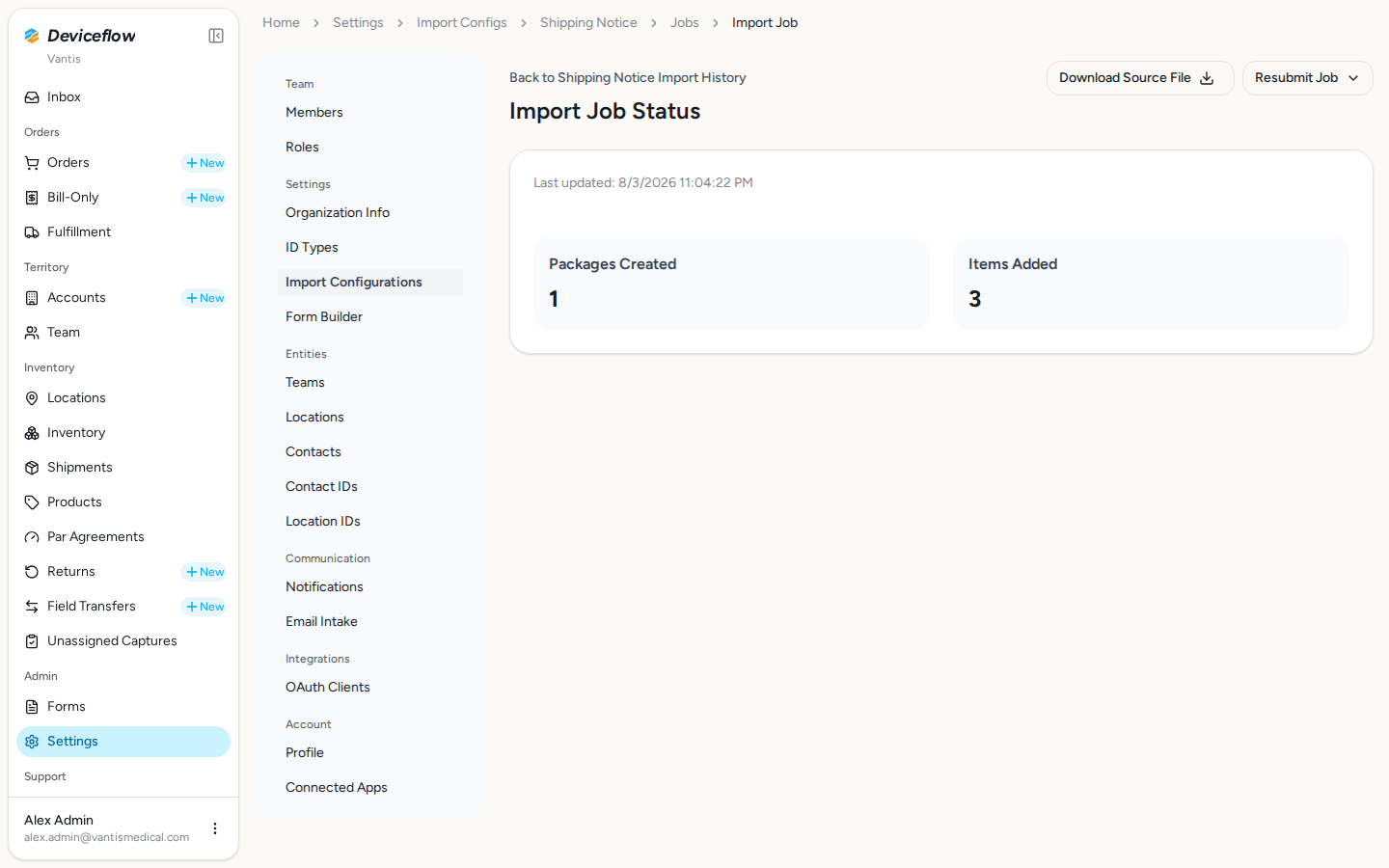

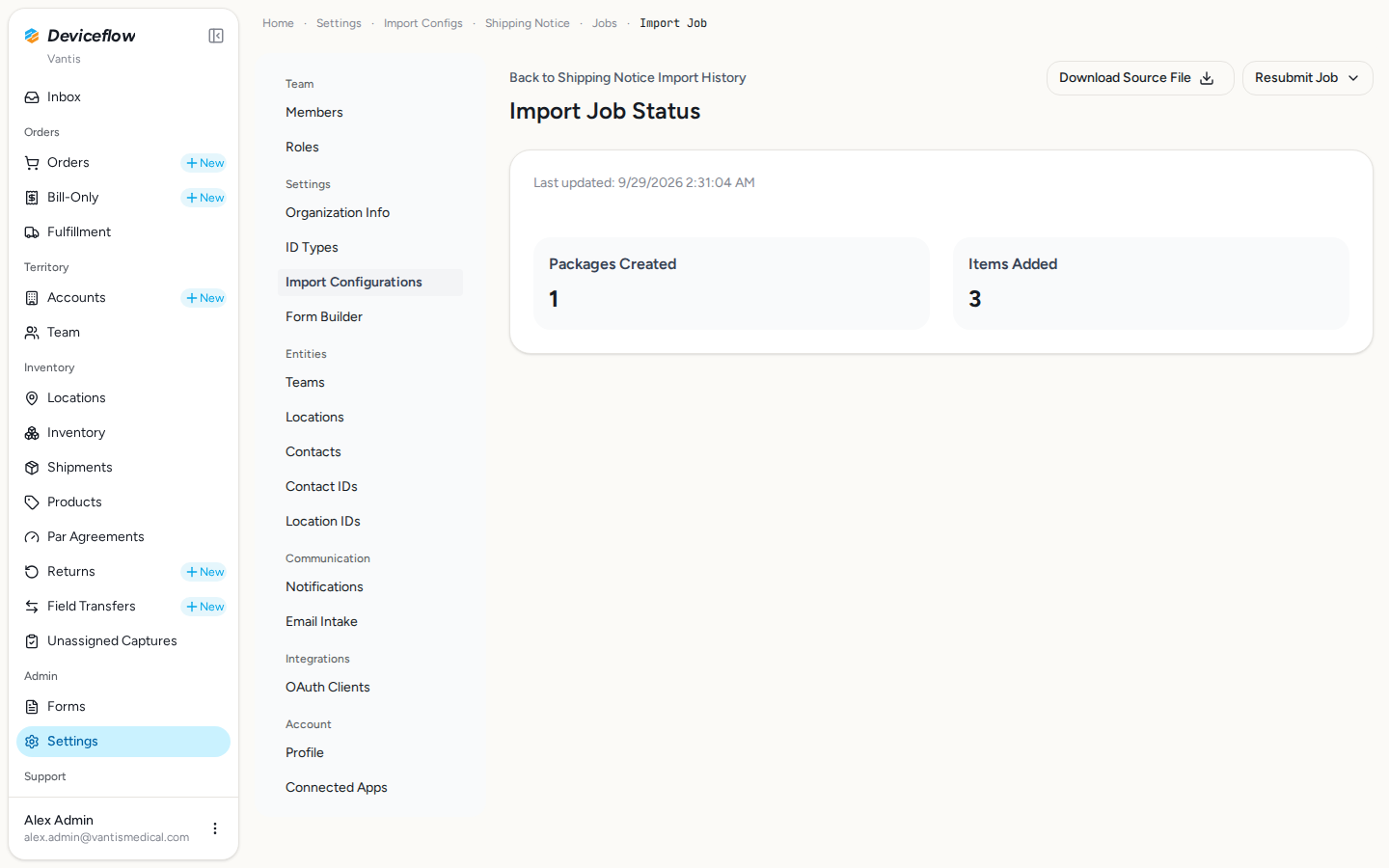

4. Step 5: Import job log (ASN parsed) — ✅ PASS

What this step proves:

Shows the shipping-notice import job log with the parsed SKU, LOT, and quantity rows from the ASN. Confirms the text-extraction import_config matched the URS-049 email rule and the import job completed with status=complete, packagesCreated=1, itemsAdded=3.

Screenshots:

---

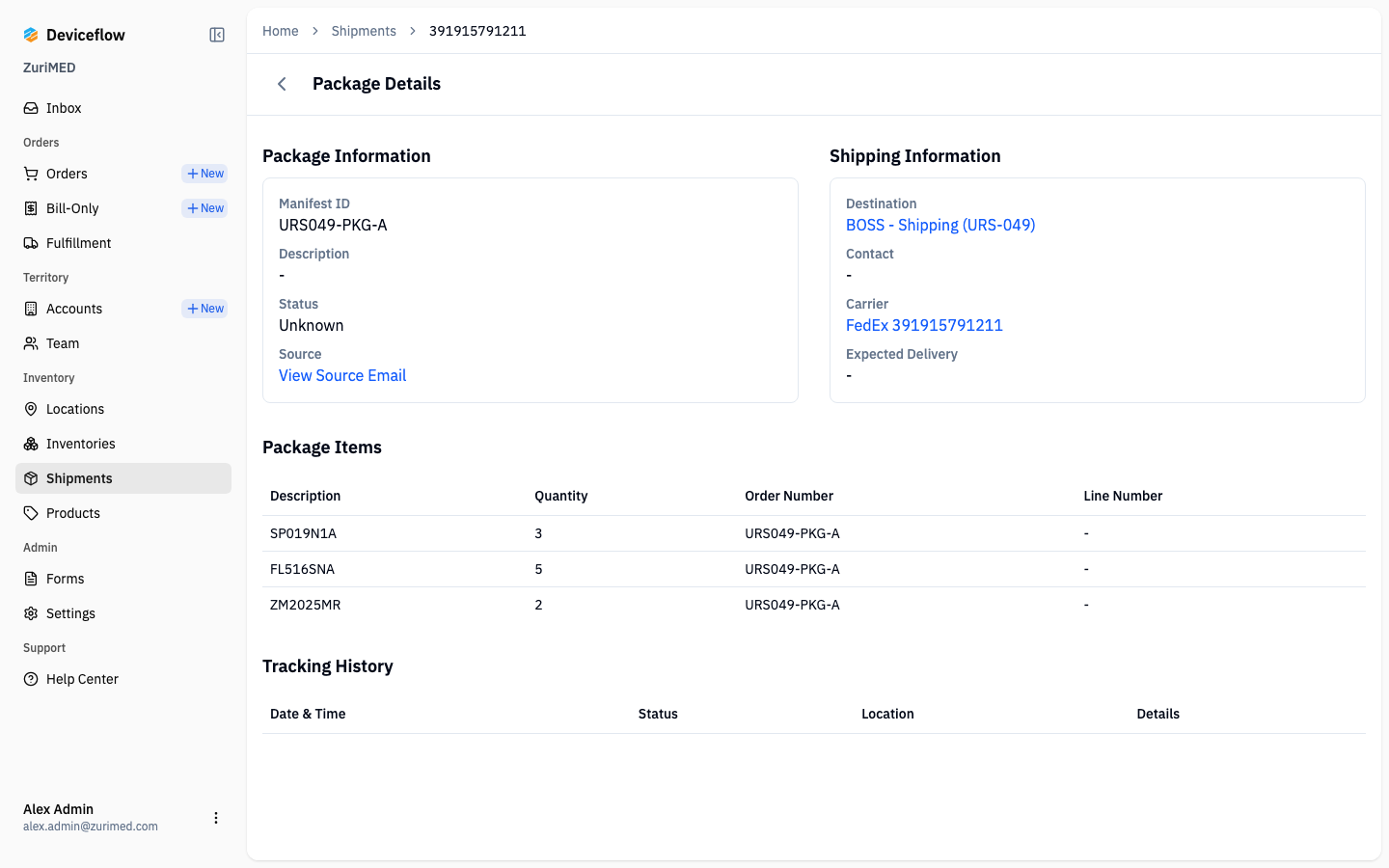

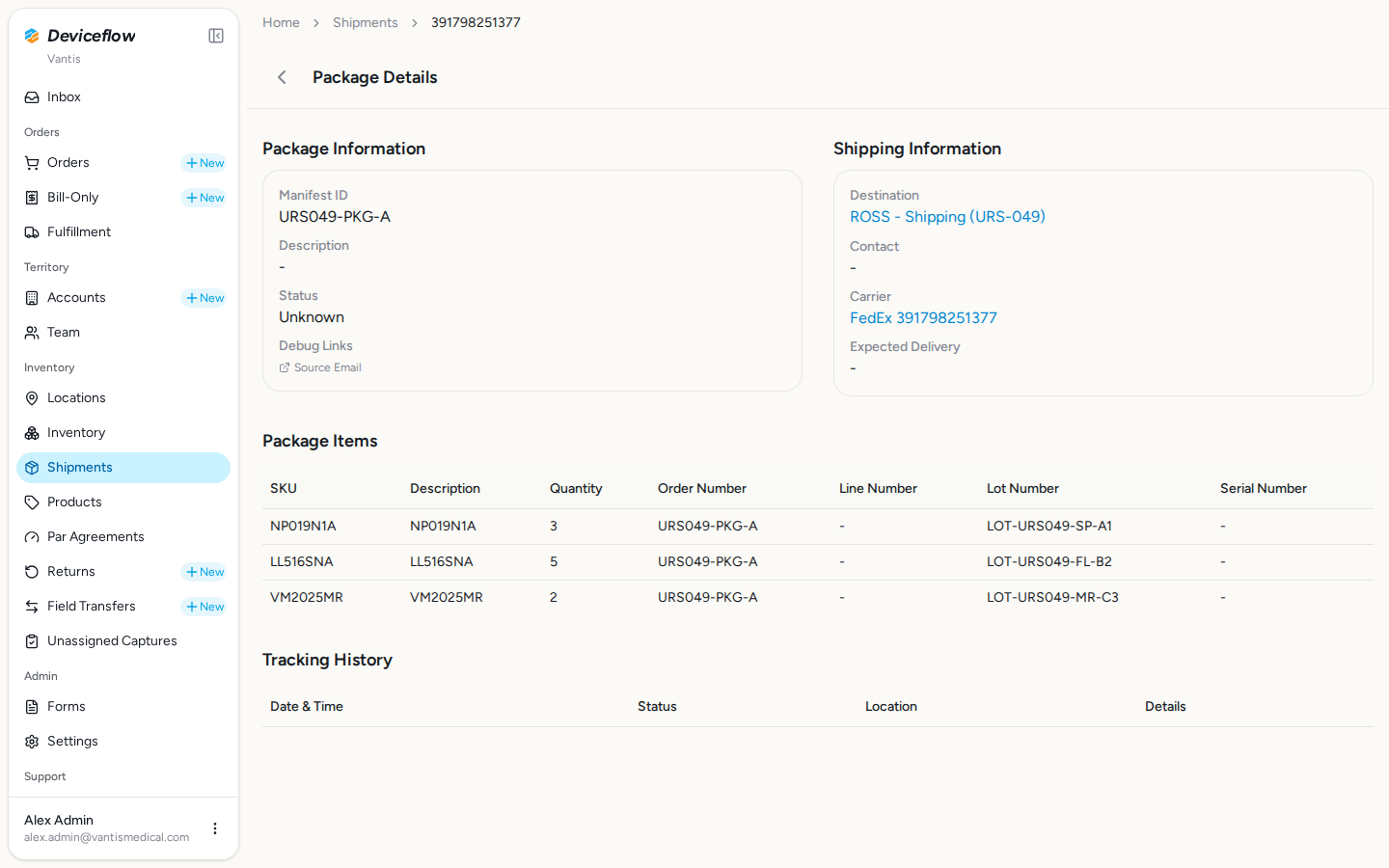

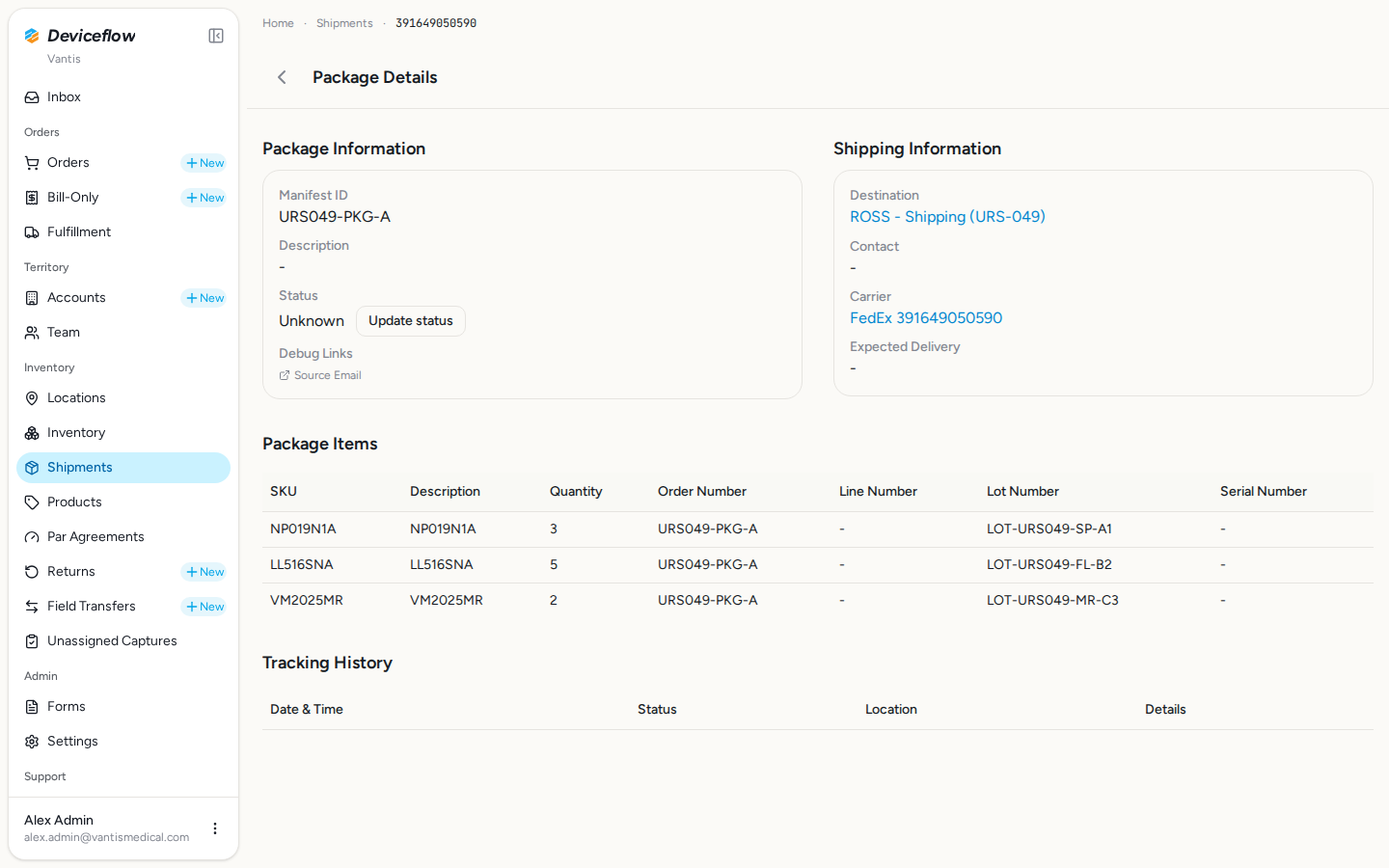

5. Step 6: Shipping package detail (pre-delivery) — ✅ PASS

What this step proves:

Captures the shipping_packages detail page before the delivery webhook fires. Confirms the package was routed to the ZuriMED BOSS-001 destination location with the correct tracking number and three shipping_package_items matching the ASN quantities.

Screenshots:

---

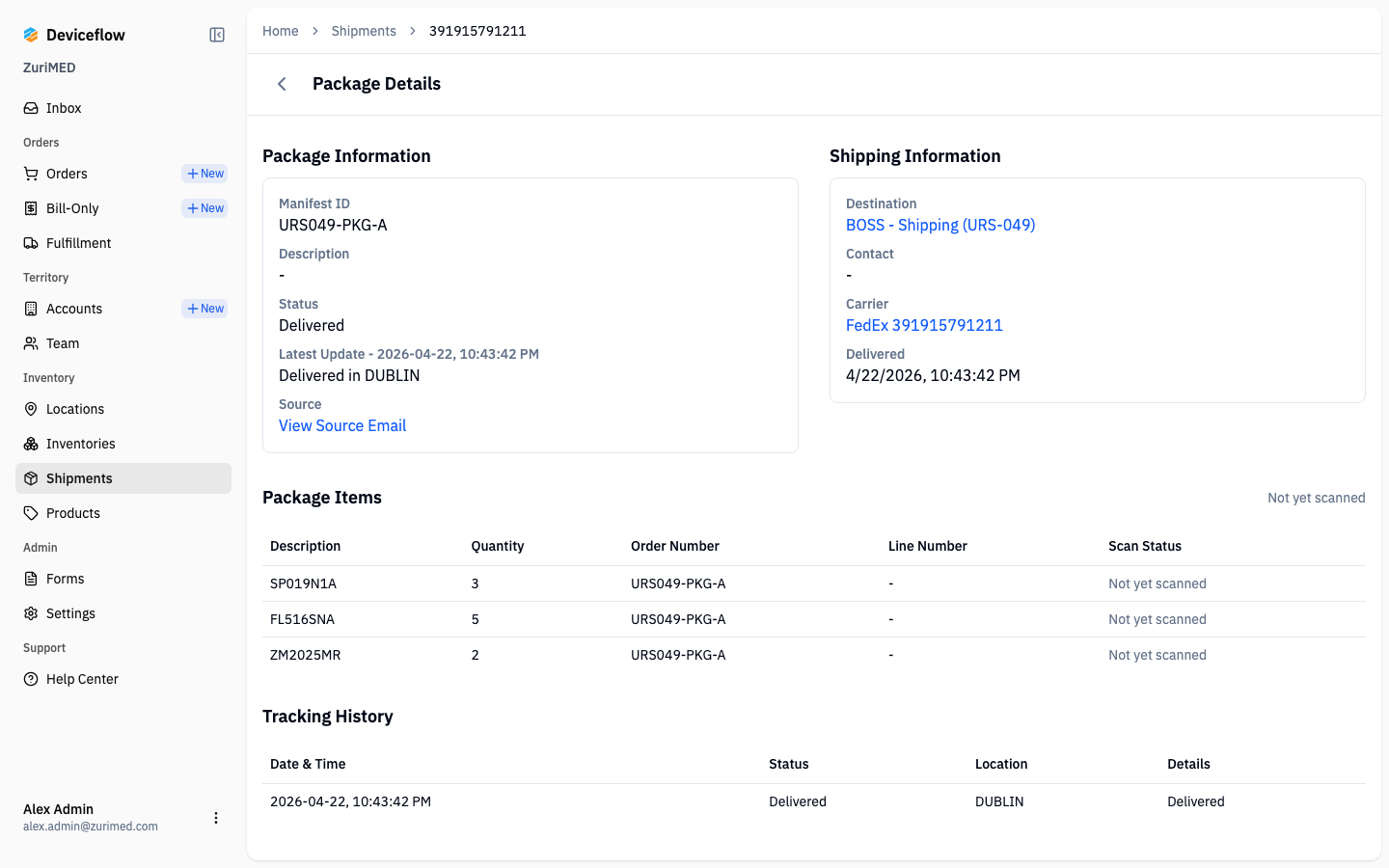

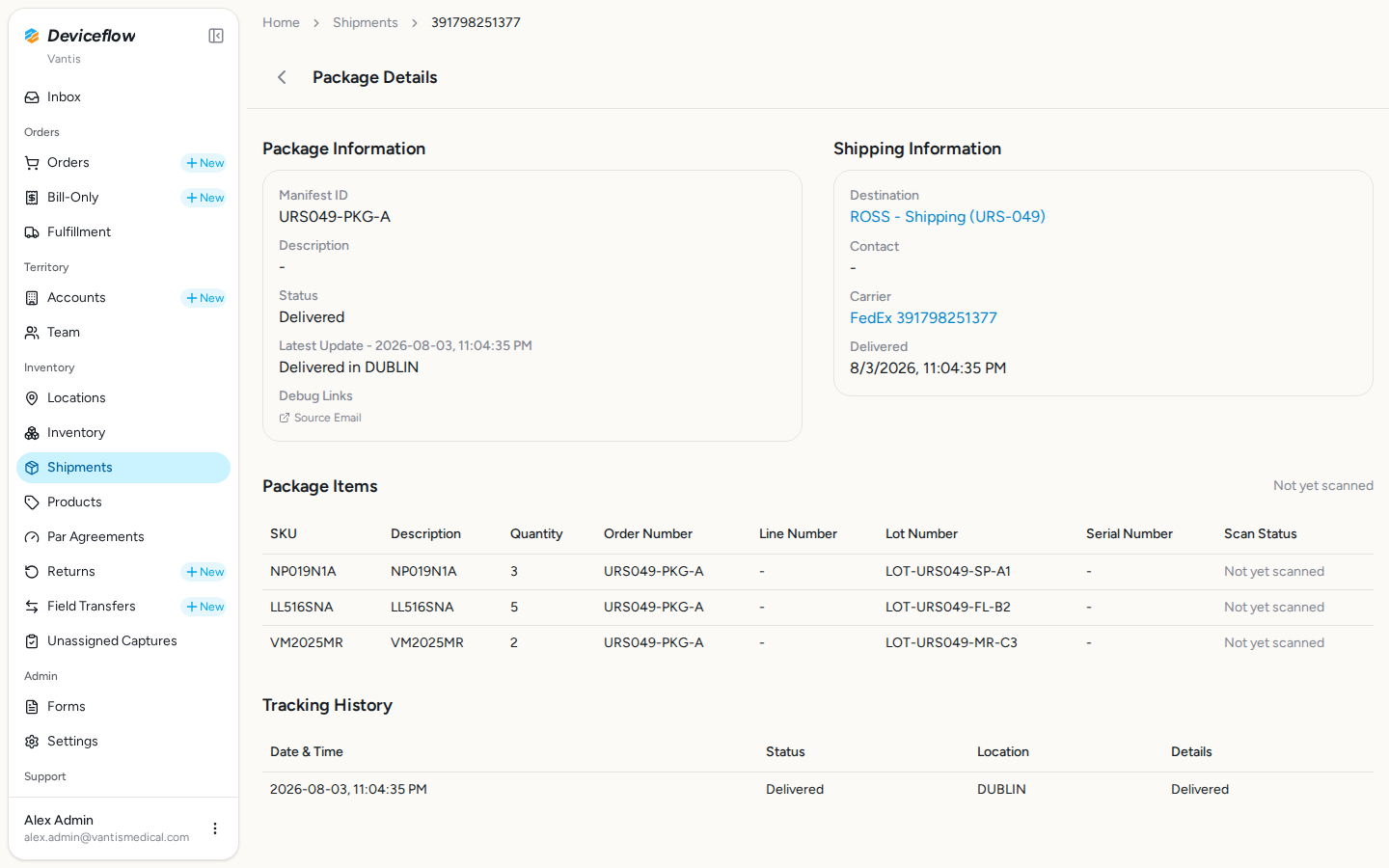

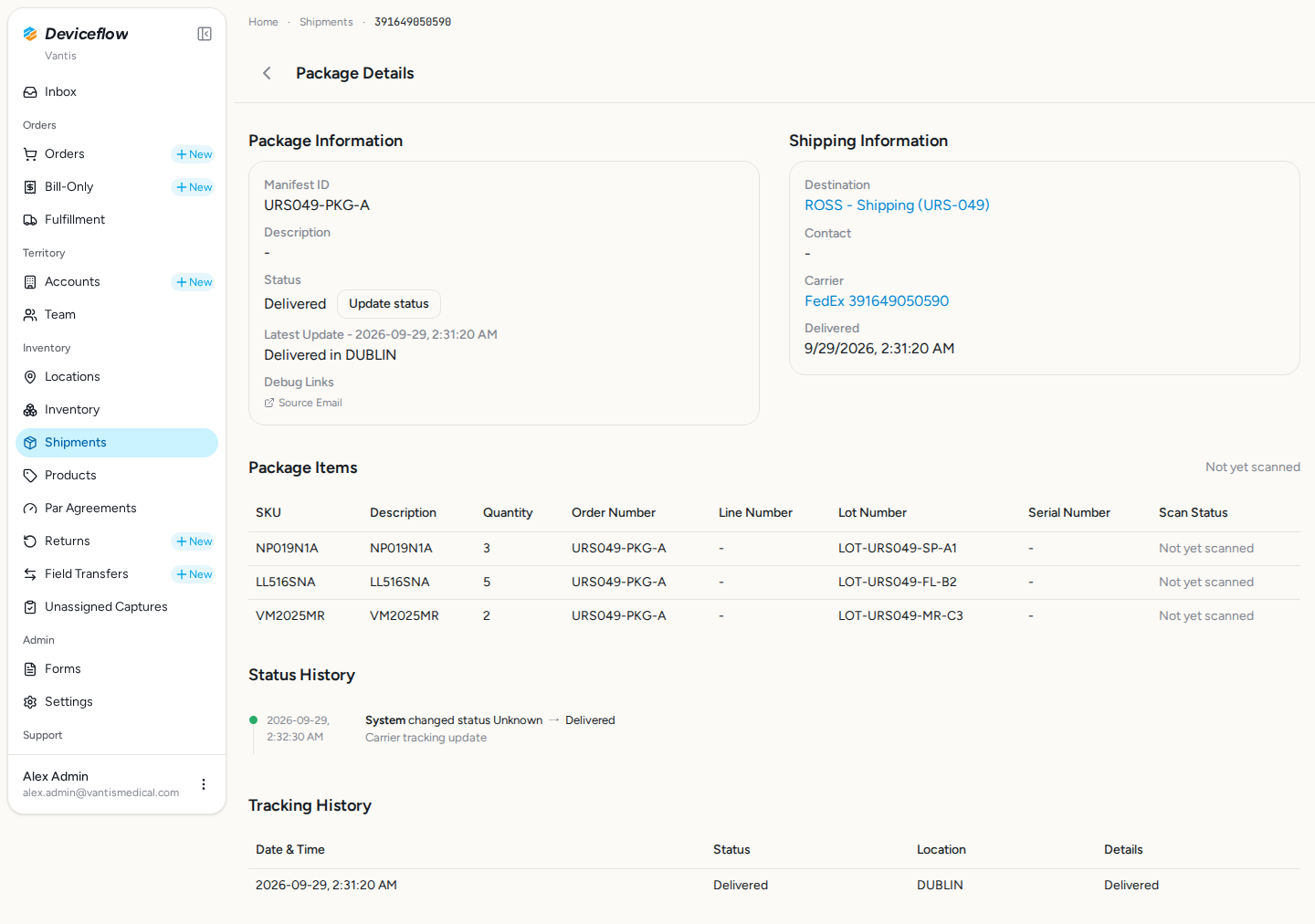

6. Step 8: Shipping package detail (delivered) — ✅ PASS

What this step proves:

After the PackageTracker.mockUpdate webhook sets status=delivered, the package detail page is re-captured to show the updated status. This is the trigger that causes the auto-add-inventory hook to fire, materializing inventory_items at BOSS-001.

Screenshots:

---

7. Step 9: Inventory after ASN delivery (lots materialized) — ✅ PASS

What this step proves:

Documents the inventory state at BOSS-001 after the delivery event. The three ASN lots (SP019N1A, FL516SNA, ZM2025MR) now appear with quantities matching the ASN exactly, proving the requirement: “The system shall update inventory based on ASN information, upon receipt of delivered status from Uniphar.”

Screenshots:

---

Database Validations

The following SQL queries ran against the application database after the Playwright scenarios completed. Each query asserts a specific condition that proves the feature under test persisted its data correctly.

intake_emails row exists for the Uniphar ASN — ✅ PASS

Assertion: intake_emails from notifications@secure-wms.com matched the URS-049 rule and was stored.

    SELECT id, "from", "to", subject, matched_rule_id, received_at
      FROM intake_emails
     WHERE matched_rule_id = $1 AND received_at >= $2
     ORDER BY received_at DESC
     LIMIT 1

id	from	to	subject	matched_rule_id	received_at
019db86f-72c3-7098-875f-d279e302e02b	notifications@secure-wms.com	zurimed.asn@agent.getdeviceflow.com	requested transaction notification	01950049-0049-7049-8049-000000000002	2026-04-23T03:43:24.877Z

import_jobs row completed for the Uniphar ASN — ✅ PASS

Assertion: import_jobs.status=complete with packagesCreated=1 and itemsAdded=3.

    SELECT id, status, info
      FROM import_jobs
     WHERE organization_id = $1 AND import_config_id = $2 AND created_at >= $3
     ORDER BY created_at DESC
     LIMIT 1

id	status	info
019db86f-72d0-7aed-9965-990a53b4df5b	complete	{"itemsAdded":3,"missingContacts":[],"packagesCreated":1,"missingLocations":[],"packagesReconciled":0,"backorderedItemsAdded":0,"unmatchedOrderNumbers":["URS049-PKG-A"],"fulfillmentOrdersLinked":0}

shipping_packages row created for the Uniphar ASN — ✅ PASS

Assertion: A shipping_packages row with the ASN tracking number was created, routed to BOSS-001.

    SELECT id, tracking_number, carrier, destination_location_id
      FROM shipping_packages
     WHERE organization_id = $1 AND created_at >= $2 AND tracking_number = $3

id	tracking_number	carrier	destination_location_id
019db86f-72ff-7c7b-8ad8-9baeabb256b6	391915791211	fedex	d0b29b2c-cef4-41b4-86d6-32efb93f92e7

shipping_package_items has 3 rows with correct quantities — ✅ PASS

Assertion: Each ASN SKU line produced a shipping_package_items row with the expected quantity.

    SELECT spi.id, spi.quantity, spi.info
      FROM shipping_package_items spi
      JOIN shipping_packages sp ON sp.id = spi.package_id
     WHERE sp.organization_id = $1 AND sp.created_at >= $2
       AND sp.tracking_number = $3
     ORDER BY spi.source_file_row ASC NULLS LAST, spi.id ASC

id	quantity	info
019db86f-7303-704c-93d3-75b218d5a36f	3	{"lot":"LOT-URS049-SP-A1","sku":"SP019N1A"}
019db86f-7303-704c-93d3-75b3eddad9d3	5	{"lot":"LOT-URS049-FL-B2","sku":"FL516SNA"}
019db86f-7303-704c-93d3-75b4f880420b	2	{"lot":"LOT-URS049-MR-C3","sku":"ZM2025MR"}

shipping_package was delivered — ✅ PASS

Assertion: shipping_packages.status=delivered after PackageTracker.mockUpdate.

    SELECT id, status, delivered_at, destination_location_id
      FROM shipping_packages
     WHERE organization_id = $1 AND created_at >= $2 AND tracking_number = $3

id	status	delivered_at	destination_location_id
019db86f-72ff-7c7b-8ad8-9baeabb256b6	delivered	2026-04-23T03:43:42.546Z	d0b29b2c-cef4-41b4-86d6-32efb93f92e7

inventory_items materialized for each ASN line — ✅ PASS

Assertion: One inventory_items row per ASN (productId, lot) at BOSS-001 with quantity_ready matching the ASN.

    SELECT ii.id, ii.product_id, ii.lot, ii.quantity_ready, ii.real_world_location_id
      FROM inventory_items ii
     WHERE ii.organization_id = $1
       AND ii.product_id = ANY($2)
       AND NOT (ii.id = ANY($3))

id	product_id	lot	quantity_ready	real_world_location_id
019db870-a4ca-7ecd-a77a-ab2e31540896	01989ca2-6a54-7834-8376-06a0251bacd8	LOT-URS049-SP-A1	3	d0b29b2c-cef4-41b4-86d6-32efb93f92e7
019db870-a4ca-7ecd-a77a-ab2f15776a03	01989ca1-f2f8-7ab7-8269-7179342797cc	LOT-URS049-FL-B2	5	d0b29b2c-cef4-41b4-86d6-32efb93f92e7
019db870-a4ca-7ecd-a77a-ab30d34af581	01984270-64c1-76da-aa82-eaf3f0a8326b	LOT-URS049-MR-C3	2	d0b29b2c-cef4-41b4-86d6-32efb93f92e7

inventory_history rows recorded for the ASN delivery — ✅ PASS

Assertion: 3 inventory_history rows written during the run window for the ASN SKUs.

    SELECT ih.id, ih.item_id, ih.quantity, ih.status, ih.info
      FROM inventory_history ih
      JOIN inventory_items ii ON ii.id = ih.item_id
     WHERE ih.organization_id = $1
       AND ih.created_at >= $2
       AND ii.product_id = ANY($3)

id	item_id	quantity	status	info
019db870-a4d5-7819-9faa-8cb6673f14f4	019db870-a4ca-7ecd-a77a-ab2e31540896	3	ready	{"action":"added","reason":"auto_added_package","packageId":"019db86f-72ff-7c7b-8ad8-9baeabb256b6"}
019db870-a4d5-7819-9faa-8cb73a2ae320	019db870-a4ca-7ecd-a77a-ab2f15776a03	5	ready	{"action":"added","reason":"auto_added_package","packageId":"019db86f-72ff-7c7b-8ad8-9baeabb256b6"}
019db870-a4d5-7819-9faa-8cb84f198f34	019db870-a4ca-7ecd-a77a-ab30d34af581	2	ready	{"action":"added","reason":"auto_added_package","packageId":"019db86f-72ff-7c7b-8ad8-9baeabb256b6"}

Audit Log Events

Every row written to audit_events while this test was running (scoped to the demo organizations). Provides compliance evidence that user actions are traced end-to-end (URS-003).

Capture window start: 2026-04-23T03:43:09.253Z

SELECT
    ae.created_at,
    ae.event_type,
    ae.action,
    ae.user_id,
    u.email AS user_email,
    ae.organization_id,
    o.name AS organization_name,
    ae.object_id,
    ae.secondary_object_id,
    ae.payload,
    ae.route,
    ae.trace_id
  FROM audit_events ae
  LEFT JOIN users u ON u.id = ae.user_id
  LEFT JOIN organizations o ON o.id = ae.organization_id
  WHERE ae.created_at >= $1
    AND ae.organization_id = ANY($2::uuid[])
  ORDER BY ae.created_at ASC

2 event(s) captured:

Time	Type	Action	User	Org	Object ID	Performed	Reason
2026-04-23 03:43:18Z	user_log	user:login	alex.admin@zurimed.com	ZuriMED	—	—
2026-04-23 03:44:43Z	decision	enable_team_tracked_inventory_routing	—	ZuriMED	019db86f-72ff-7c7b-8ad8-9baeabb256b6	yes	Package not linked to direct or dropship order

Downloads

• audit-events.json
• report.md
• result.json
• screenshots-index.json
• step-timings.json
