URS-064 · Bill-Only improvements: manufacturer, missing-PO label, PO upload, PO number

Title: Bill-Only improvements: manufacturer, missing-PO label, PO upload, PO number Date: 2026-04-23T03:45:41.858Z Duration: 63.8s Overall Status: ✅ PASS

User Requirement

The system shall support creation and completion of bill‑only orders, including purchase order association.

Source: User_Requirement_Specifications_ZuriMED_DeviceFlow.xlsx — the run below proves the system meets this requirement.

Environment

• Inbox URL: http://localhost:49227
• Database: localhost:49228/cc_repinbox_dev

Setup

Status: ✅ PASS

Input Files Used in This Test

The following files were used as test inputs. Auditors can review these to verify what data was submitted to the system during validation.

Sample Purchase Order (PO) Document

Description: A sample PDF purchase order uploaded in Step 4 to demonstrate the “Add PO” dialog. This file is attached to the bill-only order during the test, creating a billing_order_files row with file_type=“purchase_order”. File: urs-064-sample-po.pdf

Test Steps

Each step below corresponds to one Playwright test that ran sequentially. Screenshots and video recordings provide visual evidence of the UI behaviour.

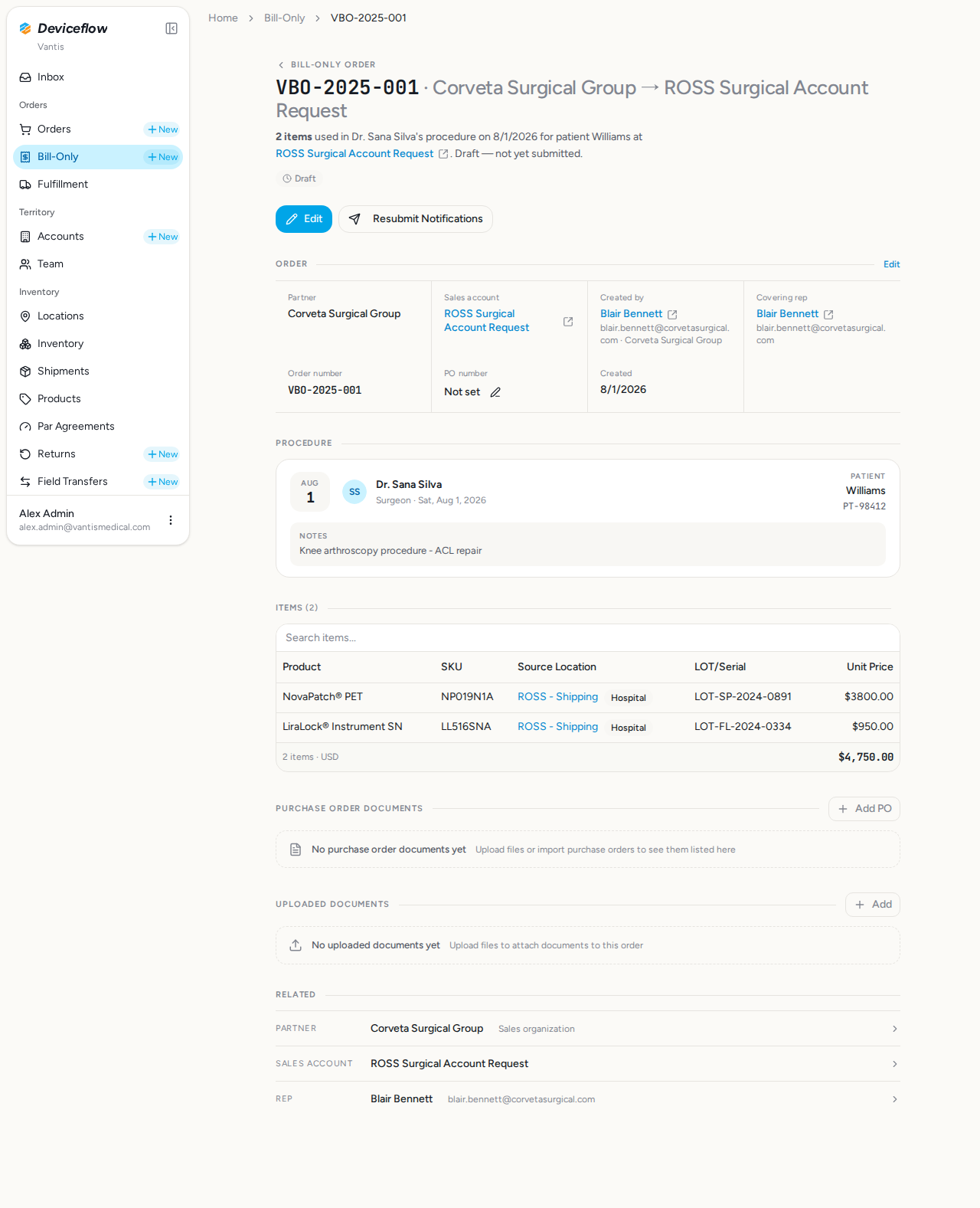

1. Step 1: Partner field visible on detail page — ✅ PASS

What this step proves:

Confirms that the Bill-Only order detail page displays a “Partner” field identifying the manufacturer. Because every BO is tied to a single manufacturerOrganizationId, the field is always unambiguous — satisfying the URS-064 requirement to show the manufacturer when only one is available.

Screenshots:

Video recording:

---

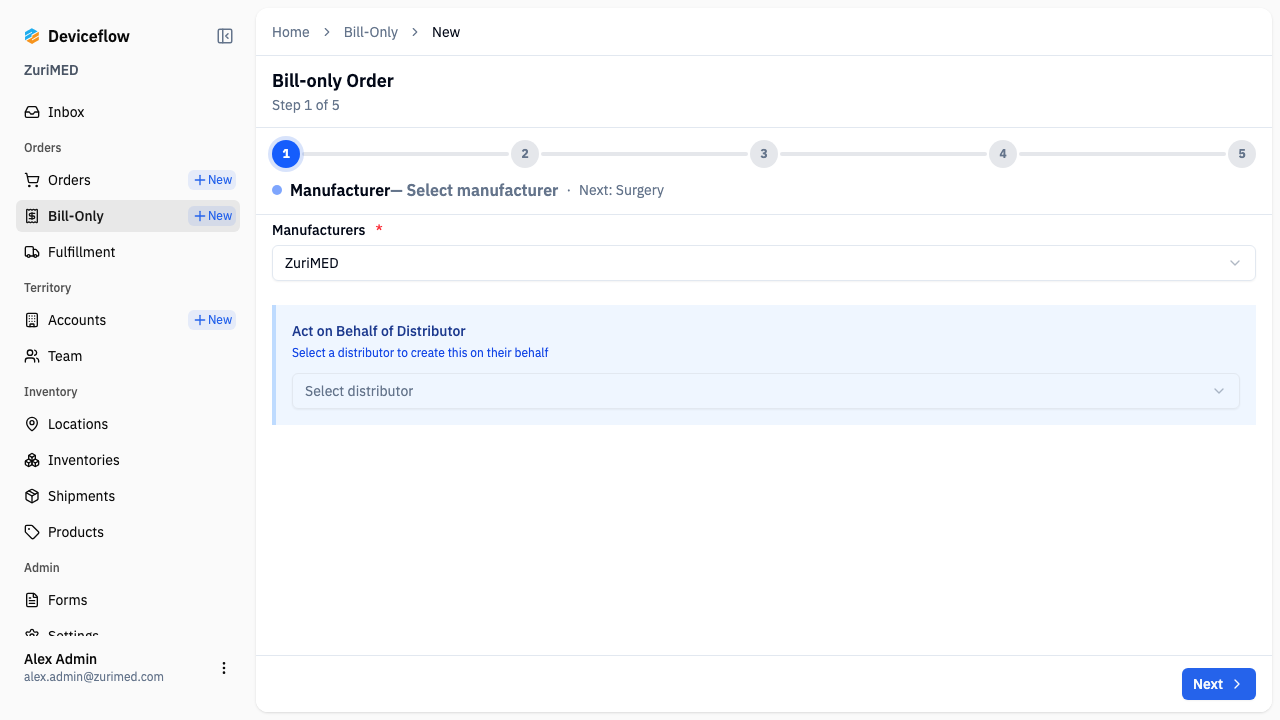

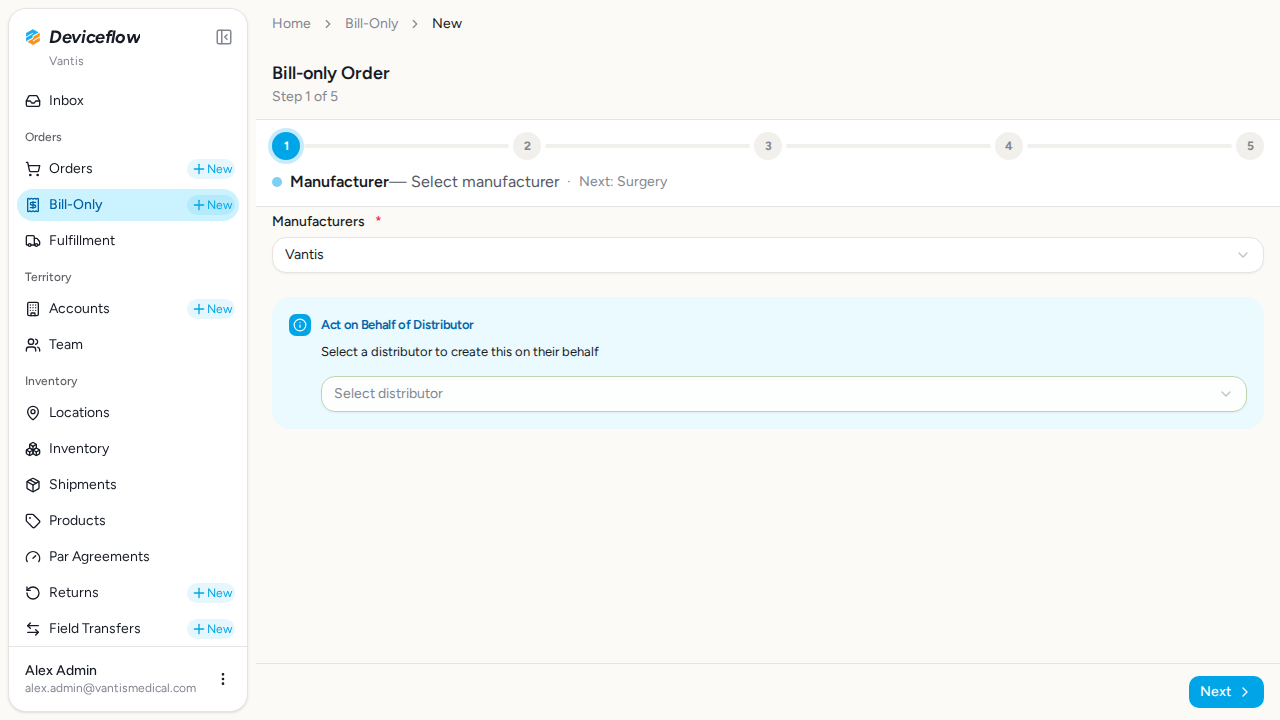

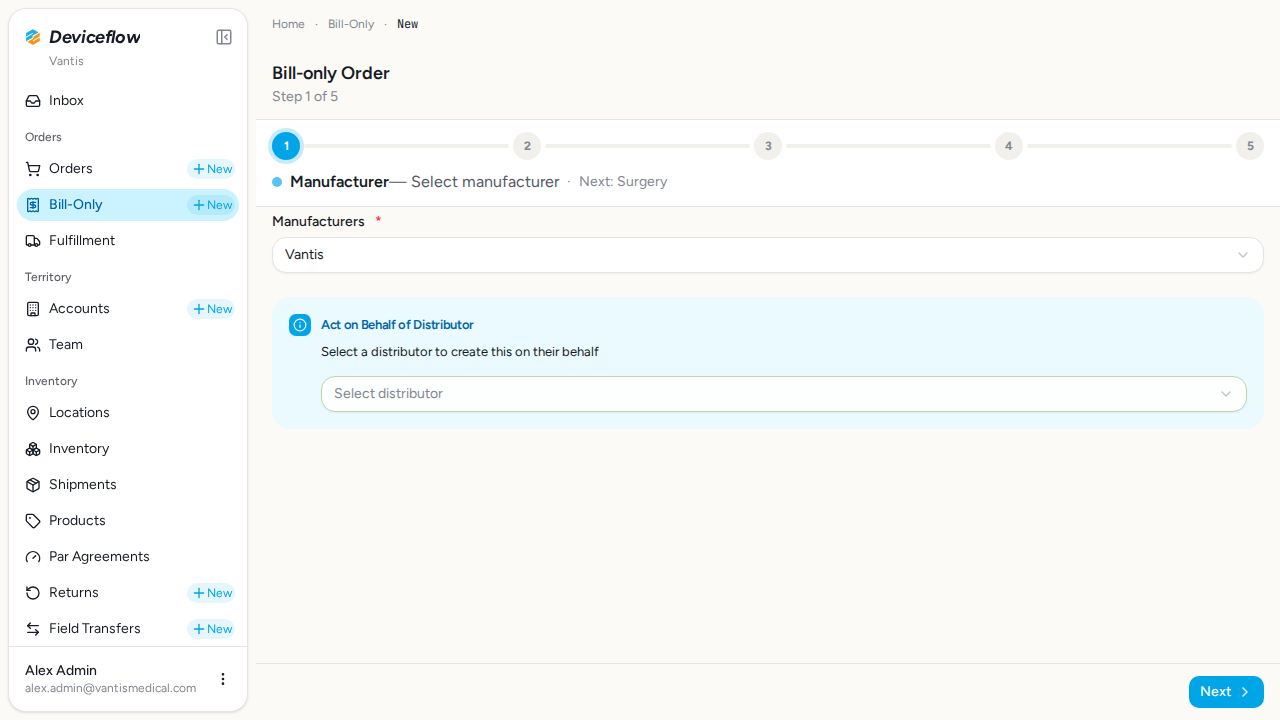

2. Step 2: Manufacturer auto-populated on /billing/new — ✅ PASS

What this step proves:

Confirms that the create flow (/billing/new) auto-selects the manufacturer in the “Manufacturers” dropdown when the user’s organization has exactly one available manufacturer. The trigger shows the org name rather than the placeholder text, eliminating an unnecessary selection step for single-manufacturer users.

Screenshots:

Video recording:

---

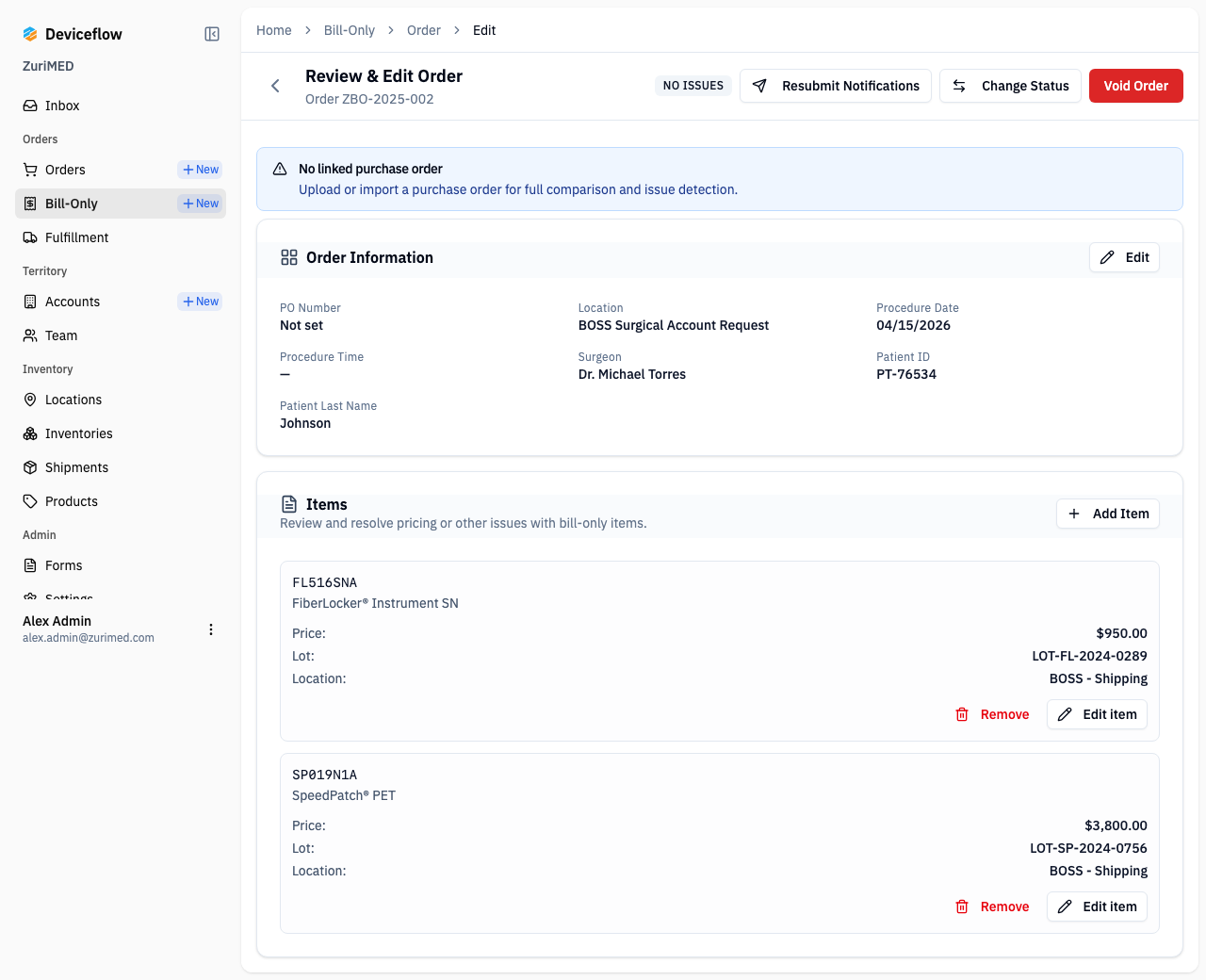

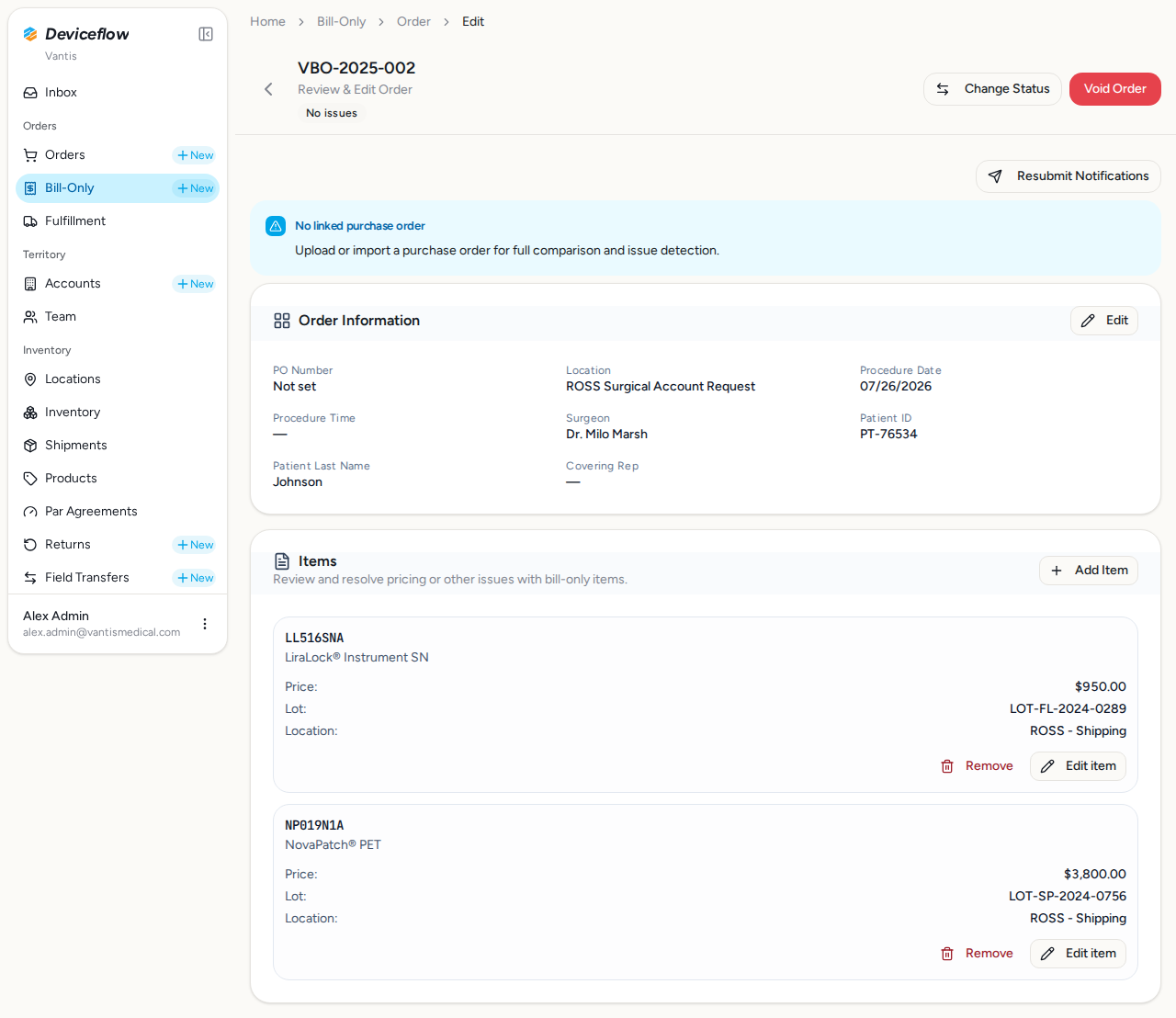

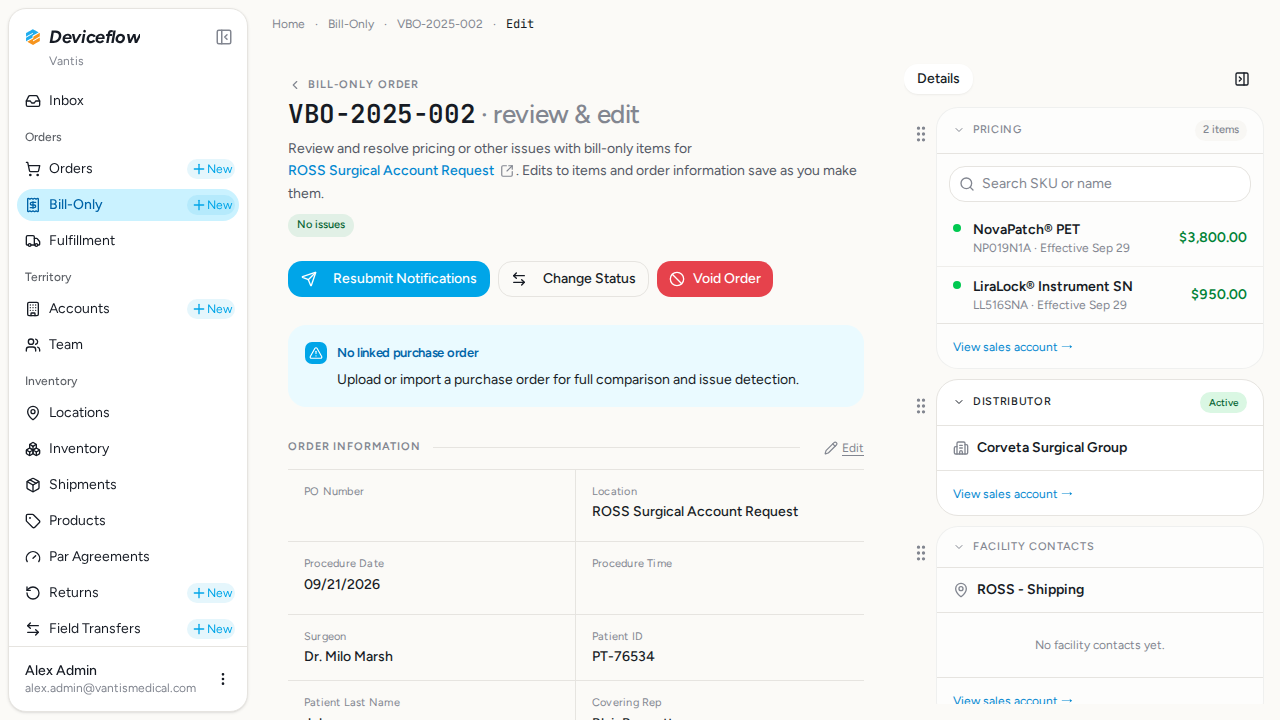

3. Step 3a: BO before Change Status — ✅ PASS

What this step proves:

Baseline screenshot of the ZBO-2025-002 edit panel before any status transition, establishing the “before” state for the Missing-PO label workflow.

Screenshots:

Video recording:

---

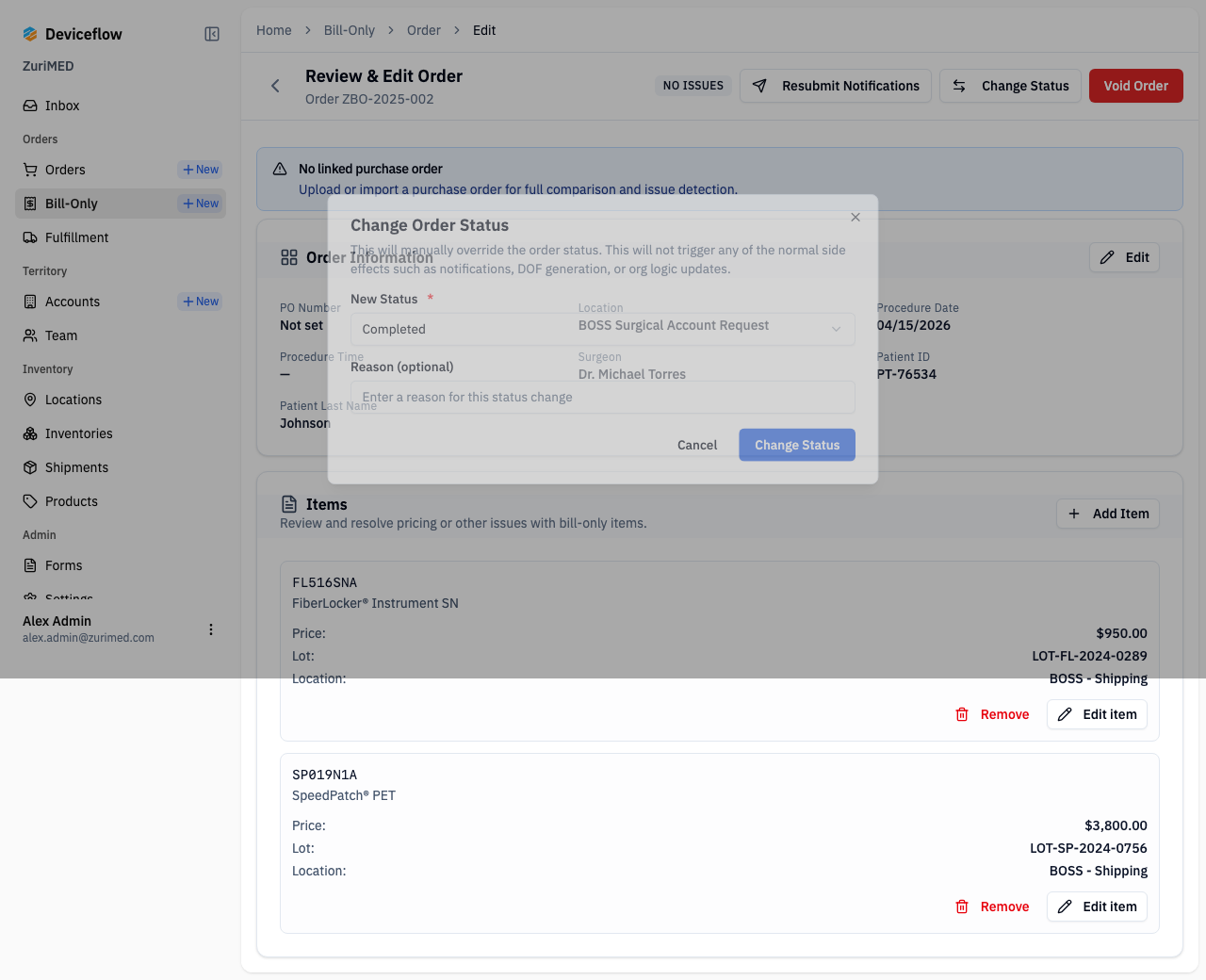

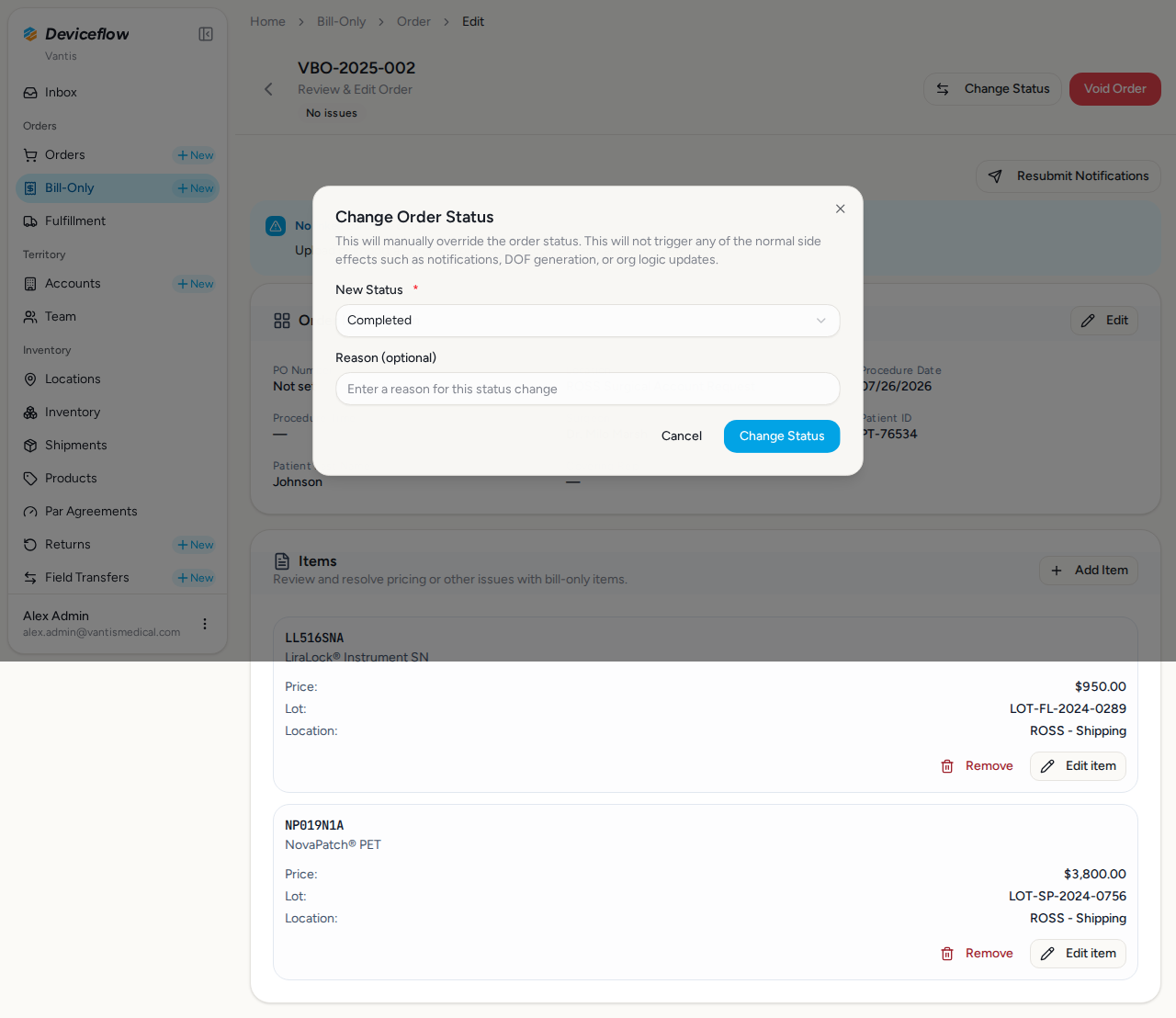

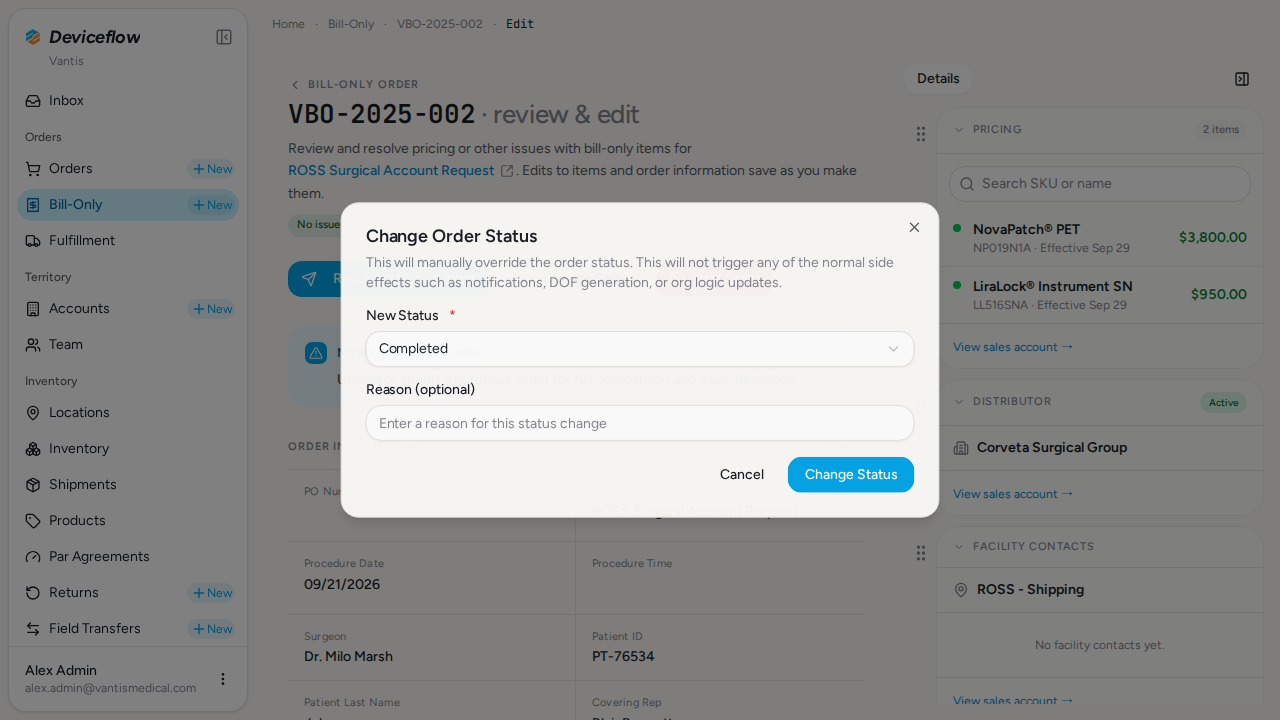

4. Step 3b: Change Status dialog open — ✅ PASS

What this step proves:

The “Change Status” dialog is open with the New Status field ready for selection. Confirms that manufacturer admins with billing:manage permission can access the status transition UI.

Screenshots:

---

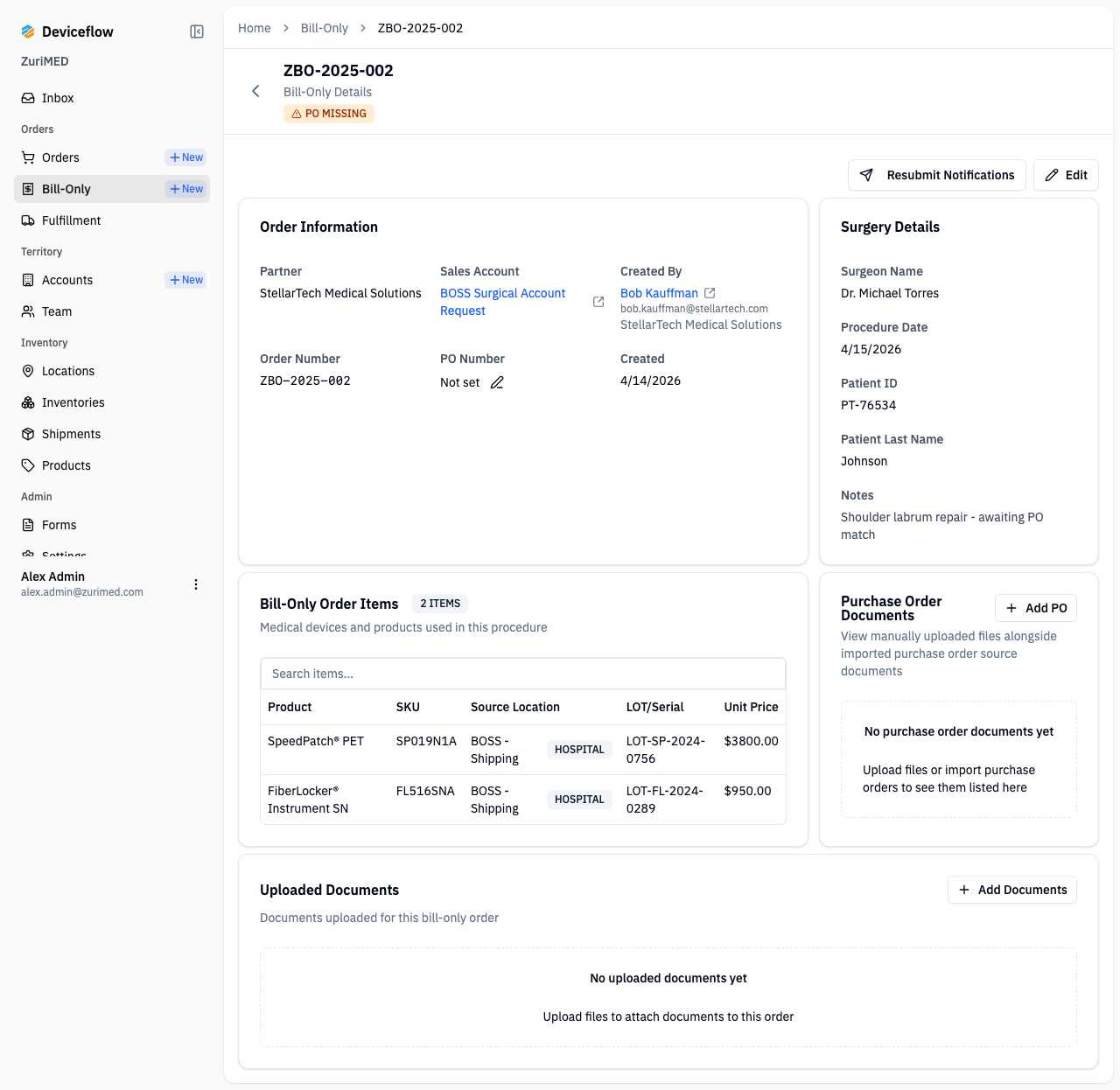

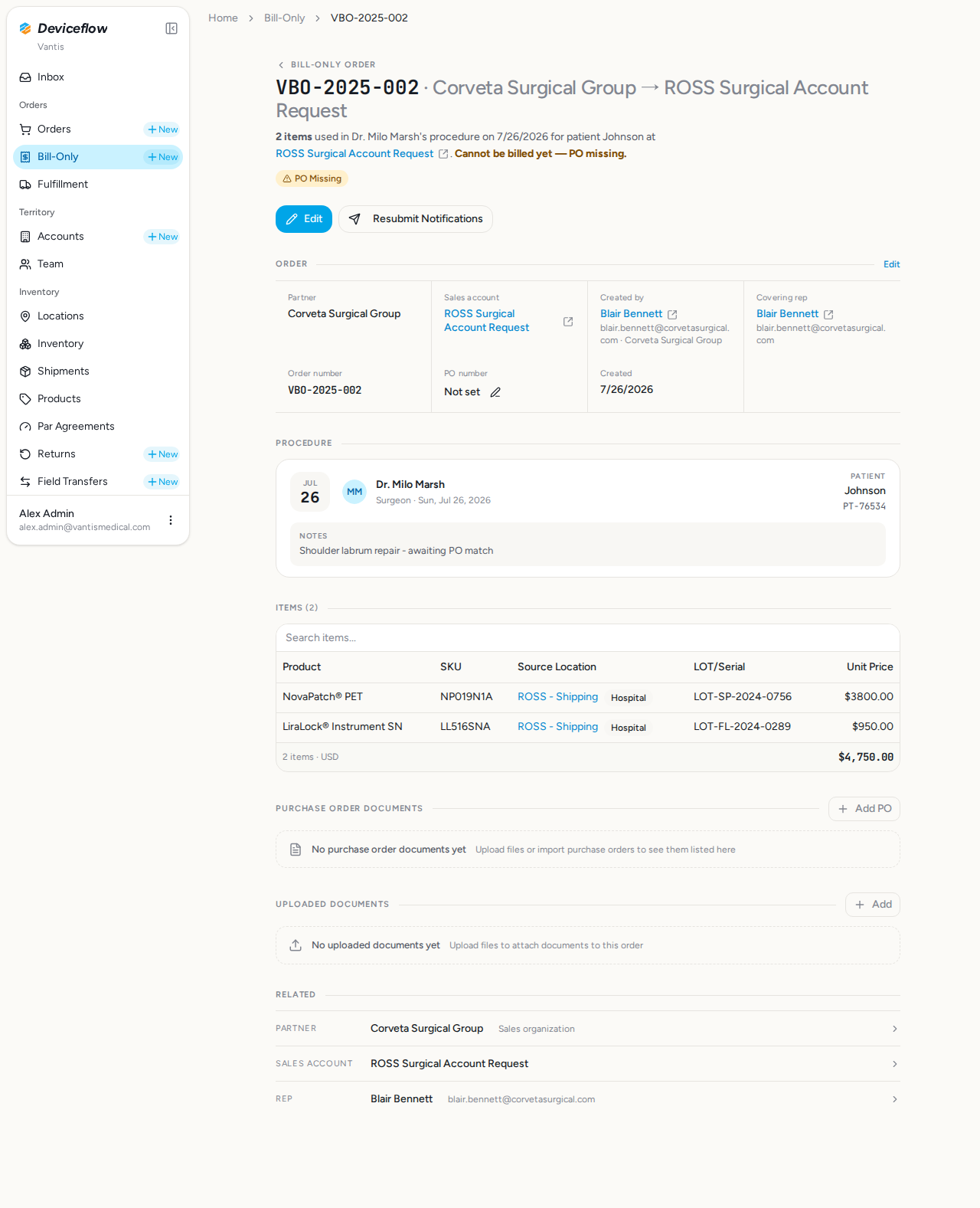

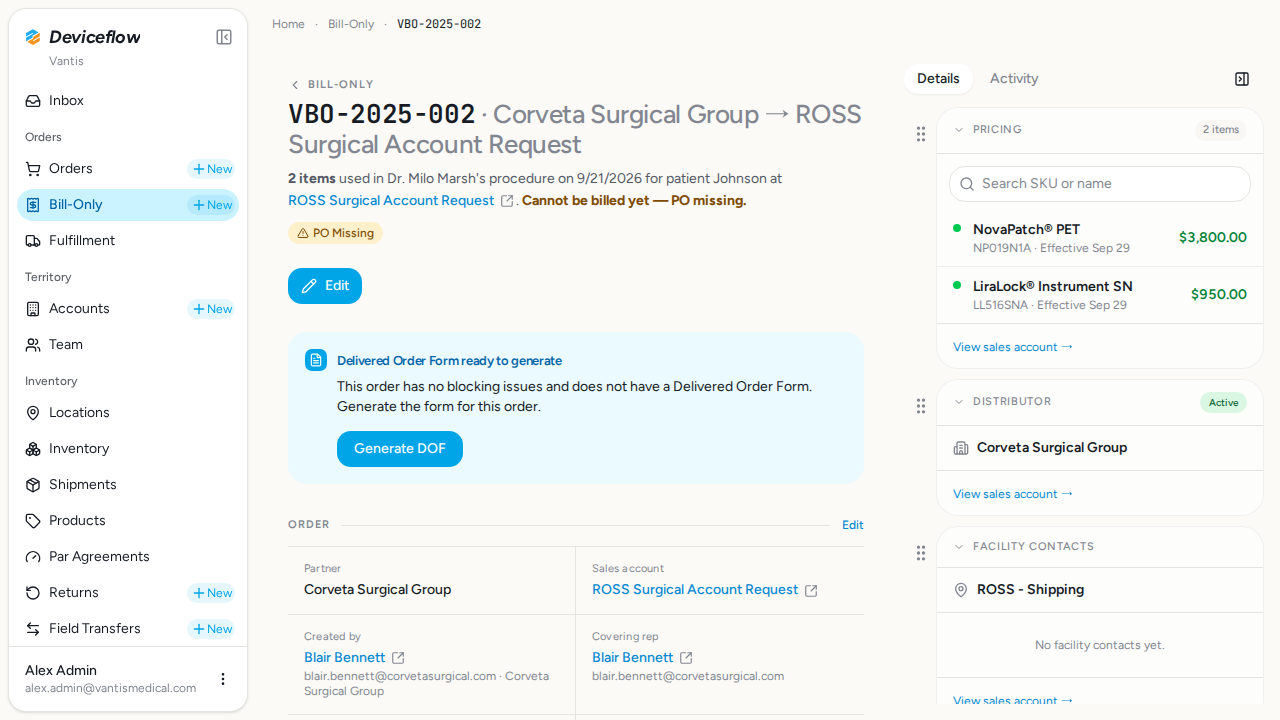

5. Step 3c: “PO Missing” badge on detail page — ✅ PASS

What this step proves:

After transitioning ZBO-2025-002 to “PO Missing” via the dialog, the detail page displays the “PO Missing” badge. Proves the status transition persisted and the badge renders correctly.

Audit events generated by this step:

(Evidence matched by declared name — step timing not available or no events fell in window)

Time	Type	Action	User	Org	Performed
2026-04-23 03:46:06Z	decision	manual_status_change	alex.admin@zurimed.com	ZuriMED	yes

Screenshots:

---

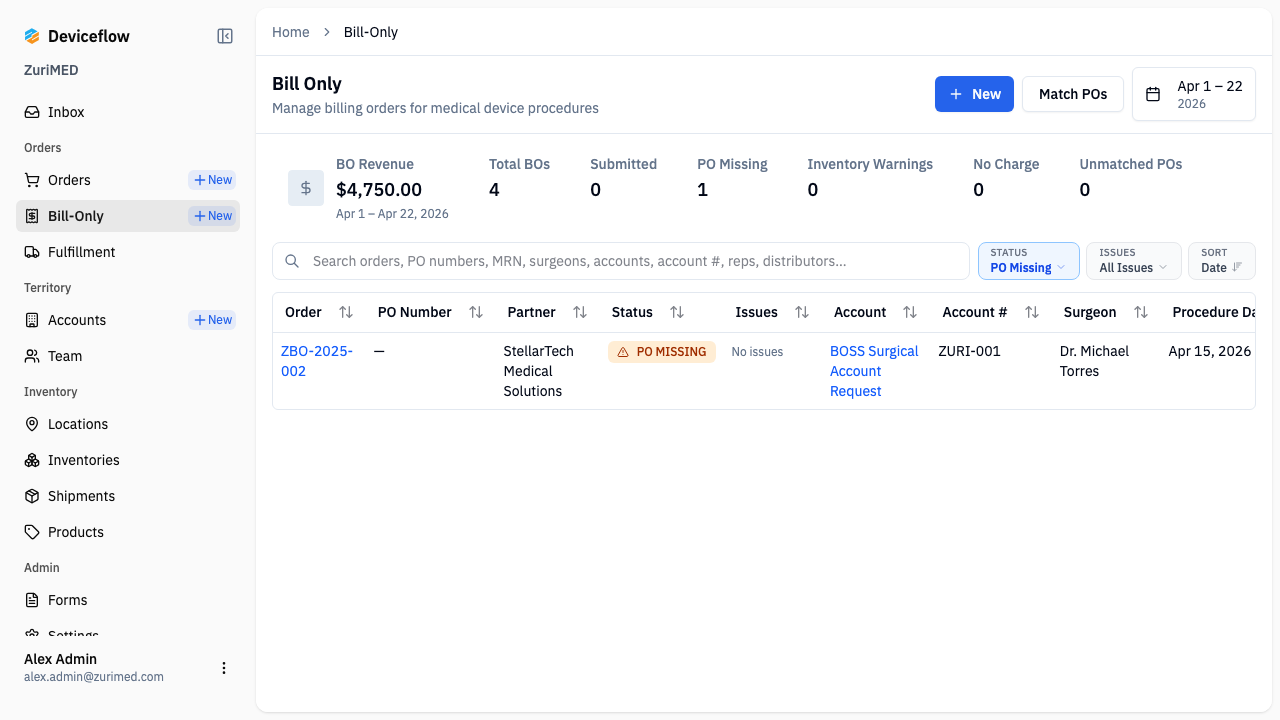

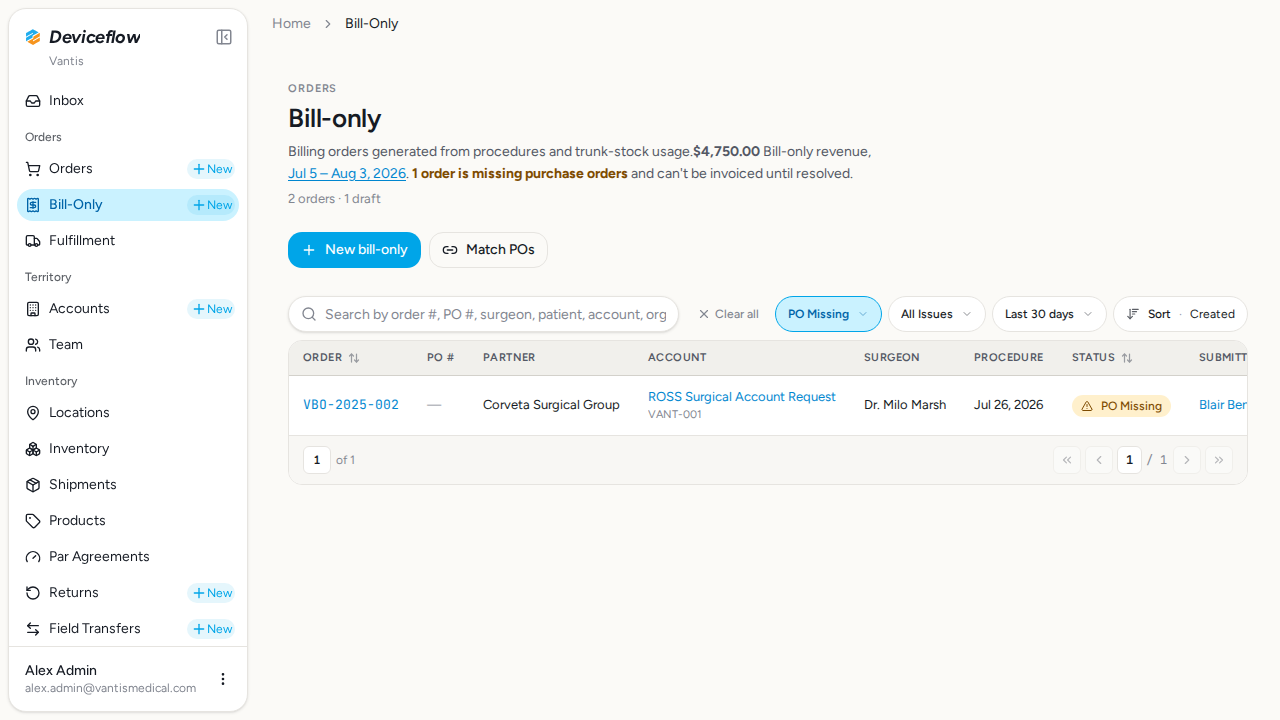

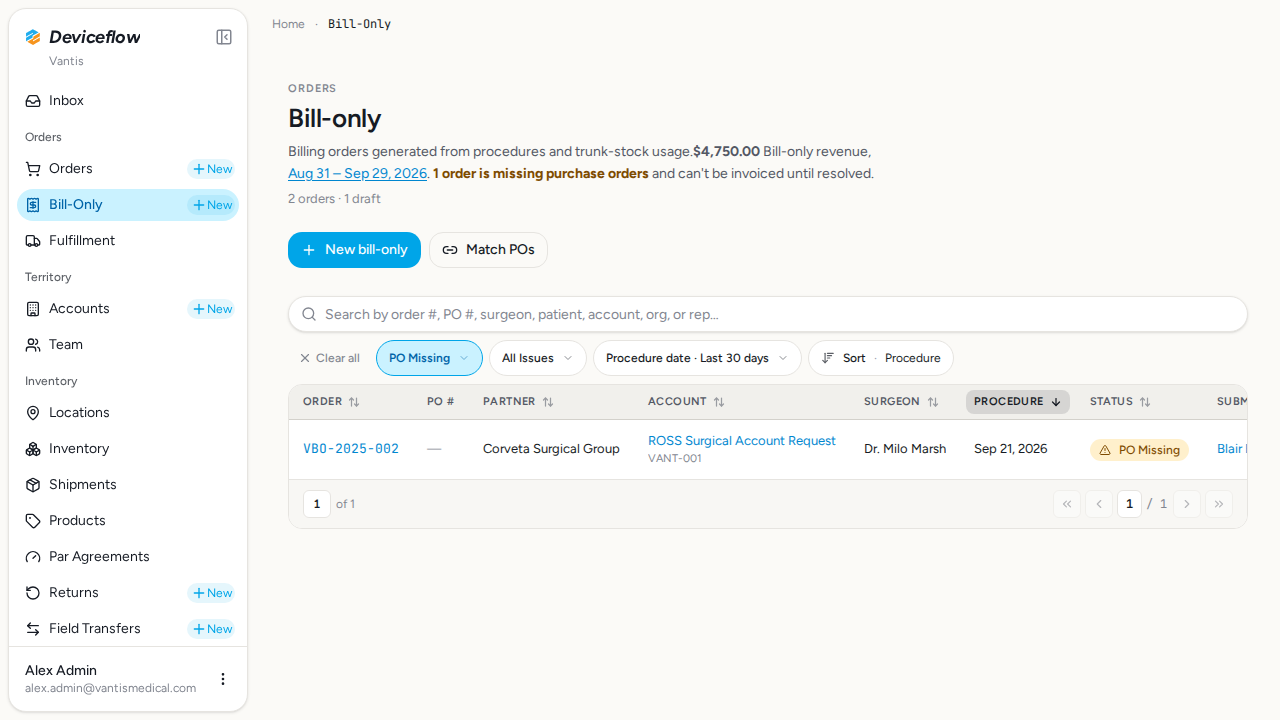

6. Step 3d: BO shown under the PO Missing filter — ✅ PASS

What this step proves:

The billing list filtered by “po_missing” shows ZBO-2025-002. Confirms the status is correctly indexed for filtering so users can find all orders awaiting a PO.

Screenshots:

---

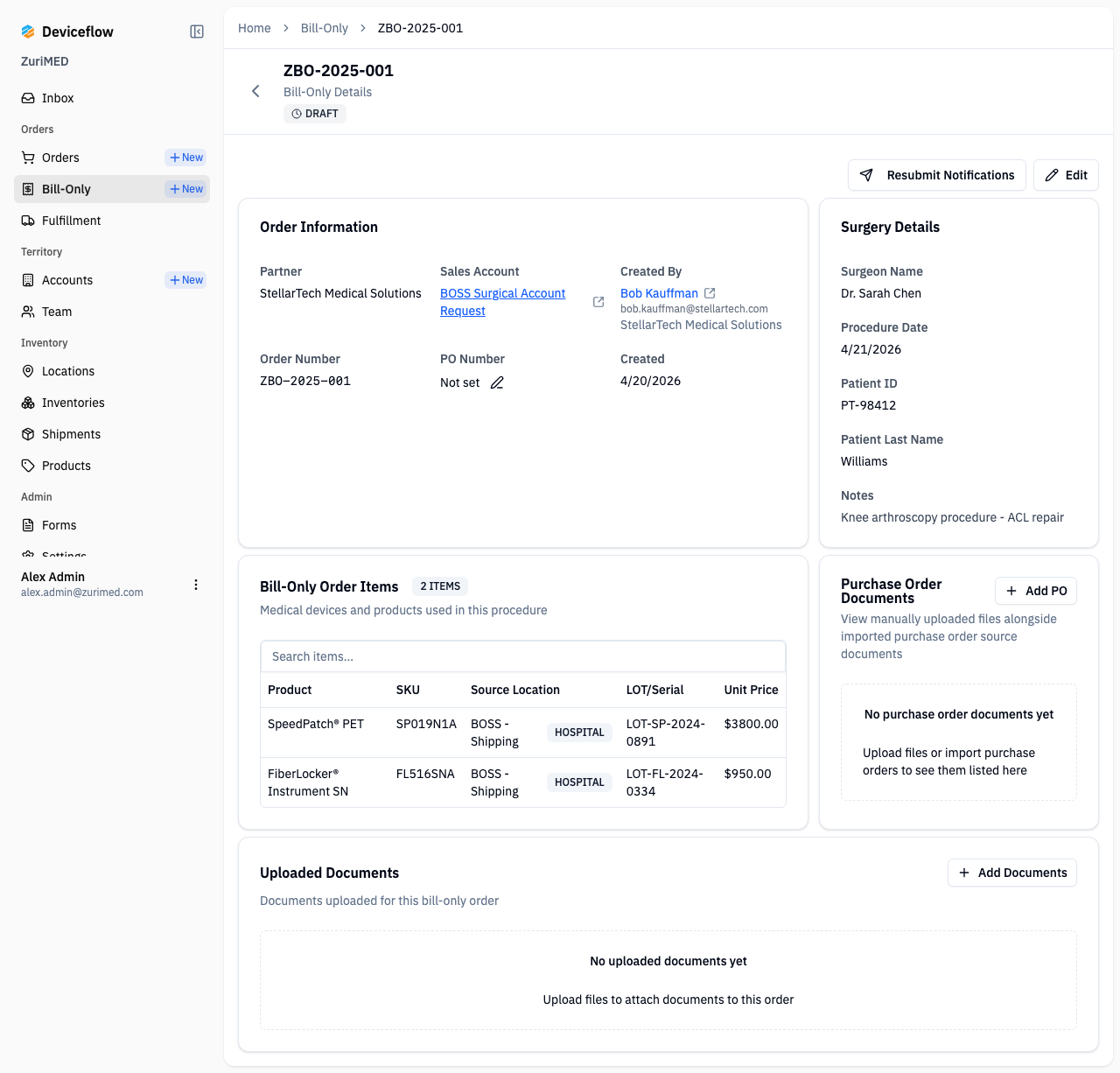

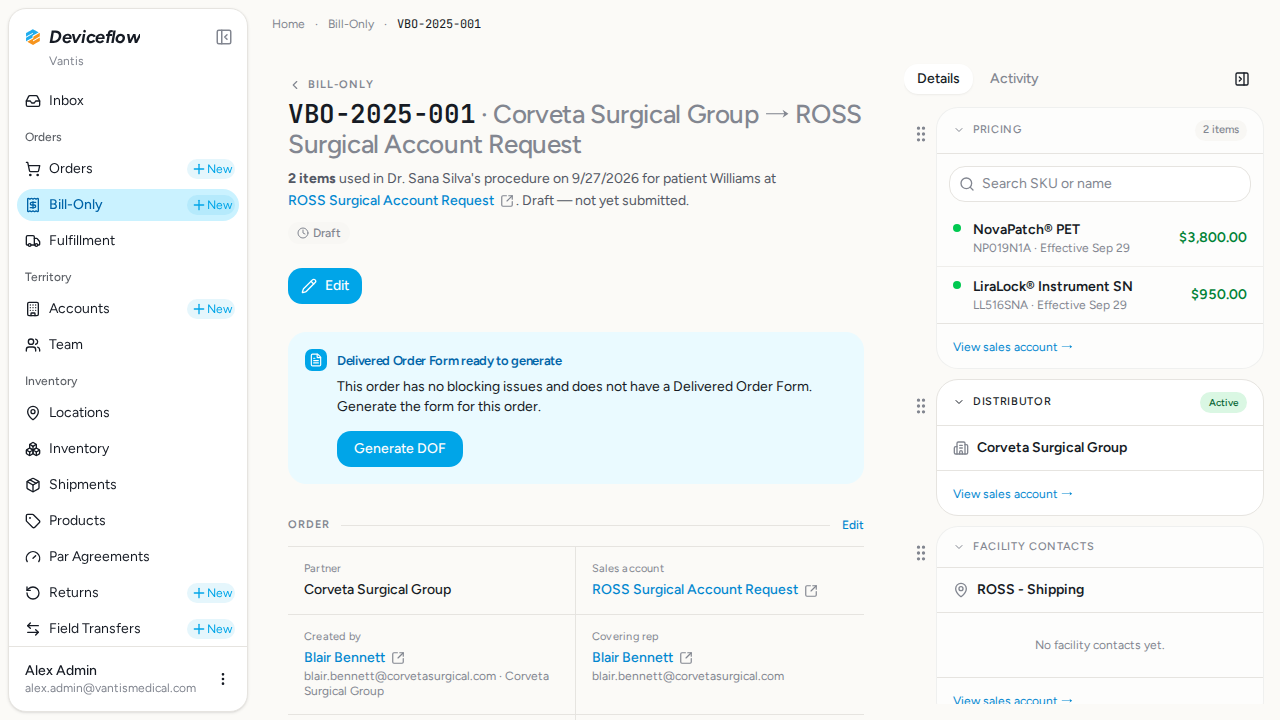

7. Step 4a: BO detail before opening Add PO dialog — ✅ PASS

What this step proves:

Baseline screenshot of the ZBO-2025-001 detail page before the PO upload, confirming the “Purchase Order Documents” section and “Add PO” button are present.

Screenshots:

Video recording:

---

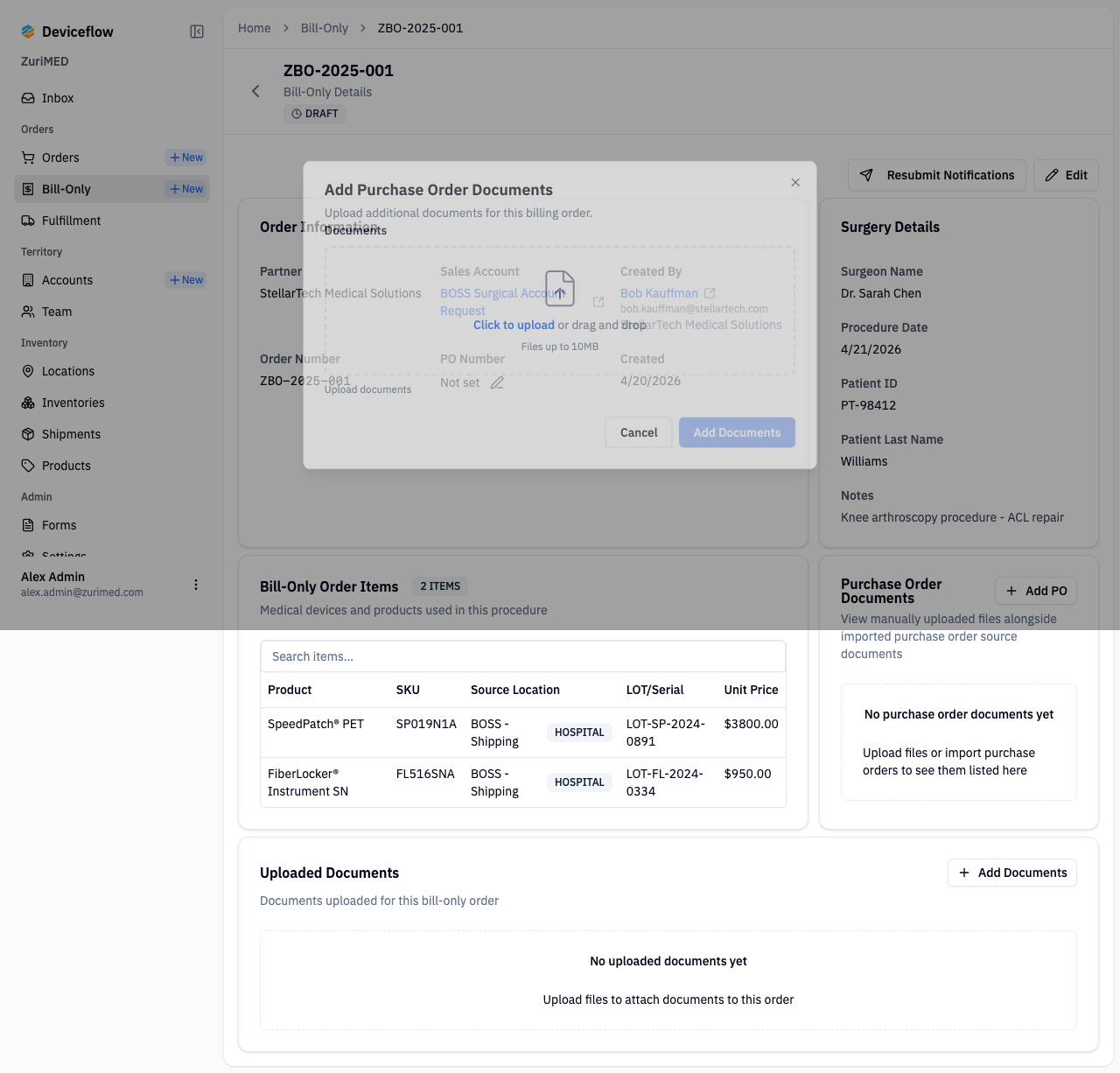

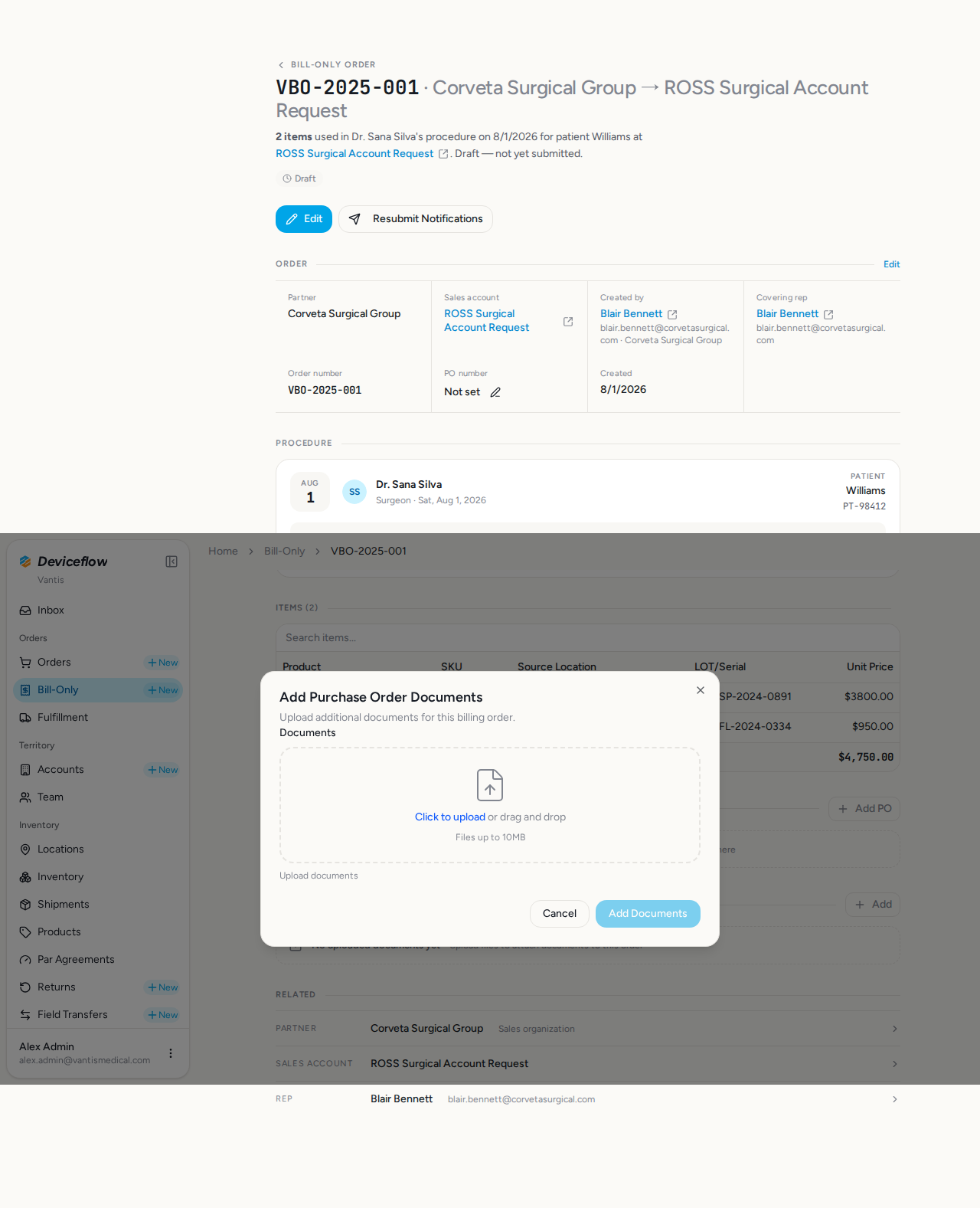

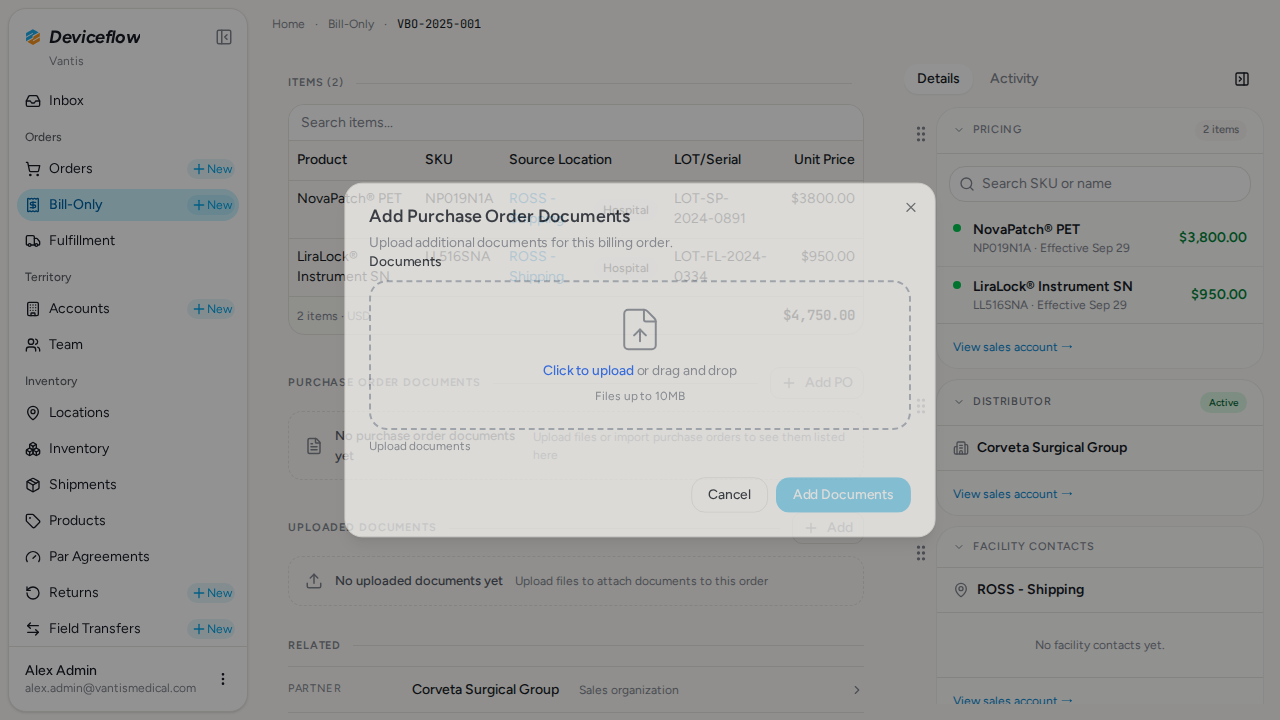

8. Step 4b: Upload dialog open with file-picker — ✅ PASS

What this step proves:

The “Add Purchase Order Documents” dialog is open. The file picker drop-zone is visible and the “Add Documents” submit button is disabled until a file is selected and uploaded, enforcing a complete upload before submission.

Screenshots:

---

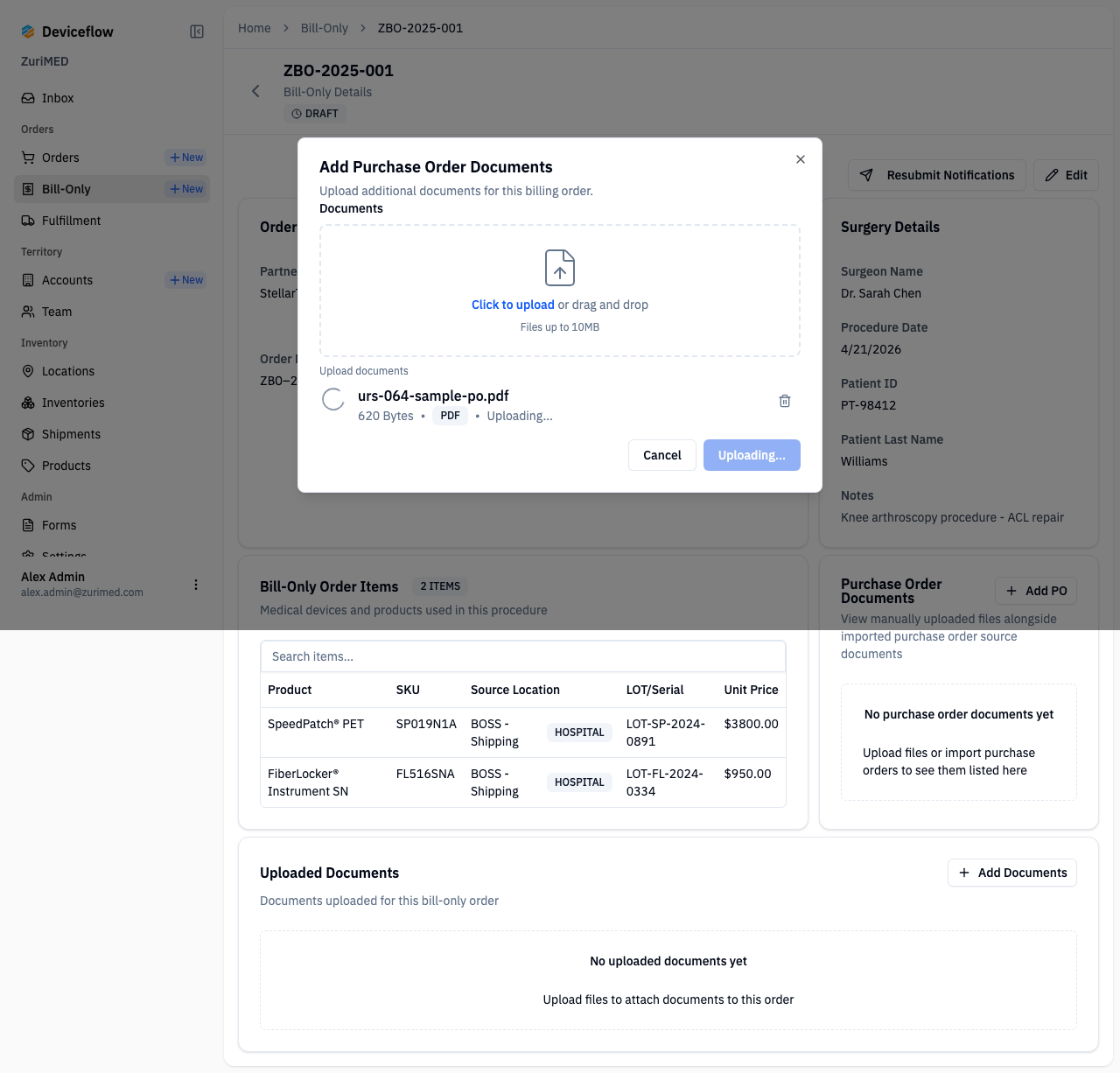

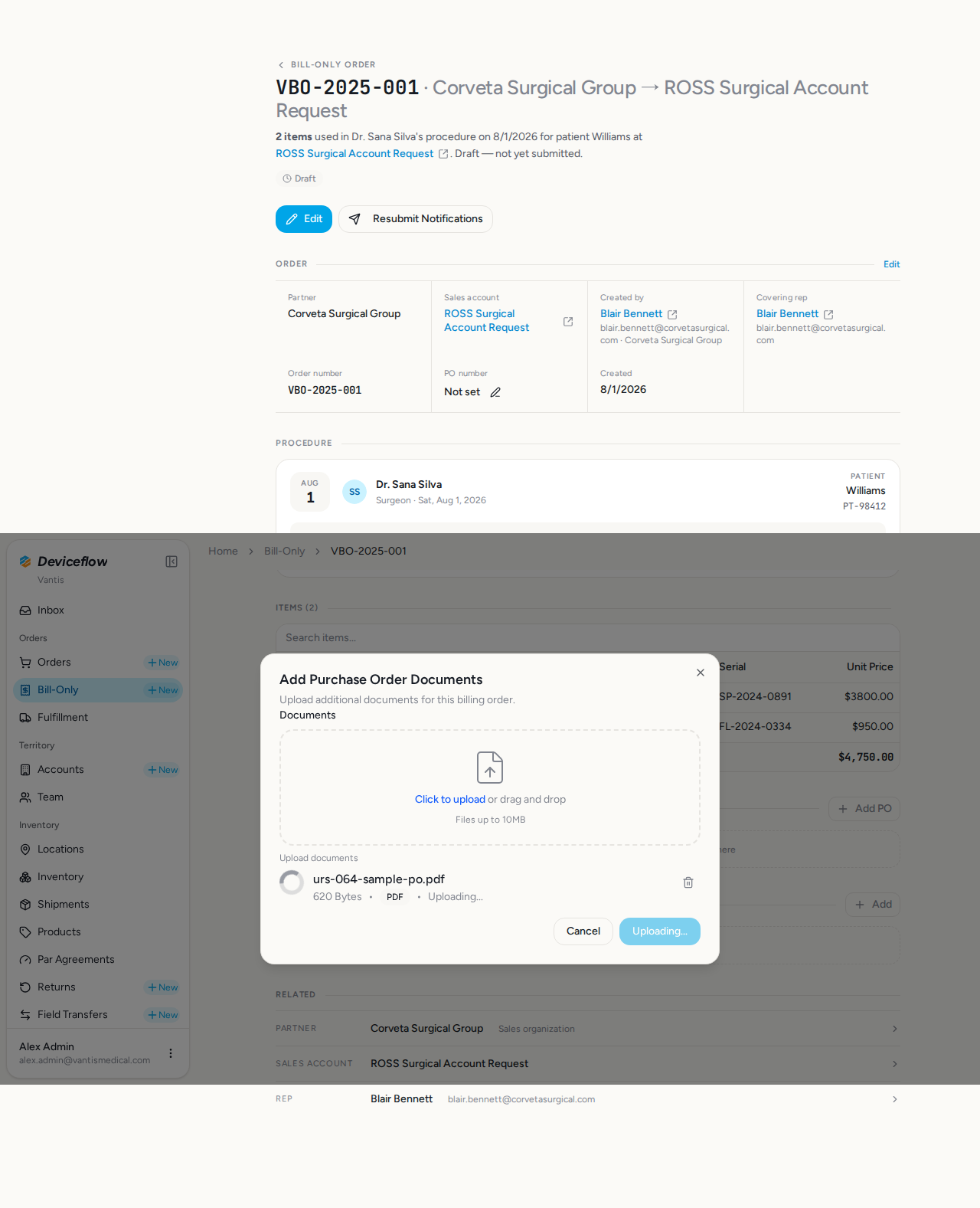

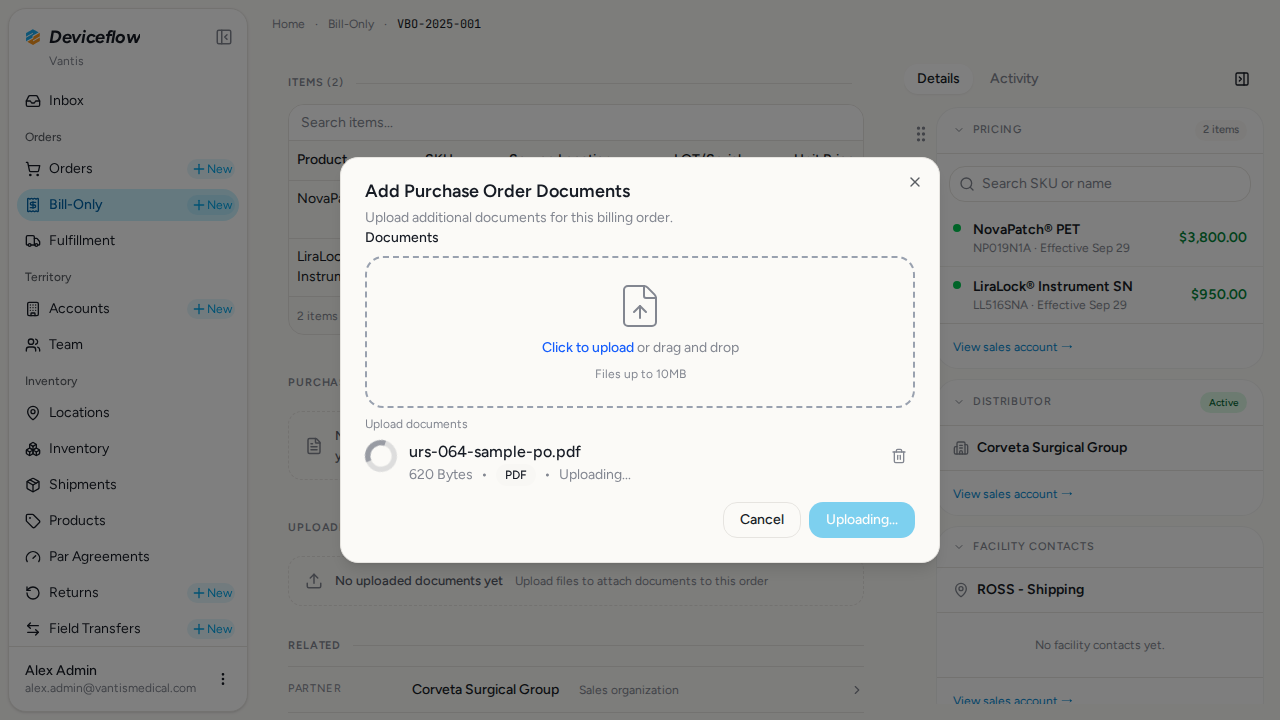

9. Step 4c: PDF file selected in the upload dialog — ✅ PASS

What this step proves:

The sample PO PDF has been selected and the filename appears inside the drop-zone, confirming the FileUploader accepted the file and began the three-step upload sequence (POST /api/form_uploads → PUT to MinIO → POST confirmation).

Screenshots:

---

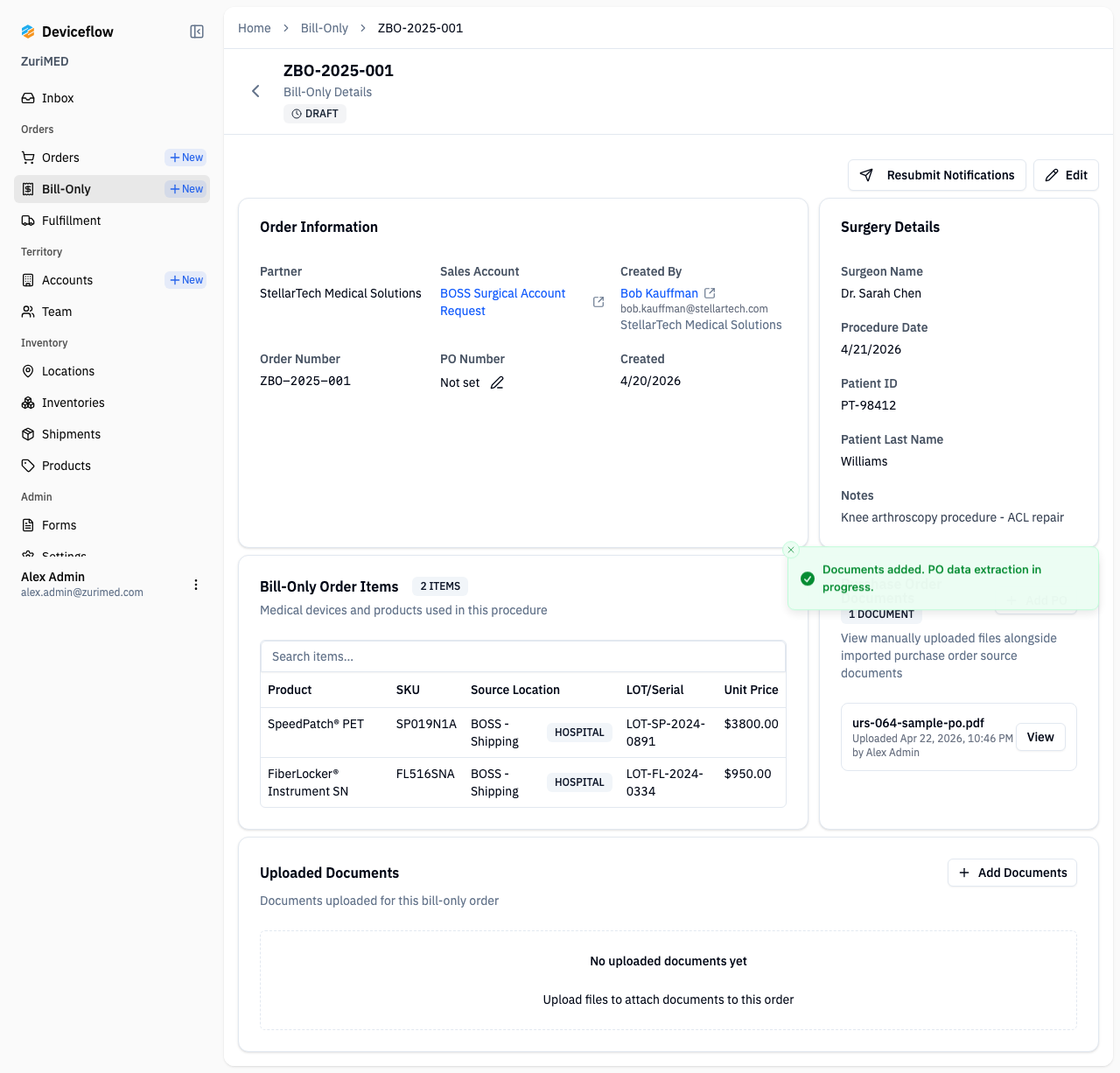

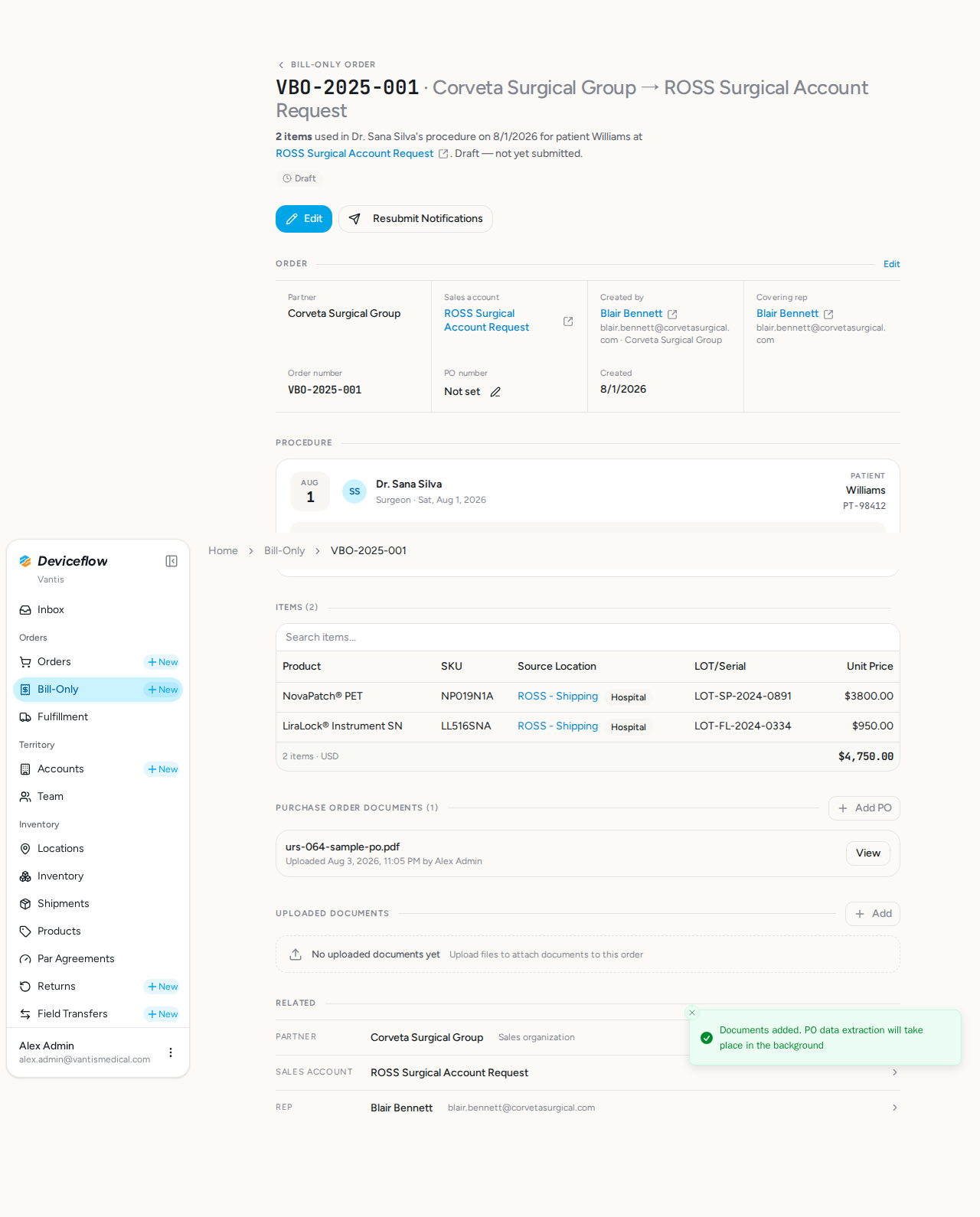

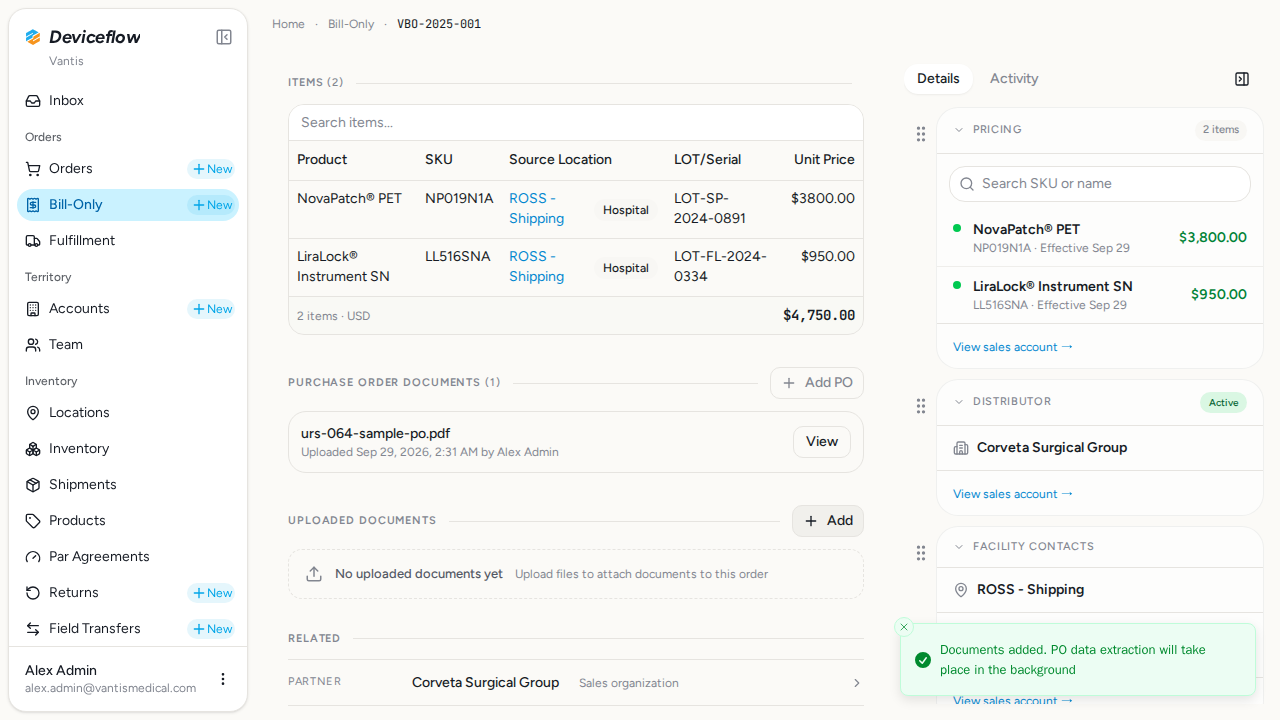

10. Step 4d: PO document attached to the BO — ✅ PASS

What this step proves:

After submitting the dialog, the uploaded PDF filename appears in the “Purchase Order Documents” section on the detail page. Proves the full upload round-trip succeeded and a billing_order_files row was created with file_type=“purchase_order”.

Audit events generated by this step:

(Evidence matched by declared name — step timing not available or no events fell in window)

Time	Type	Action	User	Org	Performed
2026-04-23 03:46:18Z	decision	bill_only_order.enqueue_manual_upload_classification	alex.admin@zurimed.com	ZuriMED	yes

Screenshots:

---

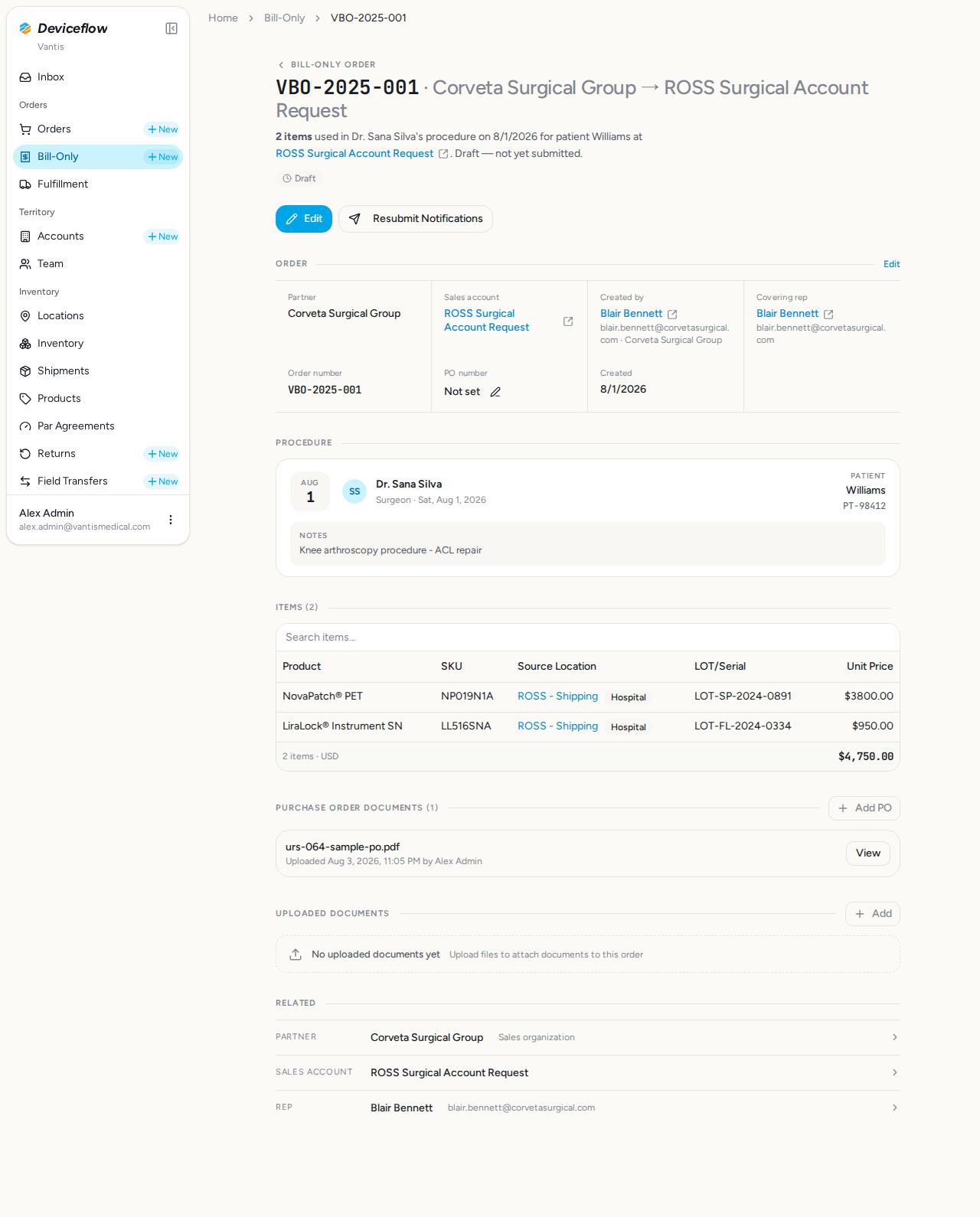

11. Step 5a: PO Number field in read mode — ✅ PASS

What this step proves:

The “PO Number” row on the ZBO-2025-001 detail page is in read mode, showing “Not set” with an edit icon. Establishes the baseline state before manual entry.

Screenshots:

Video recording:

---

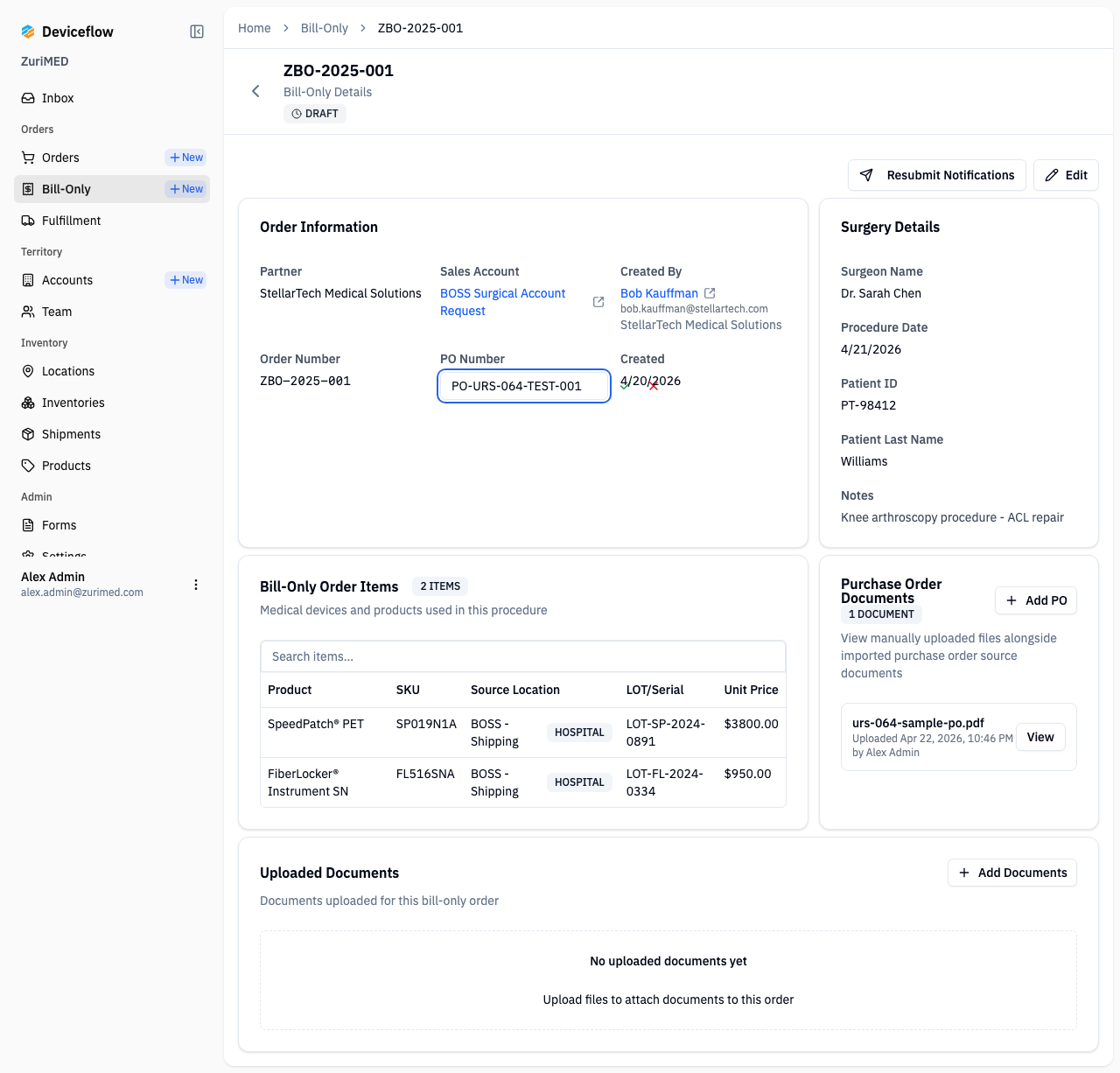

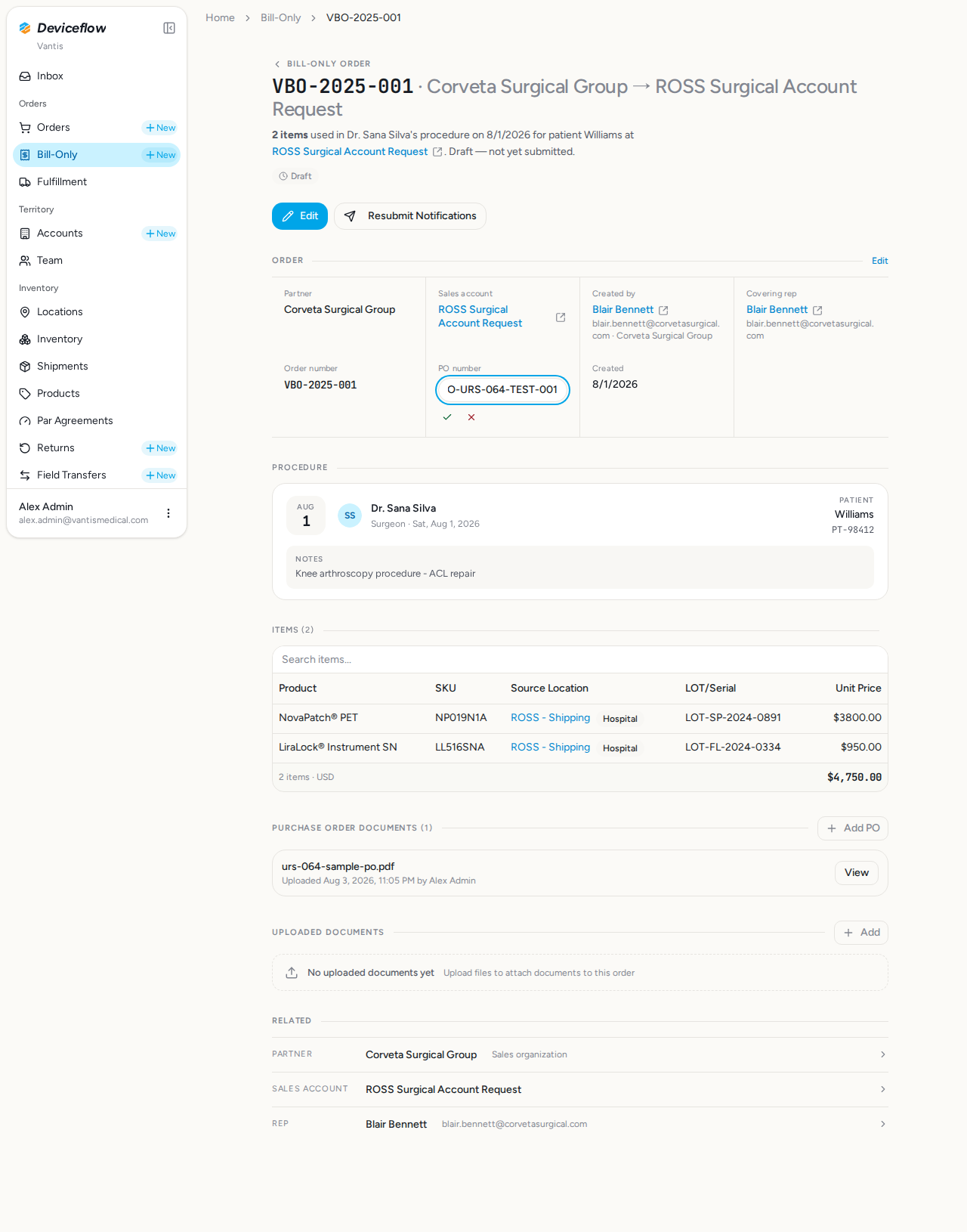

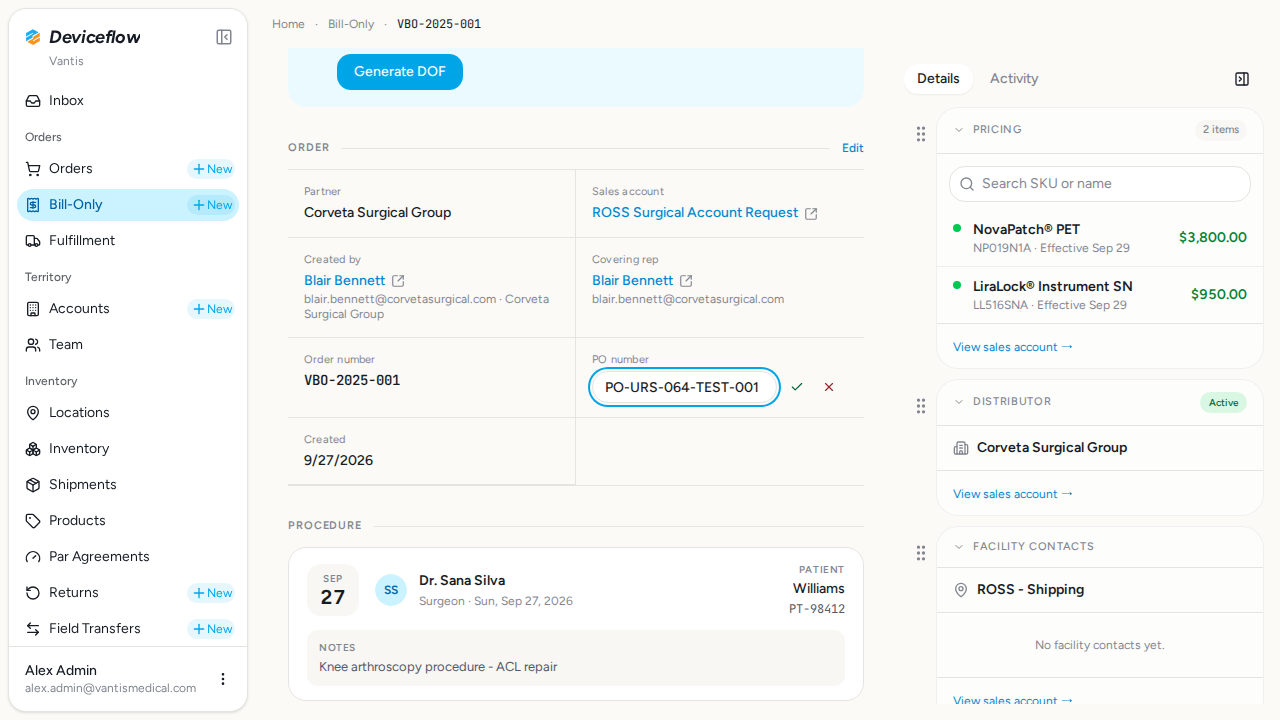

12. Step 5b: PO Number entered — ✅ PASS

What this step proves:

The PO Number inline editor is open and the test PO number has been typed into the input field, ready for submission.

Screenshots:

---

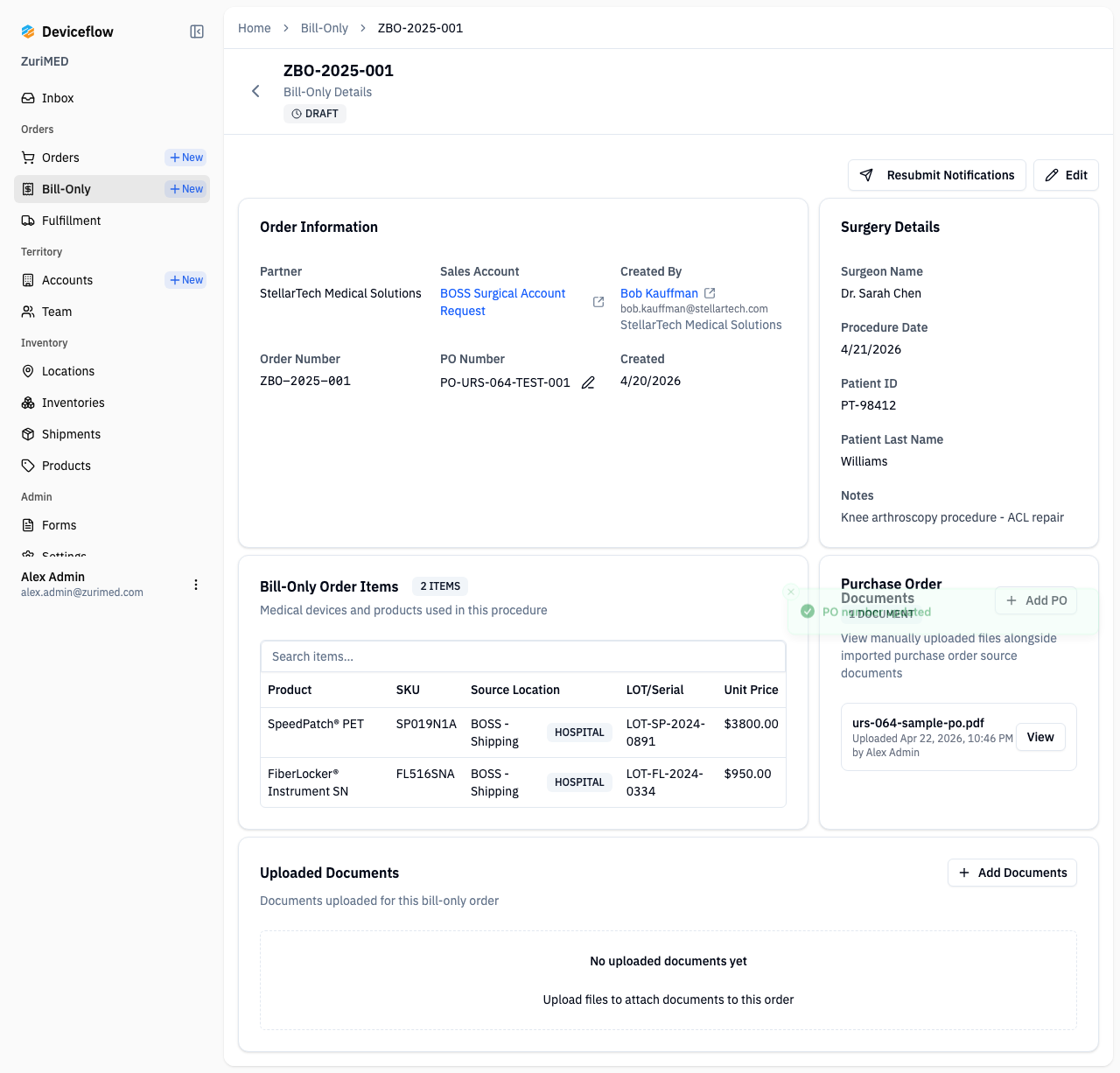

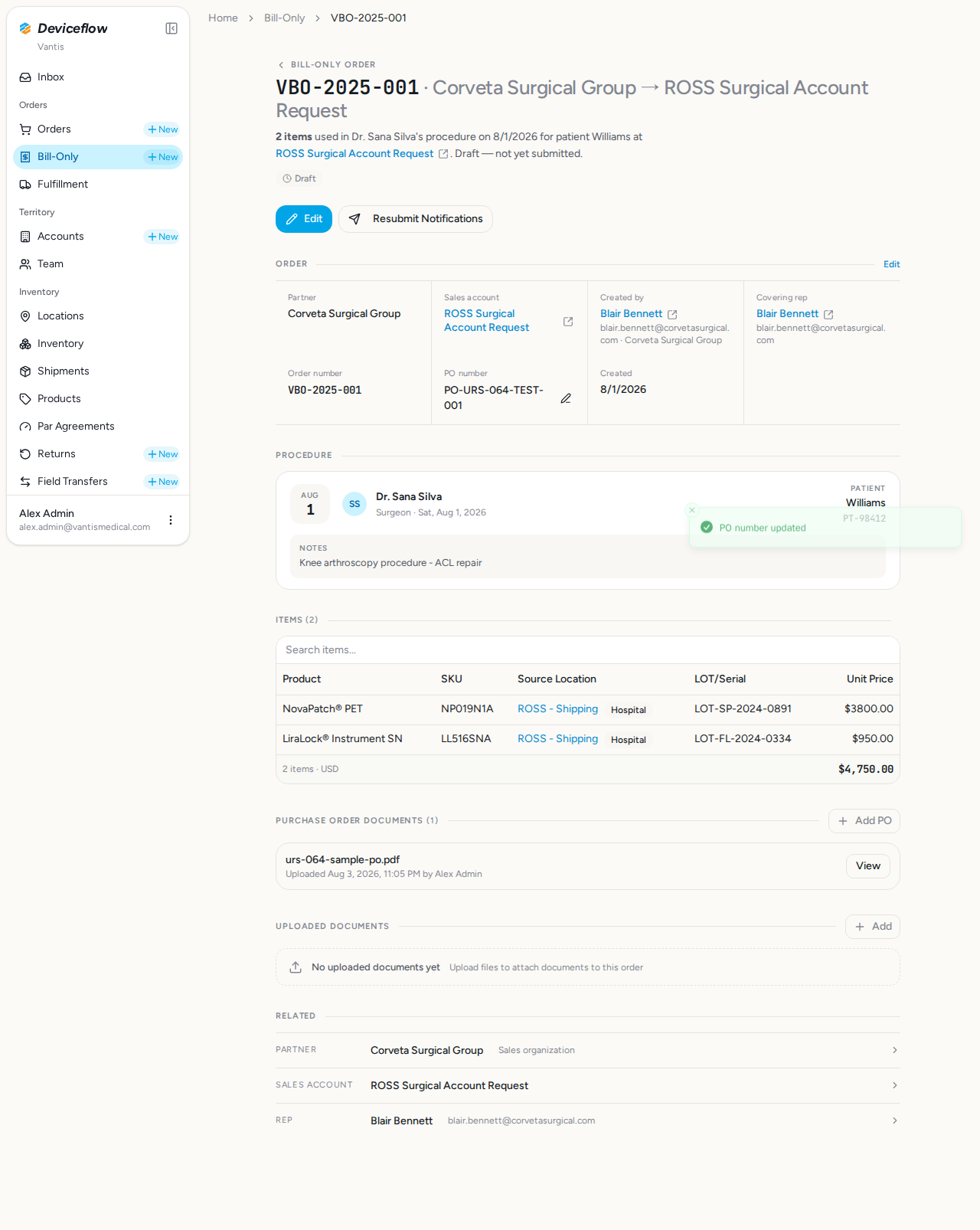

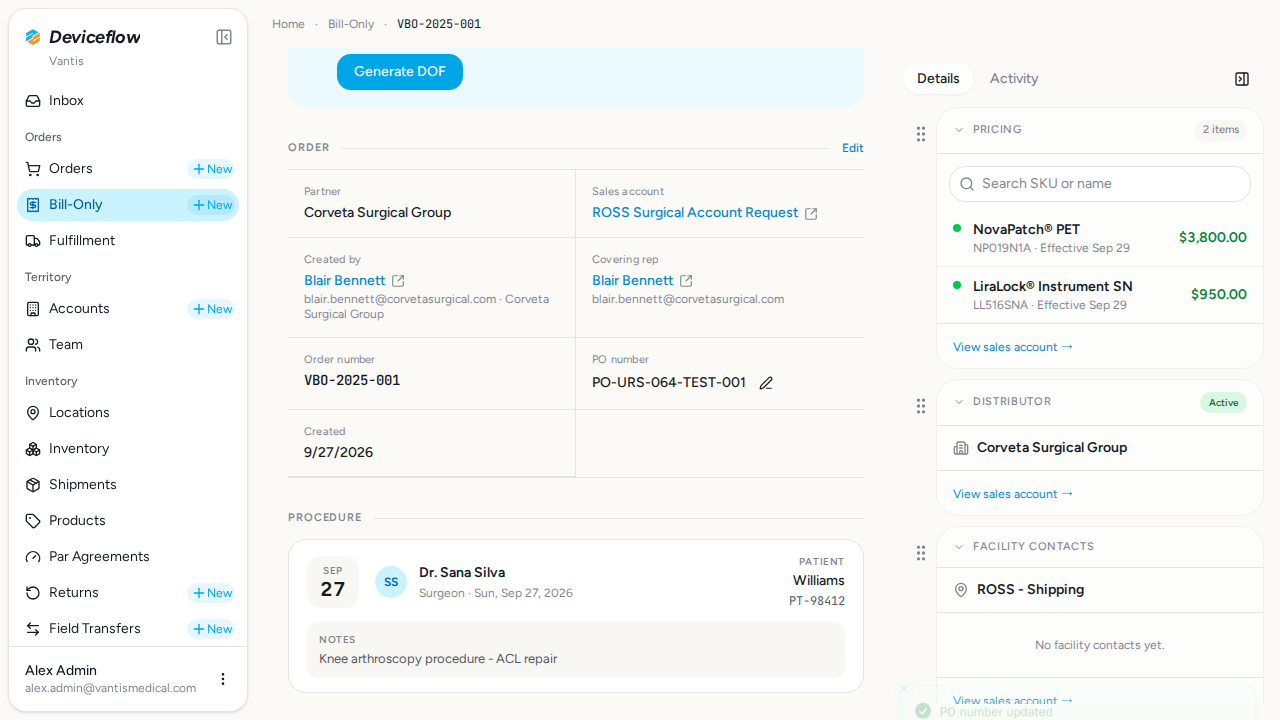

13. Step 5c: PO Number saved — ✅ PASS

What this step proves:

After pressing Enter the form returns to read mode and displays the saved PO number. Proves the EditPoNumberForm persisted the value to the database.

Audit events generated by this step:

(Evidence matched by declared name — step timing not available or no events fell in window)

Time	Type	Action	User	Org	Performed
2026-04-23 03:46:29Z	decision	process_order_edit	—	StellarTech Medical Solutions	no

Screenshots:

---

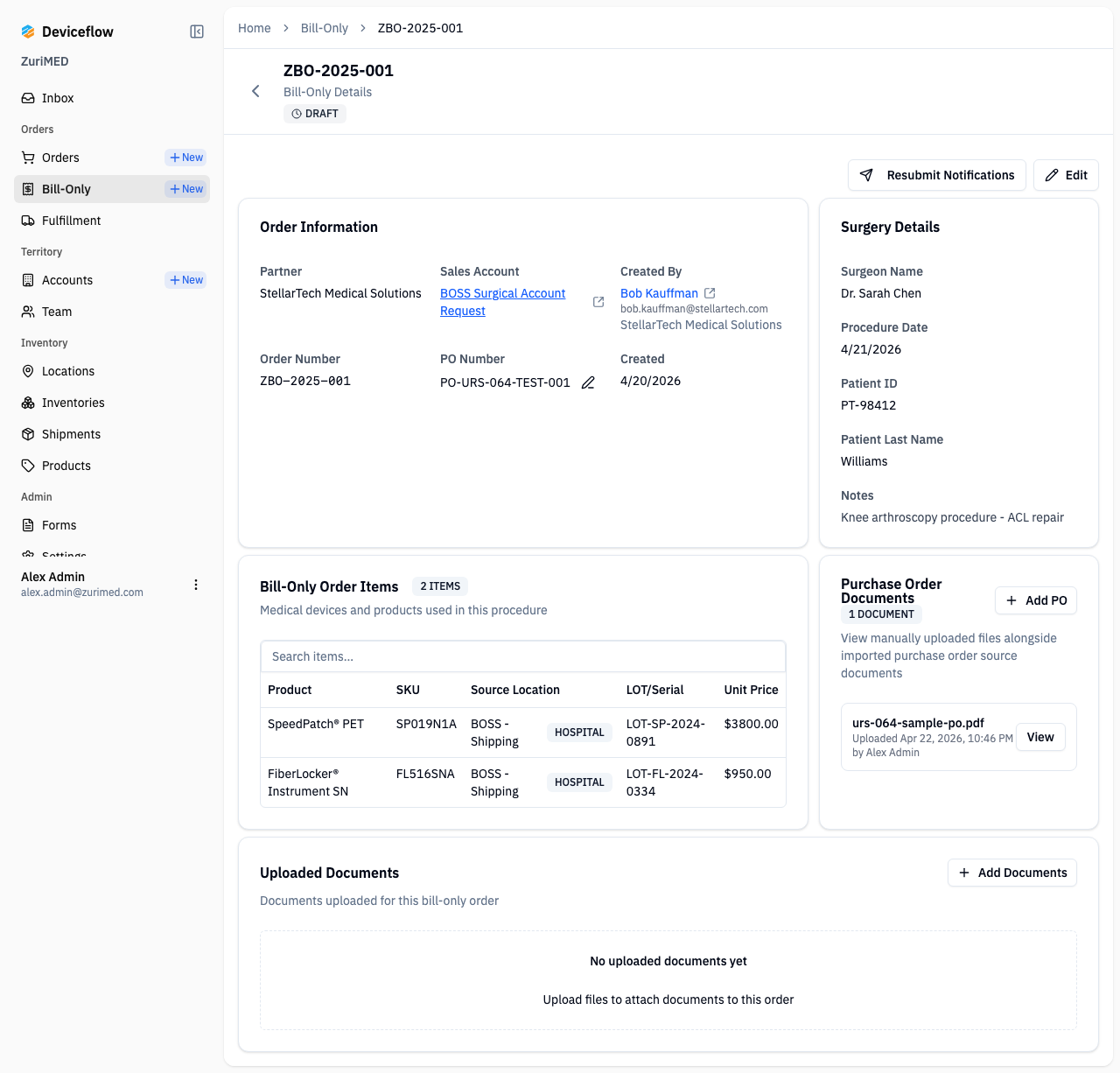

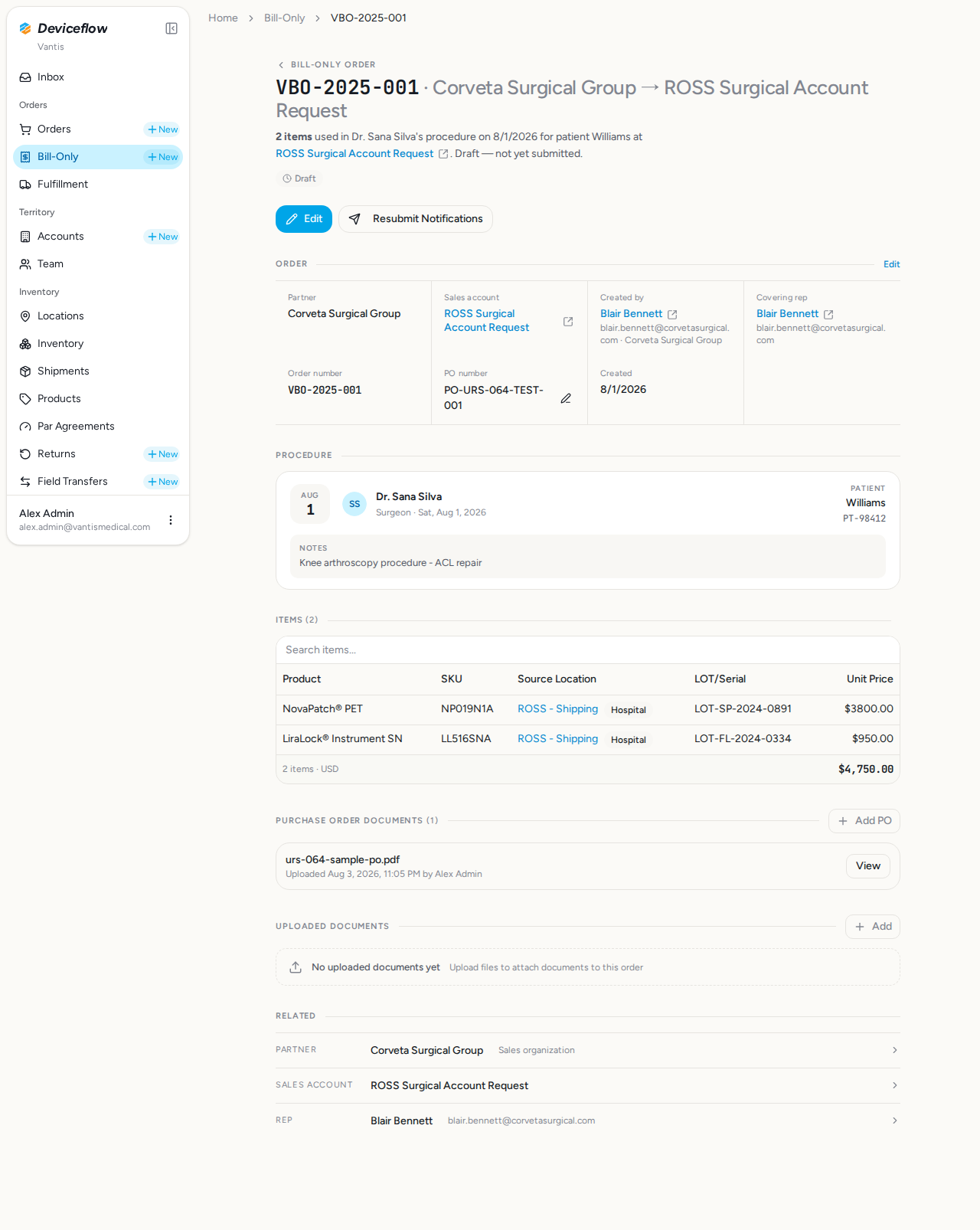

14. Step 6: PO number and document persist after reload — ✅ PASS

What this step proves:

After a hard-reload of the ZBO-2025-001 detail page, both the manually entered PO number and the uploaded PDF filename are still visible. Confirms that all data from Steps 4 and 5 was durably persisted in the database, not just held in client-side state.

Screenshots:

Video recording:

---

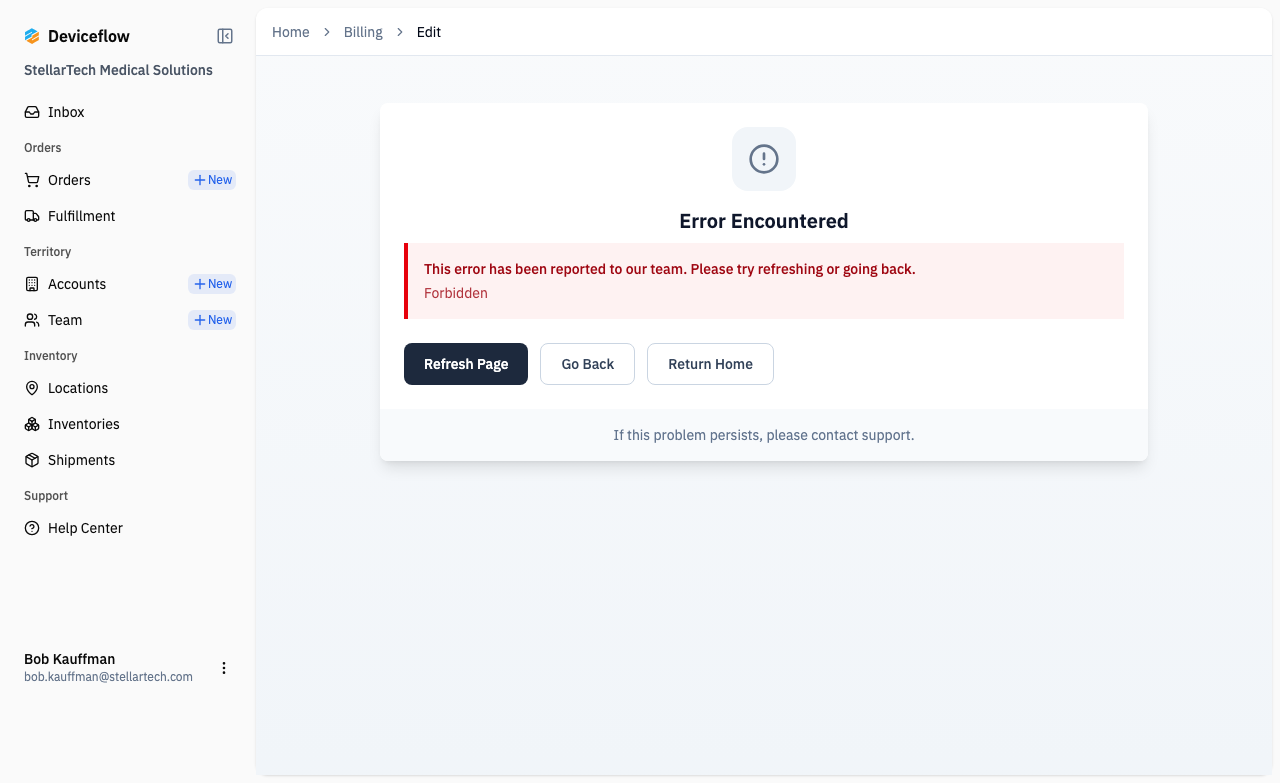

15. Step 7: Change Status button absent for user without billing:manage — ✅ PASS

What this step proves:

Negative permission check: logs in as Bob Kauffman (downgraded to the StellarTech Sales Rep role by setup.ts) and navigates to the same edit page where Step 3 exercised the Change Status dialog. The Sales Rep role grants billing:view (via the bundle:sales_rep implication) so he can load the order, but lacks billing:manage. The button is gated behind canChangeStatus = hasManagePermission && isManufacturer (apps/inbox/src/routes/billing/[orderId]/edit/queries.remote.ts:231), so the expected outcome is that no “Change Status” button appears in the DOM. This proves the UI enforces the permission gate and is not relying on the Change Status action alone (which also rejects on the server via remoteGuard().anyPermission(['billing:manage'])).

Screenshots:

Video recording:

---

Database Validations

The following SQL queries ran against the application database after the Playwright scenarios completed. Each query asserts a specific condition that proves the feature under test persisted its data correctly.

ZBO-2025-002 is po_missing with po_number cleared after the Change Status step — ✅ PASS

Assertion: ZBO-2025-002.status must equal “po_missing” and .po_number must be NULL after the Change Status dialog transitions it (ChangeStatusDialog clears po_number as a side-effect of this status).

  SELECT id, order_number, status, po_number
    FROM billing_orders
   WHERE id = $1

id	order_number	status	po_number
ba000002-0000-4000-8000-000000000002	ZBO-2025-002	po_missing	NULL

ZBO-2025-001 has po_number = “PO-URS-064-TEST-001” after the manual entry step — ✅ PASS

Assertion: ZBO-2025-001.po_number must equal the value typed into the EditPoNumberForm in Step 5.

  SELECT id, order_number, status, po_number
    FROM billing_orders
   WHERE id = $1

id	order_number	status	po_number
ba000001-0000-4000-8000-000000000001	ZBO-2025-001	draft	PO-URS-064-TEST-001

ZBO-2025-001 has a billing_order_files row with file_type=“purchase_order” — ✅ PASS

Assertion: ZBO-2025-001 must have at least one billing_order_files row with file_type=“purchase_order” after the Add PO dialog submits.

  SELECT id, billing_order_id, file_type, created_at
    FROM billing_order_files
   WHERE billing_order_id = $1
     AND file_type = 'purchase_order'
   ORDER BY created_at DESC

id	billing_order_id	file_type	created_at
019db872-17a6-7140-9d7a-5af952f839b7	ba000001-0000-4000-8000-000000000001	purchase_order	2026-04-23T08:46:18.116Z

Audit & Email Assertion Ledger

Per-declaration outcome of every expectedAuditActions and expectedEmailTemplates entry written into the orchestrator. Missing evidence here is a real test failure, not a soft warning.

Audit Action Assertions

Each row asserts that a declared expectedAuditActions entry produced a matching row in audit_events. A ❌ flips overall status to FAIL — the declaration is real proof, not just an annotation.

Step	Expected Audit Action	Found
Step 3: “PO Missing” badge on detail page	decision:manual_status_change	✅
Step 4: PO document attached to the BO	decision:bill_only_order.enqueue_manual_upload_classification	✅
Step 5: PO Number saved	decision:process_order_edit	✅

Audit Log Events

Every row written to audit_events while this test was running (scoped to the demo organizations). Provides compliance evidence that user actions are traced end-to-end (URS-003).

Capture window start: 2026-04-23T03:45:39.935Z

SELECT
    ae.created_at,
    ae.event_type,
    ae.action,
    ae.user_id,
    u.email AS user_email,
    ae.organization_id,
    o.name AS organization_name,
    ae.object_id,
    ae.secondary_object_id,
    ae.payload,
    ae.route,
    ae.trace_id
  FROM audit_events ae
  LEFT JOIN users u ON u.id = ae.user_id
  LEFT JOIN organizations o ON o.id = ae.organization_id
  WHERE ae.created_at >= $1
    AND ae.organization_id = ANY($2::uuid[])
  ORDER BY ae.created_at ASC

10 event(s) captured:

Time	Type	Action	User	Org	Object ID	Performed	Reason
2026-04-23 03:45:44Z	user_log	user:login	alex.admin@zurimed.com	ZuriMED	—	—
2026-04-23 03:45:51Z	user_log	user:login	alex.admin@zurimed.com	ZuriMED	—	—
2026-04-23 03:45:58Z	user_log	user:login	alex.admin@zurimed.com	ZuriMED	—	—
2026-04-23 03:46:06Z	decision	manual_status_change	alex.admin@zurimed.com	ZuriMED	ba000002-0000-4000-8000-000000000002	yes	Manual status change performed
2026-04-23 03:46:11Z	user_log	user:login	alex.admin@zurimed.com	ZuriMED	—	—
2026-04-23 03:46:18Z	decision	bill_only_order.enqueue_manual_upload_classification	alex.admin@zurimed.com	ZuriMED	ba000001-0000-4000-8000-000000000001	yes	Purchase order documents were uploaded manually.
2026-04-23 03:46:22Z	user_log	user:login	alex.admin@zurimed.com	ZuriMED	—	—
2026-04-23 03:46:29Z	decision	process_order_edit	—	StellarTech Medical Solutions	ba000001-0000-4000-8000-000000000001	no	Not first PO link - user can send manually
2026-04-23 03:46:31Z	user_log	user:login	alex.admin@zurimed.com	ZuriMED	—	—
2026-04-23 03:46:39Z	user_log	user:login	bob.kauffman@stellartech.com	StellarTech Medical Solutions	—	—
